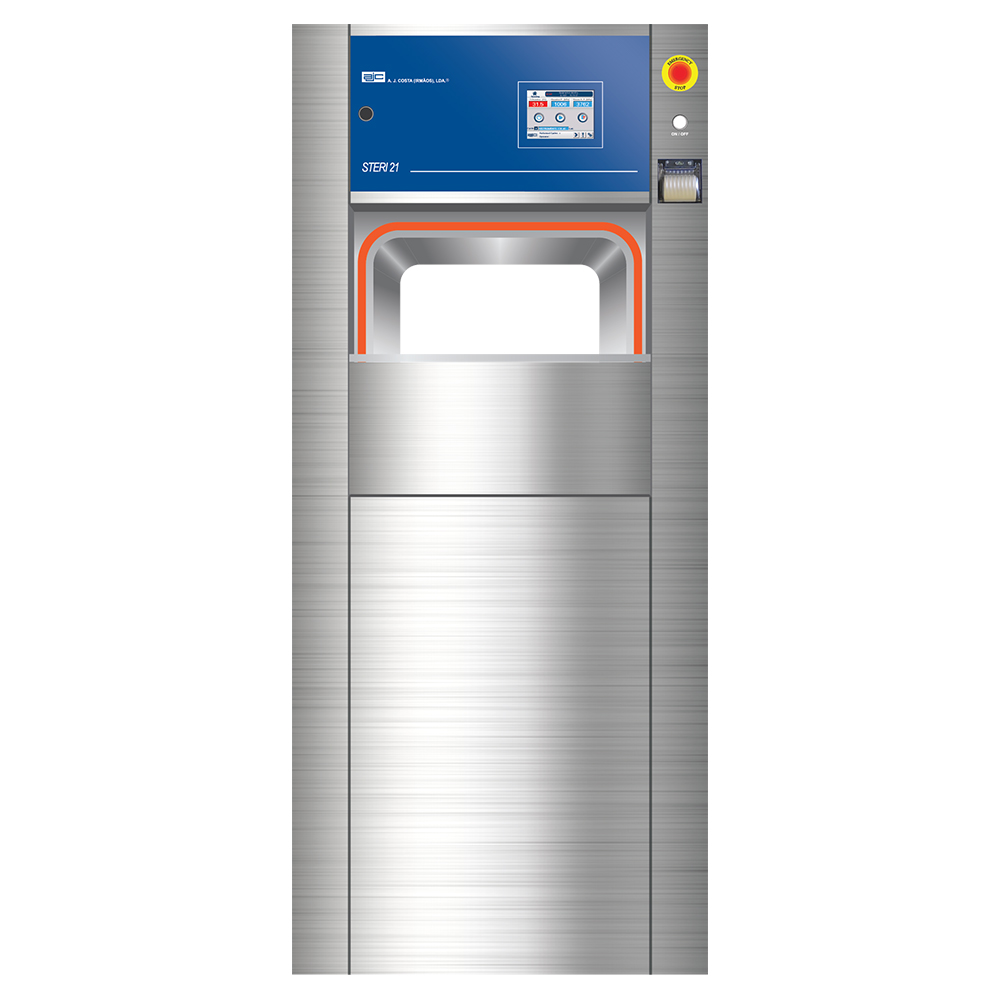

STERI 21
They are steam sterilizers designed for hospitals and small to medium-sized laboratories. The sterilization chamber is rectangular and made of stainless steel AISI 316 L. The doors are automatic vertical sliding and made of stainless steel AISI 316 L. The jacket is made of stainless steel AISI 316 L. Steri 21 steam sterilizers are controlled by electric valves and have motorized ports, so steam sterilizers do not need compressed air. Front or side service access.
Features :
Integral steam jacket;
-Computerized command of cycles;
-Validated cycles for typical hospitalary loads;
-Counting of sterilizations performed;
-Real-time printing of cycle parameters;
-Safety-stop system for door movement in case of obstruction;
-Safety system against door opening in case of power failure;
-Incorporated energy and water saving systems;
-Extended listing with errors associated to eventual cycle-specific failures;
-Chamber electrolytic polishing;
-Chamber and jacket in AISI 316L stainless steel;
-Equipment fully built in stainless steel, free of ferrous materials
-Optionally supplied with 1 or 2 sliding doors;
-Accurate pressure and temperature sensors.
-MODEL 40.40.66
CHAMBER DIMENSIONS (LxAxP) cm 40x40x66
VOLUME liters 105
OUTDOOR DIMENSIONS(LxAxP) cm 70x183x98
-MODEL 50.50.66
CHAMBER DIMENSIONS (LxAxP) cm 50x50x66
VOLUME liters 165
OUTDOOR DIMENSIONS(LxAxP) cm 80x183x98
-MODEL 50.50.100
CHAMBER DIMENSIONS (LxAxP) cm 50x50x100
VOLUME liters 250
OUTDOOR DIMENSIONS(LxAxP) cm 80x183x132
Accessories:
-Outdoor cargo car;
-Rolling load platform;
-Cargo baskets;
-Silent air compressor;
-Water softener.
Programs/Cycles:
-Chamber pre-heating 134 ºC
-Wrapped textiles 134 ºC
-Wrapped instruments 134 ºC
-Instruments in containers 134 ºC
-Sensitive materials 121 ºC
-Prions or Quick 134 ºC
-Bowie & Dick 134 ºC
-Vacuum
External network connections
Network Features
-ELECTRIC 3 ~ + N + G 400 V / 230 V 50 Hz 26, 32, 38 kW
-WATER Maximum pressure 6 Bar
Minimum pressure 3 Bar
Connection 3/4” BSP
-PNEUMATIC Maximum pressure 7,5 Bar
Minimum pressure 4 Bar
Ligação 3/8” male connection
-DRAIN Material resistant to 100 ºC
Connection 2” BS
