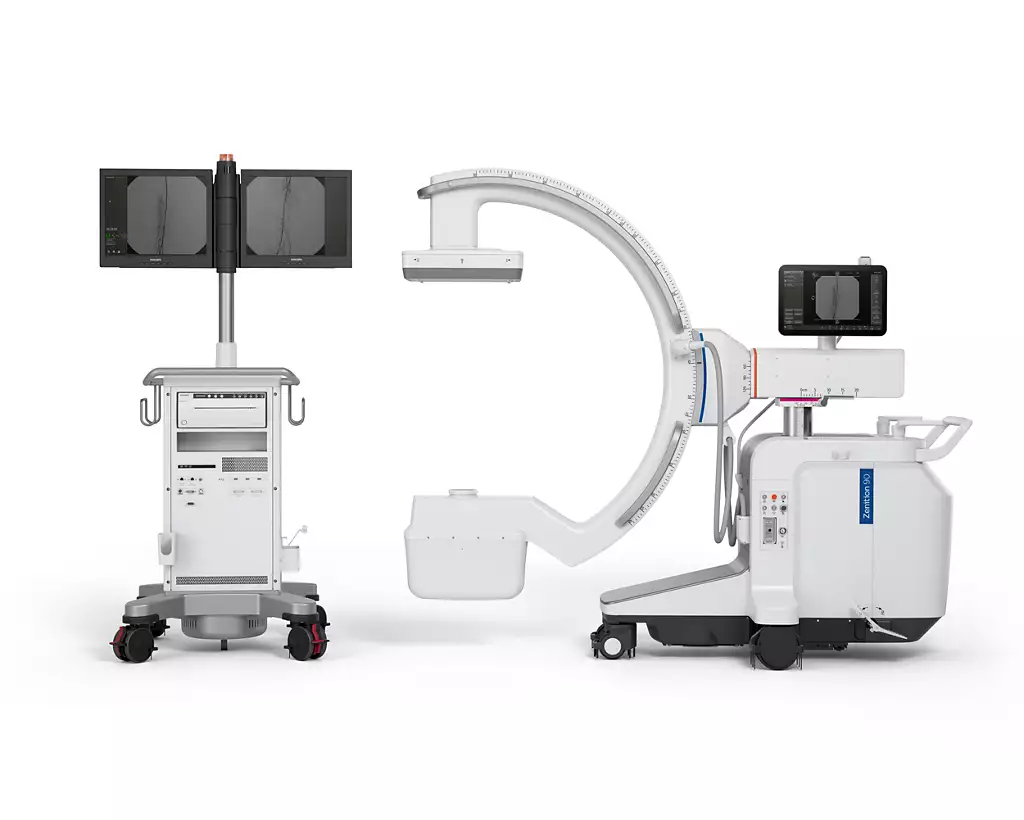

Motorized mobile C-arm with flat detector
Brand
- Philips Healthcare
Model
- Zenition 90 Motorized
Manufacturing Country
- United States
Quality Certificates
CE MARKING
FDA 510(k)
ISO 13485
ISO 9001
Specification
• X-ray generation
X-ray generator - Monoblock 40 KHz high frequency generator - X-ray tube - Rotating Anode(tube)
Maximum generatoroutput - 15 kW or 25 kW
• Flat detector
Flat detector-Trixell amorphous silicon detector- Matrix size - FD12: 1344 x 1344 pixels FD17: 1956 x 1956 pixels
Detector Area - FD12:21 cm x 21 cm (8.15" x 8.15") FD17: 30 cm x 30 cm (11.86" x 11.86") - Pixel pitch -154 μm
• Connectivity
USB storage - PNG, MP4, BMP - Wireless data transfer - Standard
Video in (optional) - S-Video, DVI (digital and analog), SDI - Advanced DICOM/IHE package - Modality Worklist Mgmt, Modality Performed Procedure Step, Storage Commit
Digital video out - 2 DVI connectors for the live and reference monitor
