ICU Ventilator
Brand
- Hamilton Medical AG
Model
- HAMILTON‑C1
Manufacturing Country
- Switzerland
Quality Certificates
CE MARKING
ISO 13485
ISO 9001
Specification
Our all rounder. On duty wherever you need it
- ICU / PICU / NICU
- Emergency room
- Step down unit
- Long term acute care
- Intrahospital transport
From minimal to maximal support. Your choice of ventilation therapy
- High flow nasal cannula therapy
- Noninvasive ventilation
- Volume‑controlled and pressure‑controlled ventilation modes
- Adaptive ventilation with ASV® and INTELLiVENT®‑ASV

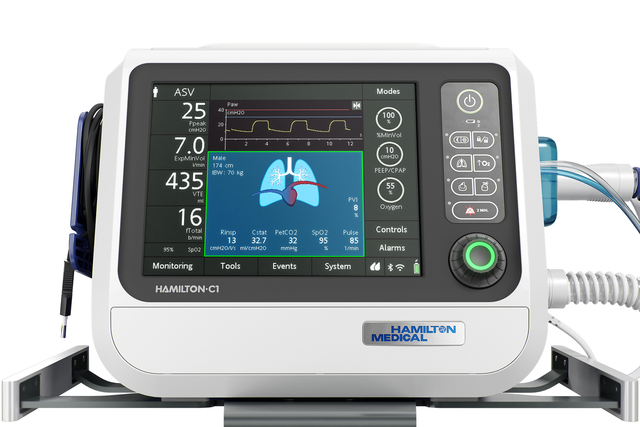

- More than 1,000 words. Visualization of the lung condition
The Dynamic Lung panel displays lung compliance, airway resistance, and patient‑triggering in synchrony with the actual breaths.

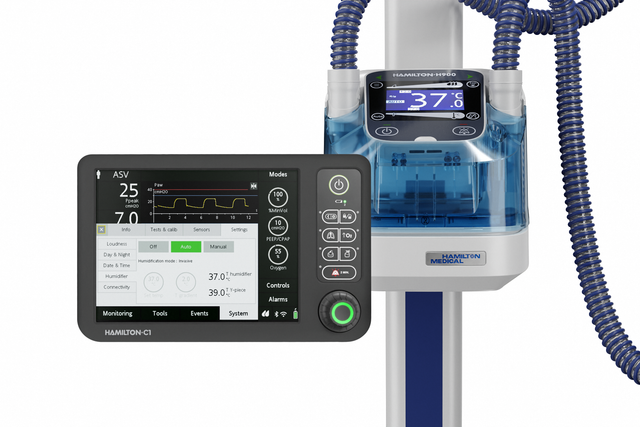

- Humidifier controls and status. On the ventilator display
Operate the HAMILTON‑H900 humidifier comfortably directly from the ventilator display. The HAMILTON‑H900 synchronizes with the ventilator and selects the humidification mode automatically based on the ventilation mode.

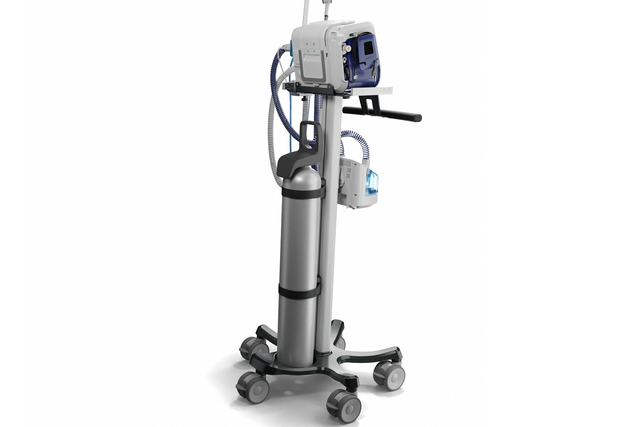

Fiercely independent. No compressed air and battery powered
- High‑performance turbine
- Four hours of battery time
- Oxygen cylinder holder
The Speak Valve option gives tracheostomized patients a voice and allows them to swallow even while receiving respiratory support from the ventilator.
The ventilator's monitoring, triggering, and alarm management are adjusted for compatibility with speaking valves in pressure‑controlled modes (PCV+, SPONT, PSIMV+).
The sooner the better. Early mobilization
With its high‑performance turbine, battery, compact size, and state‑of‑the‑art ventilation modes, the HAMILTON‑C1 is also at your patient's side for their first steps out of bed.
* Technical data :-
Patient groups ::Adult/Ped, Neonatal
Dimensions (W x D x H) ::310 x 210 x 245 mm (ventilation unit) / 630 x 630 x 1380 mm (incl. trolley)
Weight ::4.9 kg (10.8 lb)
16.9 kg (37.3 lb) with trolley
Monitor size and resolution : 8.4 in (214 mm) diagonal
640 x 480 pixels
Battery operating time ::4 h with one battery
Air supply ::Integrated turbine
O2 connector ::DISS (CGA 1240) or NIST
Connectivity ::CO2/Nurse Call/COM1, CO2/SpO2/COM1, CO2/SpO2/Humidifier & COM1, USB port, RJ 45 Ethernet port
Loudness ::43 dB in normal operation
