Dry Laser Printer - Dicom Printer
Brand
- COLENTA Labortechnik GmbH & Co KG
Model
- HighCap Xp / XLp
Manufacturing Country
- Austria
Quality Certificates
ISO 13485
ISO 9001
Specification
Specifications :

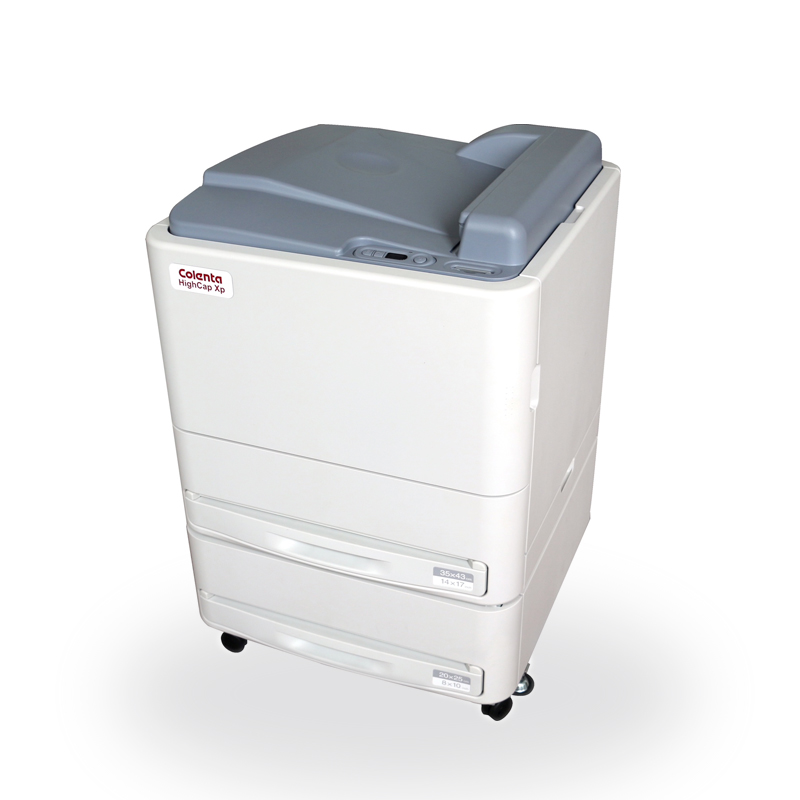

- High Cap Xp :
- Film magazines :
2 trays online
- Processing Capacity :
approx. 80 sheets/hour
- Weight :
104 kg (229.3 lbs.)
- Dimensions (WxDxH) :
610mm x 630mm x 893 mm
(24” x 25” x 35”)

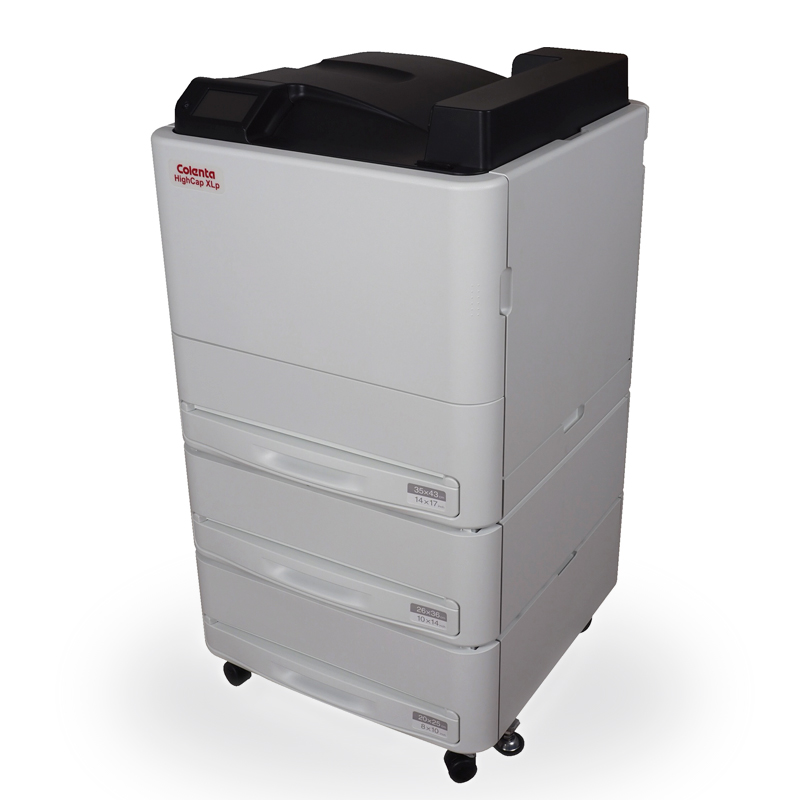

- High Cap XLp :
- Film magazines :
3 trays online
- Processing Capacity :
approx. 110 sheets/hour
at 35cm x 43cm (14” x 17”)
approx. 160 sheets/hour
at 20cm x 25cm (8” x 10”)
- Weight :
125 kg (275.6 lbs.)
- Dimensions (WxDxH) :
610mm x 630mm x 1125 mm
(24” x 25” x 44”)
- Recording Method :
Laser exposure thermal development system
- Applicable Film :

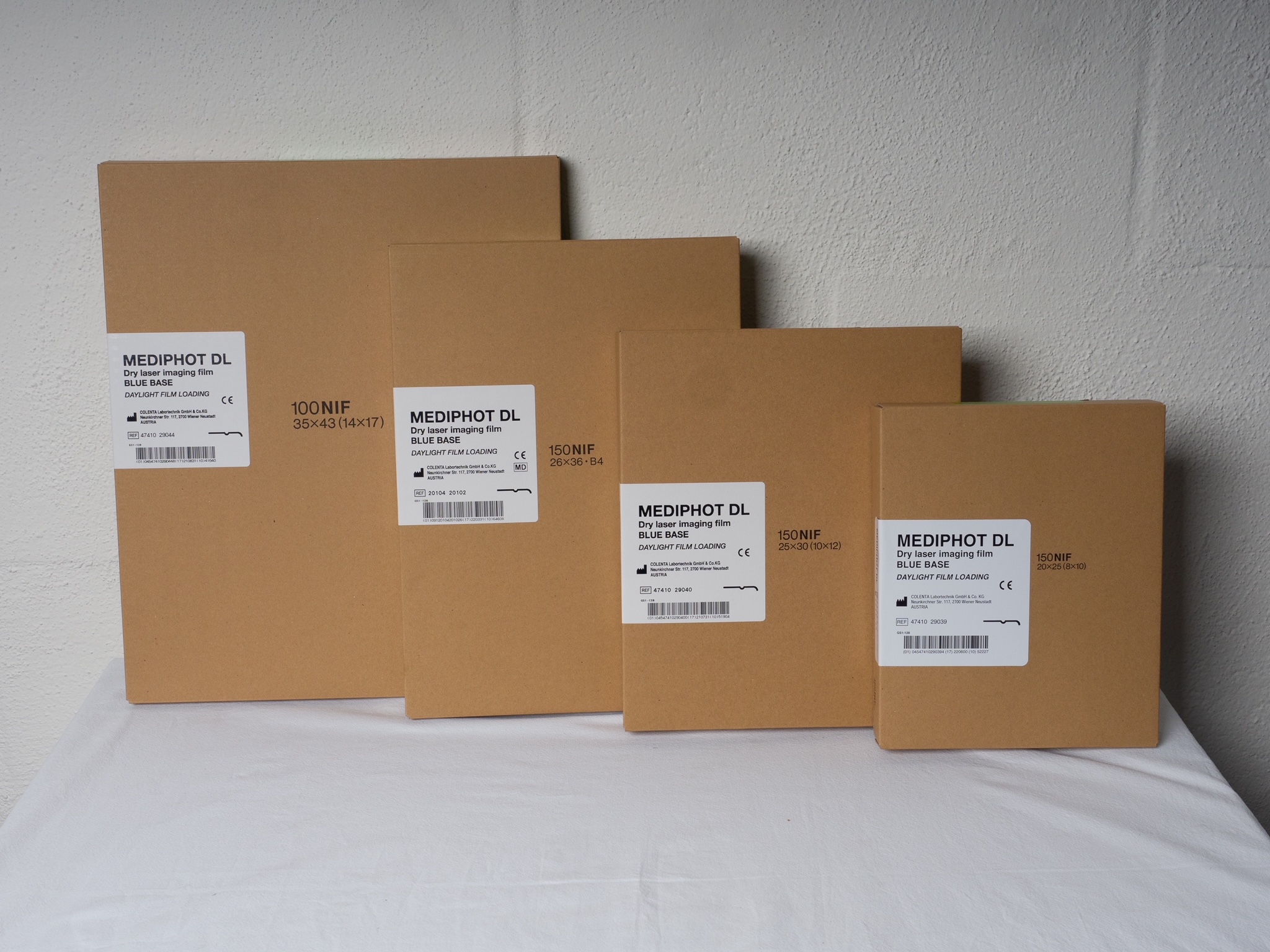

MEDIPHOT DRY IMAGING FILM DL (100/150 sheets/pack)
35cm x 43cm (14” x 17”), 26cm x 36cm (10” x 14”),
25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”)
MEDIPHOT DRY IMAGING FILM DLM for Mammography (150 sheets/pack)
25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”)
- Film loading :
Daylight film loading
- Pixel size :
50 um (508 dpi) / 100 um (254 dpi)
- Recording gradation :
14 bits (16383)
- Image Memory :
1 GB
- Density adjustment :
Automatic density correction
- Input channels :
DICOM network input
(max. 10 simultaneous connection associations)
- Power Supply Conditions :
Single phase 50-60Hz
AC100-240V±10%
- Environmental Conditions :
Temperature: 15-30°C
Humidity: 15-70%RH (No dew condensation)
Atmospheric pressure: 750 to 1060 hPa
