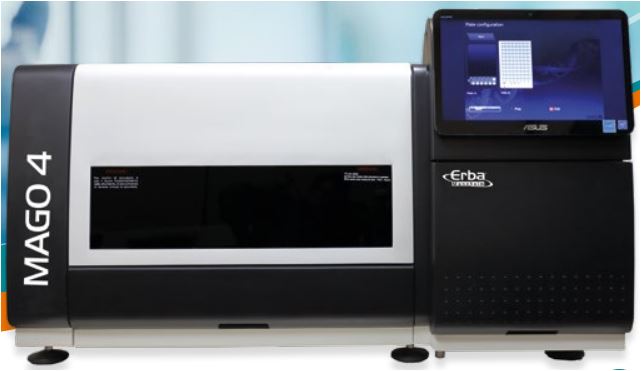

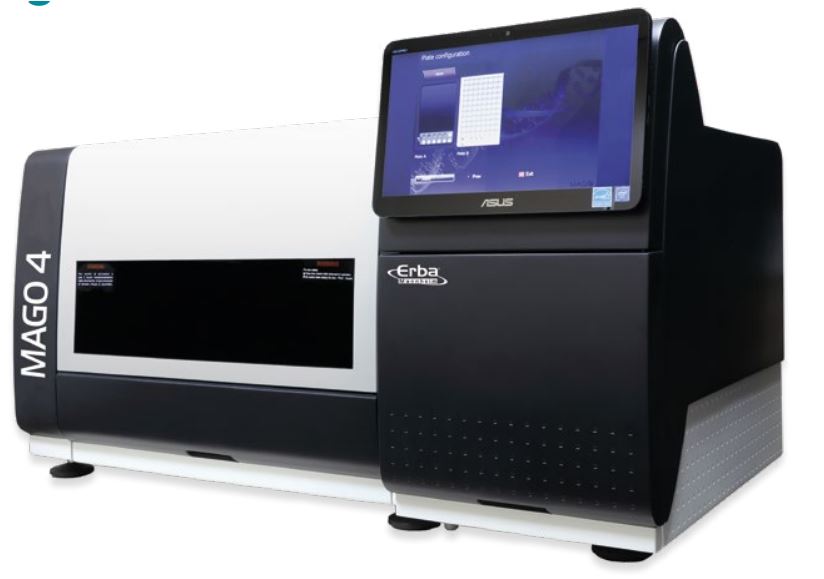

Clinical Immunology analyzer Mago 4
MAGO 4. Automation of ELISA and IFA tests
Open immunoanalytical system - Custom/user programmable channels
Automation of ELISA, IFA and agglutination tests processing simultaneously in one batch
104 samples, barcodes, disposable tips
Performs up to 12 ELISA tests (on 4 microplates), or up to 16 IFA tests (slides)
Levey-Jennings and Westgards rules program on board
-Wide range offer of EIA (ELISA) and IFA tests:
-Autoimmune disease :
Is®ANA ELISA screen, Is®ENA ELISA screen,
ANA Hep-2 Cells IFA, …
-Infection disease :
Syphilis, CMV, EBV, Toxoplasma, ...
-Allergy and food intolerance :
IgE, spec. IgE, liquid allergens, Anti-Gliadin,
Anti-Tissue-Transglutaminase, ...
-Functional characteristics :
Simultaneously 4 microplates or 16 IFA slides in one run
Up to 12 ELISA methods or 16 IFA methods
104 sample positions and 192 predilution positions
27 positions for reagents, standards and controls
Integrated barcode reader
Bidirectional connection with LIS (RS232, LAN, USB)
Liquid level sensor
Optimization of incubation conditions
2 wash solutions (2 x 2l)
Test results validation based on predefined conditions/rules
Free space for programming up to 500 methods
-Parameters :
Integrated ELISA reader, halogen lamp, interference filtres 405, 450, 492, 620 (two free positions)
Westgards rules and Levey-Jennings charts on board
Windows XP software platform
Dimensions (120 x 69,5 x 60 cm)
Weight 85 Kg
