When Mini Meets Mighty

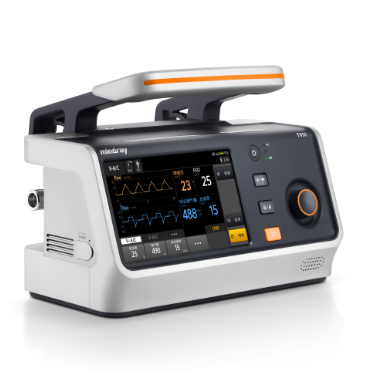

The TV50 Transport Ventilator is an industry-leading turbine-driven transport ventilator that combines a compact design, advanced technology, and clinically oriented features. It aims to simplify and enhance the transportation process for mechanically ventilated patients, making it easier and more reliable.
With its highly integrated design and powerful functionality, the TV50 provides healthcare professionals with a convenient and efficient solution, ensuring the safety and comfort of patients during transport.
-Safer in Your Hands, Lighter on Your Feet
High Performance Turbine
-Built-in turbine driven, more independent and portable
-Peak flow ≥210L/min, more effective NIV support
-Precise FiO2 adjustment in the range of 21%~100%

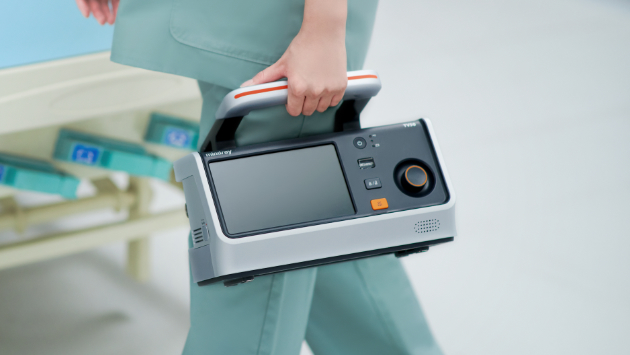

Small and Light
-Weighs only 4.5kg, easy to carry with one hand
-Smaller and compact to improve transport-efficiency

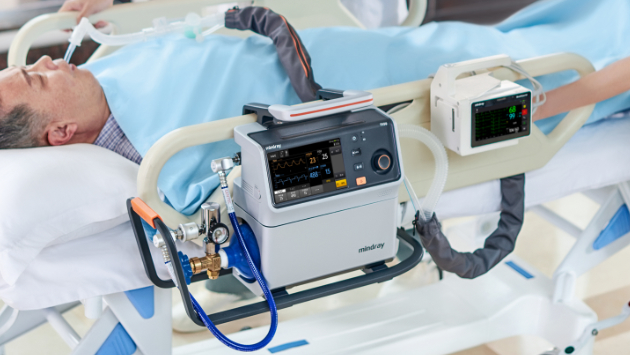

Portable
-Universal mount handle to meet the various mounting requirements
-Preconfigured with optional fixed base, a mobile trolley or a gas cylinder carrier to meet the needs of intra-hospital and pre-hospital transport
Intuitive and Easy to Use
Thoughtful battery and oxygen management function of TV50 transport ventilator makes the daily usage and maintenance of the transport ventilator more convenient.
• 7- inch HD capacitive touch screen
• Similar UI and operation to bedside ventilator
• Auto-brightness adjustment
• Non-consuming O2 sensor: Long lasting with zero maintenance
• Real-time O2 consumption monitoring
• Long-lasting hot-swappable battery: operating time ≥10 hours with real-time battery display even when powered off
• Outdoor Mode: Improve viewing under sunlight or bright ambient light with one touch
Adapting to the Most Demanding Environment
-20~50 ℃ Working temperature
7600 m Automatic altitude compensation
IP34 Dustproof and waterproof grade
6 sides 75cm Drop protection
20 G Force resistance

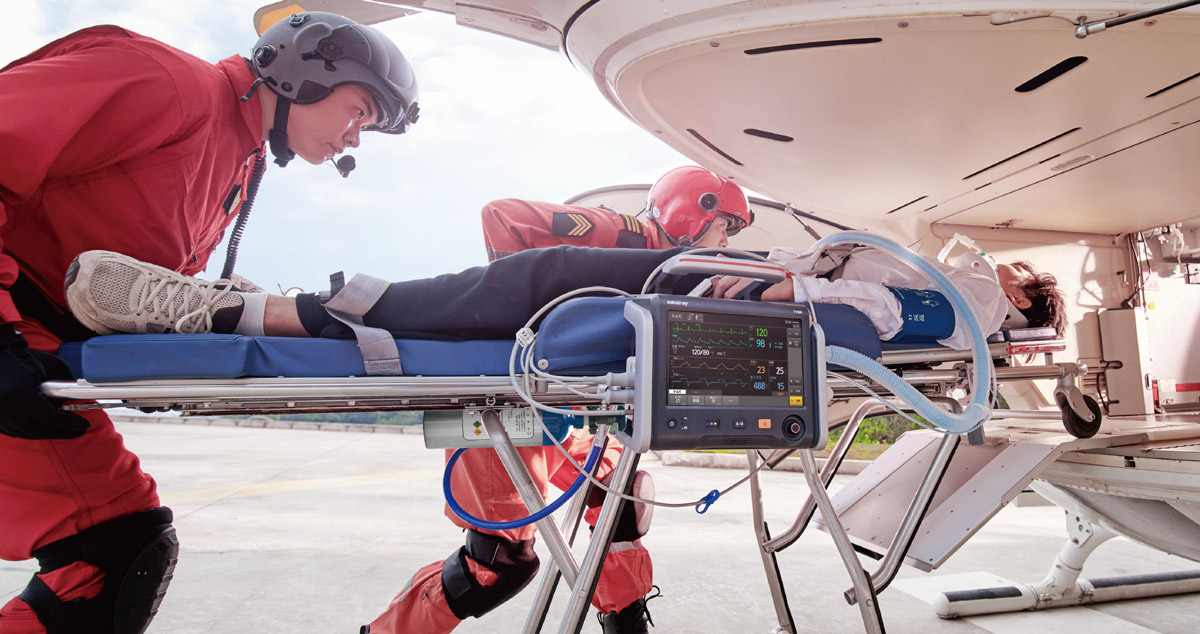

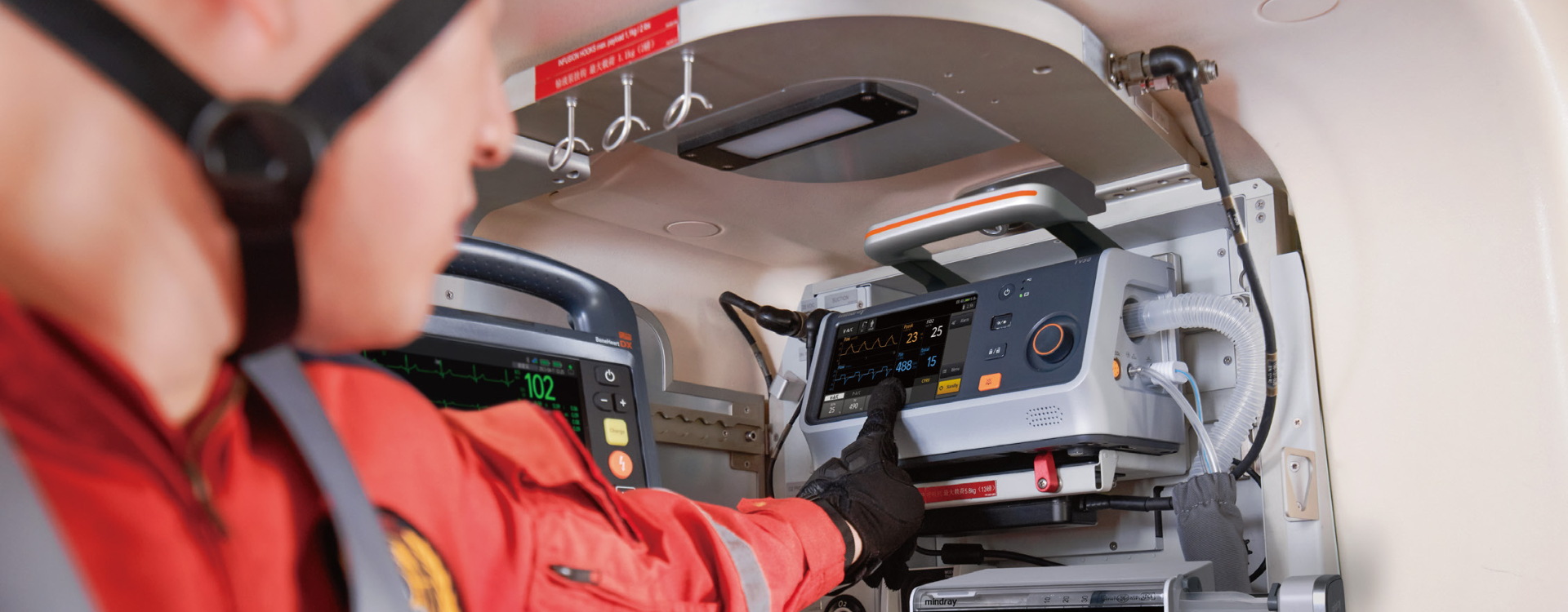

Whether you're in a demanding industrial environment, over the rugged terrains, or on the air, rest assured that the TV50 will be a reliable assistant for medical professional ,ensuring peace of mind and continuity of seamless operation through transport and respiratory support. It meets various standards for transport vehicles such as helicopters and ambulances, and supports various types of transport.
-RTCA/DO-160G
-EN 13718-1
-EN 1789
-ISO 80601-2-84 (EN 794-3)
Powerful and Comprehensive Ventilation Support
• Supports invasive, non-invasive and O2 therapy
• Same ventilation mode as the bedside ventilator
• AMV (Adaptive Minute Ventilation) ventilation mode
• Emergency ventilation CPRV mode with one-button quick access
• Supports Mindray mainstream CO2 monitoring and provides reusable and disposable adapters
• This allows for widespread utilization of EtCO2 monitoring in various clinical scenarios, such as confirming the position of artificial airway and assessing patient condition.
-Seamless Integration with Telemedicine Capabilities
The TV50 transport ventilator is equipped with rich data communication interfaces, allowing the seamless and real-time transmission of patient ventilation data and other vital signs of patient to the hospital, shortening the response time as well as supporting timely care for patients.
-The patient’s ventilation and monitor data during transport can be transmitted to the hospital in real-time. The medical staff can remotely monitor the patient‘s ventilation and vital signs through the hospital’s CMS(central monitoring system) or ePCR system to formulate timely treatment plan.
