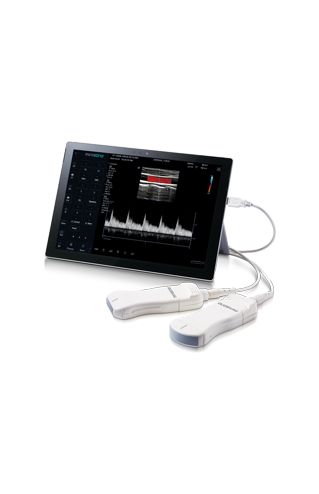

The minisono system is a new generation, tablet-based ultrasound diagnostic system that is smaller, simpler, and more compact than the existing bulky, complicated systems
Feature:-
-Compact and Tablet based Ultrasound weighing less than 200g which makes easier to use ultrasound even in tight spaces without having to change the position of the patient and other devices.
-12.3 inches high resolution LED monitor.
-Based on FlexCan™ Architecture for easy upgrades and stable image quality and Microfit™ Technology which gives flexible cable and light weight probes,
-Memory Storage: 128GB to 512GB in different variants.
-Power of Microsoft surface Pro with windows 10.
-Processing Channel- 6,55,360
- Transducer compatibility- Convex(C1-6), Linear (L3-12)
-Imaging Technology- Filtered Tissue Harmonic Imaging(FTHI), Full Speckle reduction imaging(FSRI), Spatial Compounding Imaging (SCI), Xspeed™, Beam Steer.
3 Steps to start scan
Starting to use the minisono is as easy
as simply connecting it to a tablet via USB.
1. Connect the USB
2. Select the Preset
3. Start Scan
Easy of use
minisono’s uniquely simple user interface,
combined with the tablet’s familiar touch control,
will help you focus on scanning.
Data sharing & Security
minisono provides a convenient network environment
and increase your work efficiency.
Data sharing & Security
-Wireless Network Storage
-Wireless DICOM / DICOM 3.0
-HIPAA compliant
-Wireless DICOM Worklist

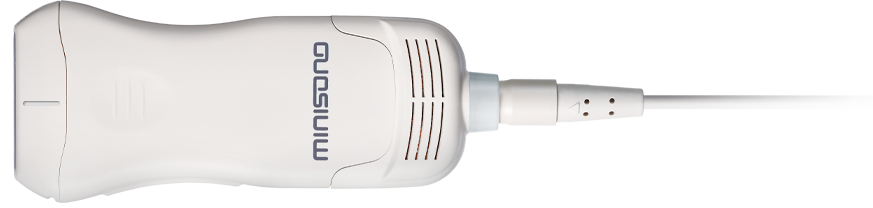

minisono C1-6
Frequency 1-6 MHz
Dimension (height/width/depth)25.5 / 62.5/ 157mm
Weight175g (6.2oz.)
Field of view 78°
Max depth 30 cm
Imaging modes B-mode, CF, M, PW, PD
Display Microsoft Surface
Battery 300 min
minisono L3-12
Frequency 3-12 MHz
Dimension (height/width/depth) 25.2 / 62.5/ 150mm
Weight 175g (6.2oz.)
Field of view 38.4mm
Max depth 10 cm
Imaging modes B-mode, CF, M, PW, PD
Display Microsoft Surface
Battery 300 min
