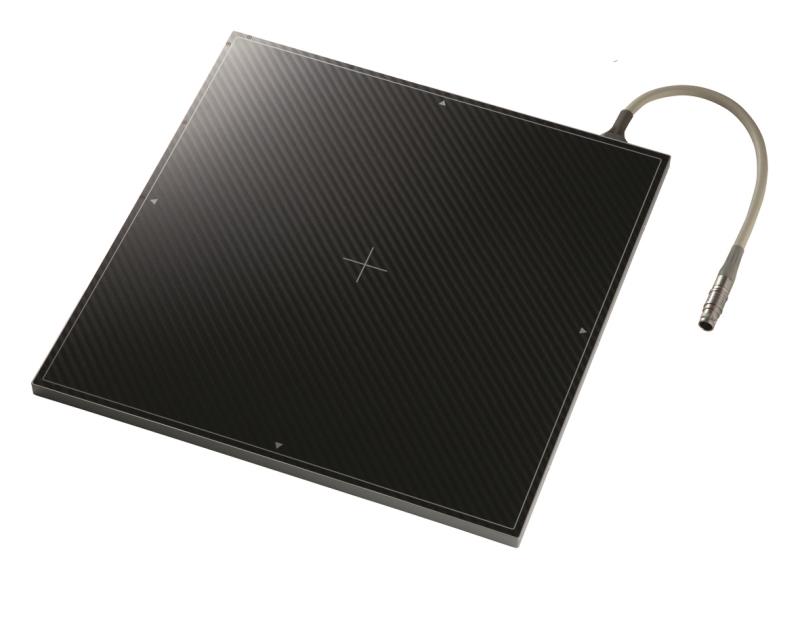

Wired Digital Flat Panel Detector ( DR) 17*17

CE MARKING

ISO 13485

"meX+1717SCC"

-AED function (automatic exposure detection)

-Ultra-flat (15,5mm) DR detector with same size as film cassette or CR Image Plate

-Easy upgrade to DR without any change in conventional X-ray systems (retrofit solution)

-Highest image resolution by decreased radiation dose

-Large imaging area (43cm x 43 cm) allows examine of several body parts in one shot

-Quick image acquisition time

Technical data:

Interface:Wired

-Sensor Type: Amorphous Silicon with TFT

-Dimensions: 460 x 460 x 15,5 mm

-Active Image Area: 42.3 x 42.3 cm

-Scintillator: Cesium-Iodide (CsI)

-Weight: 4.4 kg

-Pixel Number: 3328 x 3328 pixels

-Pixel Pitch: 127 µm

-Line Pairs: 3.9 / mm

-A/D Conversion: 14 bit

-Energy Range: 40-150 kV
