During the first hours and days of life, new born and premature babies primarily need warmth, comfort and closest possible contact to their parents. The VARIOTHERM infant care system has been developed for these very special conditions and offers unimpeded access for diagnostic and therapeutic measures as well as care treatments.
The VARIOTHERM product line is modular and can be adapted to different situations,, e.g. examination, resuscitation or intensive care. With different types of acrylic wall assemblies and numerous accessories of choice the device can be upgraded to a fully functional care unit.
A modular system, suitable for all requirements:

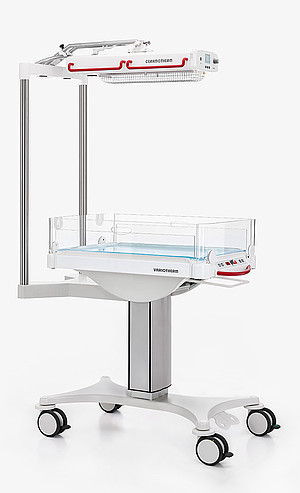

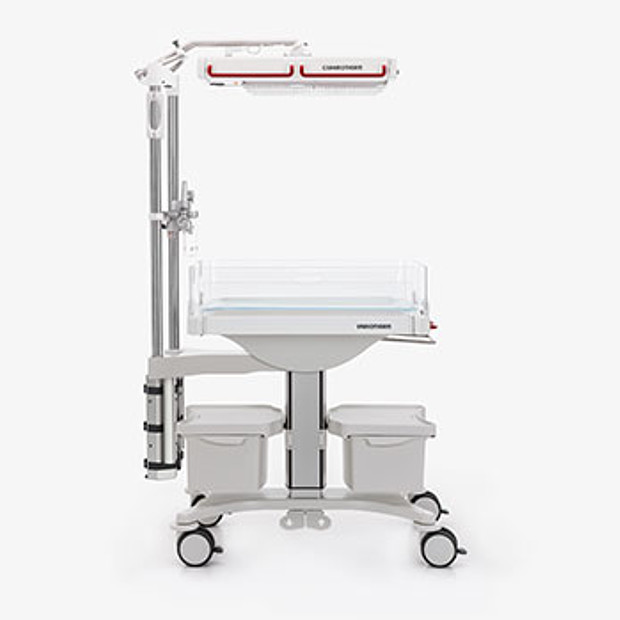

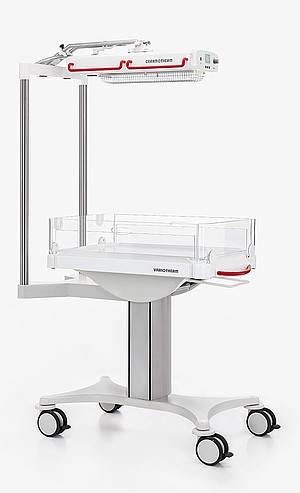

VARIOTHERM C
Infant care system with CERAMOTHERM
radiant warmer, static height or height-adjustable
Product details:
VARIOTHERM C
with radiant warmer, static height or height-adjustable
Electrical parameters
VARIOTHERM C with radiant warmer, static height WY3040
-Under-pad heating: –
-Soft-lift pillar : –
-Radiant warmer CERAMOTHERM 3200 : 900 W
-Take-off sockets for accessories : 4
-Max. power input : 2300 W
-Voltage :230 V / 50 – 60 Hz
VARIOTHERM C with radiant warmer, height adjustable WY3041
-Under-pad heating : –
-Soft-lift pillar : 120 W
-Radiant warmer CERAMOTHERM 3200 : 900 W
-Take-off sockets for accessories : 4
-Max. power input :2300 W
-Voltage :230 V / 50 – 60 Hz
Operating parameters
VARIOTHERM C with radiant warmer, static height WY3040
-Head-up and head-down position each adjustable to : 12°
-Pad : PU foam
-Selection range of under-pad heating : –
-Illumination : 2 x 1700 lm, dimmable
-Colour temperature of the light : 4000 K
-Heating element of radiant warmer / wavelength : 2 ceramic / 1.5 - 6 µm
-Selection of radiation intensity : 2 – 22 mW/cm²
-Function "automatic intensity reduction" : Yes
-Display of selected value, actual value and residual heat : Yes
VARIOTHERM C with radiant warmer, height-adjustable WY3041
Head-up and head-down position each adjustable to : 12°
Pad:PU foam
Selection range of under-pad heating:–
Illumination:2 x 1700 lm, dimmable
Colour temperature of the light:4000 K
Heating element of radiant warmer / wavelength : 2 ceramic / 1.5 - 6 µm
Selection of radiation intensity:2 – 22 mW/cm²
Function "automatic intensity reduction" : Yes
Display of selected value, actual value and residual heat:Yes
Dimensions and weight
VARIOTHERM C with radiant warmer, static height WY3040
-Weight : 70 kg
-Dimension of patient deck : 480 x 740 mm
-Height of patent deck : 960 mm
-Diameter of tube assembly : 40 mm
VARIOTHERM C with radiant warmer, height-adjustable WY3041
-Weight : 76 kg
-Dimension of patient deck : 480 x 740 mm
-Height of patent deck : 850 – 1150 mm
-Diameter of tube assembly : 40 mm
Classification and standards
VARIOTHERM C with radiant warmer, static height WY3040
- Classification according to directive 93/42/EEC : IIa
VARIOTHERM C with radiant warmer, height-adjustable WY3041
-Classification according to directive 93/42/EEC : IIa
Product details:
VARIOTHERM KCE
with radiant warmer and under-pad heating, static height or height-adjustable
Electrical parameters
VARIOTHERM KCE with radiant warmer, under-pad heating, static height WY3042
-Under-pad heating : 180 W
-Soft-lift pillar : –
-Radiant warmer CERAMOTHERM 3200 :900 W
-Take-off sockets for accessories : 3
-Max. power input : 2300 W
-Voltage : 230 V / 50 – 60
VARIOTHERM KCE with radiant warmer, under-pad heating, height-adjustable WY3043
-Under-pad heating : 180 W
-Soft-lift pillar : 120 W
-Radiant warmer CERAMOTHERM 3200 : 900 W
-Take-off sockets for accessories : 3
-Max. power input : 2300 W
-Voltage : 230 V / 50 – 60 Hz
Operating parameters
VARIOTHERM KCE with radiant warmer, under-pad heating, static height WY3042
Head-up and head-down position each adjustable to:12°
-Pad : Silicone gel
-Selection range of under-pad heating : Standard 35.0-37.0 °C, Extended 30.0-38.5 °C
-Illumination : 2 x 1700 lm, dimmable
-Colour temperature of the light : 4000 K
-Heating element of radiant warmer / wavelength : 2 ceramic / 1.5 - 6 µm
-Selection of radiation intensity : 2 – 22 mW/cm²
-Function "automatic intensity reduction" : Yes
-Display of selected value, actual value and residual heat : Yes
VARIOTHERM KCE with radiant warmer, under-pad heating, height-adjustable WY3043
Head-up and head-down position each adjustable to:12°
Pad:Silicone gel
Selection range of under-pad heating:Standard 35.0-37.0 °C, Extended 30.0-38.5 °C
Illumination:2 x 1700 lm, dimmable
Colour temperature of the light:4000 K
Heating element of radiant warmer / wavelength:2 ceramic / 1.5 - 6 µm
Selection of radiation intensity:2 – 22 mW/cm²
Function "automatic intensity reduction":Yes
Display of selected value, actual value and residual heat:Yes
Dimensions and weight
VARIOTHERM KCE with radiant warmer, under-pad heating, static height WY3042
-Weight : 77 kg
-Dimension of patient deck : 480 x 740 mm
-Height of patent deck : 960 mm
-Diameter of tube assembly : 40 mm
VARIOTHERM KCE with radiant warmer, under-pad heating, height-adjustable WY3043
Weight:83 kg
Dimension of patient deck:480 x 740 mm
Height of patent deck:850 – 1150 mm
Diameter of tube assembly:40 mm
Classification and standards
with radiant warmer, under-pad heating, static height WY3042 VARIOTHERM KCE
-Classification according to directive 93/42/EEC : IIb
with radiant warmer, under-pad heating, height-adjustable WY3043
-Classification according to directive 93/42/EEC : IIb

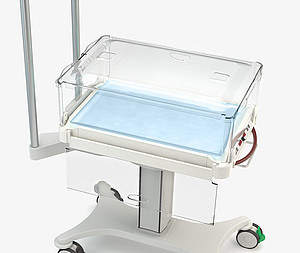

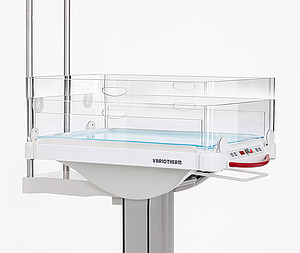

Available acrylic wall assemblies:
Wall assembly 170 mm or 250 mm high, three sides can be folded down, always with two additional safety side walls
For the VARIOTHERM infant care system with 250 mm wall assembly, a one-piece or two-piece canopy is available
