Product:i-SmartCare 10
-Features :
-Blood Gas Analyzer
-User-friendly GUI and easy usability
-Built-in large capacity battery that can be used for 2 hours on its own charge
- No additional consumables or maintenance required due to the use of an all-in-one cartridge, including reagents, electrodes, and waste bag
*Product Information :
- Size / Weight : 269 X 391 X 255 mm / 8.4 kg
- Operating Temperature : 15-35 °C
-Display : 9 inch color LCD (touchscreen)
-Printer : Two-inch (built-in) thermal printer
-Interface : Serial (RS-232), LAN (RJ45 Ethernet)
-Power : 100–240 VAC, 50/60 Hz
- Built-in battery : Up to 2 hours of use (lithium-ion cell)
*Cartridge :

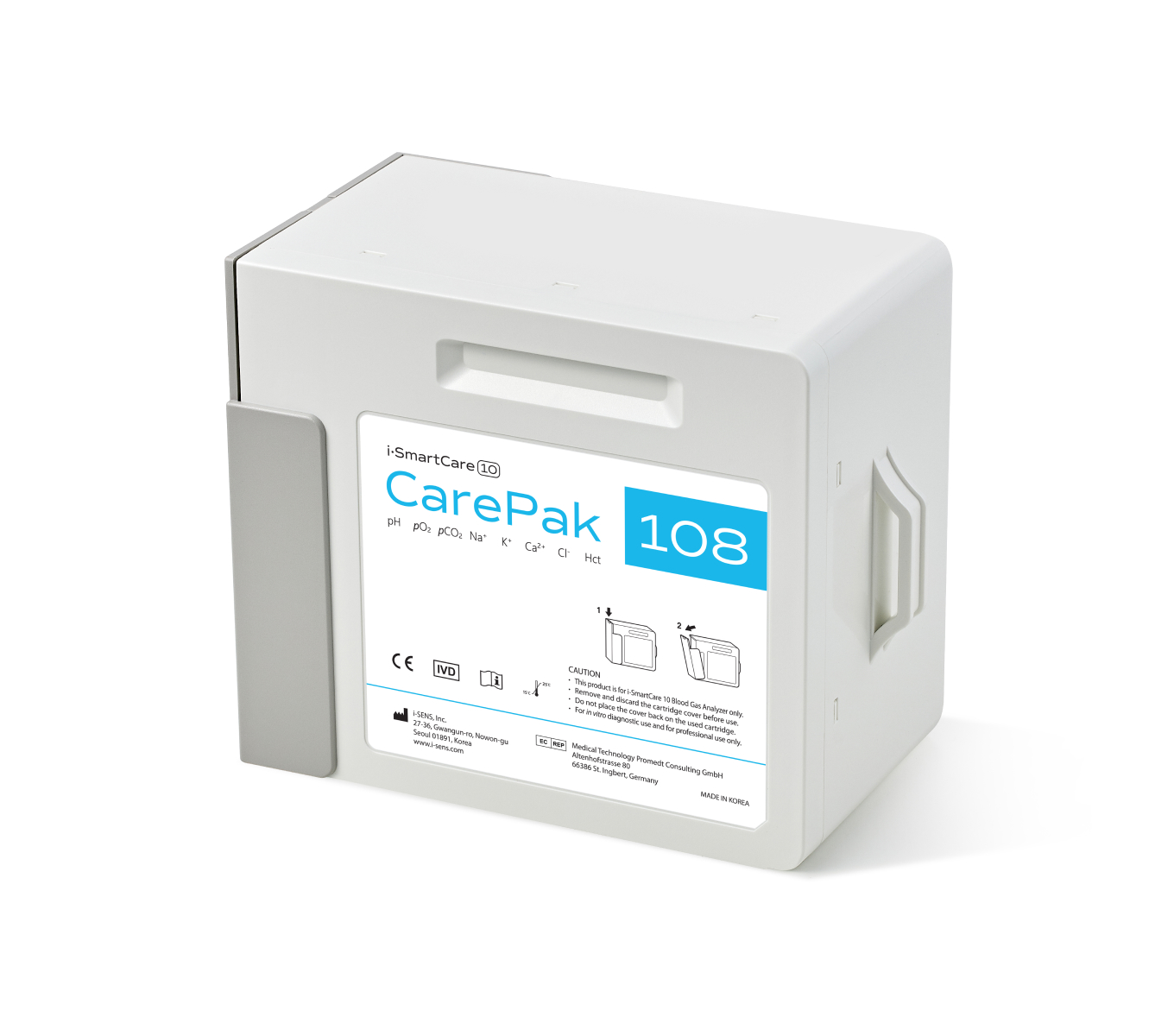

-CarePak 108 Cartridge :
- Measurement items : pH, pCO2, pO2, Na+, K+, Ca2+, Cl–, Hct
-Calculation items : pH(T), pCO2(T), pO2(T), tCO2, HCO3–, HCO3–(std), BE(ecf), BE(B), Anion Gap(K), tHb, Ca2+(7.4), pO2(A-a), sO2
- Sample type and volume : Heparinized whole blood/100 μL
-Testing time : 50 seconds
-Calibration : Automatic or manual
-Cartridge specifications :
50 tests for 3 weeks
100 tests for 3 weeks
200 tests for 2 to 3 weeks
300 tests for 3 weeks
-Expiration date : months from the manufacturing date

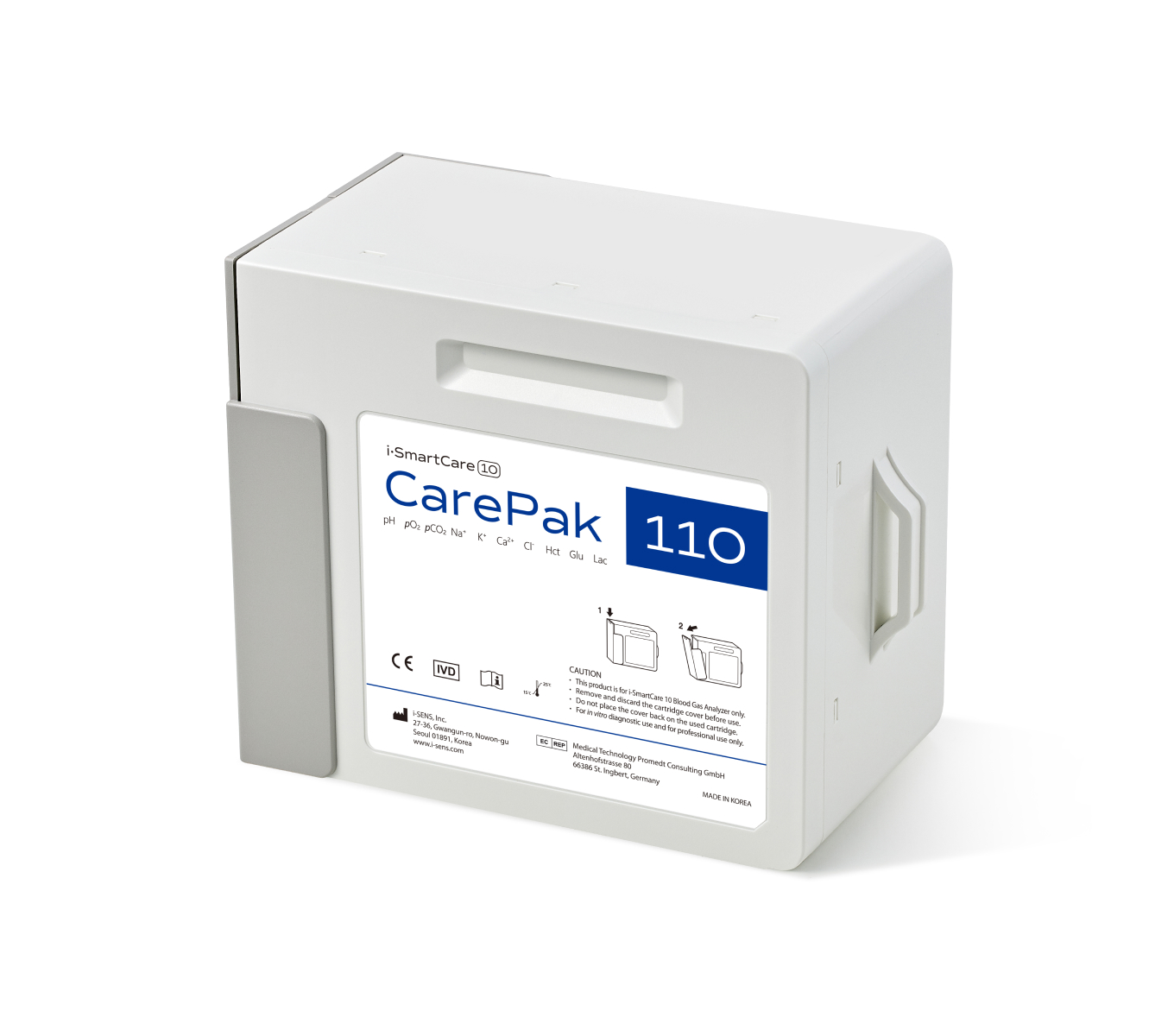

-CarePak 110 Cartridge :
- Measurement items : pH, pCO2, pO2, Na+, K+, Ca2+, Cl–, Hct,
Glu, Lac
-Calculation items : pH(T), pCO2(T), pO2(T), tCO2, HCO3–,
HCO3–(std), BE(ecf), BE(B), Anion Gap(K), tHb, Ca2+(7.4),
pO2(A-a), sO2
-Sample type and volume : Heparinized whole blood/100 μL
-Testing time : 50 seconds
-Calibration : Automatic or manual
-Cartridge specifications :
50 tests for 2 to 3 weeks
100 tests for 2 to 3 weeks
200 tests for 2 to 3 weeks
300 tests for 2 to 3 weeks
-Expiration date : 6 months from the manufacturing date
*Quality Control :

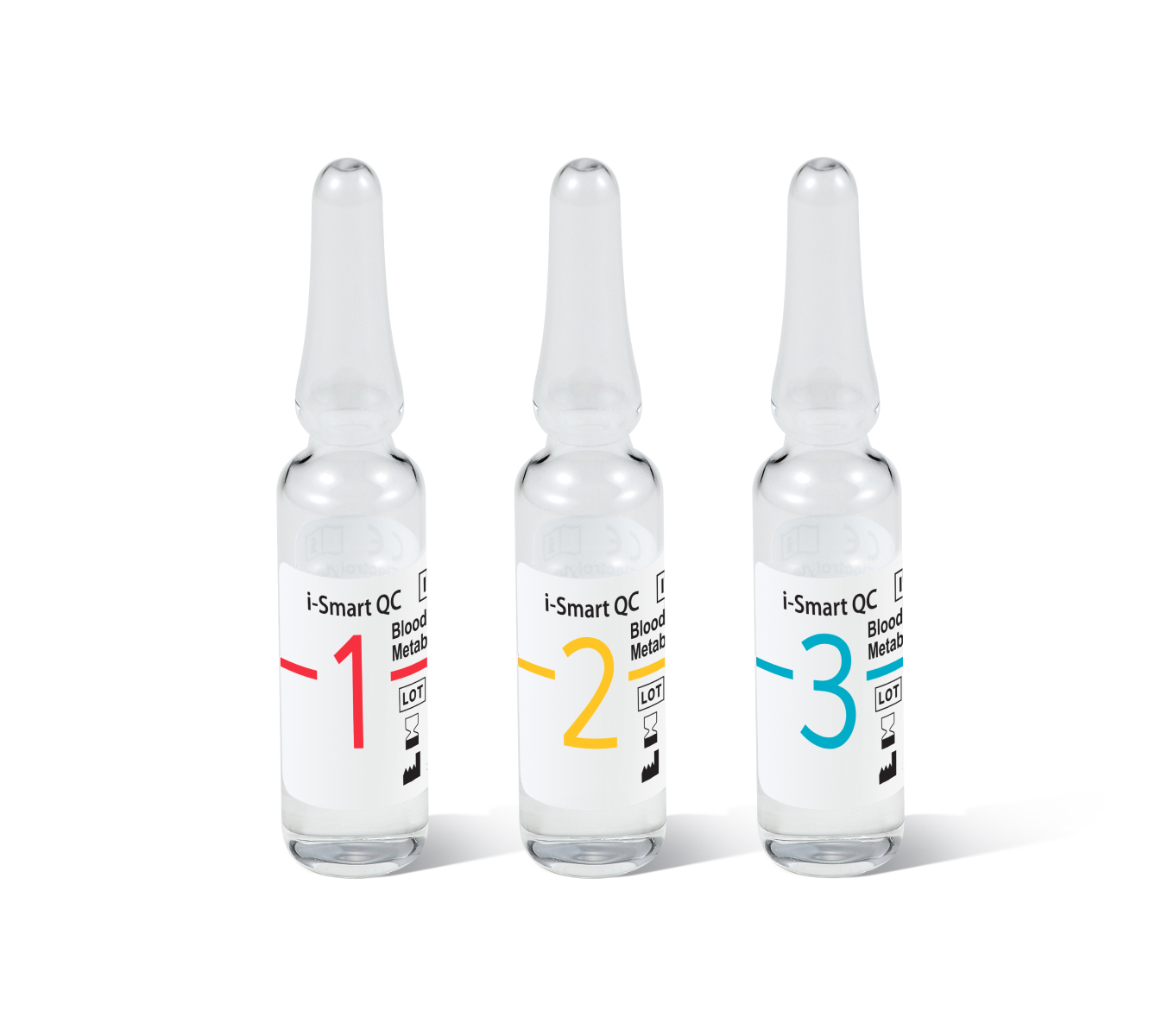

-i Smart QC :
- Features : Blood Gas, Electrolyte, and Metabolite Control Solution
-Use with : i-Smart 300 VET Cartridge
-Level : 1, 2, 3
-Volume : 2.5 mL * 10 vials per level
