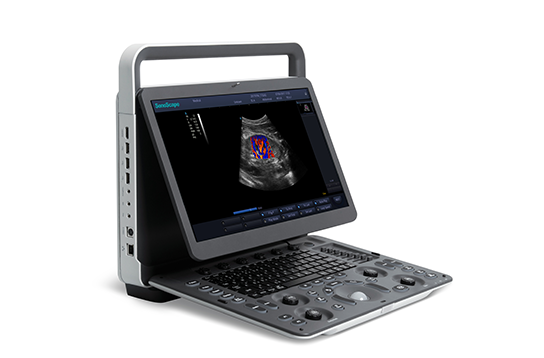

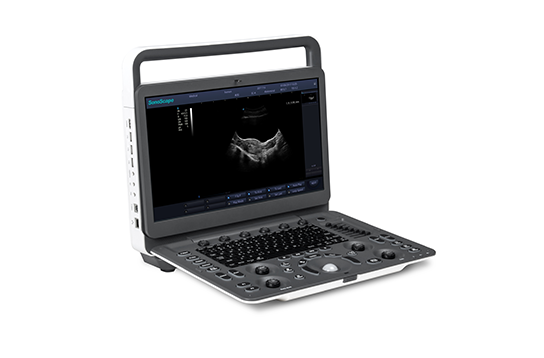

- E2 is categorized as an economy portable Color Doppler ultrasound system. E2 is integrated with a number of advanced imaging technologies such as the full digital broad-band-width beam former, wide-band dynamic range and multi-beam parallel processing. The SonoScape E2 is a fully equipped ultrasound from very basic clinical screenings to the in-depth and full exam profiles with high-end options such as Auto IMT, Spatial Compounding, Auto Image Optimization, Stand-by Mode, Enhanced Needle Visualization, Panoramic imaging and comes with 2 standard probe ports, and a 15.6″ LED monitor.
- Easy to take with you, the E2 fulfills your POC, simple OB/GYN, MSK, Vein Care, and Pain Management requirements to fit your routine scanning needs going from patient to patient or traveling abroad to other facilities or seeing patients in their own homes. E2 is an excellent little helper bringing ultrasound imaging assistance where ever it may be needed.
Specifications :
- Size: 378mm×352mm×114mm (W×H×D)
- Weight: Approx. 6.5kg (at most, including battery
- Approx. 6.1kg (at most, without battery)
- Monitor: 15.6’’ widescreen and high-resolution color
- LCD monitor, LED backlight, anti-flickering and
- vertically and horizontally rotatable
- Probe port: one (two ports can be equipped by order)
Imaging Technologies:
- B/ 2B/ 4B/ M/ CFM/ PDI/ DirPDI/ PW
- Dynamic Multi-beam Technology
- THI,PHI,TGC
- μ-Scan
- Tissue Specification Imaging(TSI)
- Widescan: Convex Extended Imaging
- Widescan: Trapezoid Imaging
- Spatial Compound Imaging
- Triplex, Duplex
- B/C Dual Live
- Auto (M-tuning)
- PW Auto-trace
- Auto IMT
- Frame Rate: Up to 80fps(Probe Dependent)
- Scan Depth: 40 cm(3C-A probe)
Features :
- Pain Management
- Light Weight
- Intuitive Automated Controls
- Auto IMT
Specialties :
- Abdominal
- Vascular
- Cardiac
- Gyn/OB
- Urology
- Musculo-skeletal
- Small organ
- Pediatric
- Cephalic
- Pain management
- Veterinary
- Surgery
