2D Panoramic dental imaging unit

Brand

Planmeca Oy

Model

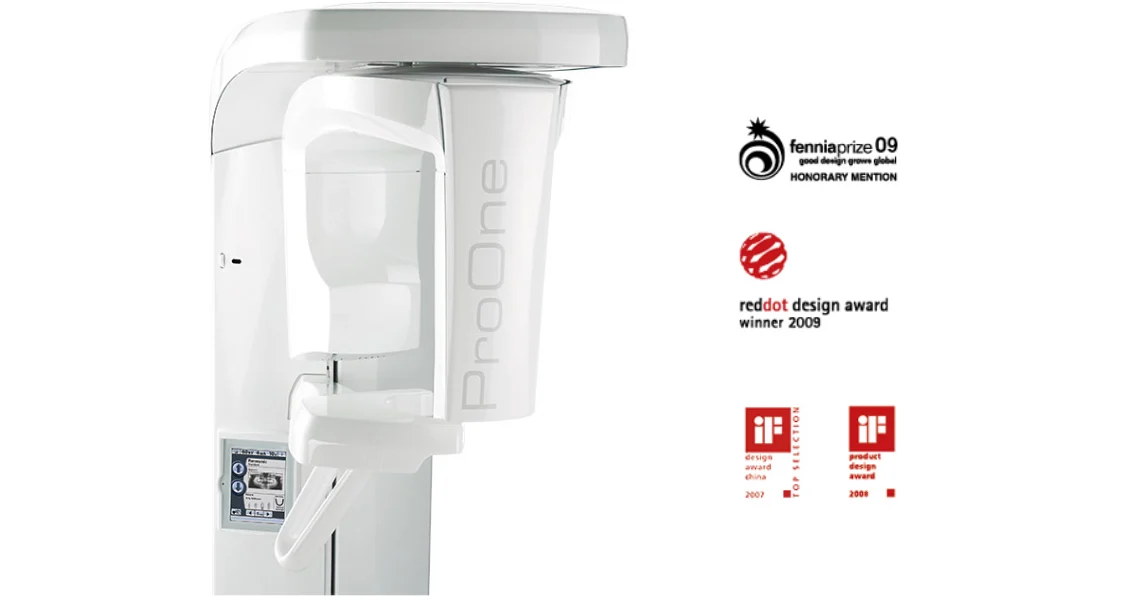

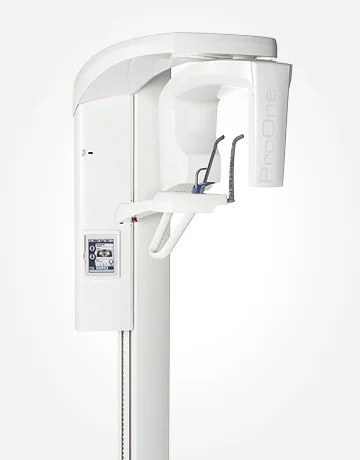

Planmeca ProOne

Manufacturing Country

Finland

Specification

Planmeca ProOne is Full-featured panoramic unit that provides cutting-edge innovations and high image quality in a compact, easy-to-use package.

✔ Panoramic imaging

✔ Extraoral bitewing

✔ TMJ imaging

✔ Sinus imaging

✔ Child mode

✔ Autofocus

Technical data

Generator Constant potential, resonance mode high frequency 60–80 kHz

X-ray tube D-058SBR

Focal spot size 0.5 x 0.5 mm (IEC 336)

SID 480 mm (19 in.)

Total filtration min. 2.5 mm Al eq.

Anode voltage 60–70 kV

Anode current 2–7 mA DC

Exposure time 2–10 s

Line voltage 100–132 V~ 50/60 Hz, 180–240 V~ 50 Hz

Regulation ±10 % (automatic)

Line current 8–16 A

Power uptake max:850 W

Chin rest level 95–178 cm (37.4–70 in.)

Colour White (RAL 9016)

Weight 67 kg (148 lbs)
