Clinical Hematology analyzer ELite 3
Advanced 3 Part Differential Hematology Analyzer
-Benefits :

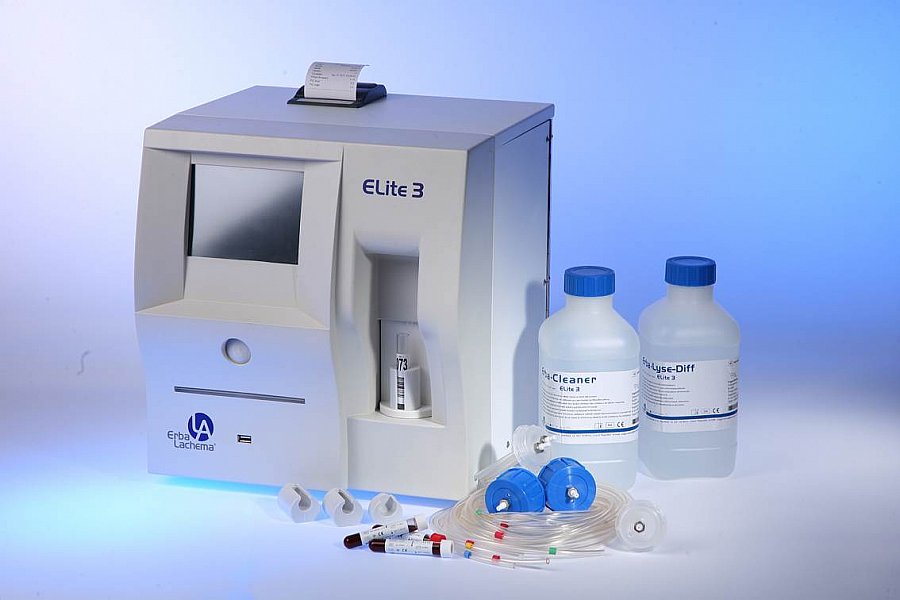

Only 3 reagents needed (Erba Diluent-Diff, Erba Lyse-Diff, Erba Cleaner), enviroment-friendly (cyanide free)
Built-in printer with 58 mm wide roll paper, full report with histograms
USB interface for support: Host computer, Keyboard, External printers, Upgrade control SW, Data back-up, Hand-held barcode reader
Usage of standard electronic and mechanic components
Aperture made in technical ruby
Easy handling
Full colour LCD touch-screen with high contrast ratio
Optional 8 languages (EN, FR, DE, CZ, PT, RU, ES, Indonesian)
User-friendly multilingual operating menu
Sample rotor, ensuring safe and easy sampling
Small-sized, low-maintenance needed
-Technical Specification :
-Measurement principles:
Electrical impedance method
Photometry – LED based technology
-Parameters:
22 parameters:WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM#, MON#, GRA#, LYM%, MON%, GRA%, RDW-SD, RDW-CV, PDW-SD, PDW-CV, MPV, PCT, P-LCC, P-LCR + 3 histograms (WBC-3part, RBC, PLT)
Throughput:80 tests / hour
Sample volume:25µl of whole blood using automatic sample holder
Chambers:Dual chamber advanced system for higher accuracy & precision
-Clean Modes:
High voltage pulses on aperture
Chemical cleaning of the aperture using Erba Cleaner reagent
Back-flush using high-pressure
Data capacity:10 000 results with all histograms
Data back-up method:USB mass storage device
Software upgrade method:Via USB port (using USB mass storage)
Built-in printer:Thermal printer module with 3 flexible options
Print full report with histograms
Only Print basic 8 parameters
Print from memory
-User interface & display:
Full colour LCD touch-screen with high contrast ratio
Status LED
Dimensions (W x D x H):320 mm x 260 mm x 365 mm
Net Weight:12 kg
