General Radiography:
- Exceptional Imaging Performance
- Smallest Pixel Pitch 76㎛ for High Resolution
- High MTF Value
- TRUVIEW®ART, Advanced Reverse Filtering Technology
Technological Upgrades in EVS 2430W:
- Experience the more powerful performance with upgraded EVS 2430W

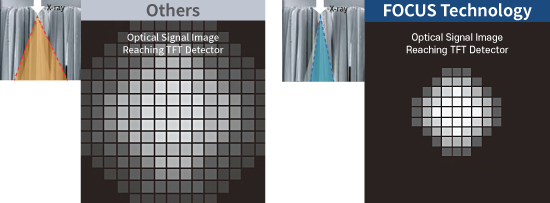

FOCUS Scintillator Technology:
- FOCUS (Fluorescent Optical Csi Upgraded Structure) has more focused optical signal compared to conventional Csi. As a result, ultra low noise is achieved by FOCUS technology.

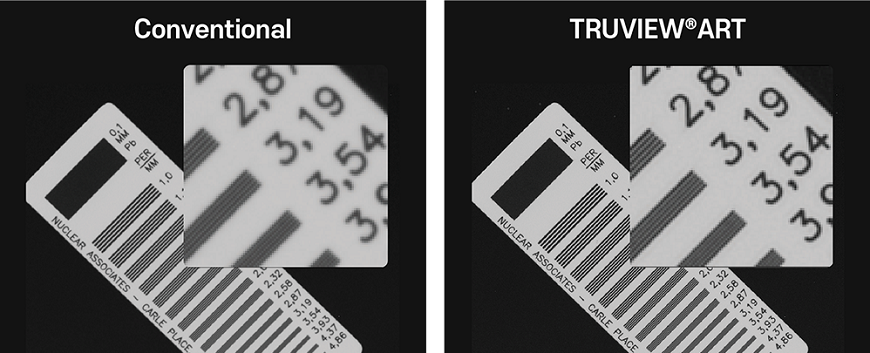

TRUVIEW®ART:
- Advanced Image Reconstruction Technology
TRUVIEW®ART increases MTF value up to 30% by removing the light scatter when radiation is transformed into light.
- This patent technology improves image contrast and sharpness.

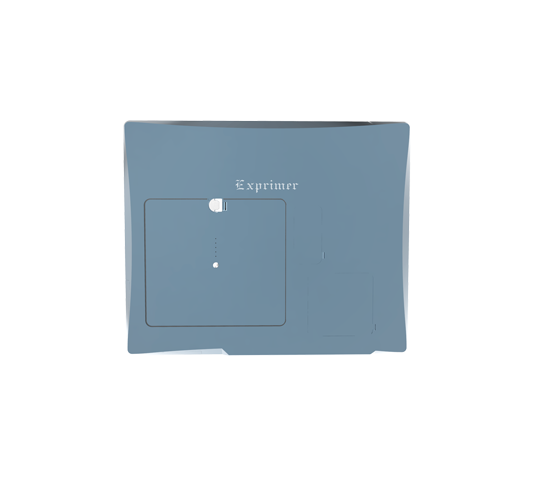

Wireless EVS Advanced Series EVS 2430W:
- Reliable performance in wireless applications.
Dual Resolution Mode:
- HT(High Transfer) / HR(High Resolution) mode options allow to choose between high resolution images and high transfer images depending on user environment.

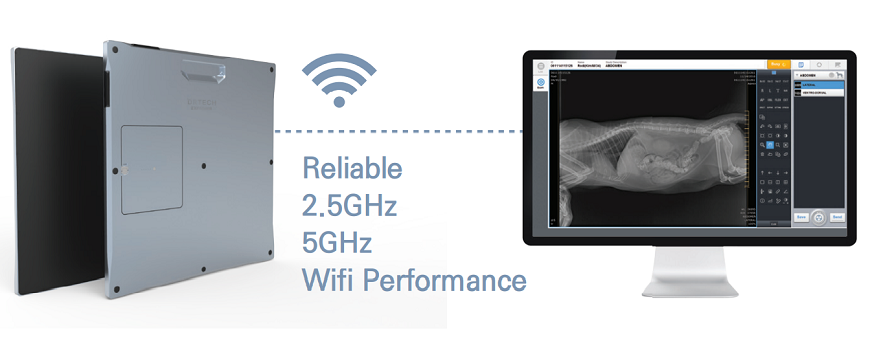

Errorless Wireless:
- There is no chance to lose the x-ray images caused by a connection failure because of EVS 2430W’s perfect wireless performance and built in memory.
Wireless Power Charging System:
- World’s first WPCS enables seamless 24hr wireless operation for perfect portability with fast and effective power supply.
OLED Display & 3 Buttons:
- Check all information at once through OLED display. 3 buttons design for quick and easy access to various functions.
Specifications:
Model:EVS 2430W (Wireless)
Scintillator:FOCUS CsI:TI
Pixel size:76㎛
Pixel matrix:3,072 x 3,840
Dimensions:267.5(H) x 327.5(V) x 15.9(D) ml
Weight:1.85kg
