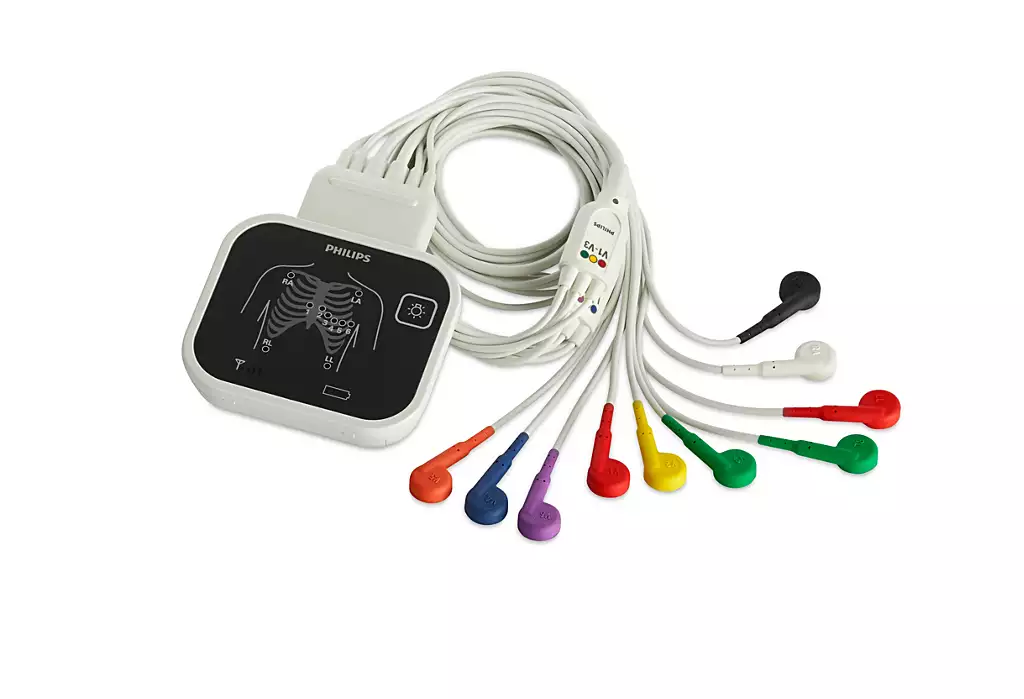

-Diagnostic ECG; This advanced wireless solution expands what your clinical team is capable of by “cutting the cord” between the cardiograph and the patient. This newfound freedom of movement will make possible new ways of working in busy clinical environments like the ER. Discover how Philips Wireless PIM can help you transform care – today and as the future unfolds.

-Features*

-Reach The Next Level; The Wireless PIM can be remotely upgraded, making the latest features available to all customers no matter when they purchased the WPIM.

-Reach new heights; On its adjustable height trolley, the TC35 rolls, tilts, swivels, elevates, drops, and turns to bring critical ECG information closer to you, while you stay close to your patients. The powerful features of this nimble, compact, fixed or height-adjustable trolley ensures that you're ready to rock when you roll.

-Reach more patients; 2 Wireless PIMs and 1 Wired PIM can all be simultaneously paired to the same TC35, enabling you to tend to more patients simultaneously. Imagine your team, all at the same time, applying lead wires to a patient in room 1, taking an ECG in room 2, and removing leads from the patient in room 3. Now that’s productivity.

-Reach farther; 49 feet. The Philips Wireless PIM can send an ECG back to the TC35 from 49 feet away when the path is unobstructed. This leap forward in range is made possible by the WPIM’s underlying technology. 5 MHz of channel spacing means the wireless signal has a lot of bandwidth options to find a very clean channel. The WPIM also automatically moves through these channels until it finds the cleanest, and then locks in to send the ECG.

-Reach For More; The Wireless PIM can be added after you have already purchased your TC35, meaning you can assess your needs gradually and then act accordingly.

-Reach a better decision; The Wireless PIM can detect changes in the waveform as small as 1 microvolt. It can also pick up pace-pulse signals as small as 0.025 mVms. Finally, it has a detailed leadmap on the WPIM. These high levels of signal sensitivity matter, because they feed the TC35’s algorithm, which in turn produces the interpretation you receive on each ECG report.

-Specifications8

-User interface*

-Lead Map; Detailed lead map with 10 lead connection status LEDs on the Wireless PIM

-Wireless signal strength indicators;

-2 wireless signal strength indicators

- On Wireless PIM

- On TC35

-Power control; On/Off button

-Alerts;

-LED indication of:

- power status

- remaining battery charge

-Hardware*

-PIMS per TC35;3 PIMs total: 2 wireless, 1 wired

-Interchangability; Can be used on 2 products:

- ST80i stress system

- PageWriter TC35 cardiograph

-Dedicated connection;

-Wireless PIM only transmits to a single TC35 cardiograph or ST80i stress system at any single moment

-WPIM-to-AIM distance; 15 meters (49 feet) when unobstructed

-ECG Capture*

-Instrument type; 12-lead wireless acquisition module for resting ECG

-ECG leads transmitted I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5 and V6

-Input channels; 12-lead signal acquisition and transmission

-Leads;

- AAMI: RA, LA, RL, LL, V1, V2, V3, V4, V5 and V6

- IEC: R, L, N, F, C1, C2, C3, C4, C5 and C6

- Detachable lead wires
