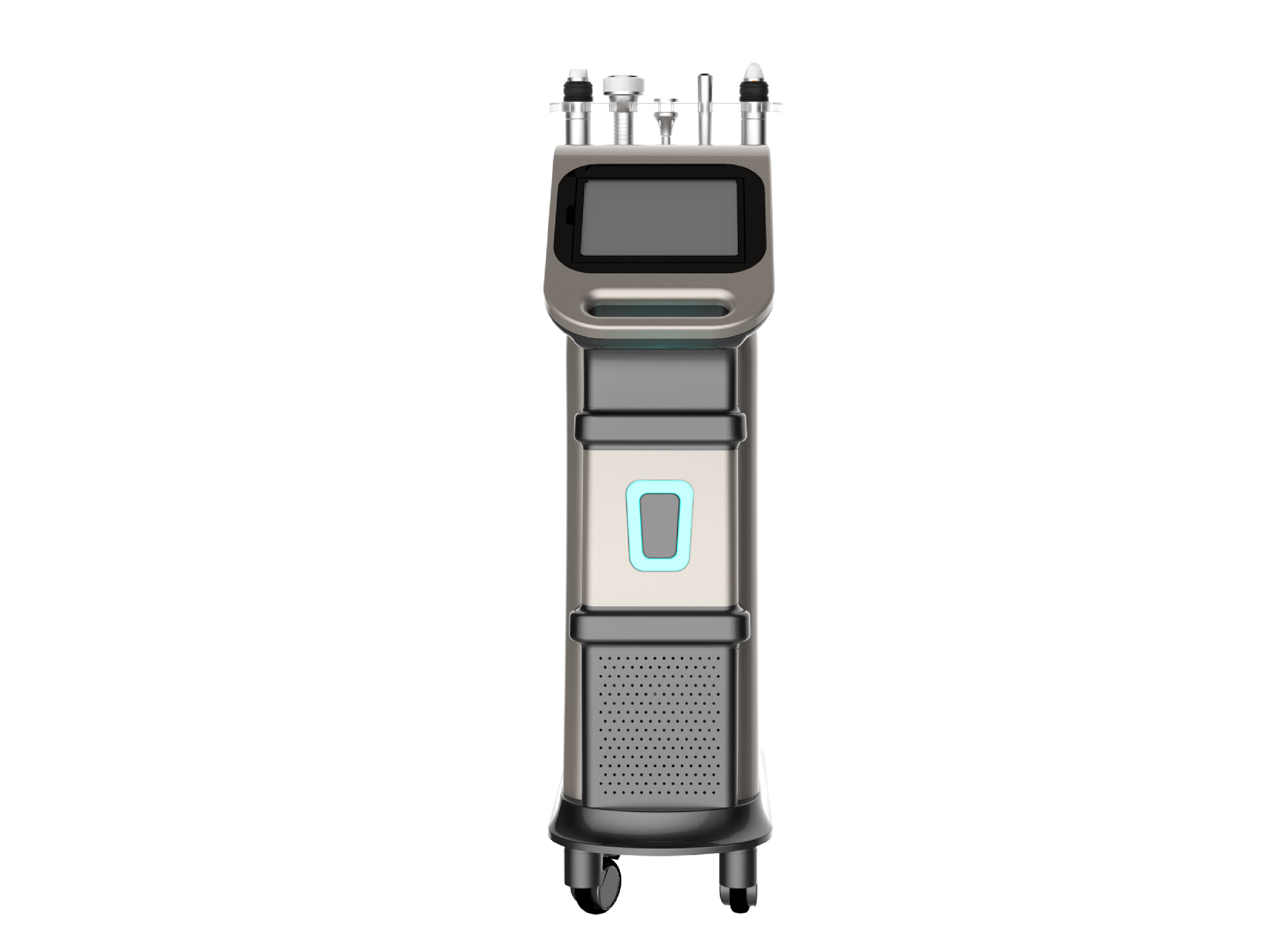

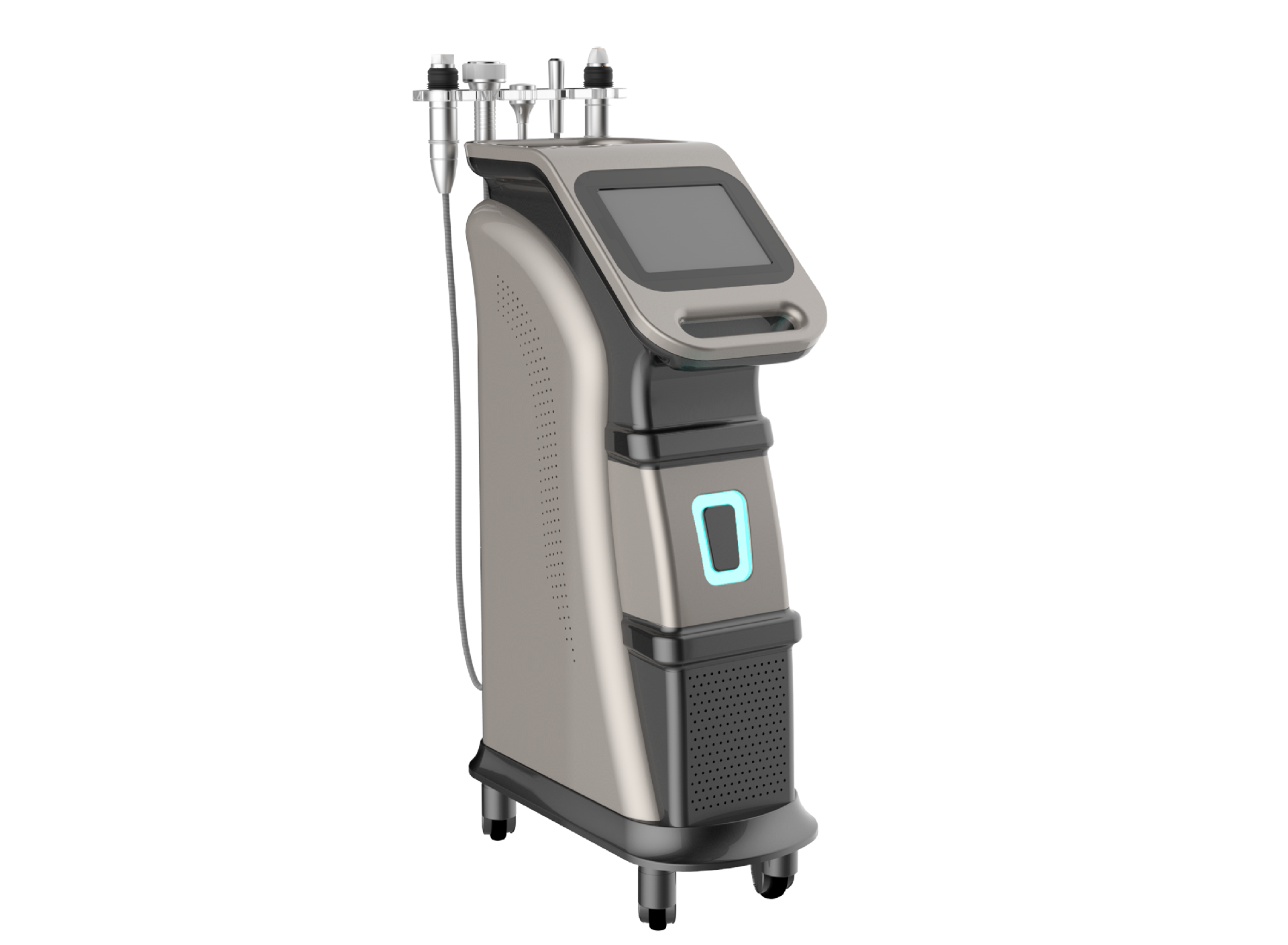

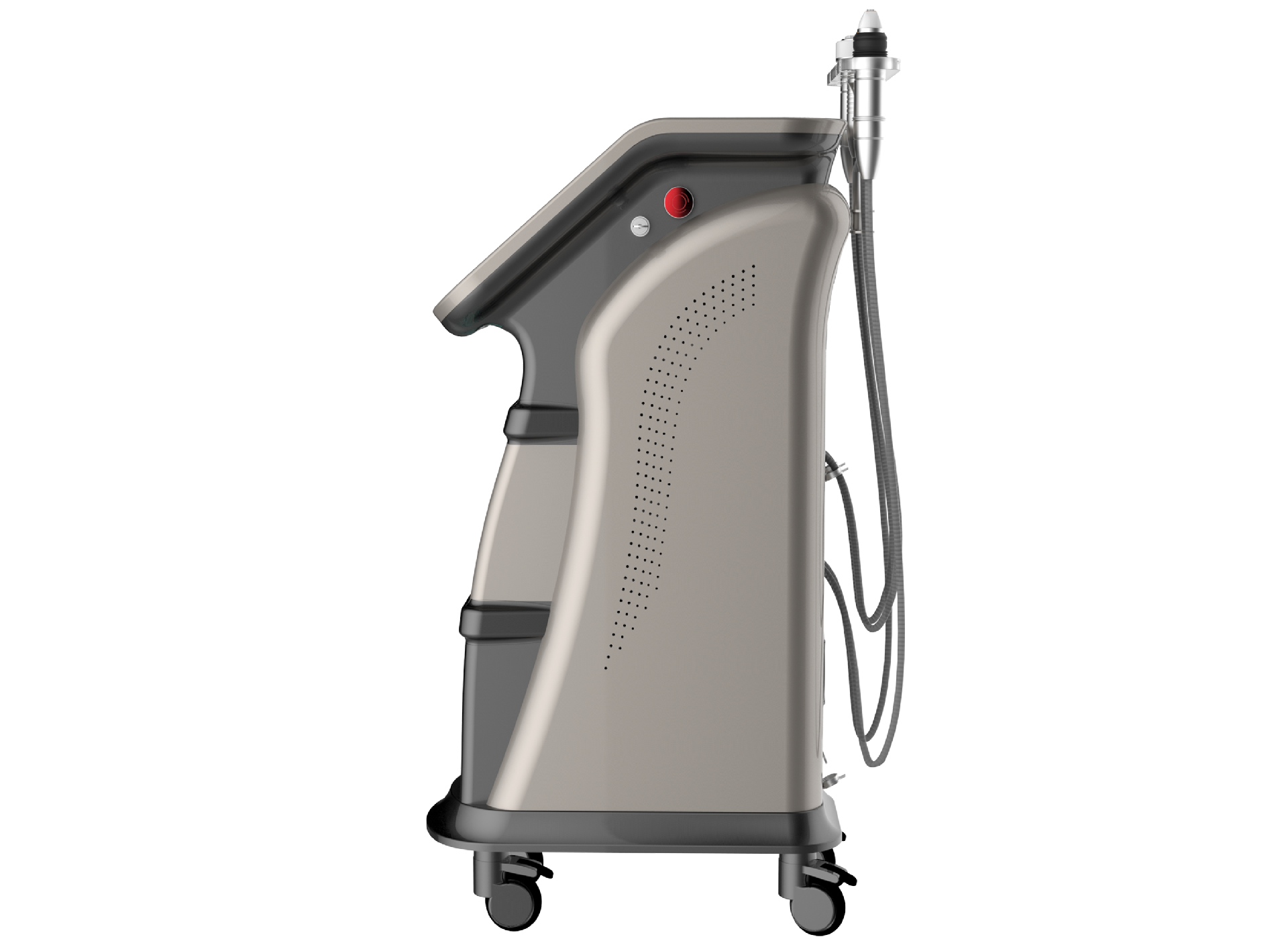

PINXEL-2-Gold
Technology：
Our Pinxel model is specially designed to deliver RF energy directly to the epidermis or dermis skin layer. This stimulates and re-models collagen effectively by either RF micro-needling mode (invasive) or RF matrix mode (non-invasive). It can be used for both epidermal and dermal applications in one platform, without changing the operating environment.
Indication:
Facial Treatments
• Skin Tightening
• Pore Reduction
• Skin Rejuvenation
• Wrinkle Removal
• Face Lift
•Body Treatments
• Scars Removal
• Stretch Marks Removal
• Body Tightening

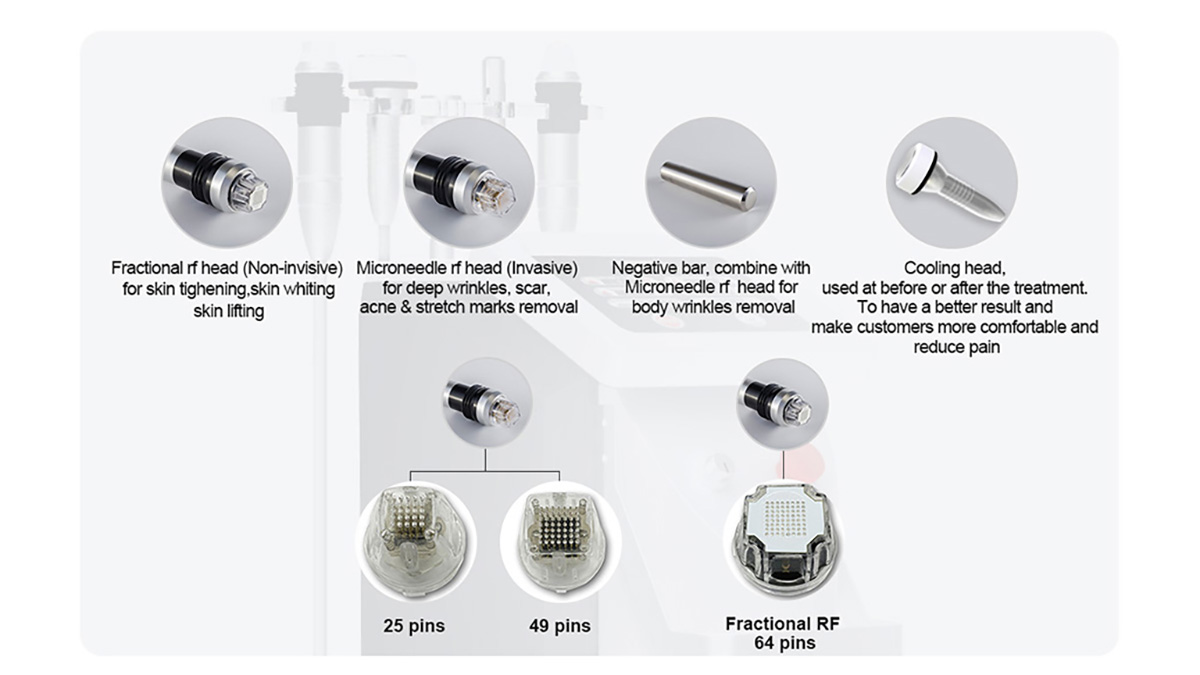

Applicators
FRACTIONAL RF Applicator:
FRACTIONAL RF applicator for non-invasive wrinkle reduction, suitable for the patients fear of needle, no down time, recovery soon.
Fractional RF handle
Epidermis Treatment
Non-invasive Treatment
Microneedle RF Applicator:
MICRO NEEDLE RF (RF) applicator for procedures requiring ablation and resurfacing of the skin.
Microneedle RF handle
Epidermis and dermis Treatment
Invasive Treatment
1.Stepping Motor Type
Stepping Motor Type, different to existing solenoid type, the needle inserts to the skin smoothly with no shock, and causes no bleeding and no pain after the procedure

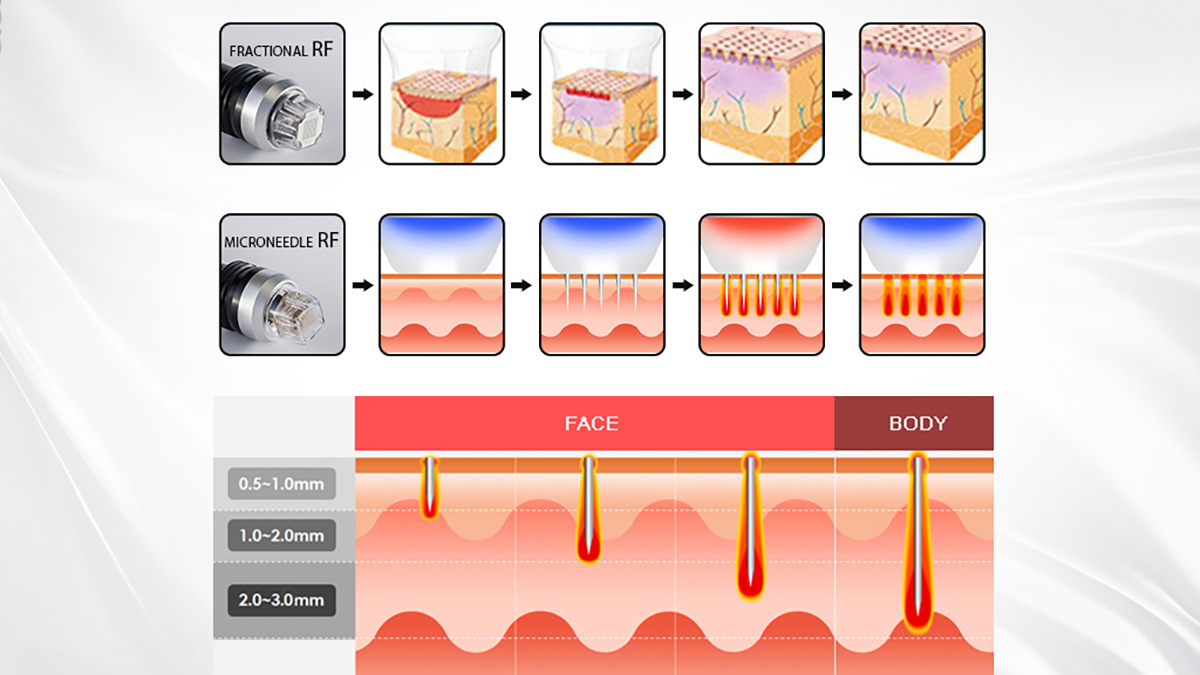

2.Needle Depth Control
0.5-3.0mm [0.5mm Step]
3.Gold Plating
Needle is durable and also have high biocompatibility by applying Gold Plating. Patient with Metal allergy could also use it with not conceming Contact Dermatitis.
4.Safety Needle System
Sterilized disposable needle tip
operator can easily notice the applying RF energy from LED light.
5.Needle Thickness: 0.2mm
The needle structure is easy to penetrate the skin with mininum resistance.

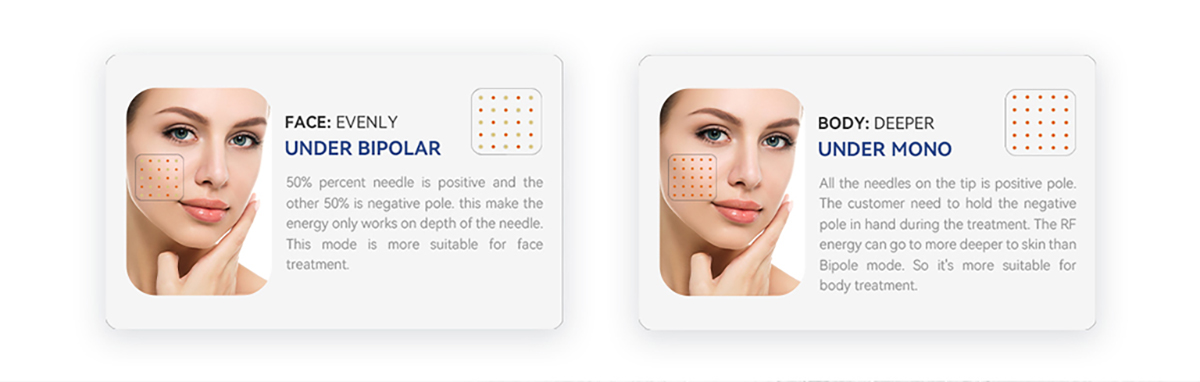

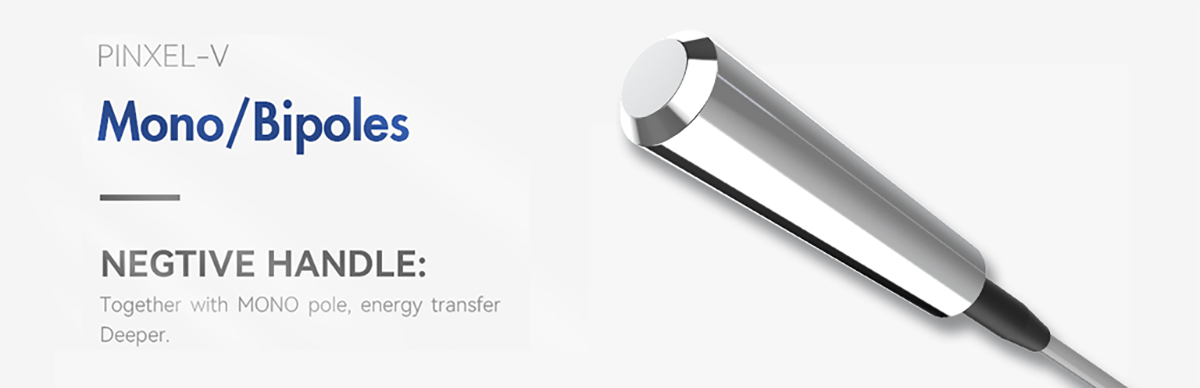

Negative bar Applicator:
Mono-polar:For body, deeper
Bi-polar:For face, evenly

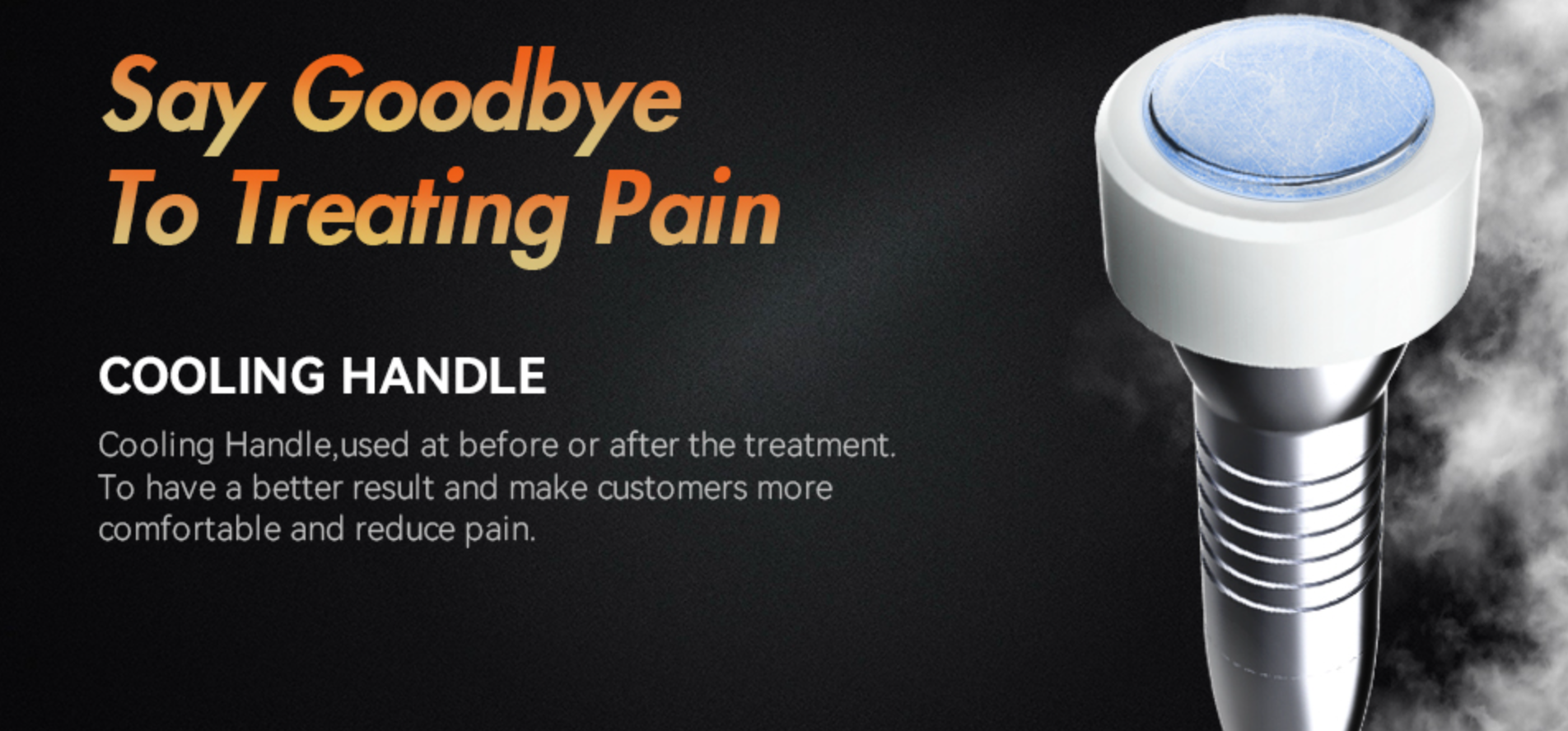

Cooling handle Applicator:
Cooling handle reduce pain after treatment
Specification:
-System Type :Mono & Bipolar RF ,Bipolar RF
-Frequency :2MHz
-Total RF Treatment Level :Up to Level 10
-Dual Operation Mode :Fractional RF Micro-needle ,Fractional RF Sub-lative
-Max Energy :50W
-Disposable Tip :Micro-electrode needle , Micro- electrode tip
-Depth of Needle :0.5 - 3 mm (Adjustable) ,Each time add 0.5mm
-Cooling head :-10℃
-Display :10.4 inch LCD
-Switch :Foot Switch
