Vertical Steam Sterilizer
Brand
- A. J. Costa (Irmãos), Lda
Model
- UNICLAVE 99
Manufacturing Country
- Portugal
Quality Certificates
CE MARKING
ISO 13485
ISO 9001
Specification

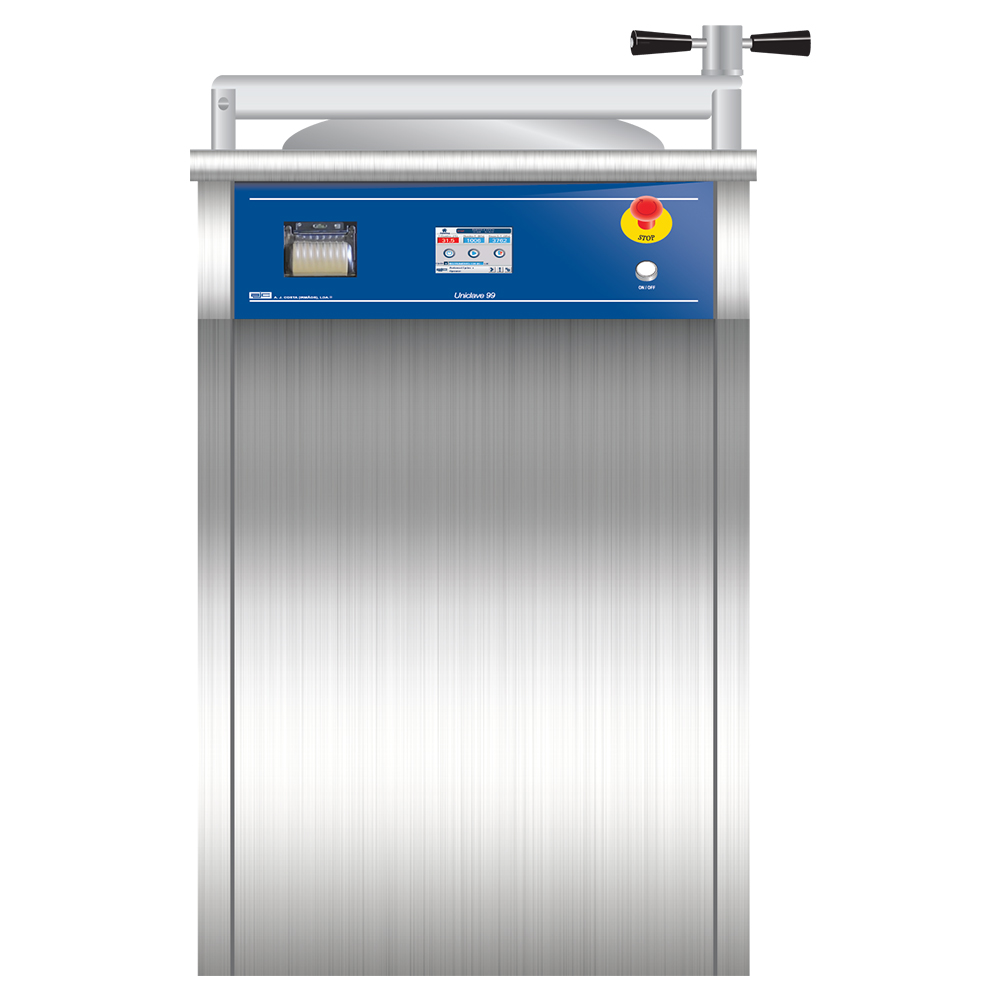

UNICLAVE 99
These are autoclaves designed for laboratories. The sterilization chamber is cylindrical and manufactured in AISI 304 L stainless steel. The lid is manual and also in AISI 304 stainless steel. The operation of the Uniclave 99 autoclave is fully automatic because it is controlled by a PLC microprocessor system and, therefore, the sterilization chamber is manually filled with water. It is pre-programmed with 9 sterilization cycles. It is possible to parameterize the cycle. It has a 3.5’ touchscreen on the front panel.
Features:
-Easy to use and learn user interface;
-End-of-cycle buzzer;
-Vertical loading of the sterilization chamber;
-Easy maintenance;
-AISI 304 stainless steel construction;
-Equipment fully built in stainless steel, free from ferrous materials
-Equipped with condenser for steam exhaust;
-Double safety system against over pressure;
-Equipped with bacteriological filter.
Accessories:
Cargo baskets;
Tripod for protection of resistances and support for baskets.
Programs/Cycles:
Loads of use in analysis and research laboratories:
– 20 min pre-programmed cycle at 121ºC with drying;
– 5 min pre-programmed cycle at 134ºC with drying;
– Possibility, by the chief user, to preset seven more cycles, in a temperature range between 75ºC and 135ºC.
External network connections:
Network Features
-ELECTRIC 3 ~ + N + T 400 V 50 Hz 6 kW
-WATER Maximum pressure 6 Bar
-DEMINERALIZED Minimum pressure 3 Bar
3/4” BSP connection
-DRAIN Material resistant to 100 ºC
3/4” BSP connection
- Capacity Volume : from 80 Liter to 160 liter
