i20c Endoscope Series
The PENTAX Medical i20c video endoscope series supports procedures with superior vision and ergonomics. Healthcare professionals can instantly benefit from uncompromising vision and maneuverability in detection, diagnosis and therapy.
Features

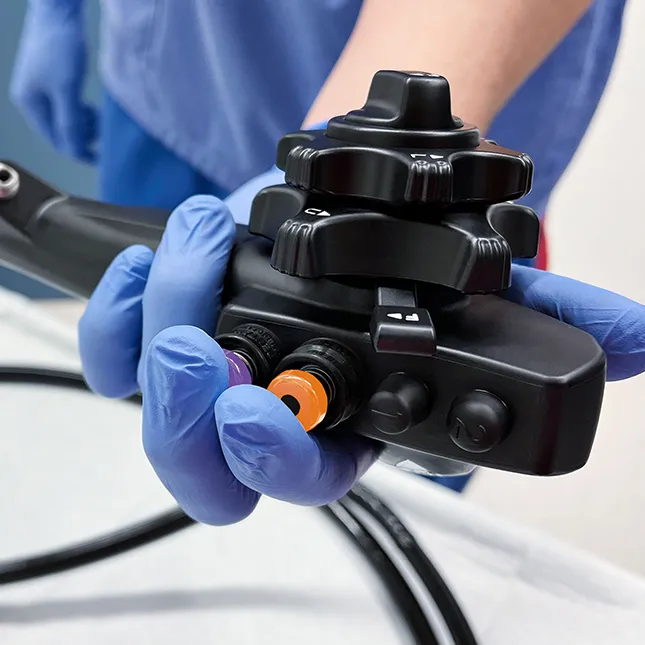

Easier Control with our Ergonomic i20c Endoscopes
In a user-focused evaluation, the average hand and finger dimensions were measured to optimize the fit of the ErgoFeel control body.
Optimized Spokes
Finger-optimized spokes require less force to move the distal end.
Flat Steering Wheels
Lower, flatter steering wheels for tip angulation were shaped to improve access and operability.
Easier Control and less Fatigue during long Procedures
The control body size was optimized for stress-free operation by users with all hand sizes.
Air/water and suction valves were improved for smooth operation.
The positioning of the remote buttons were rearranged and multi‑way trigger functionality added for easier access and operation
Solution for even the Smallest Hands
The i20c endoscope series has a solution for even smaller hands to ease handling of the R/L wheel.

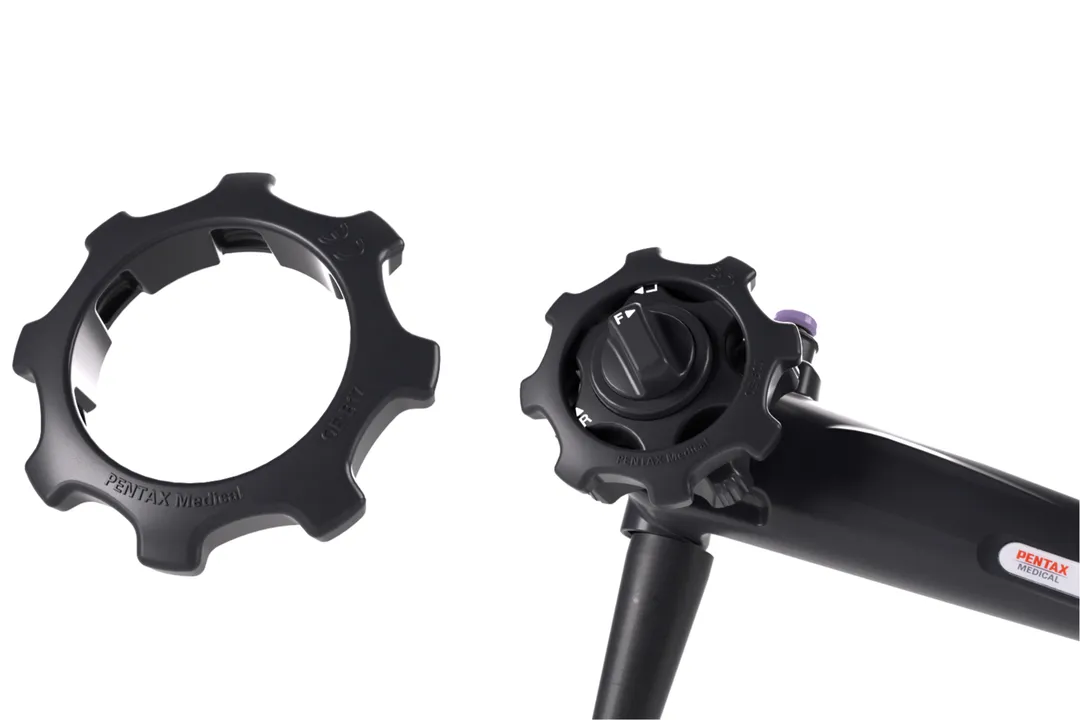

The optional OE‑B17 knob fits right on top of the R/L wheel and makes steering easier, reducing strain on smaller sized hands.
Brilliant Endoscopic Imaging
The i20c endoscope series offers clear vision, supported by latest image enhancement technology.
Images courtesy Prof Timo Rath, University of Erlangen, Nuremberg, Germany

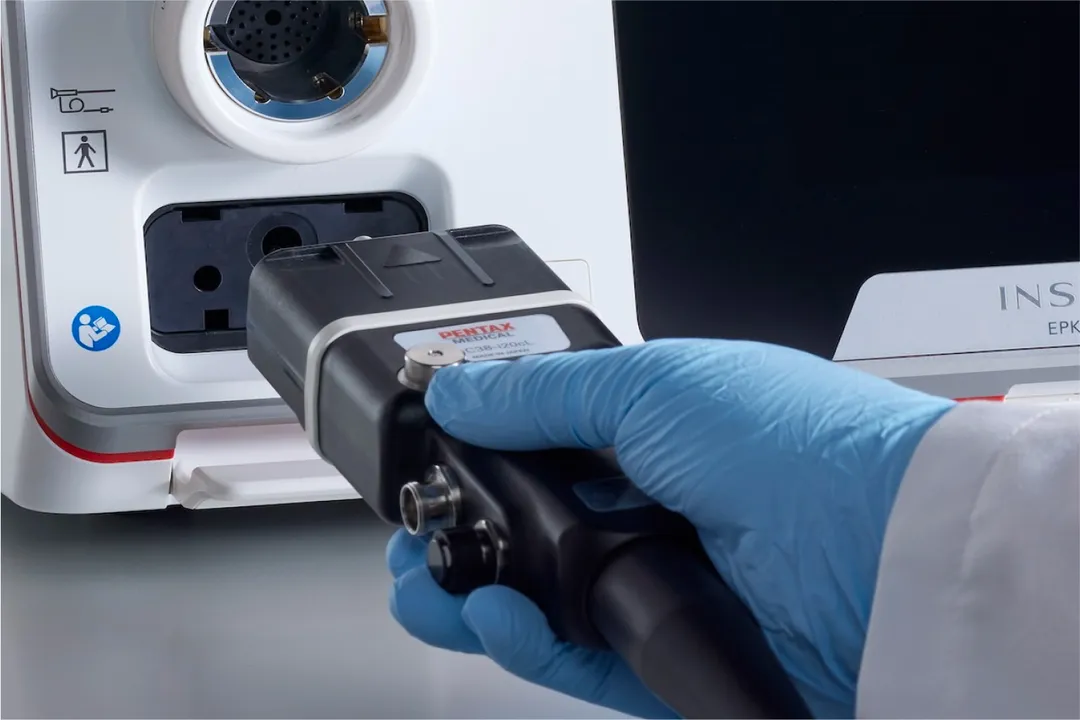

Lightweight EasyOn Connector
The lightweight connector facilitates a more ergonomic and pleasant working environment for medical professionals. The specific advantages are as follows:
1. Characteristic Plug-Shape
The characteristic plug‑shape ensures a fail‑safe connection.
2. Completely Watertight
The connector is sealed for an efficient reprocessing with no need for soaking caps.
3. Single-Handed Operation
The release button enables single-handed operation and unplugging.
4. Ergonomic Handling
We reduced weight and size of the connector to allow for easier overall handling.

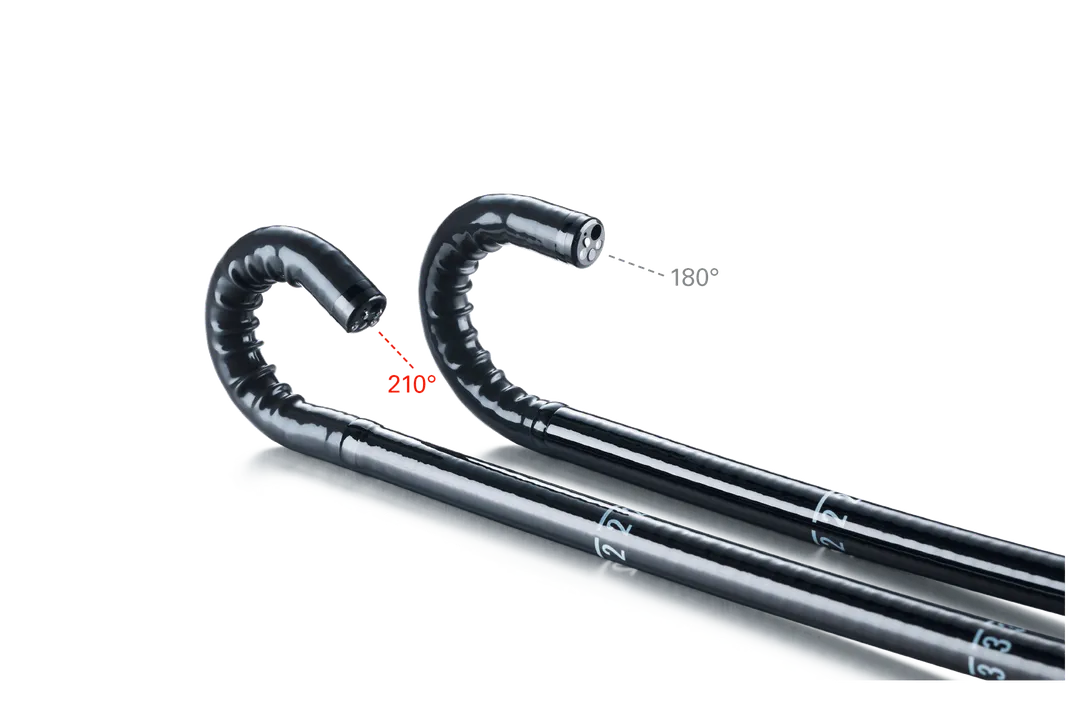

210° Tip Angulation
210° (up) tip angulation in our gastroscopes and colonoscopes enable detection and resection of hard to reach lesions.
Combining flexibility of the endoscope tip and stability of the endoscope body ensures excellent maneuverability.
EG29-i20c
Distal end Ø 9.9mm
Working channel Ø 3.2 mm
EG27-i20c (slim)
Distal end Ø 9.2mm
Working channel Ø 2.8 mm
EC38-i20c
Distal end Ø 13.2mm
Working channel Ø 3.8 mm
EC34-i20c (slim)
Distal end Ø 11.5mm
Working channel Ø 3.2 mm
Lower GI
Colonoscopes with TriDrive Technology Insertion Tube
The 20c colonoscopes support efficient endoscope advancement, designed to reduce loopings, provide direct torque and an overall improved maneuverability.

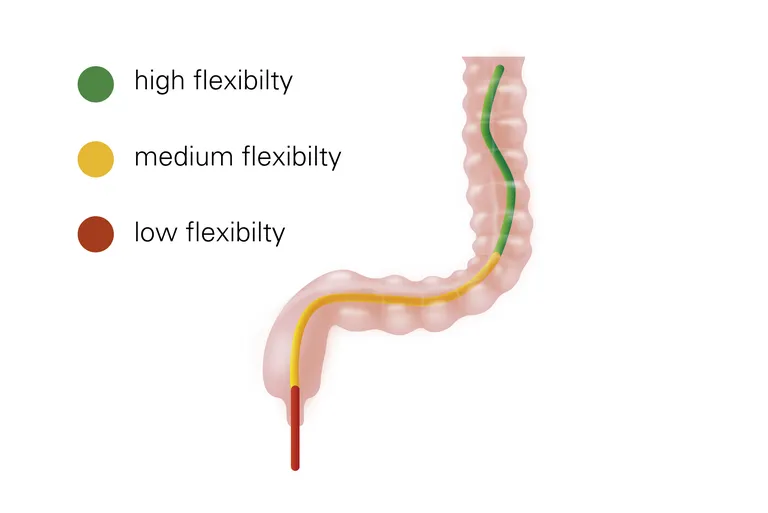

i-FLEX™
Graded endoscope flexibility to ease the maneuverability and help to reduce loopings

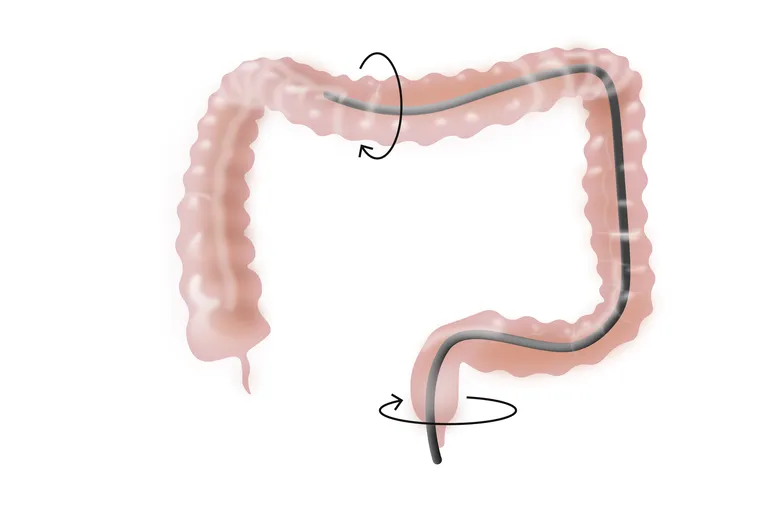

TrueTorque™
Delivers a higher tactile feel with the endoscopes, supporting a predictable movement

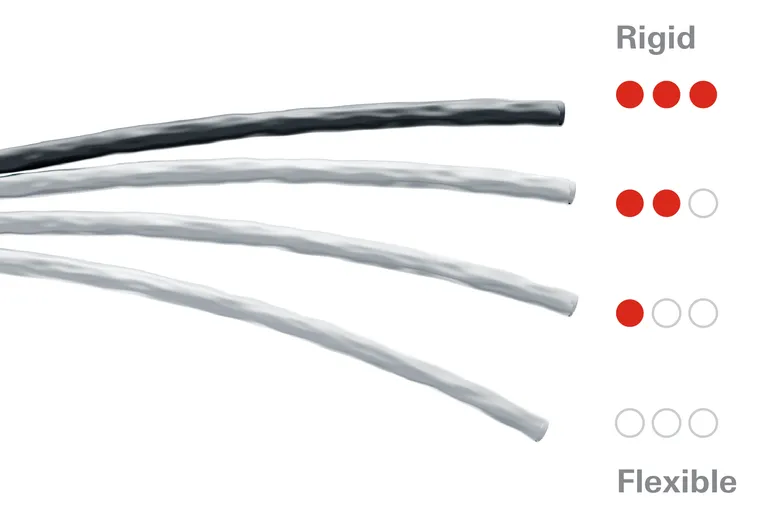

Adjustable Stiffness
Rigidity of the insertion tube can be adjusted for individual patient’s anatomy
Video Processor for i20c Endoscopes
The i20c endoscopes, combined with the INSPIRA video processor, form the ideal future-proof platform for next-generation medical solutions.
