More than fast

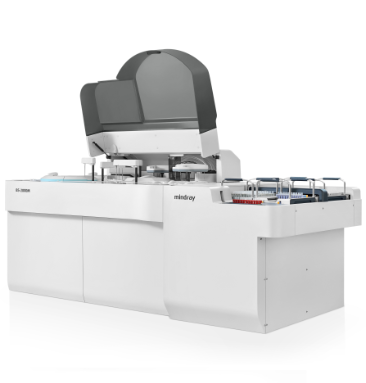

Using best-in-class technology, the Mindray CL-6000i is a chemiluminescence immunoassay analyzer with high throughput, high performance and high reliability.
Features
-Highly polished steel probes
Highly polished steel probes with cone-head and high pressure interior washing can minimize carry-over. It helps provide consistent and reliable result for our patients.

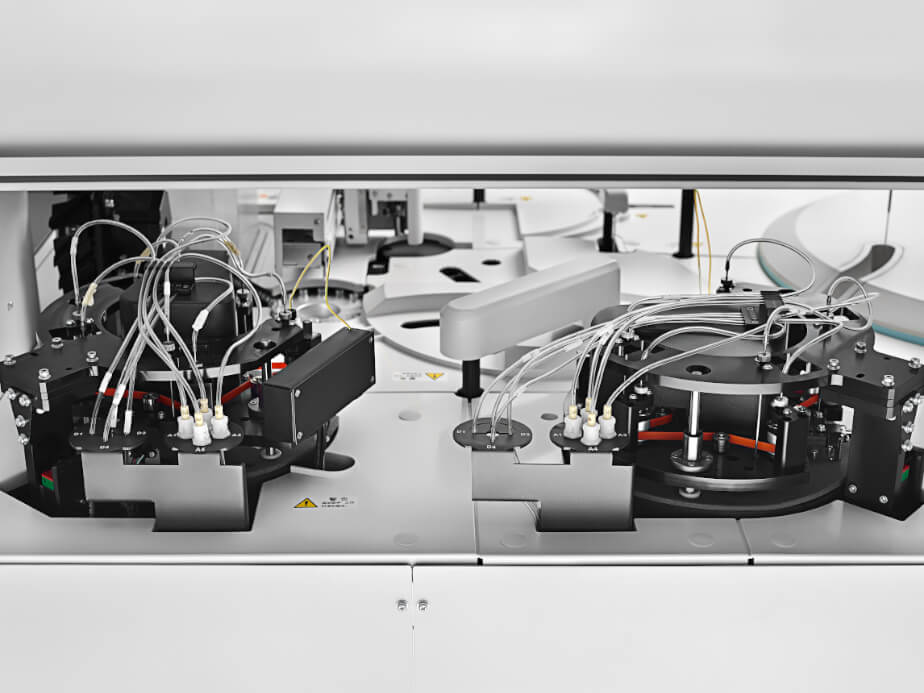

-Magnetic Separation
Dual-core and 4 phases magnetic separation helps accelerate the testing speed and resuspend technology between each phase helps realize the accurate separation, producing reliable results within short time.

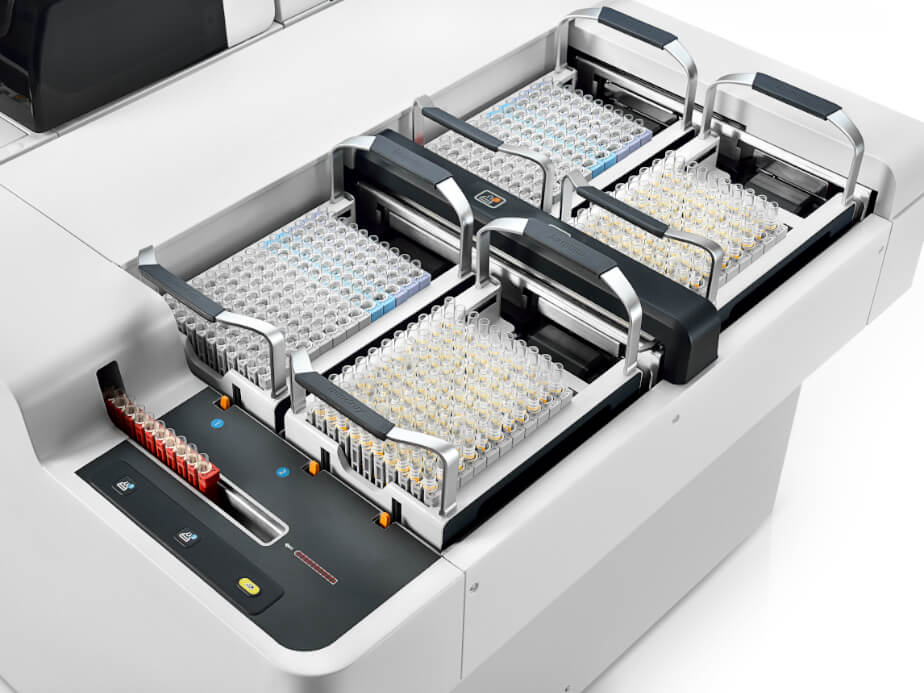

-SPL 2000
Patented design of sample basket ensures safe transportation and up to 600 sample positions ensure big capacity as well as long walk-away time.

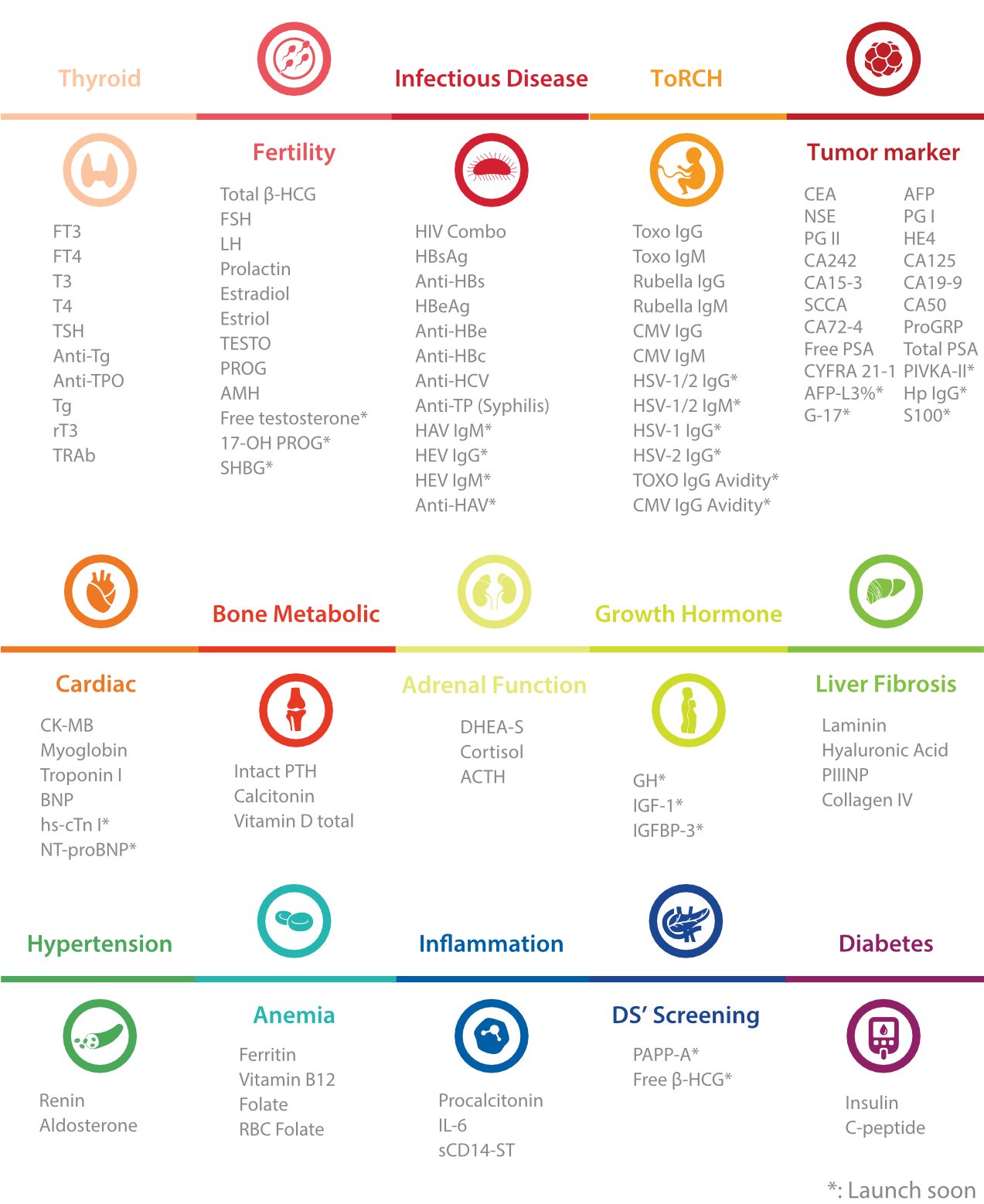

Chemiluminescence Immunoassay Reagent
Technical Specifications
General Information
Throughput Up to 480 tests/hour
Measurement Principle Micron superparamagnetic particles platform With alkaline phosphatase (ALP) labeled reagents And AMPPD substrate
Sample Assembly
-Sample Feeder
Continuous sample loading and offloading By sample racks
-Sample positions
10 positions per rack, up to 30 racks in one batch
-Sample Probe
Steel probe, liquid level detection, clot detection, Horizontal and vertical collision protection
Sample Volume
10-200ul, with increment of Tul
Sample Dilution
Automatic dilution with 1:2-1:80
Reagent Assembly
-Reagent Disk
36 reagent positions, continuous loading. real-time mixing for magnetic particles
-Cooling System
2-8°C
-Reagent Pack
50 tests/pack, 100 tests/pack
-Reagent Scanning
Built-in/External bar code reader
-Reagent Probe
Steel probe, liquid level detection, clot detection, Horizontal and vertical collision protection
-Reagent Volume
10-200ul, with increment of Tul
-Substrate System Substrate Bottle
300/500 tests per bottle
-Substrate Loading
Capable of continuous loading during testing
-Substrate Heating
Constant heating
-Aspiration Volume 200ul
-Magnetic separation unit
Separation Assembly 4-phase magnetic separation Temperature Accuracy 37±0.3 °C
Measurement and Reaction System
-Detection Mode Photon counting
-Signal Detector Photomultiplier (PMT) photo counter
-PMT Calibration LED reference module
-Temperature Accuracy: 37:±0.3°C
-Mixing Unit Non-touch vortexer mixing
-Cuvette Disposable plastic cuvette
-Cuvette Loading Continuous loading and offloading
Working conditions
-Dimension 2150mm 1166mm*1300mm (W*D*H)
-Weight 580Kg
-Noise <65dBA
-Altitude Height -400m-4000m
