Dental CBCT imaging unit
Brand
- Planmeca Oy
Model
- Planmeca Viso® G5®
Manufacturing Country
- Finland
Quality Certificates
CE MARKING
FDA 510(k)
ISO 13485
ISO 9001
ISO 14001
Specification

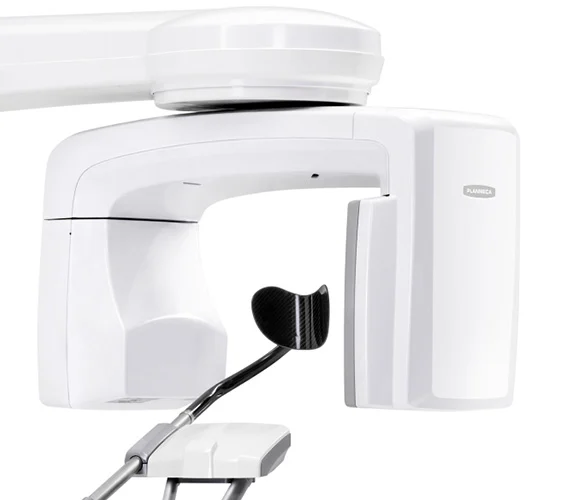

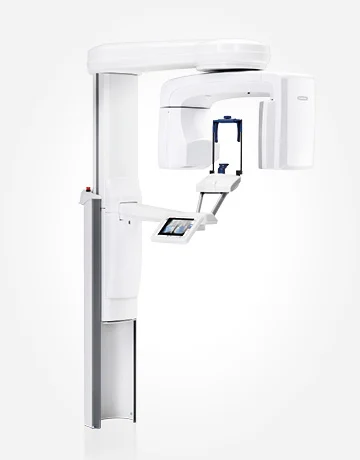

Planmeca Viso® G5 is a fully featured and powerful CBCT machine for dental and maxillofacial imaging needs. With top-of-the-line tech and an FOV up to 20 x 17 cm, this incredible 3D imaging unit enables imaging even beyond the dentition. It offers a wide selection of volume sizes and outstanding image quality for world-class flexibility and usability.

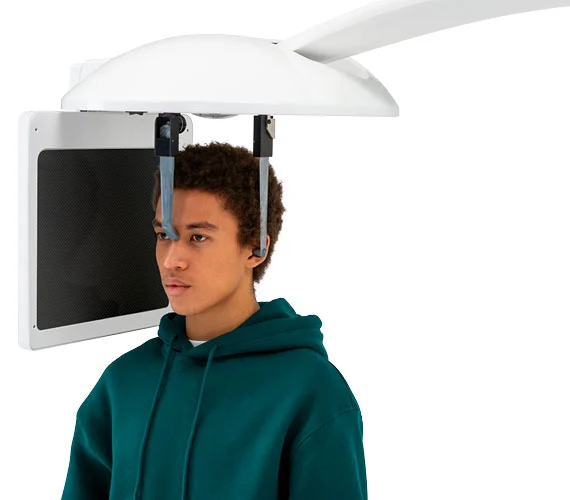

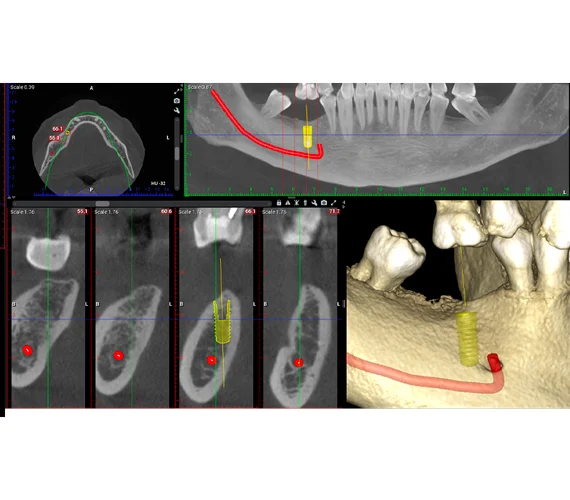

Planmeca Viso G5 includes a complete range of imaging programs, from 3D dental and ENT programs to 2D imaging as well as cephalometry. The device enables everything from single tooth to full face imaging.
Technical data:-
Anode voltage 60–120 kV
Anode current 1–16 mA
Focal spot 0.5 mm, fixed anode
Image detector Flat panel
Image acquisition 200 / 360 degree rotation
Scan time 1–36 s
Typical reconstruction time 2–55 s
Physical space requirements:-
Width 155 cm (61 in.)
Depth 154 cm (60.6 in.),
Height* 160-234 cm (63-92 in.)
Weight 165 kg
With cephalostat:
Width 216 cm (85 in.)
Depth 154 cm (60.6 in.)
Height* 160-234 cm (63-92 in.)
Weight 165 kg + 20 kg (ceph)
*The maximum height of the unit can be adjusted for offices with limited ceiling space.
