_Rugged, advanced monitor*

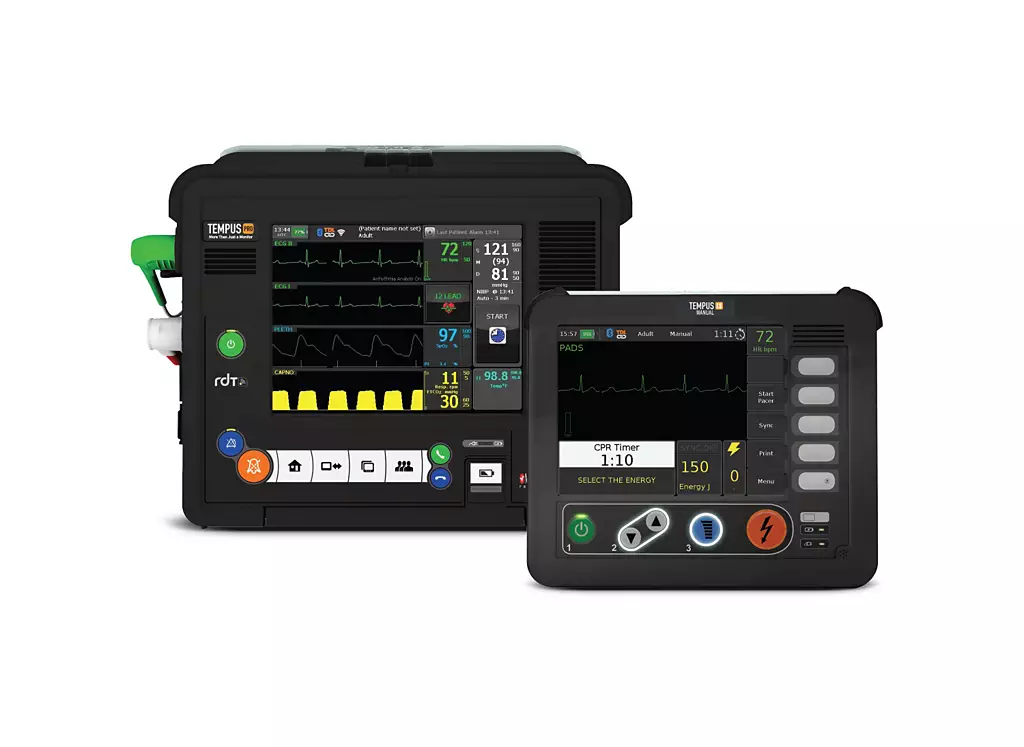

_Professional monitor/defibrillators
The Tempus Pro places the needs of the prehospital care professional at the heart of its design. Ground-breaking in functionality, it is light enough to carry and small enough to hold in one hand. Rugged, yet highly intuitive to operate, it can easily be deployed in a wide range of clinical scenarios, with advanced capabilities to allow clear, documented decision-making.
_Features*
_Capture, connect and decide: The Tempus Pro allows you to capture as much or as little data as you need. The on-screen smart patient care record can be augmented via the touchscreen, while you can choose how much data to collect and exactly what, when, where and how to share it. All data is encrypted and shared via authenticated, highly secure channels.
_Unique, scalable platform: The functionality of the Tempus Pro system can be extended and upgraded when you need it to be. Add video laryngoscopy, ultrasound, defibrillation and telemedicine to further advance capabilities. And access feature, software and system updates, and configuration tools to evolve your system in line with your requirements, budgets and protocols.
_Small, light, robust: The Tempus Pro is designed and built to meet the needs of prehospital care professionals. Weighing only 2.9 kg (6.4 lb) with a slender profile, the monitor allows you to flexibly carry all you need with you to the scene. The Tempus Pro is also highly durable – with an IP66 rating underlining its suitability for deployment in the most challenging environments.
_Practical design and operation: The Tempus Pro features a 6.5" daylight-readable color display with high contrast mode, a glove-friendly touchscreen interface and multiple user-selectable display options. It is also night-vision compatible and features an integrated tactical switch for hostile environments.
_Specifications*
_Physical dimensions*
-Standalone size: 263 x 216 x 100 mm (10.3" x 8.5" x 3.9")
_Standalone weight:2.9 kg (6.4 Ib) with battery and RapidPak clip only
_Display:Color 165 mm (6.5”) 640x480 pixels, 130 klux daylight readable display
_Anesthetic gas monitoring²*
_Display of AA gas vitals:Optional Masimo ISA OR+ anesthestic gas module
_Ultrasound and video laryngoscopy²:Interson (optional)
_General purpose, 3.5 MHz and line placement 7.5 MHz:

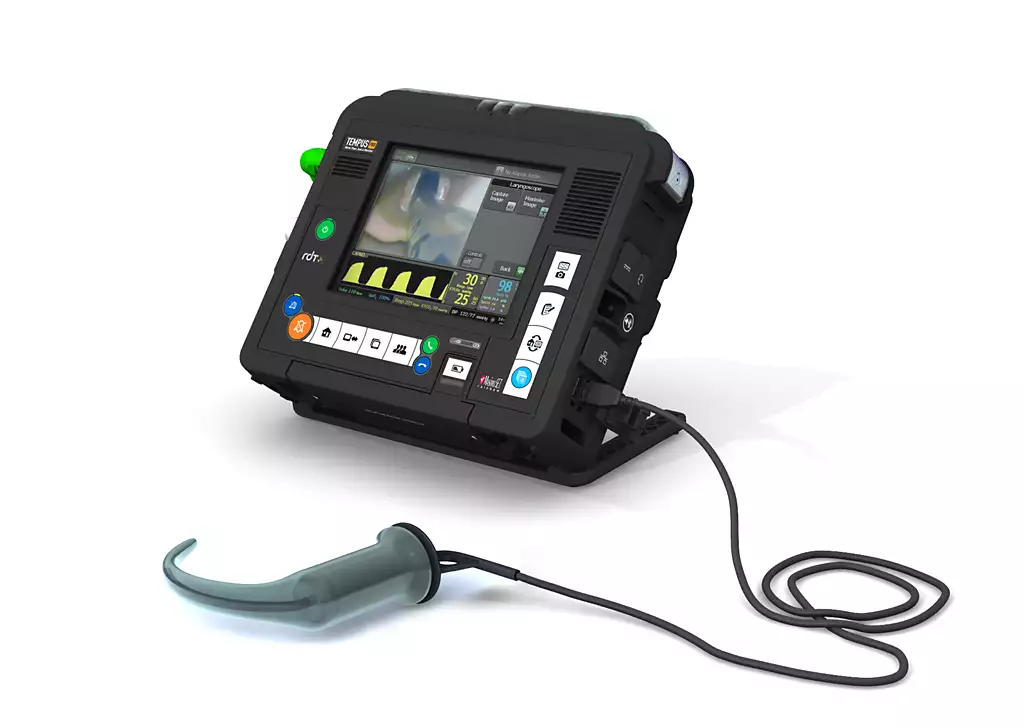

-Karl Storz C-Mac (optional) : Video laryngoscope imager and single use blades
-Integral digital camera*
-Resolution; 3.2 megapixels
-Video streaming; H264 algorithm (bandwidth dependent)
-Images; Included in patient record
-Pulse rate*
-Range; 25-239 BPM
-Accuracy (all ages); No motion ≤3 digits, motion ≤5 digits
-Impedance respiration*
-Range; 3-150 RPM
-Accuracy; ±2 RPM or ±2% whichever is greater
-Invasive pressure²; 2 channels 5 μV/V/mmHg, Response: 0–20 Hz (-3 dB)
-Filters; 50-60 Hz notch
-Range; -99-310 mmHg
-Expansion; Up to 4 channels via USB module²
-Contact temperature*
-Resolution; ±0.1°C / ±0.2 °F; accuracy: ±0.1 ºC
-Compatability³; 2 channel YSI 400 series
-Measurement range; 20–45°C (68–113°F)
-Microstream etCO₂*
-Flow rate (measured by volume); 50 (42.5 ≤ flow ≤ 65) ml/min
-Accuracy; 0–38 mmHg:±2 mmHg; 39–150 mmHg:±5% of reading;+0.08% per 1 mmHg over 38 mmHg
-Microstream etCO₂*
-Range; 0-150 mm/Hg
-Capnometry²; Respiration rate range ;1-149 bpm
-Respiration rate accuracy; 0–70 BPM ±1 BPM 71–121 BPM ±2 BPM 122–149 BPM ±3 BPM
-Noninvasive blood pressure*
-Adult range; 20-260 mmHg
-Pediatric range; 20-230 mm/Hg
-Neonate range; 20-130 mmHg
-Cuffs; Neonate disposable 1-5, infant, child, adult, large adult, thigh, cuff kit
-Accuracy;±3 mmHg or ±2% (whichever is greater)
-Pulse oximetry - Total oxygen content (SpOC®)²*
-Range; 0-35 ml of O2/dL
-Pulse oximetry - Carboxyhaemoglobin (SpCO®)²*
-Range; 0-99.9 %
-Accuracy (adult/ped/infant) ;1-40 %, ± 3%
-Pulse oximetry - Methemoglobin (SpMet®)²;
-Range; 0-99.9 %
-Accuracy (all ages); 1-15 %, ± 1%
-Pulse oximetry - Total hemoglobin (SpHb® g/dL)²;
-Range; 0-25 g/dL
-Accuracy (adult/ped/infant); 8 - 17 g/dL ± 1 g/dL
-Pulse oximetry - SpO₂*
-Range; 1-100 %
-Accuracy (adult/ped); No motion or low perfusion ±2 digits 70–100%, motion ±3 digits 70–100%
-Accuracy (neonate); Motion, no motion and low perfusion ±3 digits 70–100%
-Perfusion index; 0,02-20 %
-Response; <1 second delay
-Technology; Masimo rainbow SET®
-Sensor; Comfortable, waterproof, soft-tip
-Pleth Variability Index (PVI®)²*; Pleth Variability Index (PVi)²
-ECG monitoring*
-Acquisition sample rate; 500 Hz
-Common mode rejection; 95 dB minimum, additional filters include mains, muscle, and low and high pass
-Arrhythmia monitoring/alarms; Arrhythmia monitoring/alarms
-ST elevation; ST elevation
-QT segment measurement; with alarms²
-3,4,5 and 12-lead monitoring; via standard snap-on electrode
-Heart rate range; 30-300 bpm
-Acquisition and interpretation; 12-lead acquisition² and 12-lead interpretation
-Accuracy; ±3%, DC offset, ±300 mV dc
-Frequency response; 0.05-175 Hz , ±3dB
-Operating time*
-10.75 hours; Display brightness at 60%, ECG, SpO₂, EtCo₂, temp x2 and NBP every 15 minutes
-11.5 hours; Display brightness at 30%, ECG, SpO₂, EtCo₂, temp x2 and NBP every 15 minutes
-Up to 14 hours; With battery saving mode activated⁴
