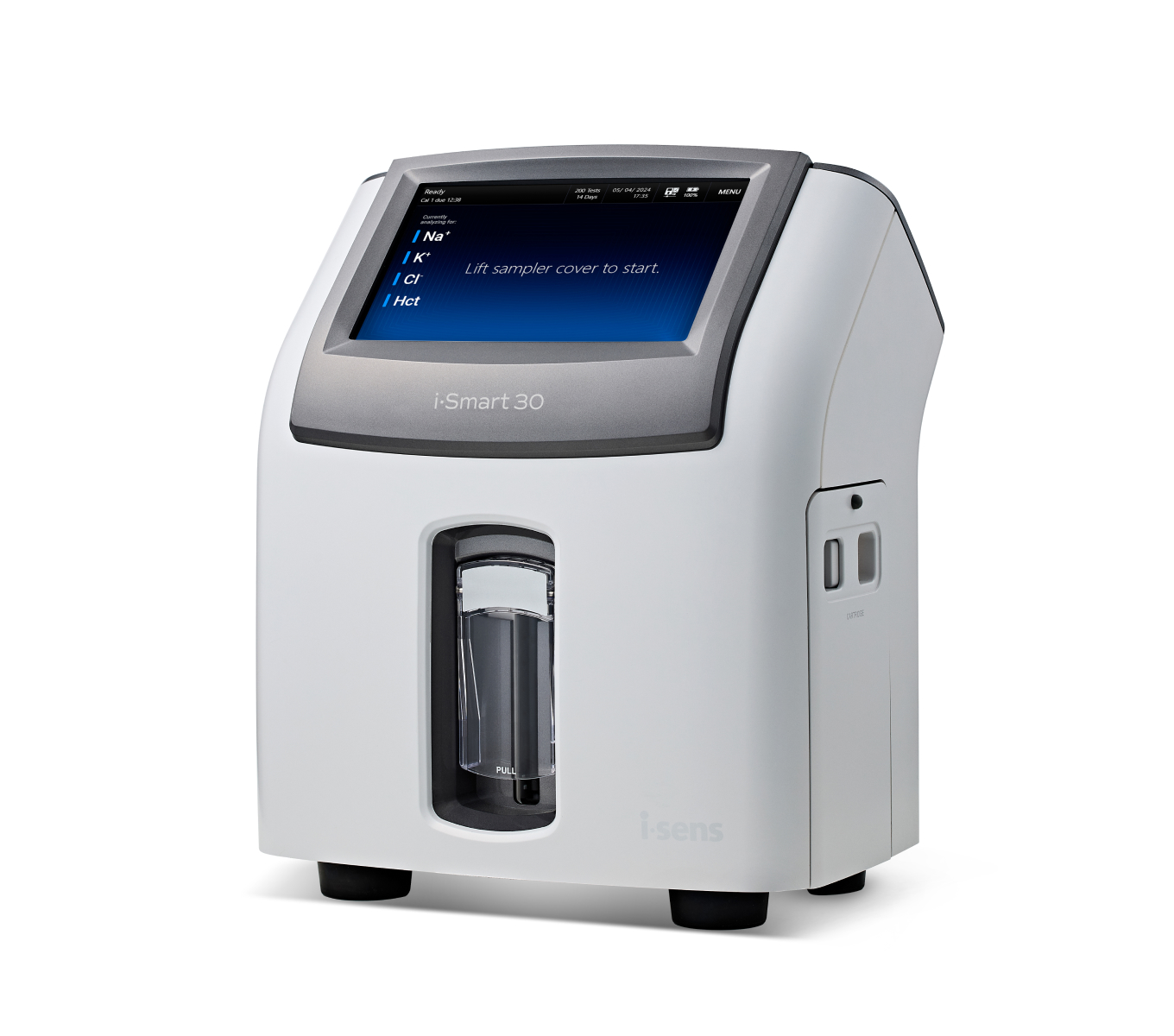

Product:i-Smart 30
-Features :
-Electrolyte Analyzer
-Equipped with a seven-inch color touchscreen and user-friendly software
-An all-in-one cartridge system including electrodes, reagents, and all other consumables
-Rapid testing time (35 seconds) and small sample volume (50 μL)
* Product Information :
- Size / Weight : 256 x 292 x 208 mm / 5.5 kg
- Operating Temperature : 15-35 °C
-Display : 7 inch color LCD (touchscreen)
- Printer : Two-inch (built-in) thermal printer
- Interface : Serial (RS-232), LAN (RJ45 Ethernet)
- Power : 100–240 VAC, 50/60 Hz
- Built-in battery : Up to 2 hours of use (lithium-ion cell)

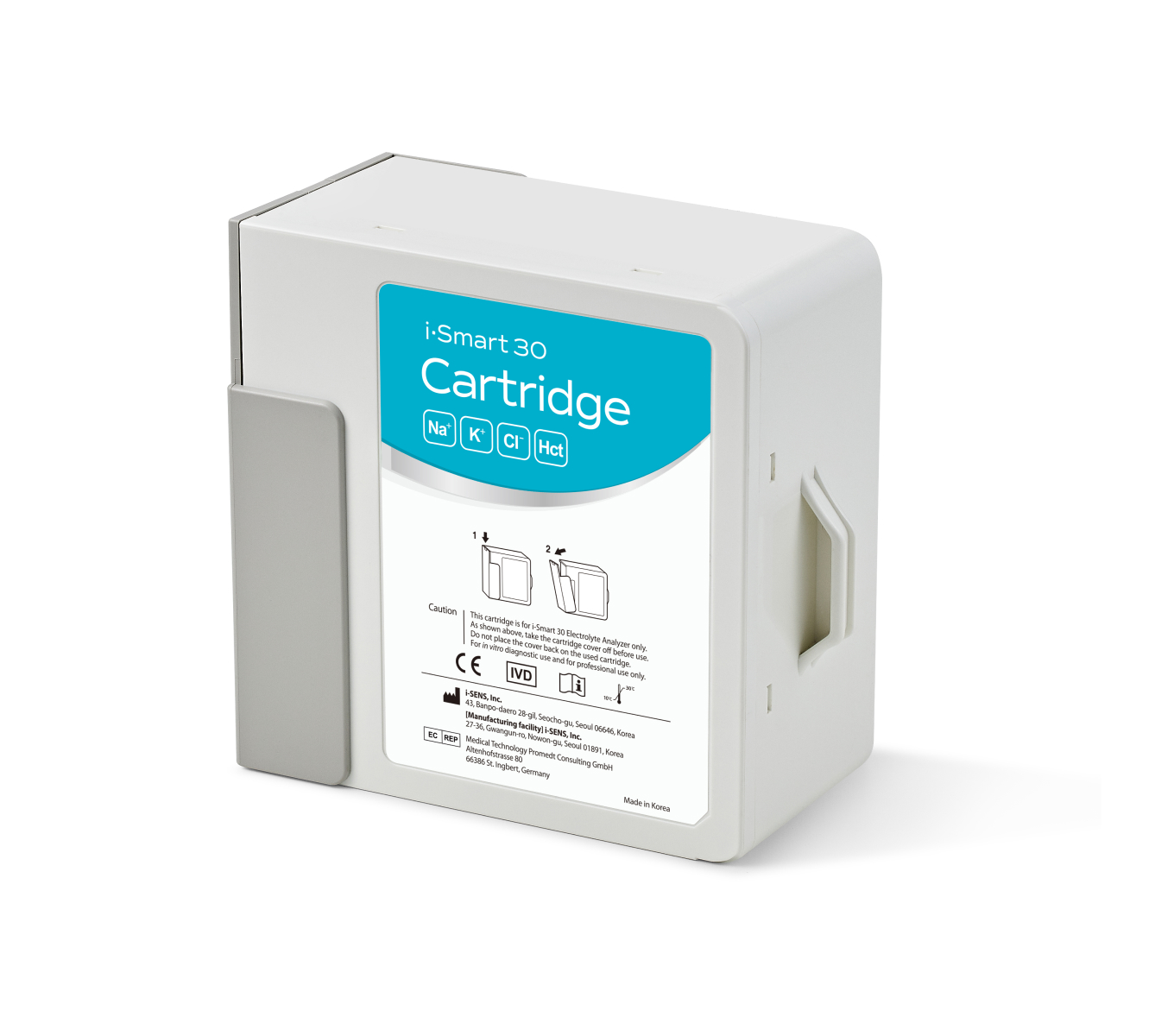

* i-Smart 30 Cartridge :
- Measurement items : Na+, K+, Cl–, Hct
- Sample type : Whole blood, Plasma, Serum
- Sample volume : 50 μL
- Testing time : 35 seconds
- Calibration : Automatic or manual
- Cartridge specifications :
50 tests for 2 weeks
50 tests for 3 weeks
100 tests for 2 to 3 weeks
150 tests for 2 weeks
200 tests for 2 weeks
300 tests for 2 weeks
- Expiration date :
18 months from the manufacturing date :

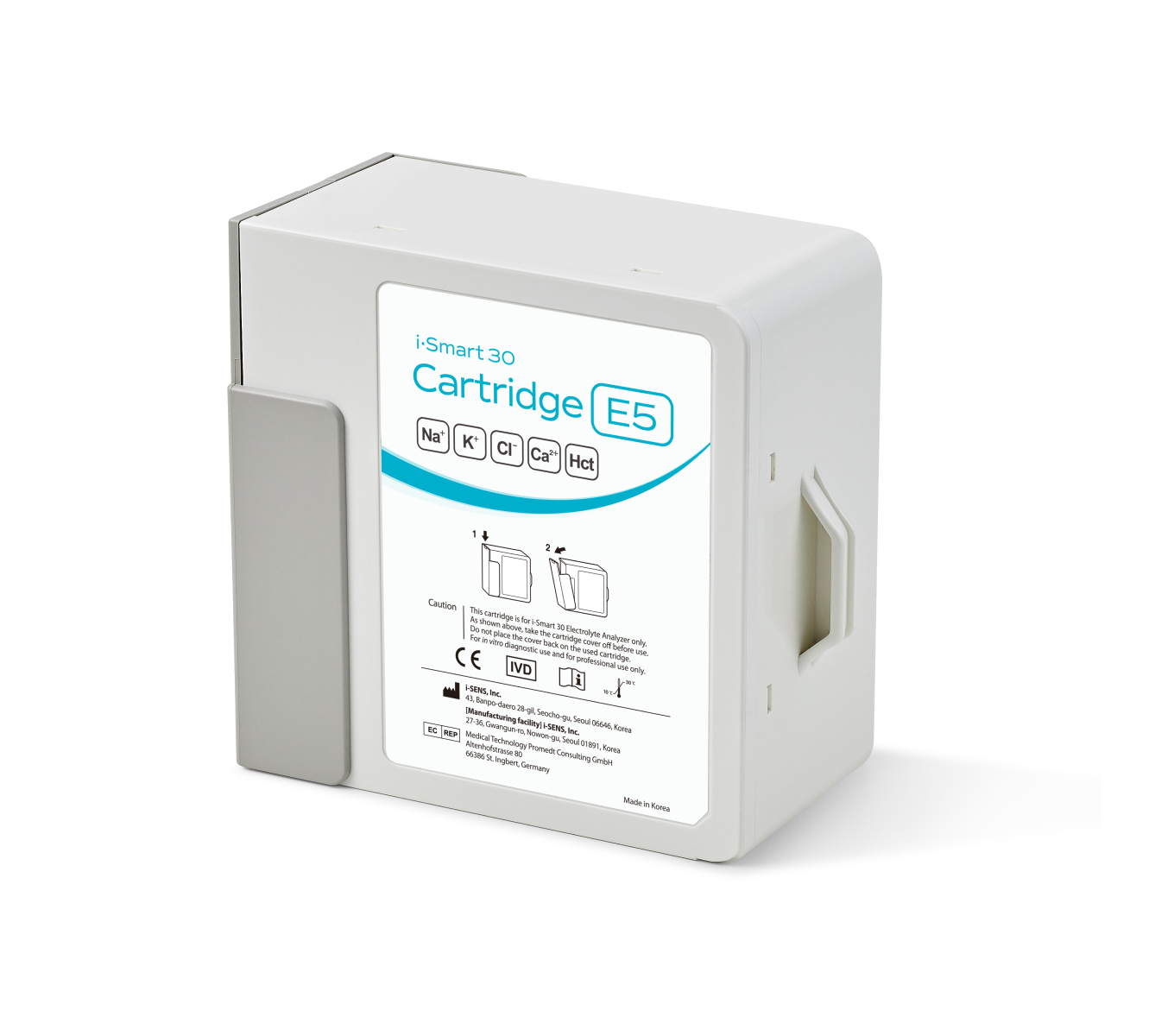

* i-Smart 30 Cartridge E5 :
- Measurement items : Na+, K+, Cl–, Ca2+, Hct
- Sample type : Whole blood, Plasma, Serum, and Urine
- Sample volume : 50 μL
- Testing time : 35 seconds
- Calibration : Automatic or manual
- Cartridge specifications :
50 tests for 2 weeks
50 tests for 3 weeks
100 tests for 2 to 3 weeks
150 tests for 2 weeks
200 tests for 2 weeks
300 tests for 2 weeks
- Expiration date : 12 months from the manufacturing date

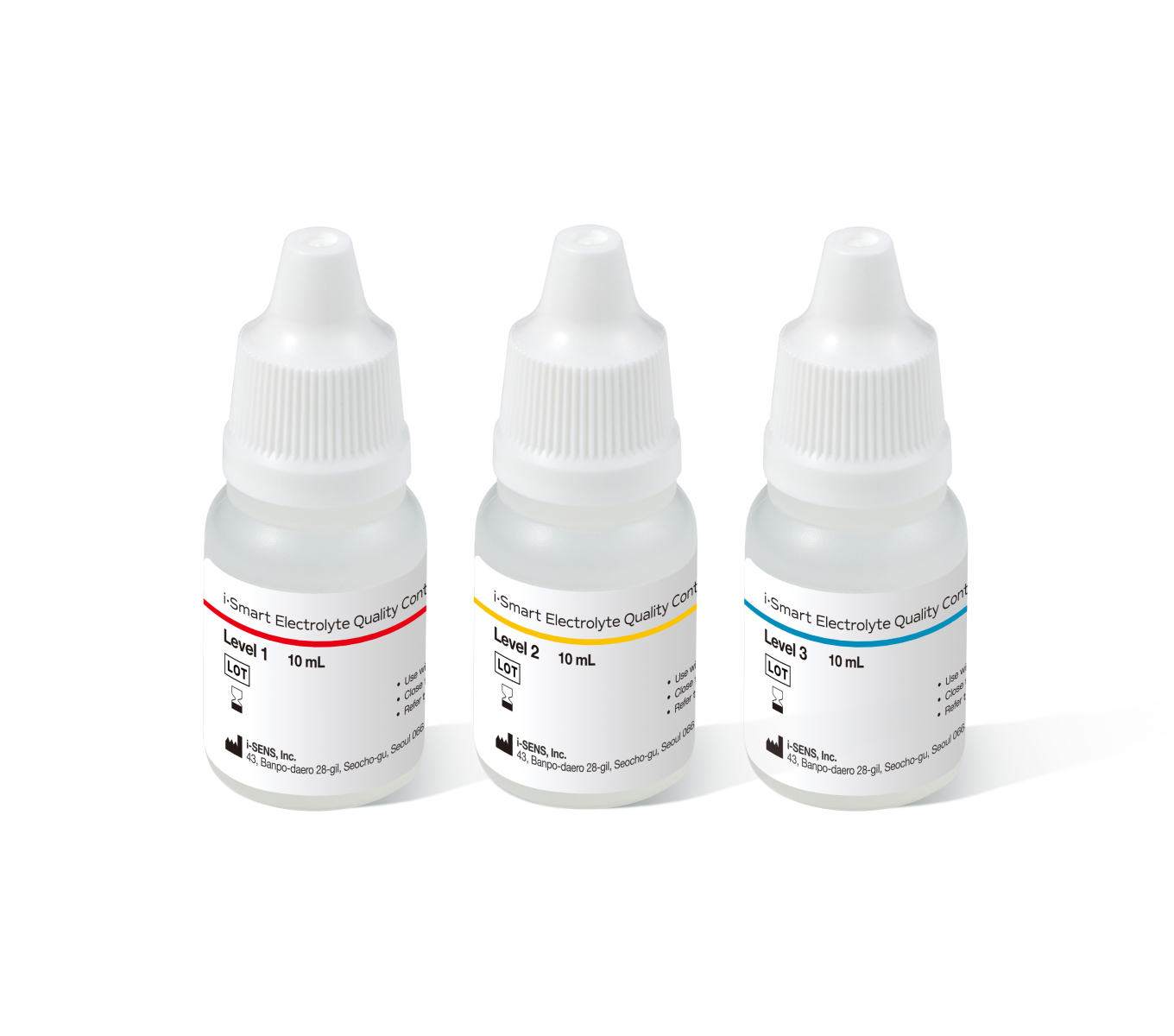

* Quality Control :
- i-Smart® Electrolyte Quality Control :
-Features : Electrolyte Control Solution
- Use with : i-Smart 30 VET Cartridge, i-Smart 30 VET Cartridge E4
- Level : 1, 2, 3
- Volume : 10 mL per level
