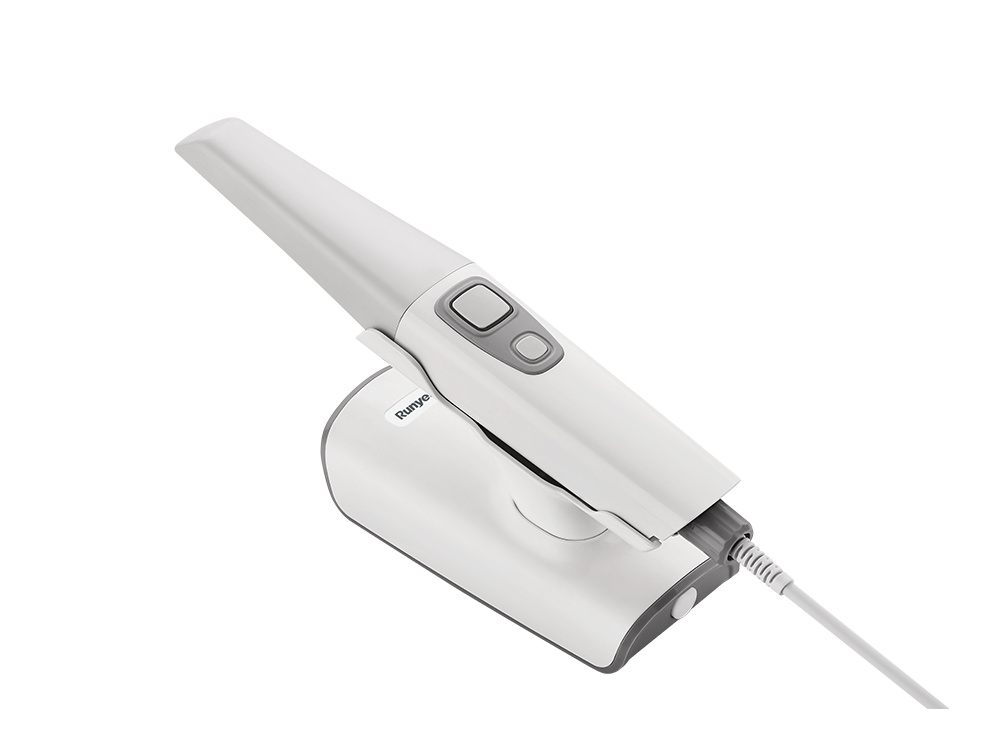

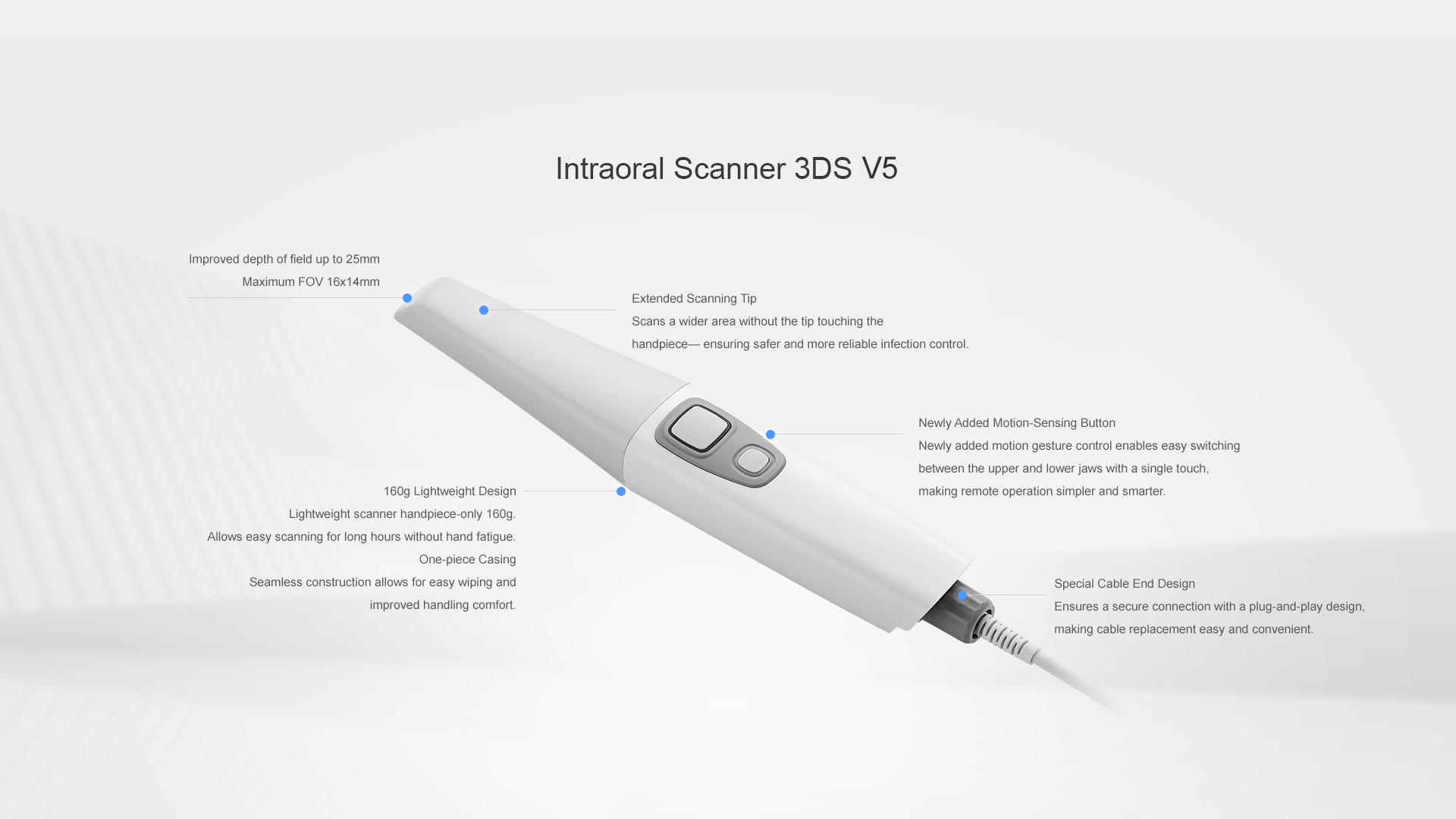

Intraoral Scanner 3DS V5
-Extended Scanning Tip
-Improved depth of field up to 25mm Maximum FOV 16x14mm
Scans a wider area without the tip touching the handpiece- ensuring safer and more reliable infection control.
-160g Lightweight Design
Lightweight scanner handpiece-only 160g.
Allows easy scanning for long hours without hand fatigue.
One-piece Casing
Seamless construction allows for easy wiping and improved handling comfort.
-Newly Added Motion-Sensing Button
Newly added motion gesture control enables easy switching between the upper and lower jaws with a single touch, making remote operation simpler and smarter.
-Special Cable End Design
Ensures a secure connection with a plug-and-play design, making cable replacement easy and convenient.
Product Parameters
-Handpiece Size: 243x40x32mm
-Connection Method: Wired USB 3.0
-Handpiece Weight: 160g (without cable)
-Depth of View: 0-25mm
-Arcbolames Per Second: 20 FPS
-Scanning Accuracy: Single Crown<10um, Full Arch<20um
-Scanner Tip: 3 standard Tips/1 mini Tip/1 protective Cover
-Scanner Tip Size: Standard 115x21x16mm/Mini 115x17x13mm
-Scanning Area: Standard 16x14mm/Mini 12x10mm
-lmaging Method: Optical Continuous Video Capture
-lmage Mode Synchronization: 3D Video
-Quick Reset: Yes
-Model Optimization: Yes
-Output Format: STL, PLY (True Color), OBJ
-Anti-fog Method: Fan-cooling
-Calibration Tip: 1 Set (Optional)
