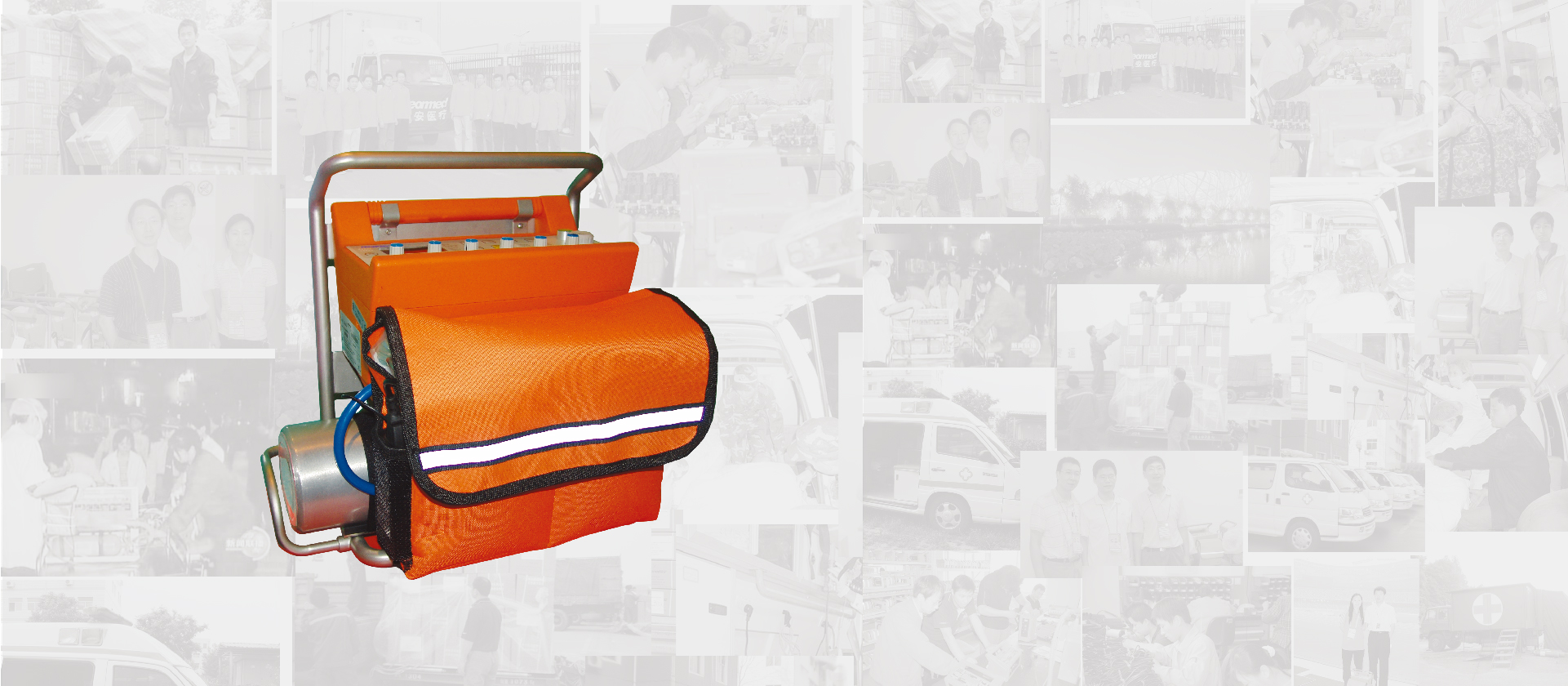

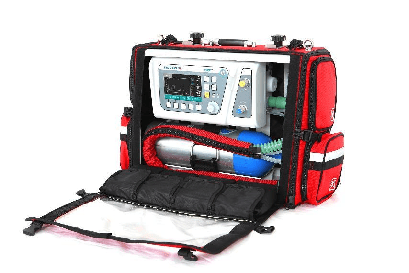

Shangrila 510 is an emergency transport ventilator which is simple to operate, light weight compact design and reliable in performance.
MAIN FEATURE:-
Pneumatically driven and electronically controlled
All parameters set in one step
Simple operation, compact design, reliable performance
Waveform display and multi-parameter monitoring
Backup apnea ventilation
Flexible power supply:A/C, D/C, rechargeable built-in battery
TECHNICAL SPECIFICATION:-
Ventilator Modes
A/C, SIMV, SPONT,MANUAL,SIGH
Parameters
Tidal Volume:- 0-1500 ml
Respiration rate:- 4-99 bpm (A/C mode)
I:E Ratio :- 1:4-2:1
FiO2:- 48% - 100%
Pressure Trigger Sensitivity:- -20-0 cmH2O
PEER :- 5-20 cmH2O
Monitoring
Pressure Value:- Ppeak
Volume/ Flow Value:- Vt, MV
Time Value :- ftotal
Real Time Curves:- Pressure- Time
Alarm
Paw high, Paw low, Apnea, AC power failure, Battery low, O2 deficiency, No Vt
Technical Data
Supply gas:- O2, 0.28- 0.6 MPa
Power Supply:- AC100-240 V,50HZ/60Hz, <65 VA
Maximum Security Pressure:- <6 KPa
Compliace :- <4ml/100Pa
Noise :- <65 dB(A)
Dimension (WxDxH):- 175 mm*170mm*300mm
Weight :- 3.5kg
