FullHD is a progressive solution to fulfill your demands, which devotes for better primary healthcare service.

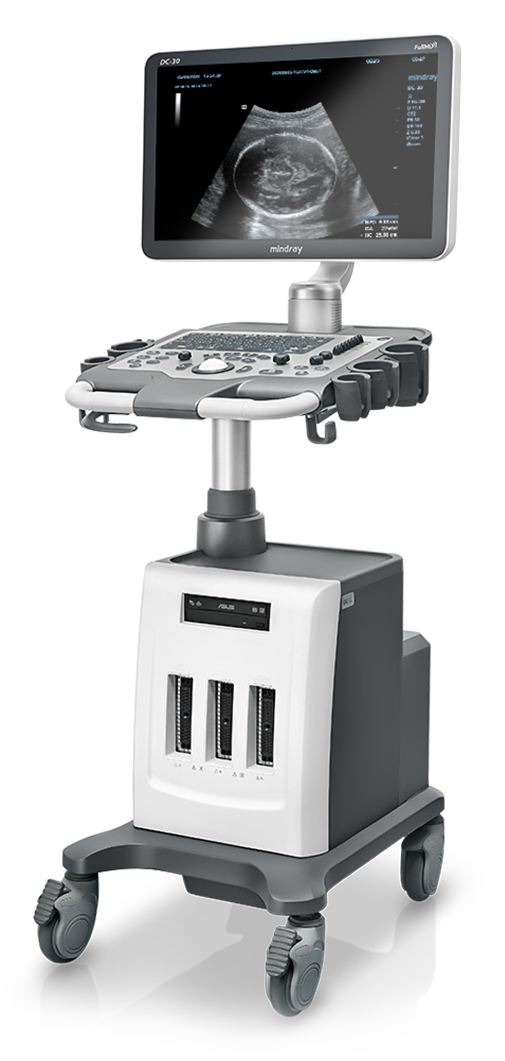

Standard ultrasound systems available today typically allow for a basic diagnosis but lack advanced functionality. Now, the DC-30 FullHD is the perfect answer for high quality image performance, with 21.5 inches Full HD LED Monitor and advanced function such as Auto IMT, iScape, Natural Touch Elastography, UWN Contrast Imaging and Tissue Doppler Imaging in General Imaging and Smart OB, Smart face and iLive in OB.
FullDH
-Higher Imaging Definition
-Reliable Performance
-Ergonomic Design

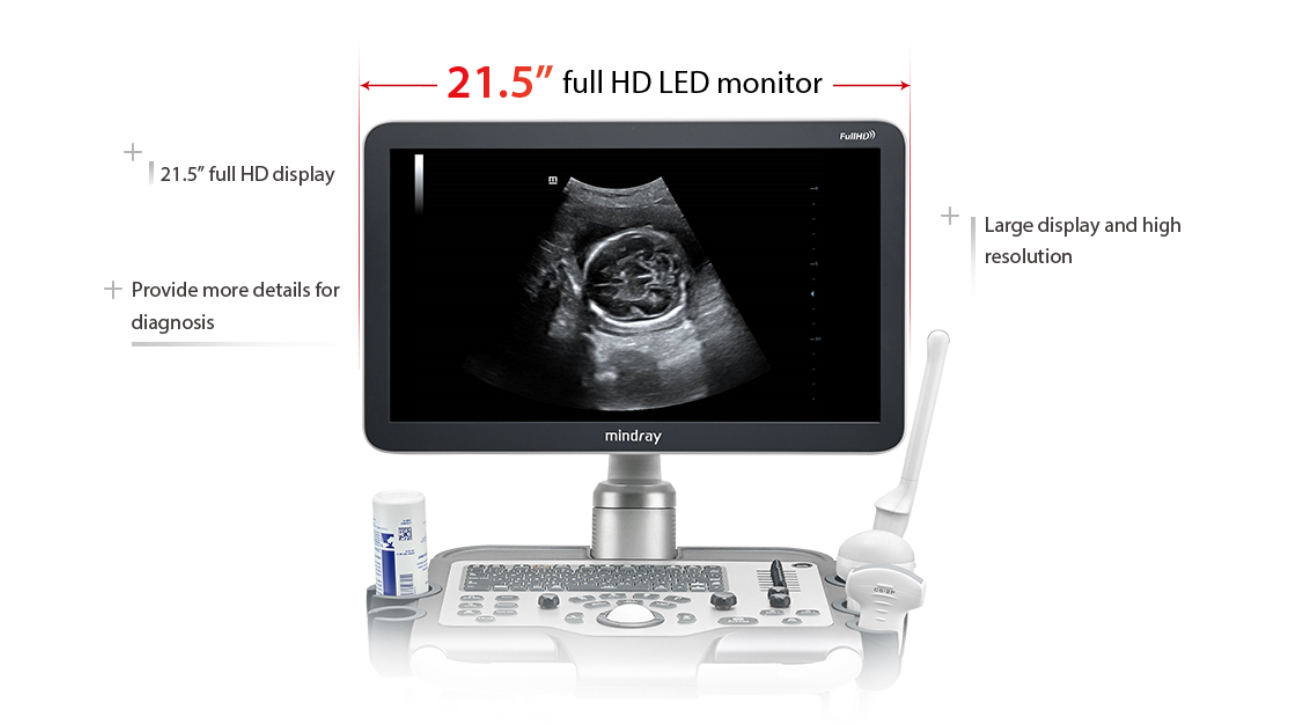

Higher Imaging Definition:More clarity for diagnosis
-21.5" full HD LED monitor
-21.5" full HD display
-Provide more details for diagnosis
-Large display and high resolution
Higher Imaging Definition:More clarity for diagnosis
Classic imaging technologies:Enhancing the quality for diagnosis
iClear speckle-reduction imaging technology
Gain improved image quality based on auto structure detection.
-Sharper & continuous edges
-Smooth uniform tissues
-Cleaner 'no echo areas'
-PSH Phase Shift Harmonic imaging
Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.
-iBeam spatial-compounding imaging technology
Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

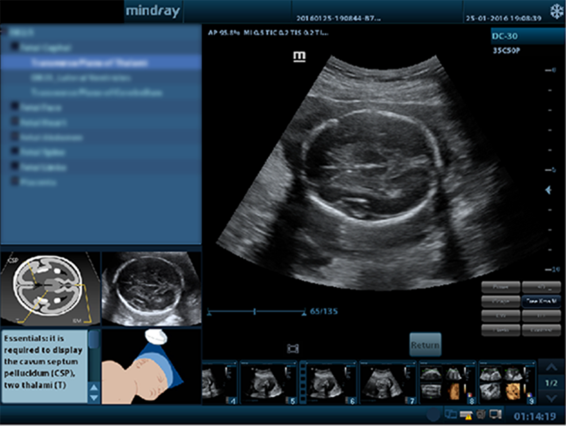

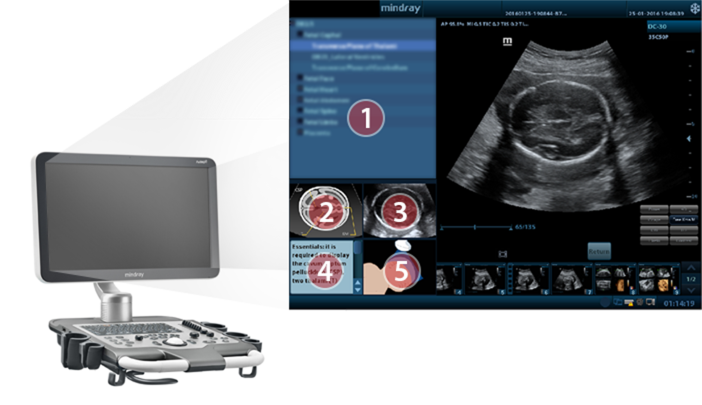

-Higher Reliable Dependence: iScanHelper
Mindray’s GI solution in primary care
iTouch
-DC-30 with FullHD delivers a range of tools that maximize diagnostic accuracy with convenience. Covering General Imaging, OB/GYN, DC-30 with FullHD provides you with a complete solution for mainstream clinical applications, with simplified workflow for efficiency.
Smart Track
-Smart Track provides a fast and intelligent optimization for vascular imaging with simply one-touch operation. It can optimize Color, Power and PW spectrum by self-tracking and reduce time-consuming steps. Therefore the vascular exam workflow is simplified with an optimal view.
iScape
-Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.
Free Xros M
Gain precise anatomical observation by freely placing sample lines at any angle.
Natural Touch Elastography
Based on Mindray's latest patented technology, natural touch elastography reduces dependence on user operation technique, improving operator's reproducibility for higher clinical utility.
Proven advanced function
UWN (Ultra-Wideband Non-linear)
Mindray's unique contrast imaging technology, utilizing contrast agent characters with both 2nd harmonic and non-linear fundamental signal to get improved S/N ratio for better diagnostic details and longer contrast agent duration for better observation.
B-Steer TM
Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.
ExFOV
Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes.
TDI
Tissue Doppler Imaging allows you to quantitatively evaluate local myocardial movement and function, providing complete TDI modes for faster and direct diagnoses.
Mindray’s OBG in primary care
-Smart Face provides fast and intelligent optimization for fetal face with one-touch operation. It immediately removes occlusions and eliminates noise information, generating an optimal view of the fetal face with more simplicity.
-Integrating a ray-casting algorithm with a new virtual lighting modality, iLive generates an amazingly realistic view of the fetus with human skin-like images.
-Smart OB provides accurate auto measurements for most frequently examined fetal parameters including BPD, OFD, HC, AC and FL.
Workflow
-01/Raw Data
Enables optimum flexibility for post processing of the stored images including adjusting parameters, adding comments and measurements, allowing maximum productivity during scanning.
-02/iStation™
Mindray's unique Patient Information Management System allows you to integrate, review, archive and retrieve patient data effectively.
-03/iStorage
Directly transfer images and reports to PC via network cable.
-04/ MedSight
DC-30 enables you to transfer clinical images and cine to your IOS or android powered smart device via an interactive app. With MedSight you can now take the clinical examinations with you wherever needed.
User-oriented design
-FullHD Tier
-21.5 Inch Screen:
-1920 x 1080, 180 Rotation
-Height-adjustable
-Control Panel
-3 Active Probe Sockets
-Built-in Battery
-Smooth Lockable Wheels
