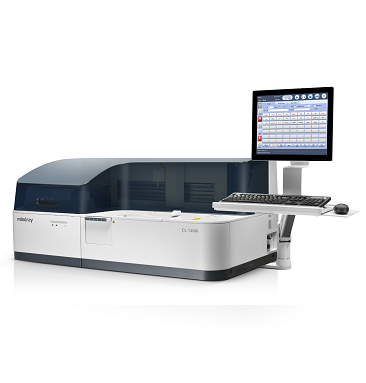

Chemiluminescence Immunoassay System (CLIA )

A fully capable and robust immunoassay analyzer with performance consistent with CL-2000i, in a smaller benchtop package better suited for mid-to-small-sized labs. With throughput of 120 tests per hour, this system features its large reagent and sample capacity, reliable performance and user-friendly operation interface.

Micron super paramagnetic particles(SPMP) platform, with high suspend ability.

Alkaline phosphates(ALP) labeled reagents and AMPPD substrate, highest sensitivity immunology method, for test such as TSH, HIV, HBsAg etc.

Establish a high level of quality control of antibody and antigen.

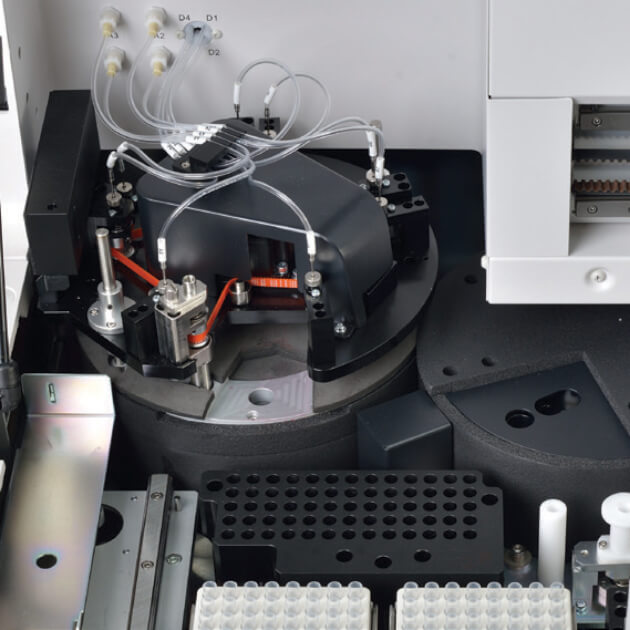

4-stage magnetic separation, mixing between different separation stages.

4-phase magnetic separation with precisely controlled temperature

Consistent performance reliability with enhanced PMT detection system

Non-touch vortexer mixing for reaction solution without any contamination

Random access for cuvette loading without pause or stop

88*2 cuvettes in one batch, 200 cuvettes per waste bag

Throughput Up to 180 tests/hour Measurement Principle Micron superparamagnetic particles platform with alkaline phosphatase (ALP) labeled reagents and AMPPD substrate

Continuous sample loading and offloading by sample racks

10 positions per rack, same as BS-800/BS-2000/CL-2000i series

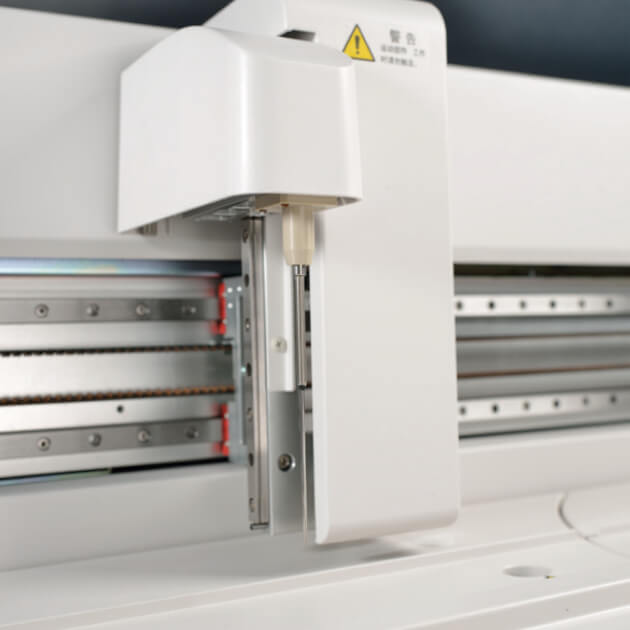

Steel probe, liquid level detection, clot detection, horizontal and vertical collision protection

10µl-200µl, with increment of 1µl

25 reagent positions, continuous loading, real-time mixing for magnetic particles

2°C-8°C

50 tests per pack, 100 tests per pack

Steel probe, liquid level detection, bubble detection, horizontal and vertical collision

protection

20µl~200µl, with increment of 1 ul

300/500 tests per bottle, bottom piercing

Magnetic Separation Unit Separation Assembly 4-phase magnetic separation

88 cuvettes per tray, two trays can be loaded in one batch, continuous loading and offloading

110V/115V-, 60Hz; 220V-240V, 50Hz;220V/230V, 60Hz
