Clinical Chemistry Analyzer
Brand
- DIATRON MI ZRT
Model
- P780
Manufacturing Country
- Hungary
Quality Certificates
CE MARKING
ISO 13485
ISO 9001
Specification
Introducing the cost-effective P780, our flagship clinical chemistry system, as part of the Pictus family. The P780 is designed to provide outstanding performance and maximum efficiency without compromising affordability.
* Key Features and Benefits :
- Outstanding Performance :
ISE unit with independent arm for maximizing throughput (up to 600+230 tests/h) and productivity
Dual side structure for minimum downtime
Capacity of 1800 samples/day
Continuous loading and uninterrupted photometer measurements
Flexible use for various applications ( Clinical Chemistry – Human, Vet, Drug of Abuse , Therapeutic Drug Monitoring, Food and Beverage )
- Maximum Efficiency :
Nonstop operation for improving turnaround time
Auto Filling Draining Module for extended walk-away ( >6h)
Dual concentric reagent tray for controls and calibrators
- Affordability :
Long-life cuvettes for low operating cost
Minimum water consumption for high cost-effectiveness (<6l/h)
Small footprint for space-saving
Small reagent kits
Marginal solution consumption
Biohazard waste
- Enhanced User Experience – All New Software :
Intuitive and easy-to-use User Interface

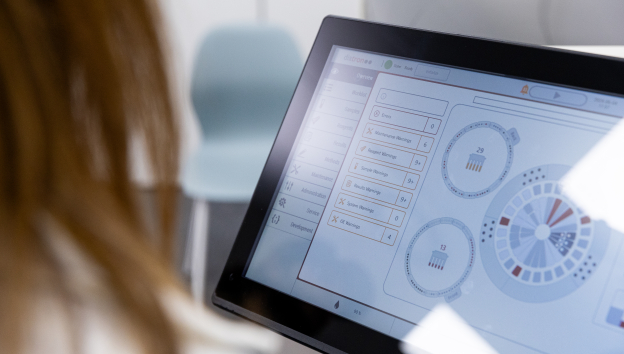

Built-in Panel PC with touchscreen for minimizing footprint
Comprehensive dashboard for uncompromised usability
Real time worklist provides precise info on sample schedule
2D BC for controls and calibrators values
Method priority and delta check
* Specifications :
- Water consumption : <6L/hour
- Optional Filling/ Draining Module
- Throughput : Up to 600 photometric + up to 230 ISE tests/h
- Analysis modes :
Fully and optimized Random access
Sample or batch mode
Real STAT
Continuous reagents and samples loading
Automatic sample re-run
Wake up and stand-by mode
- All-New Software features:
Comprehensive Dashboard
2D barcodes for autoloading calibrator and control values
- Method types :
1point end point
2point end point
- Open channels: 5 research and 95 quality assured POC (Programmable Open Channels)
-Calibration :
Automatic calibration
- Calibration formulas: linear, multilinear, polynomial, sigmoidea, Logit4, Logit5, spline
- Samples :
Initial rack quantity:5 x 19 samples with continues loading up to 99 racks providing a capacity of 1800 samples per day
Primary tube (length up to 100 mm),
Pediatric vials
2 types of adaptors to accommodate variety of sample tubes and cups (ext. diameter 11.5-16mm)
Sample type:Human body fluids
- Reagents and reagent tray:

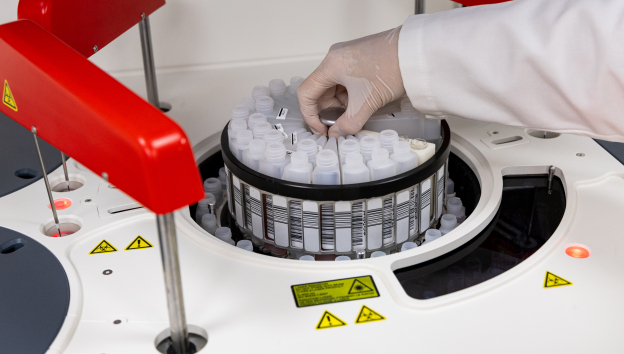

Dual concentric reagent tray
- Reagent cooling compartment: 72 cooled positions 8+/- 2oC
- Reaction tray: Two pipetting arms for both sample and reagent
- Reagent bottle size: 25, 45 and 70Ml
- BCR: On-board samples and reagents barcode recognition
- Reaction volume:180μl - 650μl
- Optional ISE Unit: Independent pipetting for ISE module
- Operating environment:
- Temperature +18ºC to +30ºC
- Humidity: 40% to 80%
- Atmospheric pressure: 600 to 1050hPa.
- Dimensions :
114 (W) x 78 (D) x 129 (H) cm (closed top cover, without Panel PC)
162 (W) x 78 (D) x 178 (H) cm (open top cover, with Panel PC)
- Weight: Analyzer: 250kg
