As clinical examinations become more complex, the demands on CT scanner's performance increase, requiring improvements not only in patient care but also in workflow efficiency. This drives the need to integrate AI into the CT scanners. uCT 780, equipped with advanced AI technology, enhances image quality while reducing dose, simplifies the examination process for technicians, and offers versatility for radiologists handling a broad spectrum of clinical scenarios.
Deep learning trained algorithm (DELTA) leverages an extensive training dataset and a sophisticated 3D neural network to deliver images that are both more defined and detailed at lower radiation dose, setting a new standard in imaging excellence.
Up to 80%* radiation dose reduction at the same low contrast detectability (LCD).
Up to 98%* image noise reduction at the same dose.
Up to 155%* LCD improvement at the same dose.
Build up a 3D Neural Network Specialized for CT Imaging
Million-level Dataset
Specialized Network Design
- Under low-dose scanning conditions, DELTA can display richer vascular details, with longer vascular extraction and sharper vessel edges.
* Head CTA
* Reconstruction
*Contrast

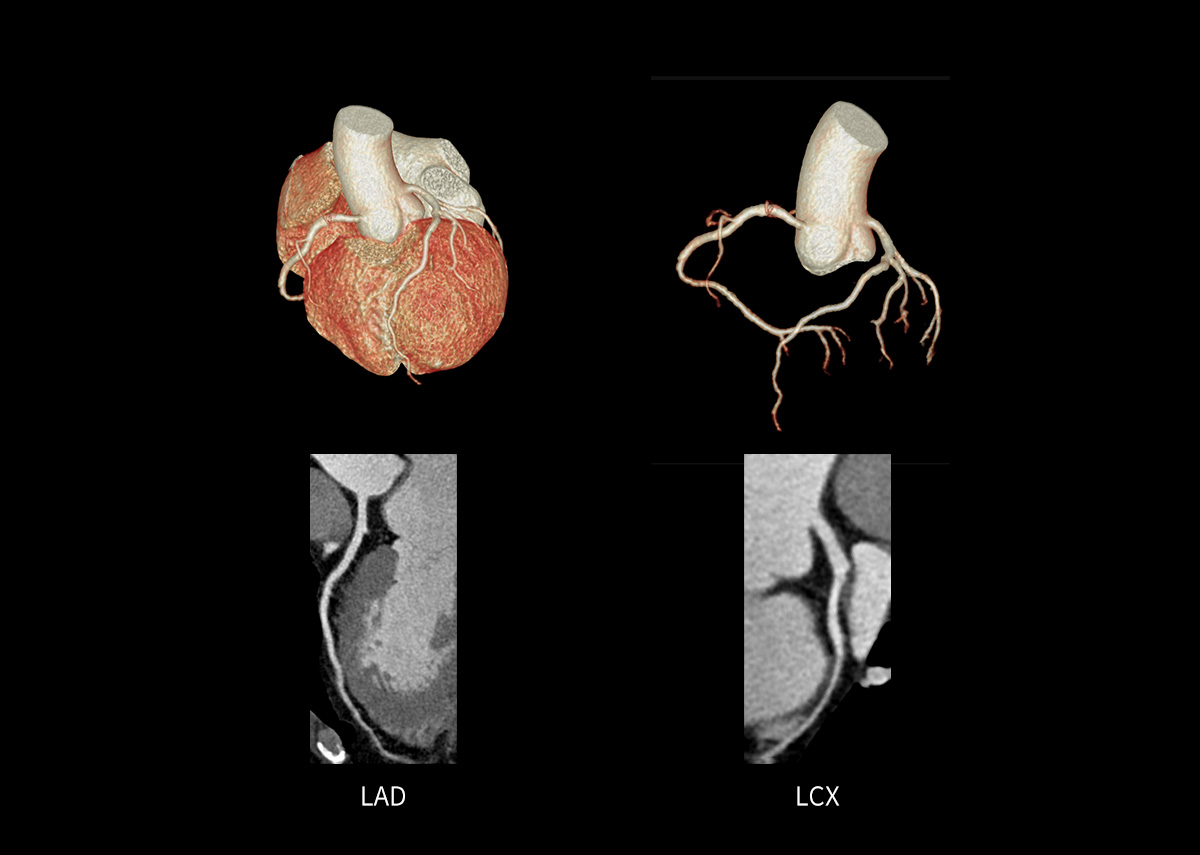

- Cardiac CT imaging is commonly used, yet complex cases need more advanced solutions. uCT 780 combines AI workflows with advanced hardware to offer a smooth and efficient examination experience for intricate cardiac scenarios.
- uAI Vision*

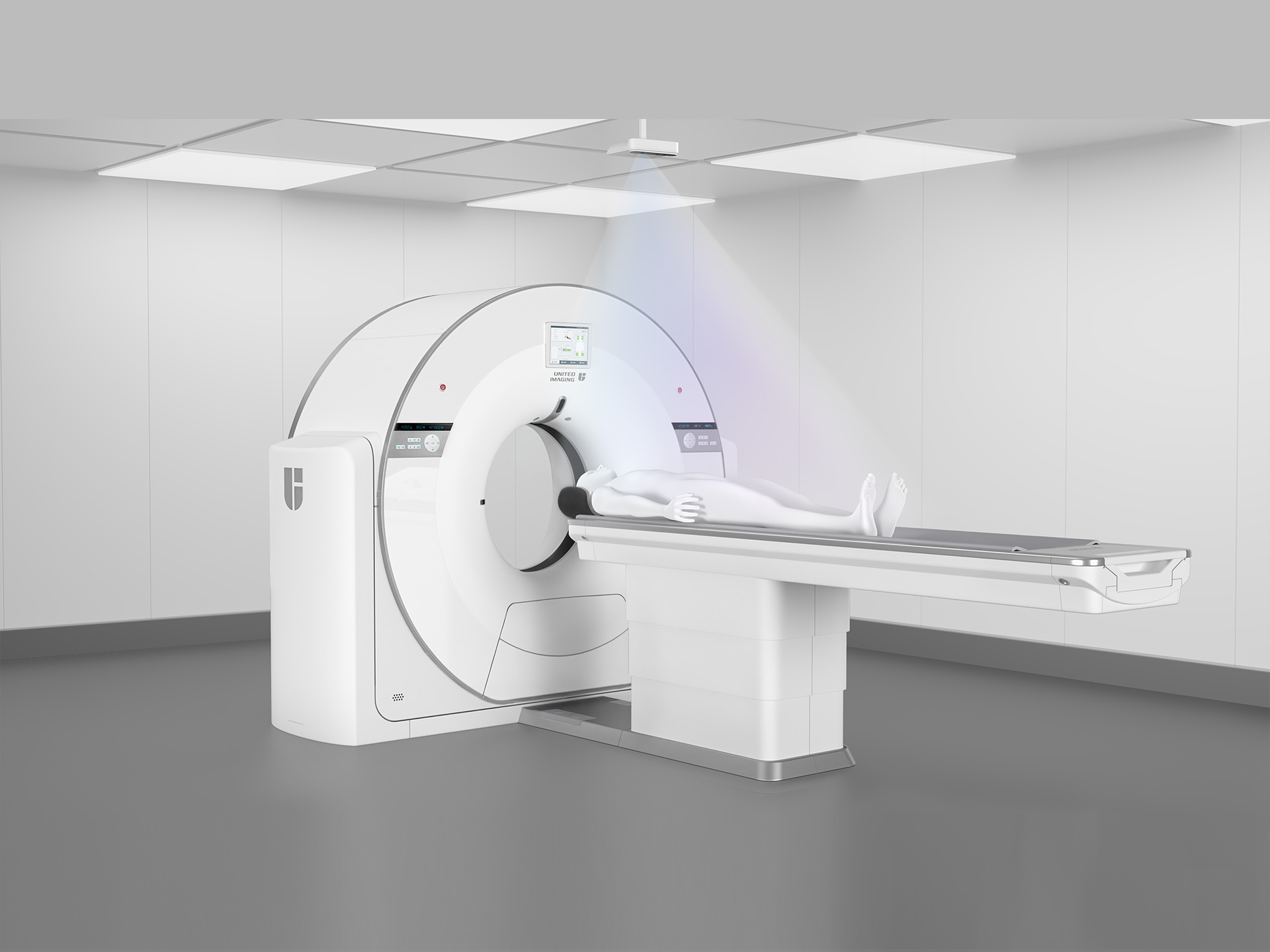

uCT 780 features the innovative uAI Vision 3D camera that enables an AI-empowered workflow. The uAI Vision provides an efficient, standardized and personalized scanning experience for each patient.

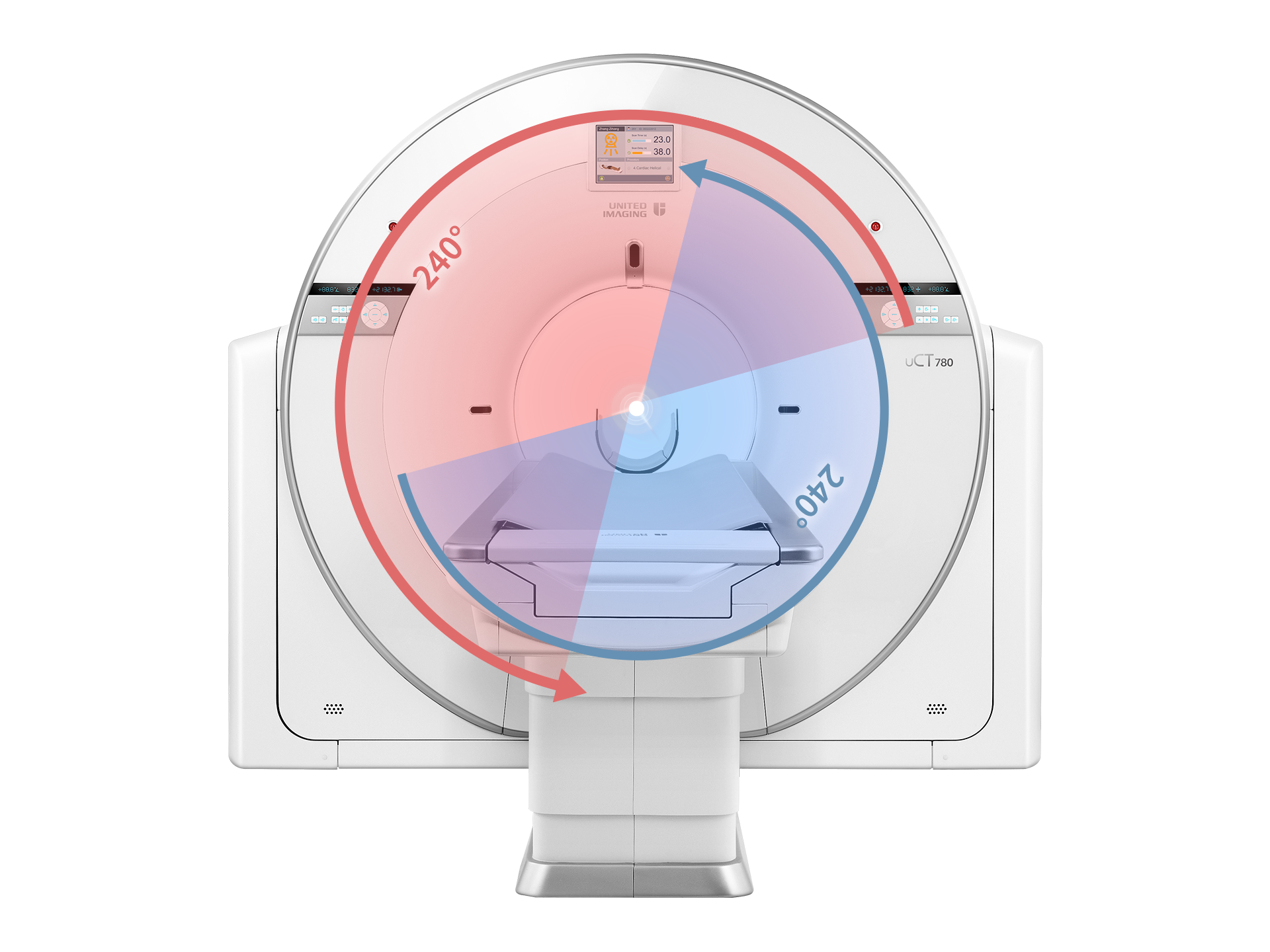

0.3 s Rotation Speed*
- In addition to the clinical applications of conventional 64-row CT scanners, the uCT 780 showcases remarkable versatility. Equipped with spectral and dynamic perfusion imaging, it serves as a valuable tool across various clinical scenarios.

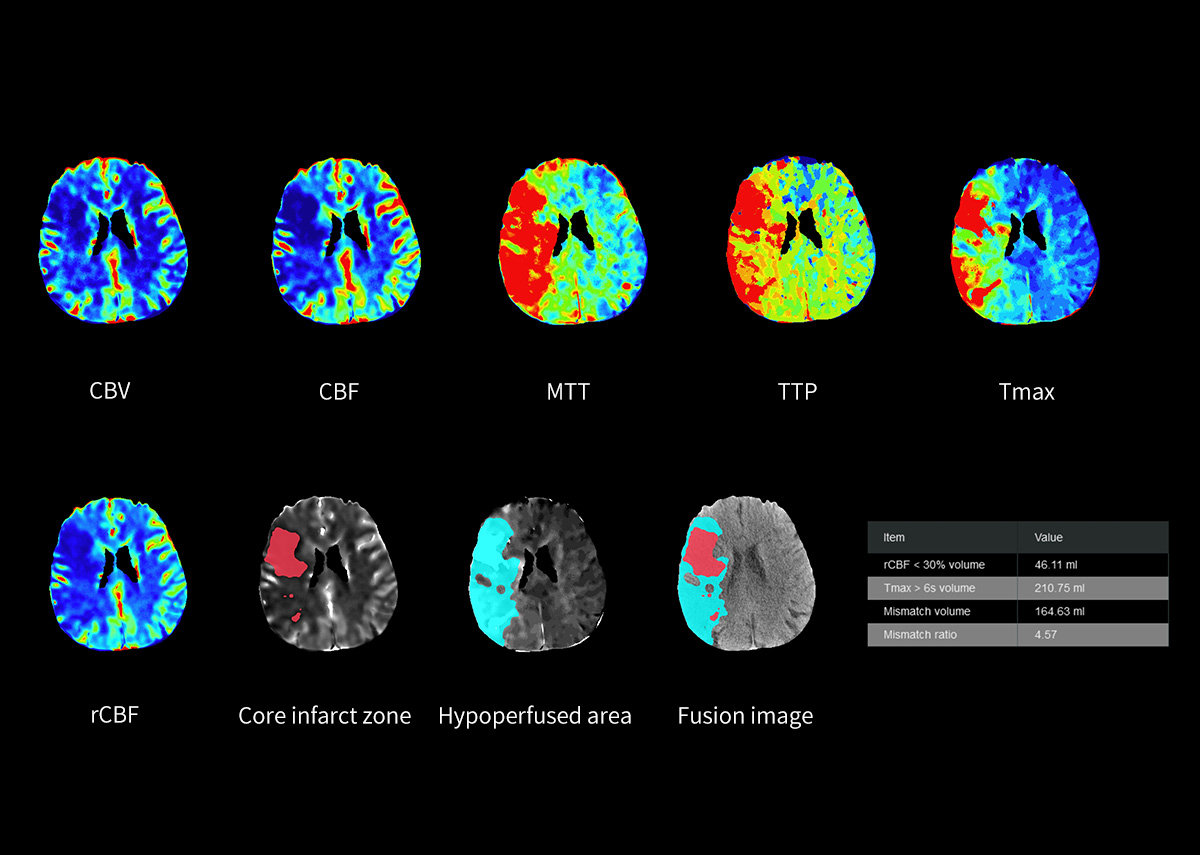

- 170 mm Dynamic Cerebral Perfusion
The dynamic perfusion technique provides a wider perfusion scanning range than the detector coverage, which is capable of delivering whole-brain functional information within the 2-second cycle time.
- Whole-brain dynamic perfusion imaging, with a scanning length of 14 cm, combines wide-ranging dynamic perfusion imaging with an intelligent post-processing software, which can rapidly and accurately present quantitative analysis results for whole-brain functional studies.
* Technical Details :-
Tube anode storage capacity:7.5 MHU
Detector:Z-Detector
Number of detector rows:80
Max. slices generated per rotation:160
Rotation time:0.3 s*/360° scans
kV settings:70,80,100,120,140 kV
Generator power:100* kW
Aperture:70 cm
Table load:205 kg / 451 lbs
