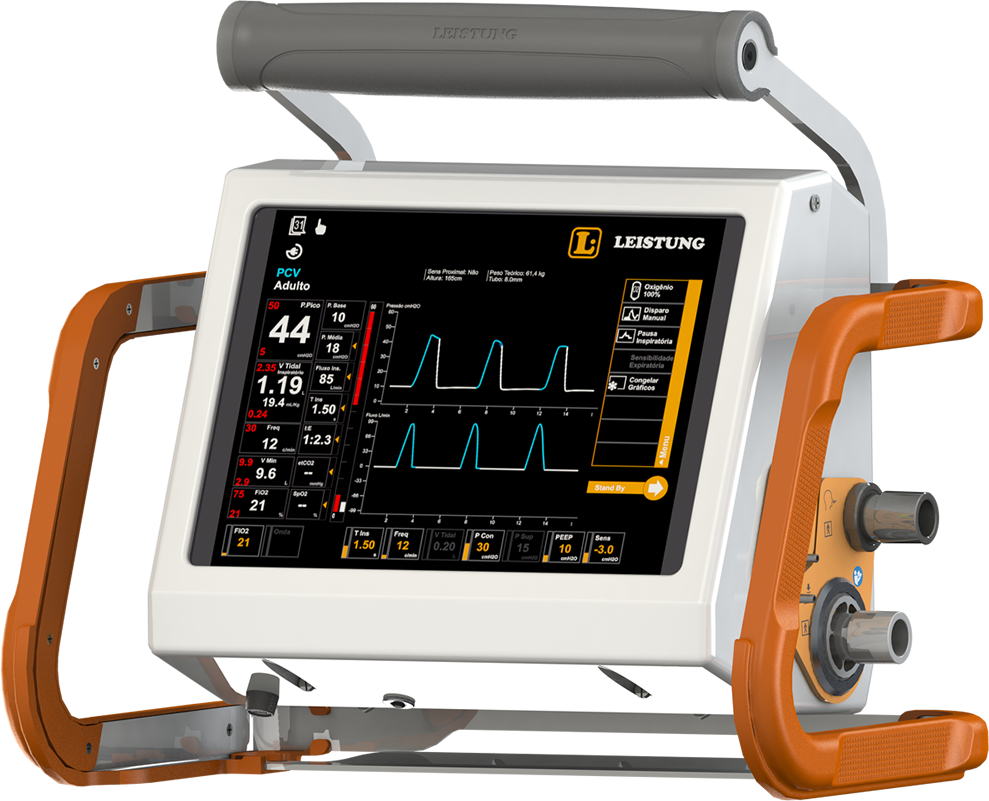

PR5 Touch
Lung Ventilator for Transport and Emergency.
Neonatal | Pediatric | Adult
The PR5 Touch ventilator is among the most complete lung ventilators on the market, providing all the ventilation modes necessary for care for adult, pediatric and neonatal patients, in addition to the respiratory mechanics menu for various diagnoses.
-Advanced and complete lung ventilator for transport and emergency.

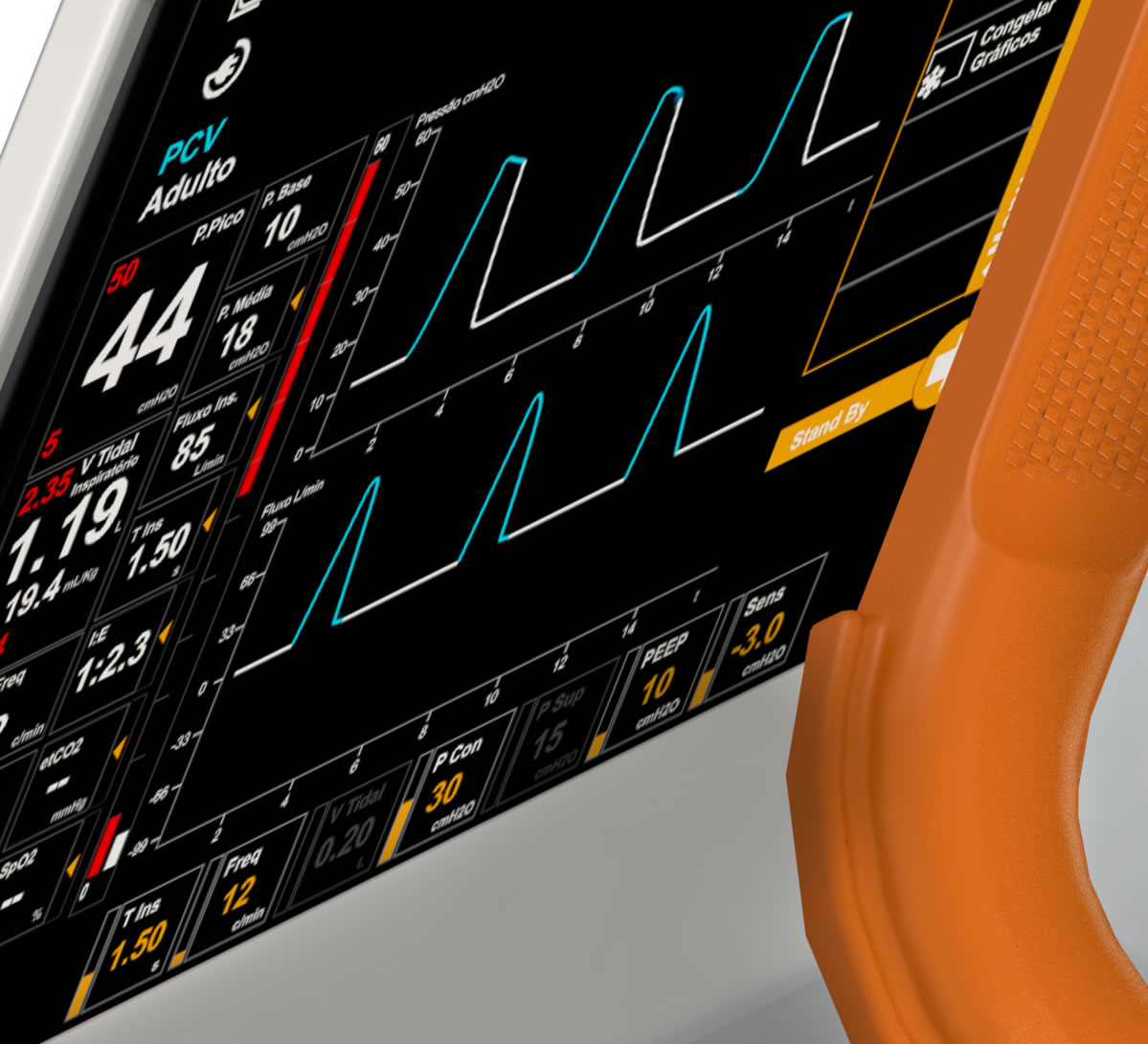

-10.4” touchscreen monitor for easy viewing and intuitive control.
-Various ventilation modes, from traditional to dual control.
-Ventilatory mechanics of resistance, compliance and autopeep.
-Wide oxygen concentration adjustment range, from 40 to 100%.
-Sufficient internal battery for all cases, up to 15 hours of autonomy.
Innovation Associated with Technology and Practicality
Ventilatory Modes
Adult | Pediatric
-Assisted/controlled VCV;
-Assisted/controlled PCV;
-PSV/CPAP;
-Assisted/controlled PRVC;
-SIMV(VCV) + PSV;
-SIMV(PCV) + PSV;
-Biphasic pressure (APRV);
-NIV;
-HFNC.
Neonatal
-Assisted/controlled PCV;
-PSV/CPAP;
-Continuous flow assisted/controlled;
-Nasal CPAP;
-HFNC.
FUNCTIONALITY AND PERFORMANCE
-CAPNOGRAPHY
It's a way to estimate CO₂ values in real time. These values are presented numerically through ETCO₂ and inspired CO₂, and through the CO₂ vs. Time graph. This mechanism uses Main Stream technology. This makes ventilatory support safer by estimating the heterogeneity of pulmonary ventilation distribution resulting from functional and structural changes in the respiratory system.
-PRVC

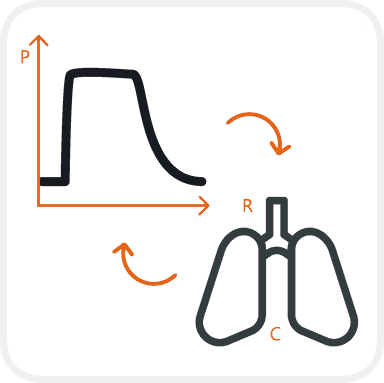

It combines the best of conventional volume- and pressure-controlled ventilation modes, delivering the operator-set volume at the lowest possible pressure. The function utilizes a free-flow waveform and feedback control of patient compliance and resistance.
-AIR LEAKAGE COMPENSATION
The PR5 Touch constantly monitors airway pressure drop. This technology, available in pressure modes, identifies air leaks and automatically adjusts airway pressures. It can compensate up to 50 L/min, making NIV comfortable and safe.
SPECIAL SETTINGS
-Neonatal Ventilation;
-Patient configuration;
-Ventilatory Mechanics;
-FiO₂ 40 to 100%;
-Altitude compensation;
-Volume adjustment;
-Alarm history;
-Automatic rise time;
-Non-invasive ventilation;
-Leakage compensation;
-Proximal flow reading;
-O₂ 100% function;
-24h trends;
-Inspiratory flow or pressure sensitivity;
-15h battery life;
-Automatic calculation of theoretical weight;
-Intuitive interface;
-Customizable interface with memory.
APPLICATIONS
The PR5 Touch is versatile and practical. Available in a stand and case, this portable ventilator can be used in a wide variety of settings. Perform procedures such as capnography, PRVC, NIV, VCV, PCV, PSV, and CPAP on adult, pediatric, and neonatal patients.
It's Leistung technology for your daily care.
