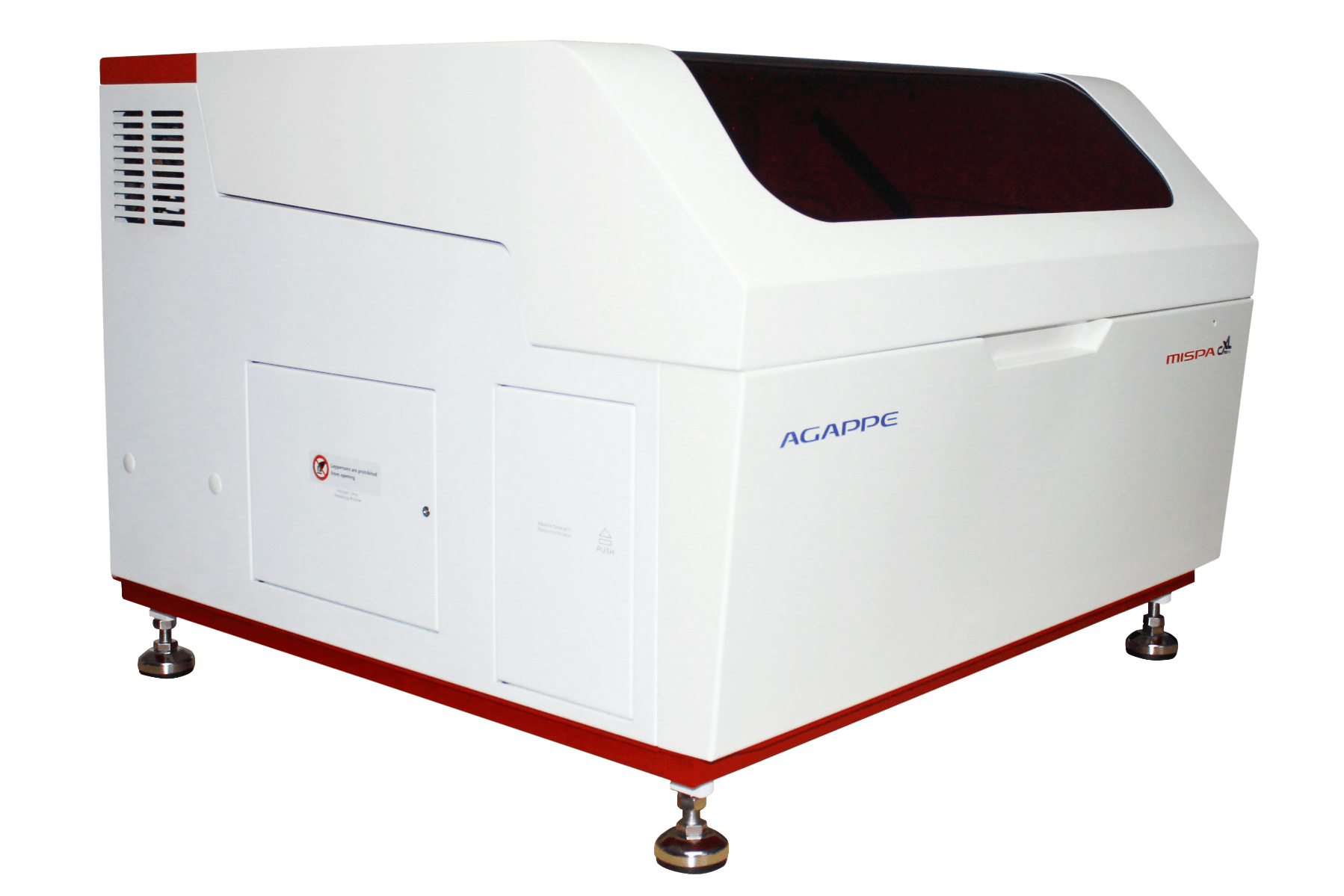

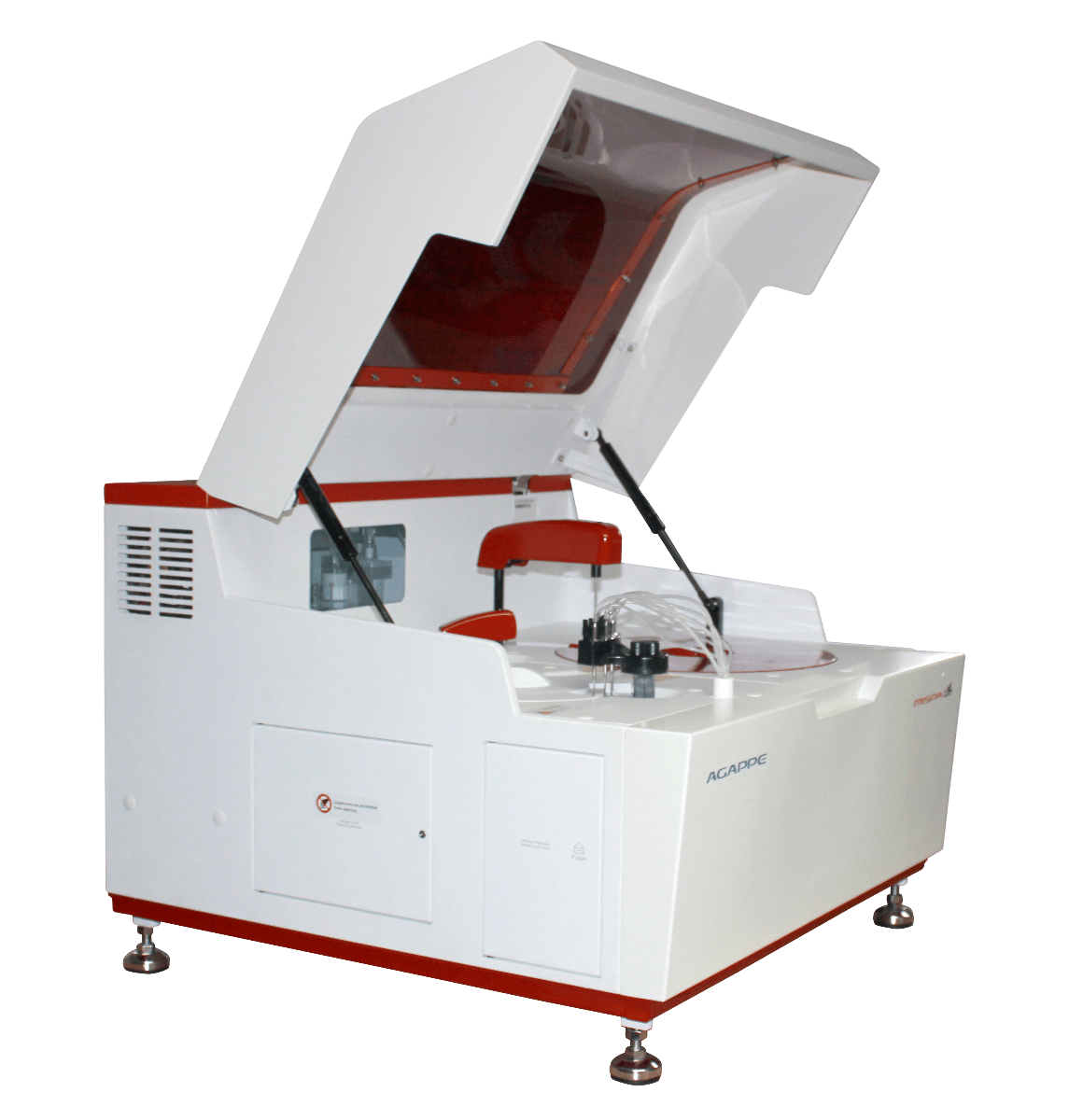

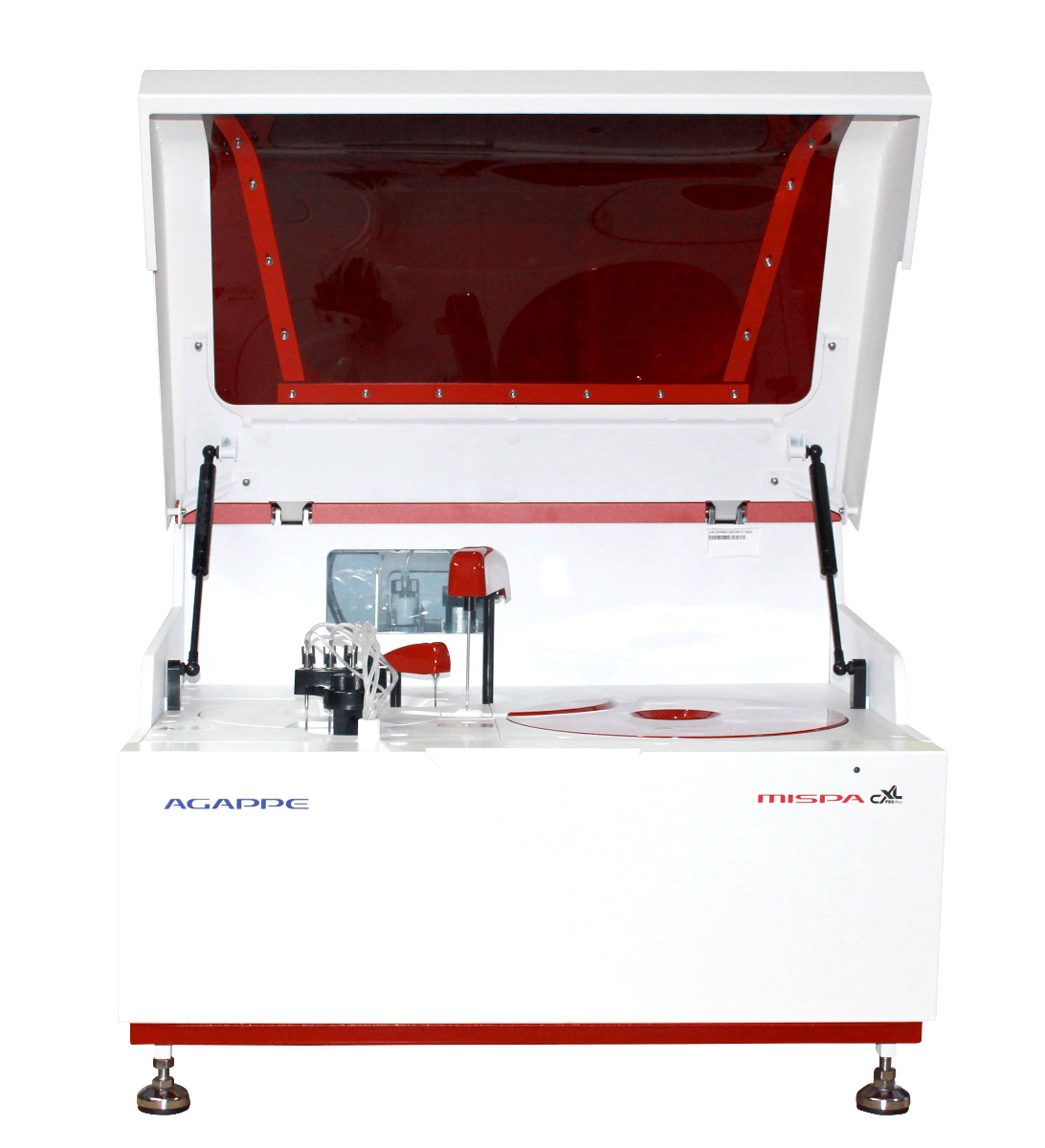

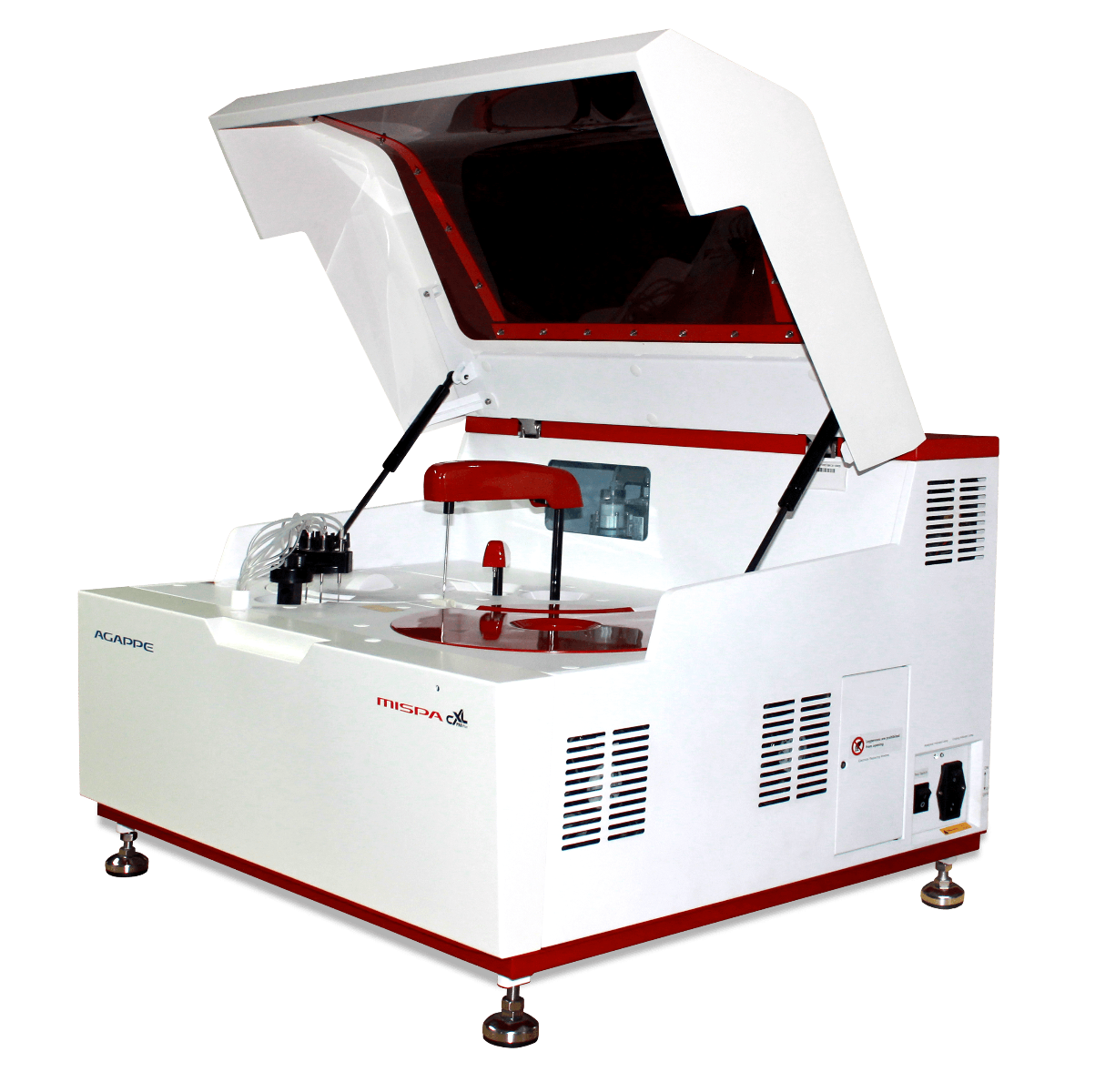

Mispa CXL Pro Fully Automated Clinical Chemistry Analyzer

ULTIMATE AUTOMATION, PERFORMANCE DRIVEN Mispa CXL Pro is a compact, fully automated random access clinical chemistry analyzer with photometric throughput of 240 Clinical chemistry tests per hour. Mispa CXL Pro has proven HCFG (Holographic Concave Flat Field Grating) rear spectrophotometry which reduces ambient light interferences, and photo-spot technology to reach super micro analysis. Mispa CXL Pro has an excellent on-board washing and cleaning system adopting 7 stops 11 steps, ensures minimum carryover and precise result delivery. Mispa CXL Pro is the best in the class with grating, mixing, washing and user-friendly classic features.

Fully Automatic Biochemistry Analyzer - Mispa CXL Pro

Mispa CXL Pro is a fully automated, discrete, random access clinical Chemistry analyzer. Mispa CXL Pro offers 240 tests per hour. Mispa CXL Pro has a Holographic Concave Flat Field Grating (HCFG) rear spectrophotometry system for best reliability and maximum accuracy. CXL Pro comes with Special Probes, having an internal water pressure wash and external waterfall wash, eliminating carryover. Mispa CXL Pro is a modern analyzer, able to perform endpoint, fixed time, kinetic, single & dual reagents chemistry mono & bi chromatic, linear & non-linear multipoint calibration. Mispa CXL Pro is an all-in-one solution for clinical chemistry analysis.

Triple speed mixing - (ensure proper mixing for special parameters as well)

Mixing is one of the many elements that affect how accurate the results are. As different types of chemistry demand different types of mixing; there CXL Pro stands alone with a triple-speed mixing mechanism. Triple speed mixing mechanism ensures the perfect mixture for a special parameter like CRP, ASO, RF, etc. This mechanism has High, Medium & Low speeds of mixing for different types of parameters.

Another big factor for the precise result is water quality. CXL Pro indicates the water quality before measuring the samples. By performing this function, CXL Pro ensures tests with optimum conditions and saves reagents. No result variation or recalibration is required due to water contamination.

Special degasser device to eliminate the air & bubble

CXL Pro has vertical collision protection, which prevents probe breakage. The degassing device eliminates the bubble formation. The digital liquid level detection keeps track of reagent consumption. The flat paddle stirrer mixing ensures proper homogeneous mixing. Mispa CXL Pro offers the best sample/ reagent pipetting mechanism.

On-board laundry system with special reverse function

CXL Pro offers 7 stops and 11 steps of an efficient laundry system. Quality of cleaning is checked after every step during washing, ensuring zero carryover. The reverse washing function of the probe makes the system unique and ensures the best onboard laundry system which results in zero carryover.

HbA1c is a test by which we can detect the perfect sugar level. To perform HbA1c in a conventional fully automated biochemistry analyser, the operator needs to lyse the whole blood manually where there are chances of several manual errors. CXL Pro offers automated-on board lysing, giving you the feel of ultimate automation.

Mispa CXL Pro has low operational cost in terms of water consumption and detergent consumption. Only 4 Ltr/hr on performing 240 tests made the instrument the ultimate solution.

In terms of cuvette washing, 40 microliters concentrated wash is the only need to wash each cuvette. It ensures the longer and optimum usage of the wash solution. The single wash solution is the modern-day requirement that has been taken care of in Mispa CXL Pro.

Mispa CXL Pro does the best possible clinical chemistry analysis and has the best features-

HCFG Photometry System – Accurate | Reliable | Stable | Long life span | Low maintenance (Holographic Concave Flat Field Grating, rear spectrophotometry reducing ambient light interference)
