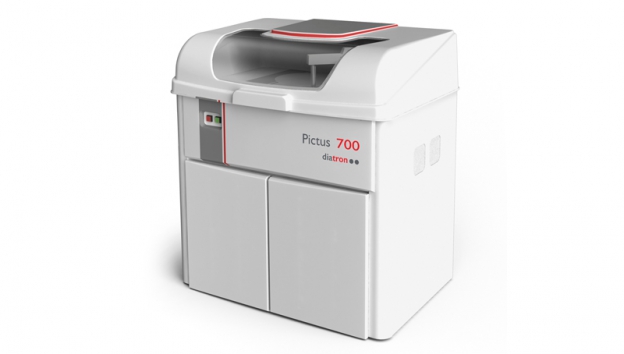

Diatron’s P700 is a fully automated, random access, small footprint, floor standing chemistry analyzer. Innovatively designed with 2 trays and robotic arms, the system can achieve a total throughput of up to 720 tests/hour.
* Key Features and Benefits :
- EFFICIENCY :
95 sample positions
72 single reagent positions
First results within 45 seconds
Internal optional 4 channel ISE
Optimized walk away operation
- COST EFFECTIVE AND OPTIMIZED WORKFLOW :
Low water consumption (less than 5 l/h)
Minimal consumable usage
Real time reagent inventory control
Real stat sample capacity
Internal BCR for racks, samples and reagents
- EASY TO OPERATE AND LEARN :
Windows based operation system
Flexibility for reagents application
Sophisticated features
Intuitive post dilution and resultchecking
Graphically represented menus –easy to use icons
Autocal and auto QC features
- RELIABLE HIGH QUALITY OPERATION :
ISE, dilutor, pumps from suppliers of proven technology
Capacitative level sensor
Clot detector
* Specifications :
- THROUGHPUT*:
Up to 600 photometric tests/hour mono reagent
Up to 180-240 ISE tests/hour with optional ISE unit
Maximum combined:up to 720tests/hour
- SAMPLES :
Sample volume:2 to 200 μL/test (in increments of 1 ul)
Initial rack quantity:5 x 19 samples with
continuous loading up to 99 racks providing a
capacity of 1800 samples per day
- ANALYSIS MODES :
Real STAT
Full and optimized Random access
Automatic sample pre and post dilution (1:2 to 1:120)
- REAGENTS :
Reagent cooling compartment:72 cooled
positions 8+/- 2oC
- BCR :

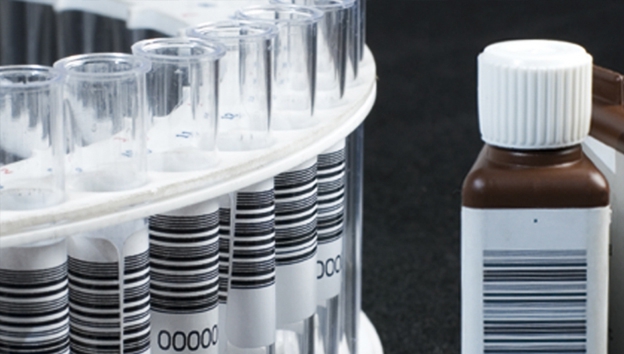

On-board samples and reagents barcode recognition
WATER CONSUMPTION**:
Typically ~5 L / hour
QUALITY CONTROL SYSTEM:
Levy-Jennings and Twin QC, Westgard multi-rules
DATA MANAGEMENT:
Windows TM based Software
POWER REQUIREMENTS:
110/220V, 50/60 Hz, 1.4 kVA
- DIMENSIONS:
97(w) x 67(D) x 100 (H) cm
- WEIGHT:
~175 Kg
