- Complete
- 7'' touchscreen display
- Embedded thermal printer

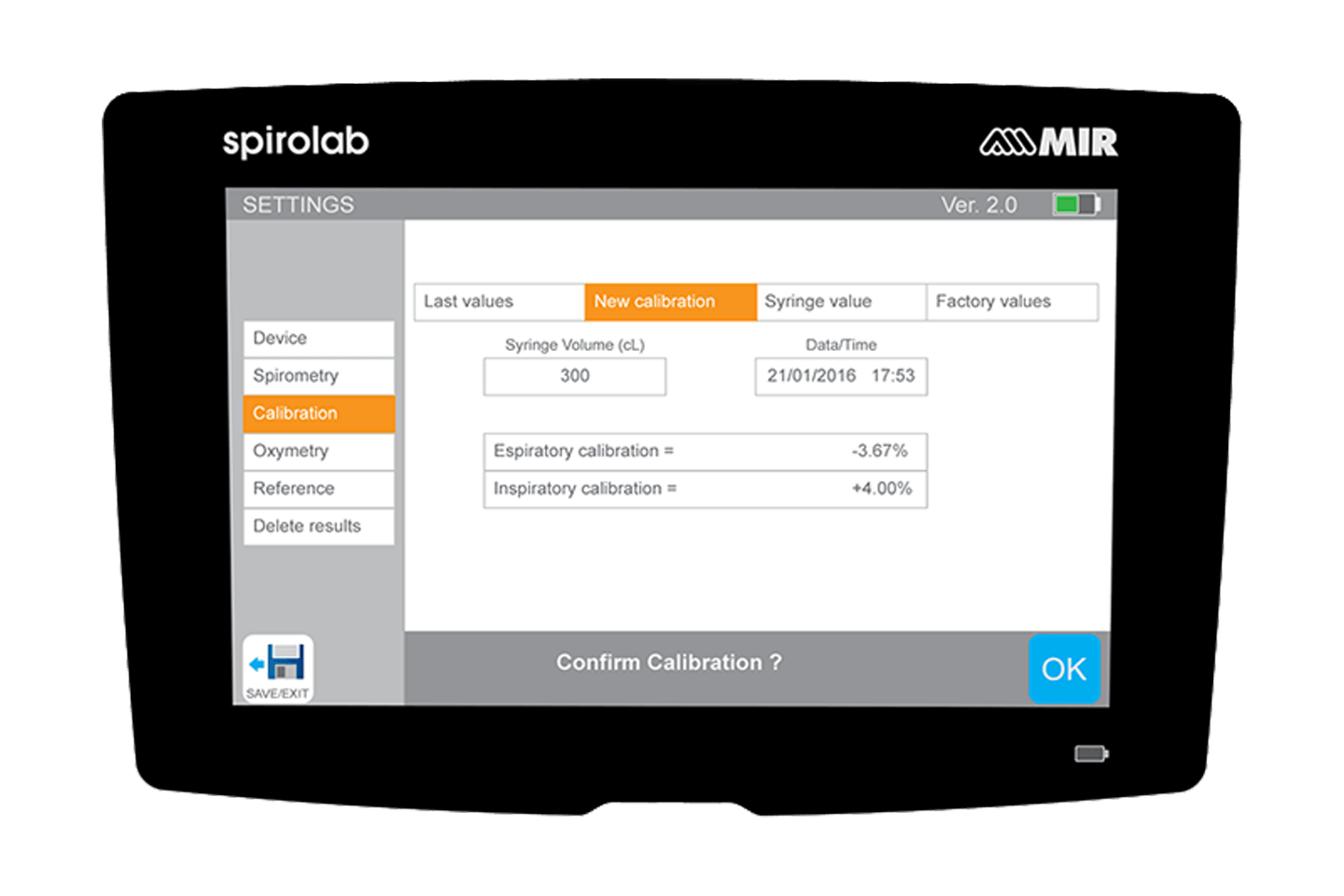

- Calibration executable on device
- Real-time-tests on the device

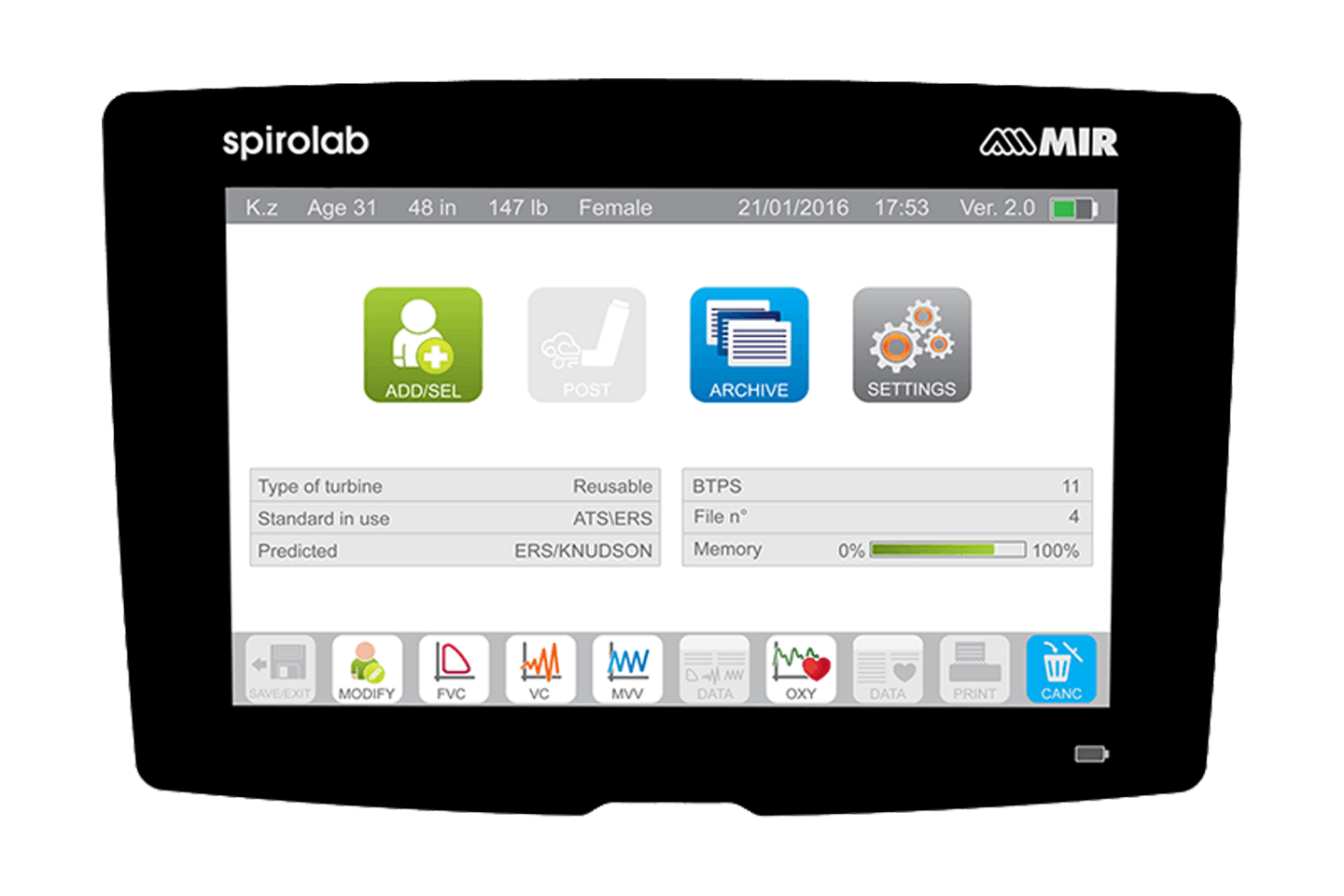

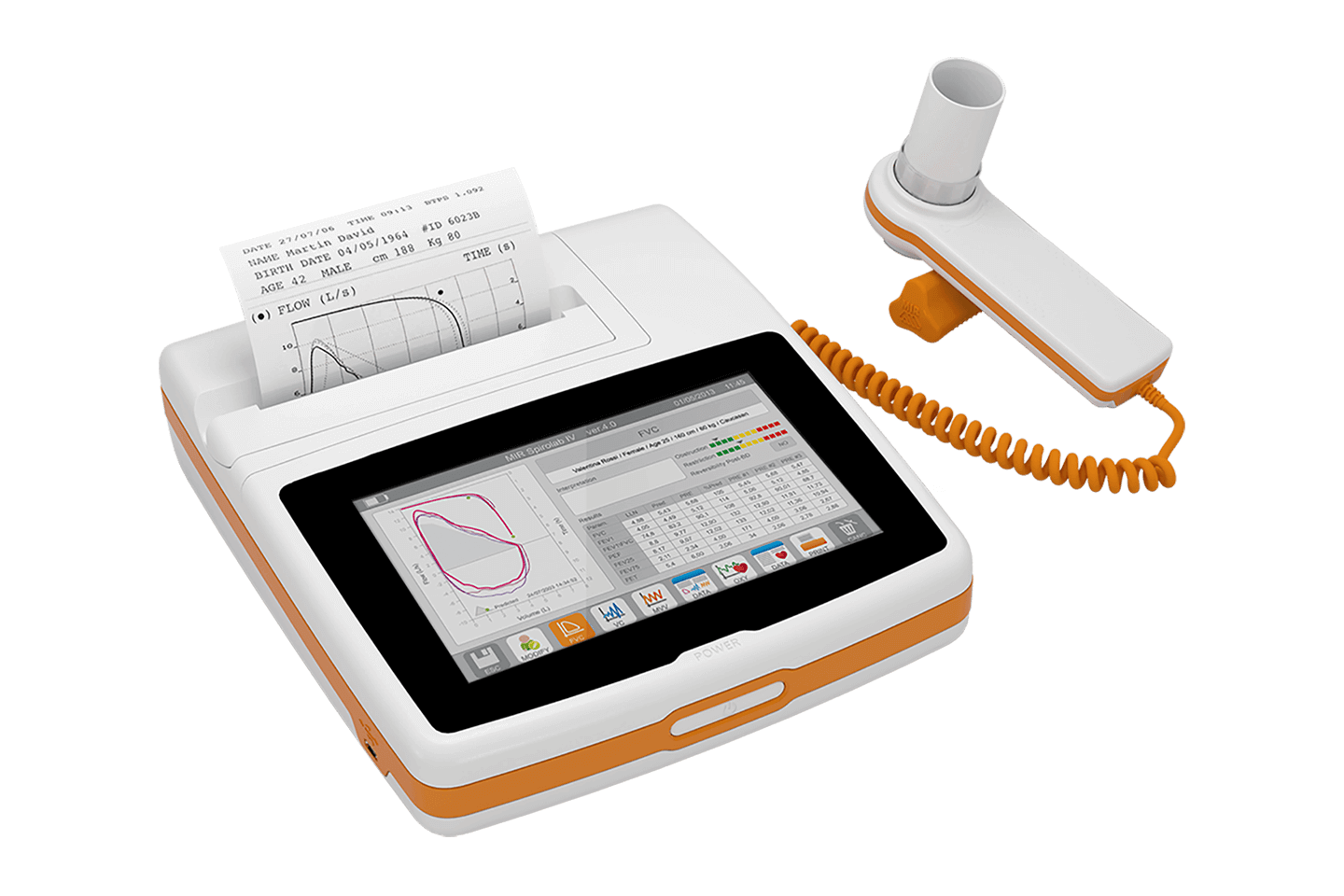

- Spirolab is a complete desktop spirometer with an oximetry option. Equipped with a 7'' color touchscreen and an embedded thermal printer, Spirolab is the all-in-one spirometer for rapid and comprehensive reporting - without needing a computer!
- The long-lasting rechargeable battery and large internal memory make Spirolab the ideal device to take anywhere.
- Real-time testing and pediatric incentive are available on the device's display. Calibration can be performed directly from the device. It operates both in Stand-Alone mode and connected to a PC via USB cable.
All the features :
- All-in-one :
Complete all-in-one spirometer to perform tests without the need for a computer
- EMR/EHR connectivity :
Integration via MIR Spiro Software with EMR/EHR (in HL7, GDT, FHIR, EXCHANGE PROTOCOL)
- Embedded thermal printer :
Customizable printing and immediate detailed test reports. 80<120 prints with a single roll. (Paper size 112 mm; Paper weight 56g +/- 4 gr/m2). *The use of non-original MIR paper rolls or with a higher grammage than indicated could irreparably damage the printer.
- Real-time testing :
Real-time test displayed both on the device screen and on the PC via MIR Spiro Software Spirometry: FVC, VC, MVV, PRE/POST bronchodilator comparison Oximetry (optional): Spot test (SpO2%, BPM)

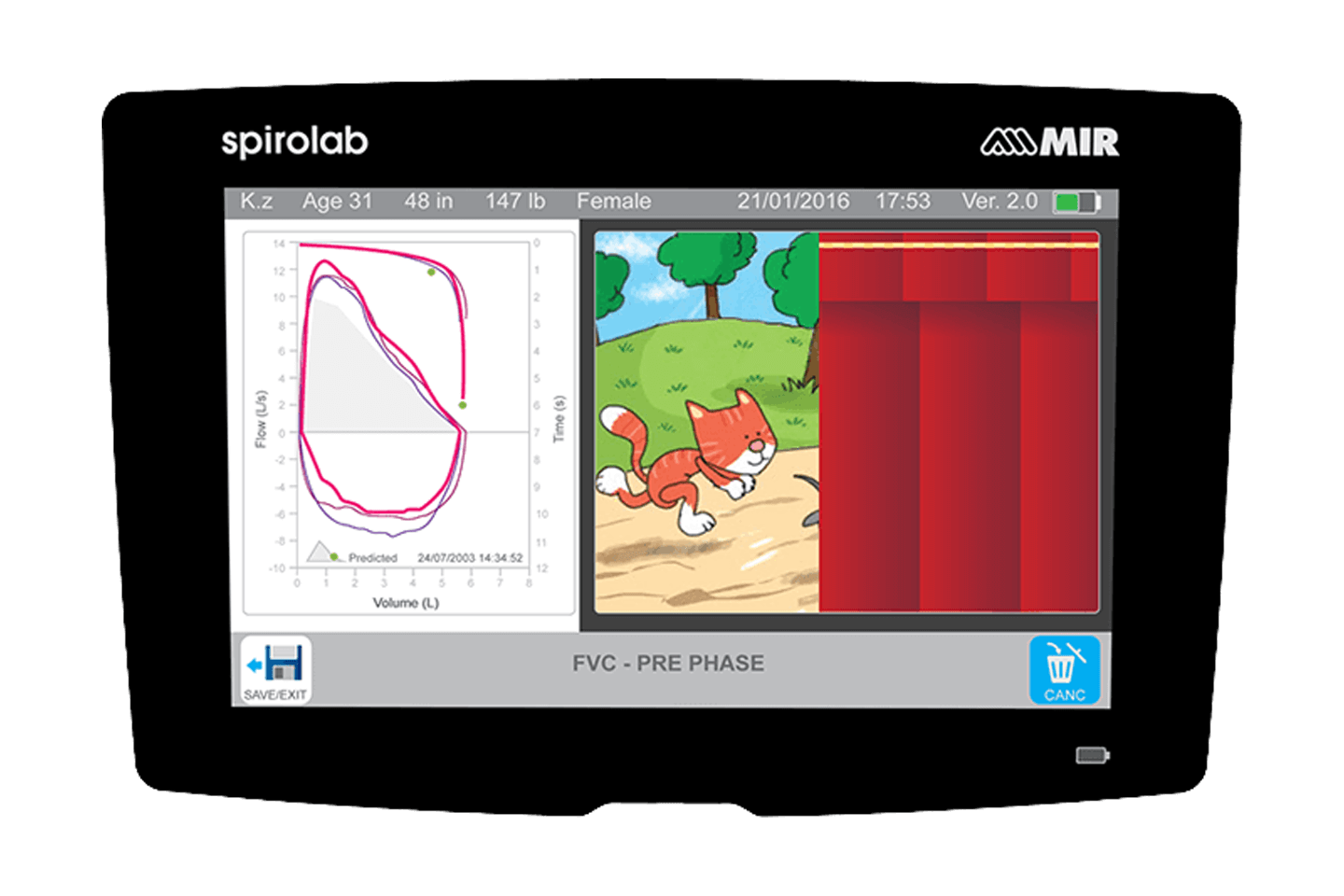

- Pediatric incentive :
Real-time animation both on the device screen and in PC mode via MIR Spiro Software to improve patient compliance during the test
- Predicted values :
Wide selection of predicted values including GLI, and ERS, among others, directly on the device and in PC mode
- Long-lasting rechargeable battery :
Long-lasting rechargeable lithium battery for extended autonomy in Stand-Alone mode
- Large internal memory :
Storage up to 10.000 spirometric tests or 500 hours of oximetry
- Integrated temperature sensor :
Automatic BTPS conversion
- Traffic light system :
Integrated traffic light system

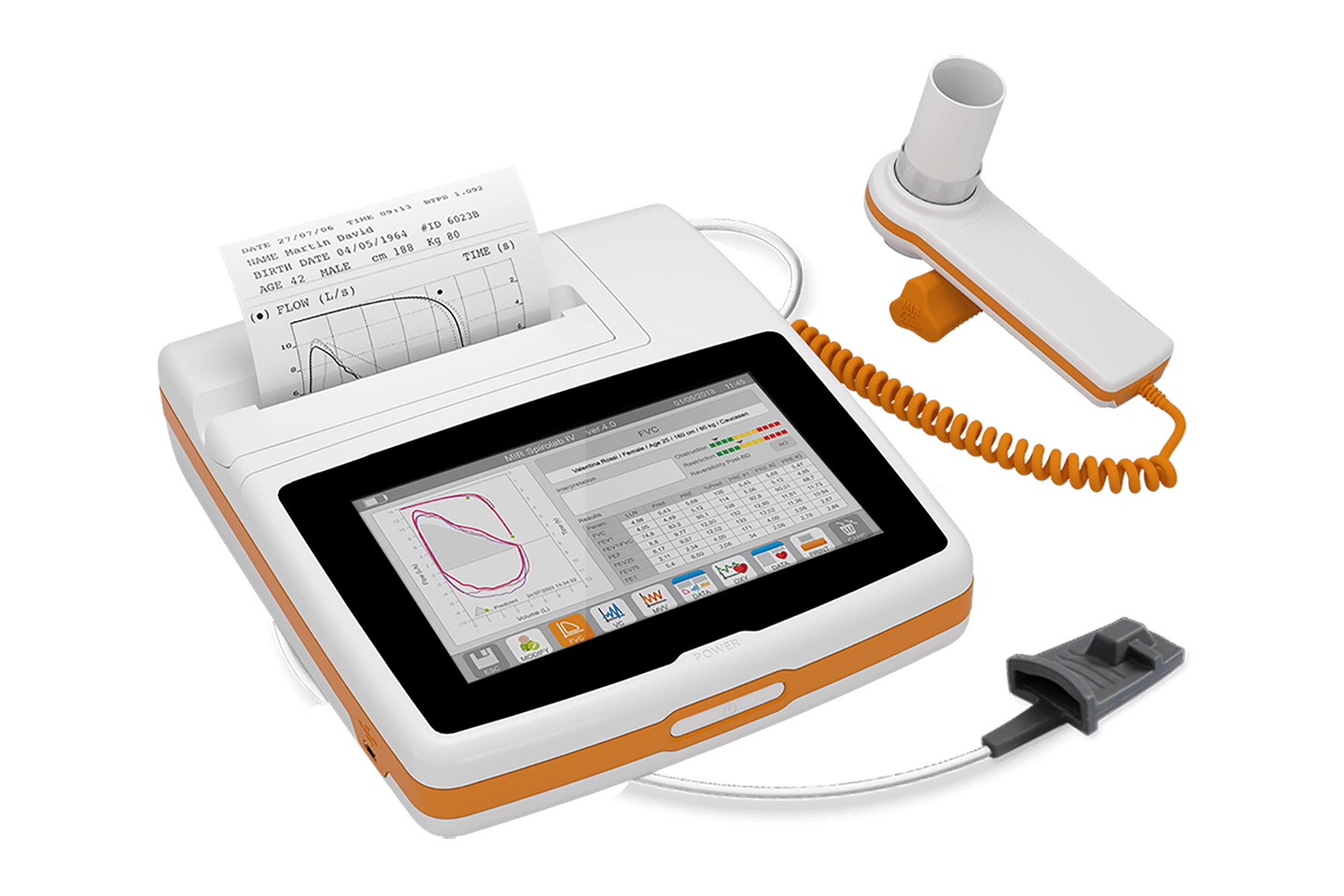

- SpO2% sensor :
Oximetry sensor to detect blood oxygen saturation
Technology :
1- FlowMIR , Disposable Turbine :
Disposable, factory-calibrated turbine flowmeter, individually packaged with cardboard mouthpiece.
2- Reusable Turbine Flowmeter :
Reusable turbine flowmeter with metal mesh, individually packaged without mouthpiece. To be used with either plastic or paper mouthpieces.
Compatible accessories :

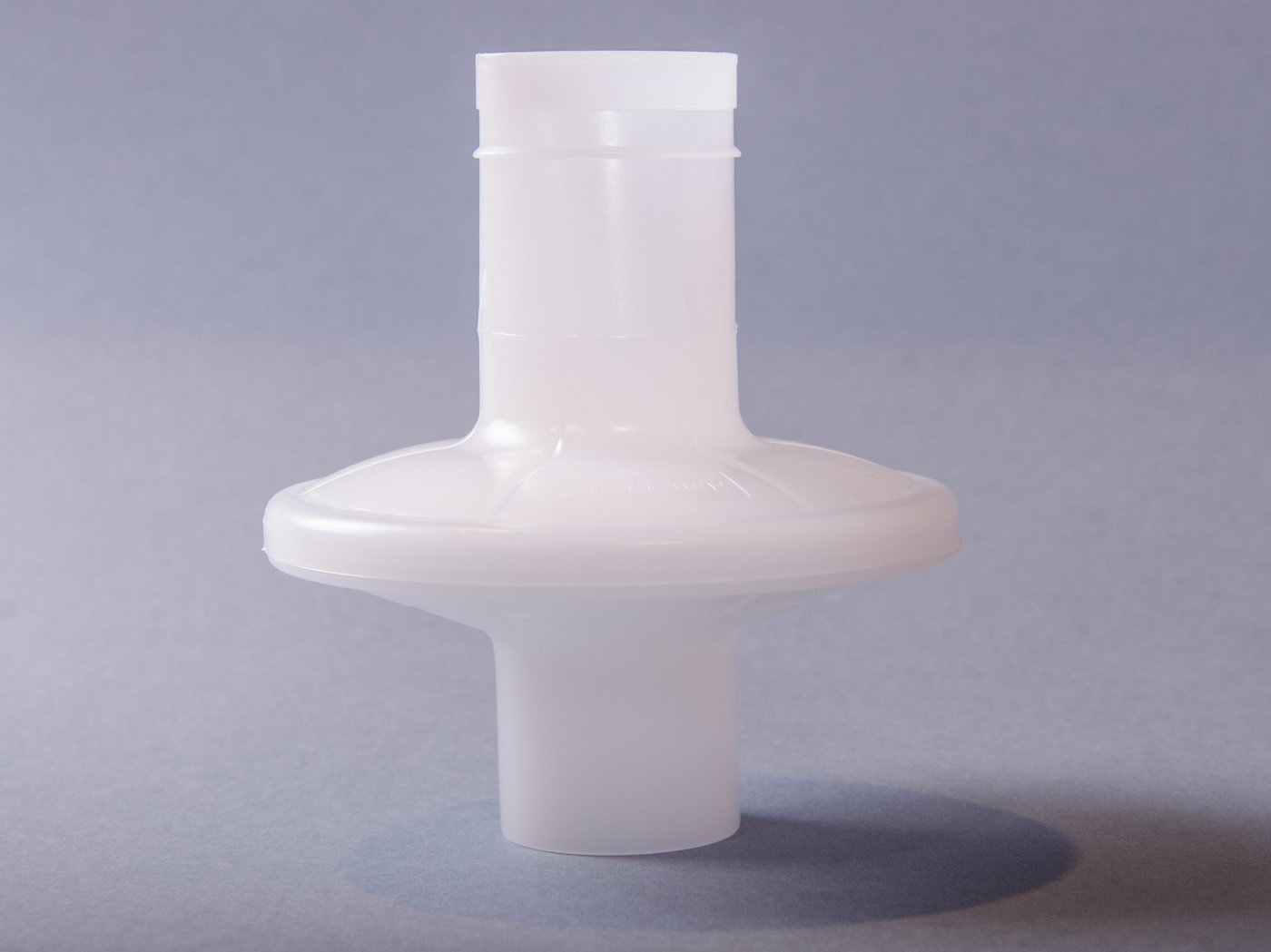

1- Bacterial-Viral Filter

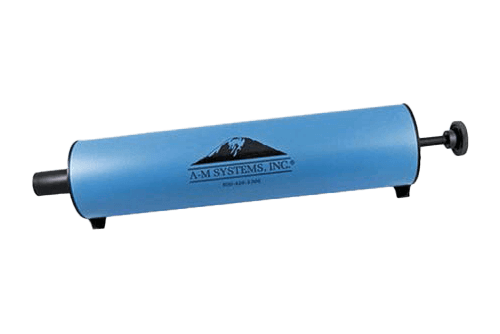

2- Calibration syringe 3L

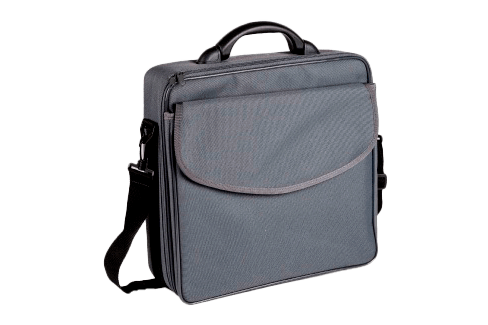

3- Carrying case for spirolab
