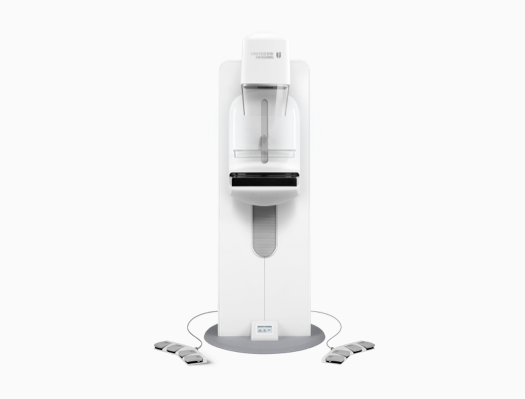

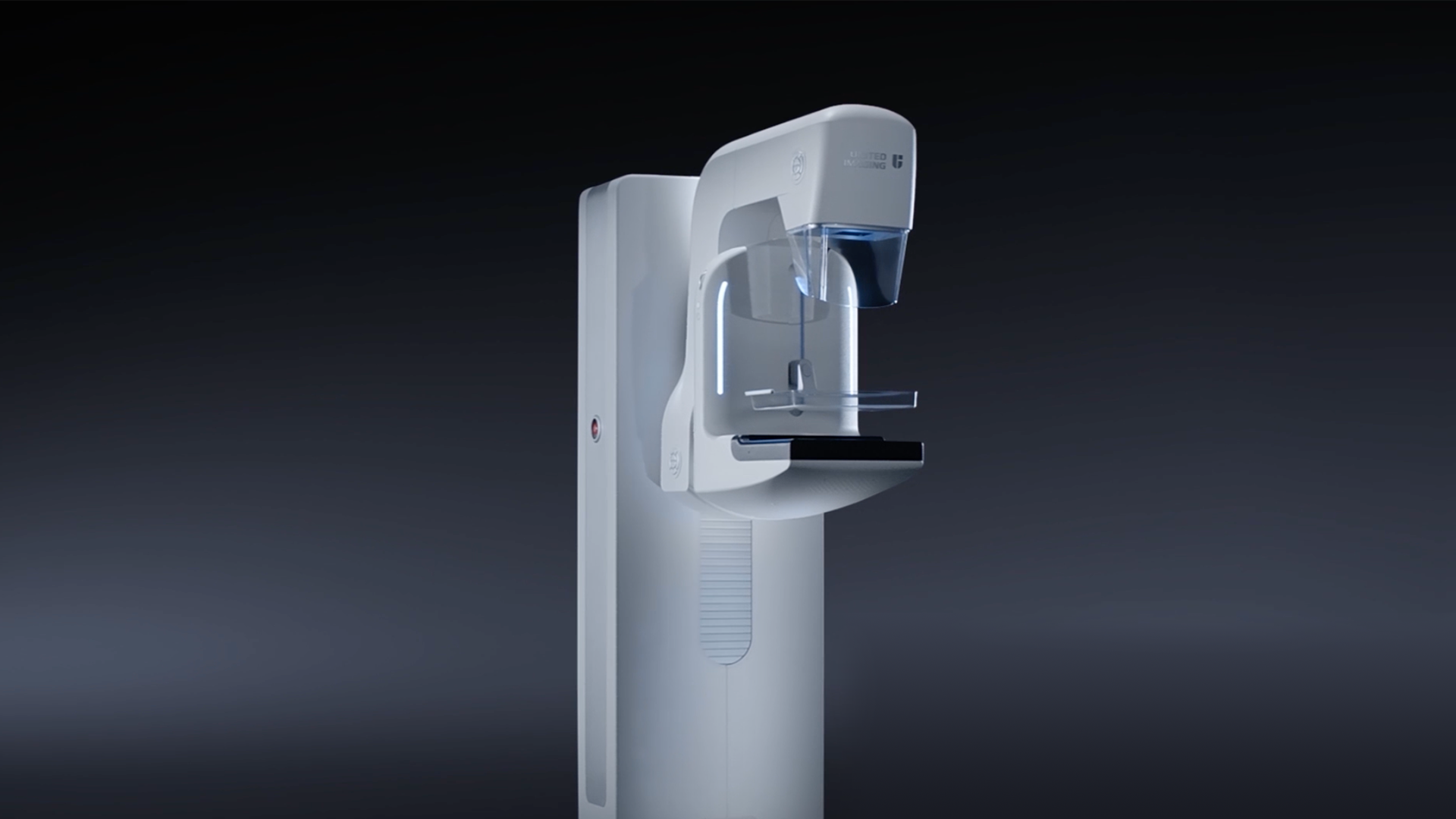

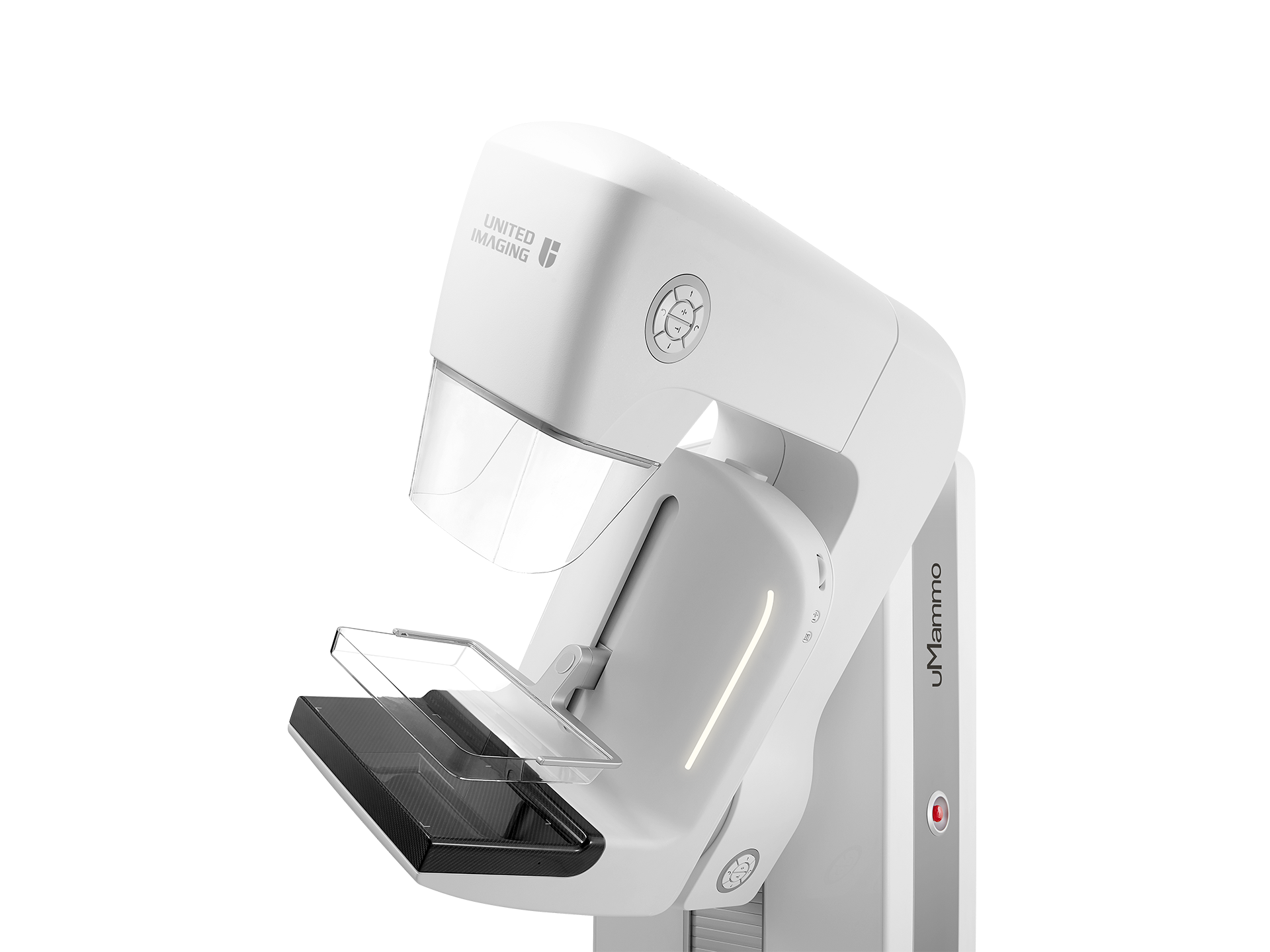

uMammo 590u is designed to provide ease of hand and peace of mind in mammography. We look for a world where every woman has access to precise and reliable breast cancer screening, paving the way for early intervention and better livings.
- Ease of Hand: Automated Screening in 5 Minutes
- Quality breast cancer screening should be accessible to all. uMammo 590u makes it easy with automated, accurate screenings in under five minutes. Its smart technologies and seamless workflow enhance efficiency and reduces barriers to care, making high-quality screening a standard for all.

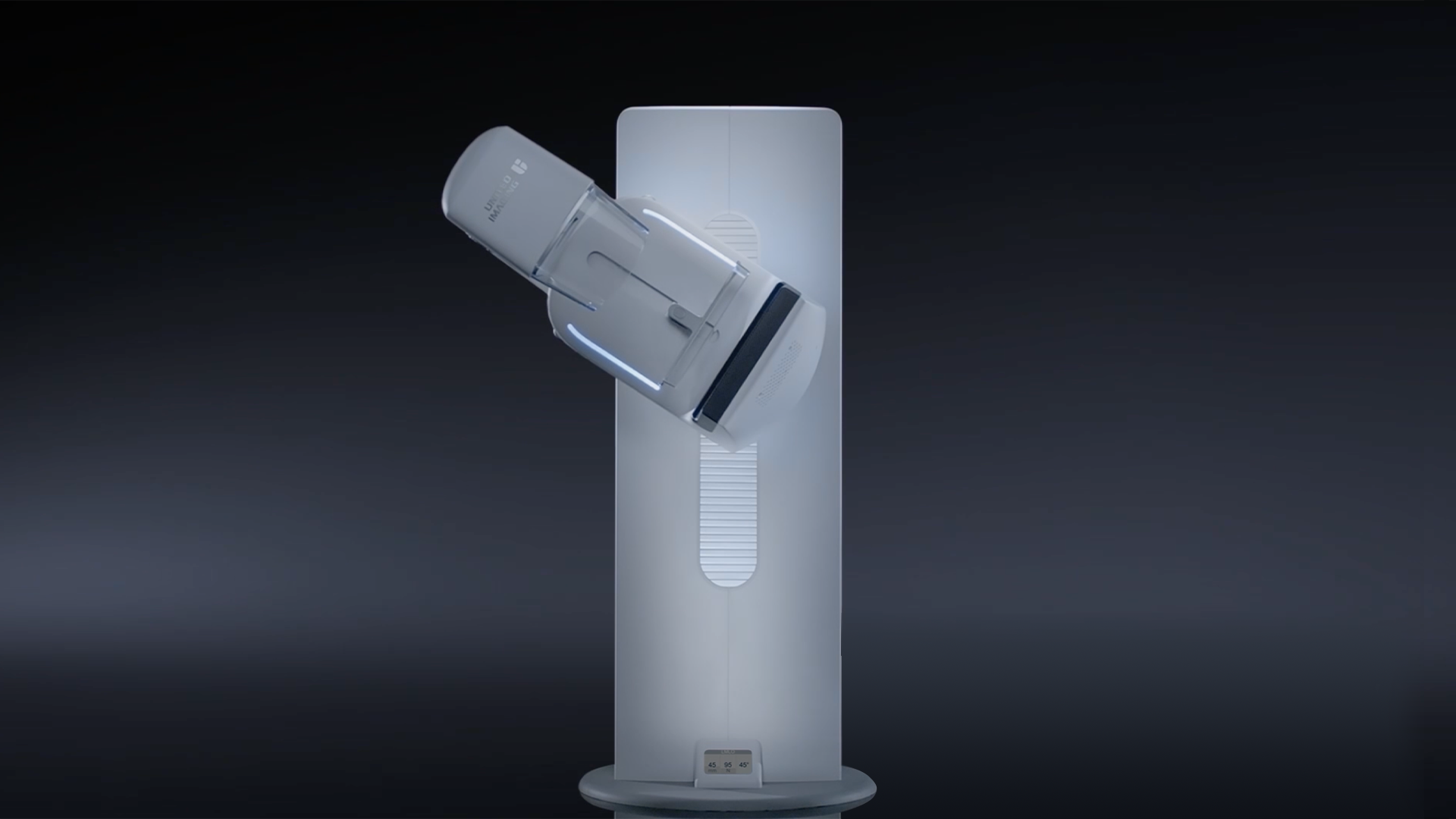

- One-Click to Position
Pressing the positioning button, and the C-arm automatically moves to the target angle as preset in the acquisition protocol.

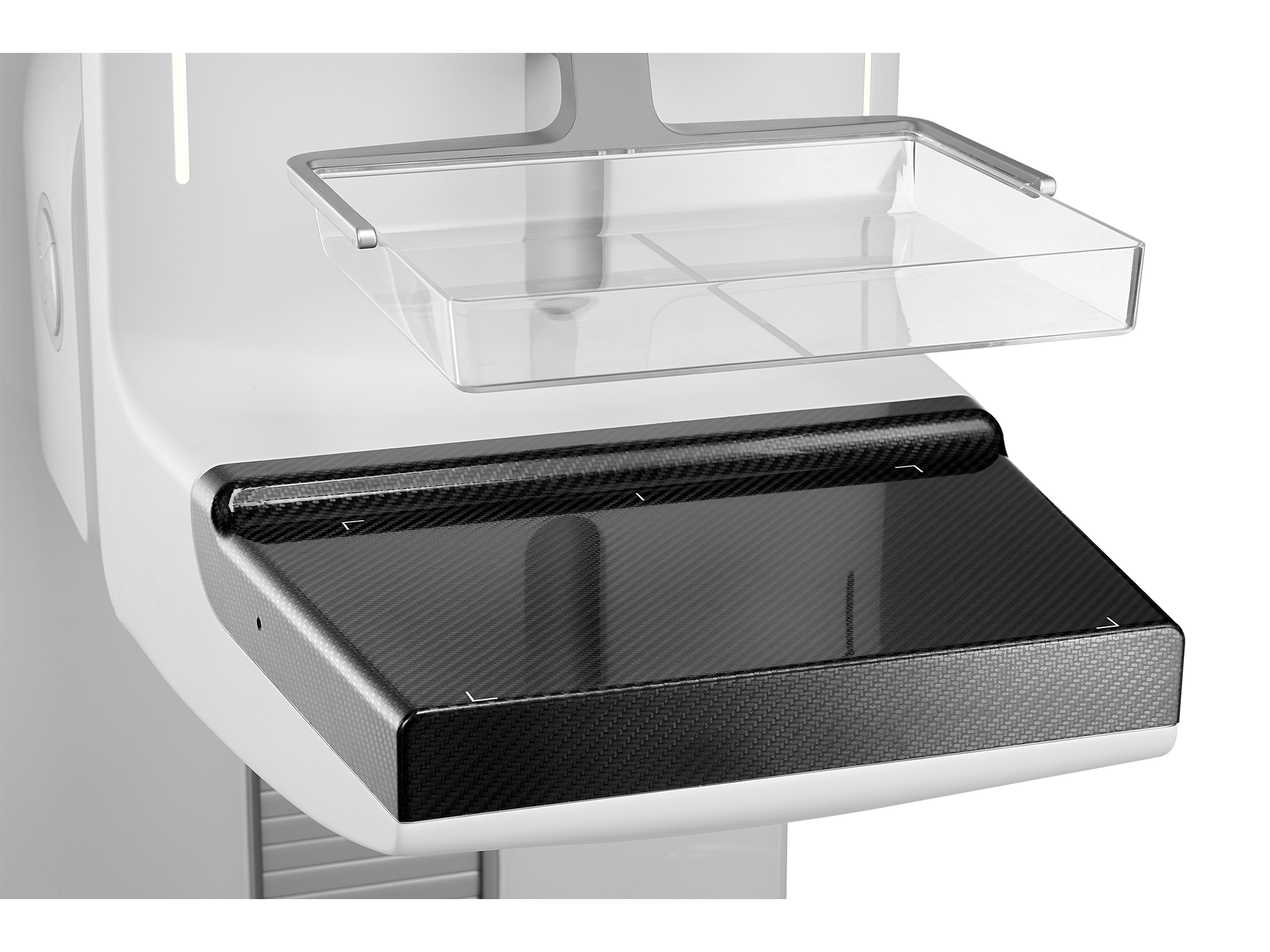

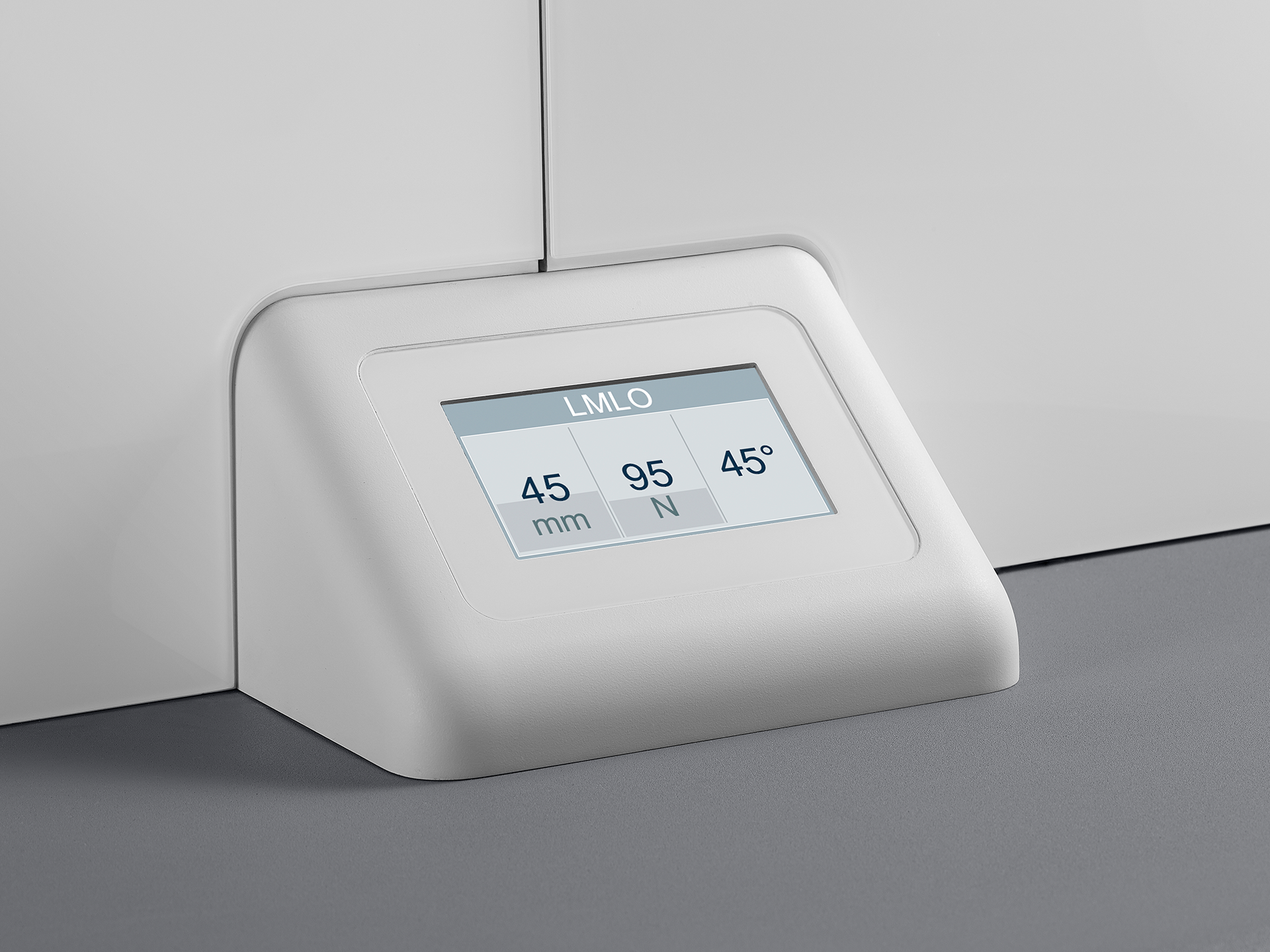

- Smart Compression
- Automated Exposure in 5s
- AI Diagnosis in 3s*
- 20% Dose Reduction, Women-Centered Care
- Accurate Exposure Control with uDose
- uDose is an advanced algorithmic technology that automatically evaluates the radiation characteristics of a breast with full-panel AEC, and smartly selects optimal parameters to deliver high-quality images with 20% dose reduction. uDose adopts full-panel AEC to cover the entire glandular area of the breast, providing comprehensive data for accurate and precise dose calculations in a variety of clinical settings.

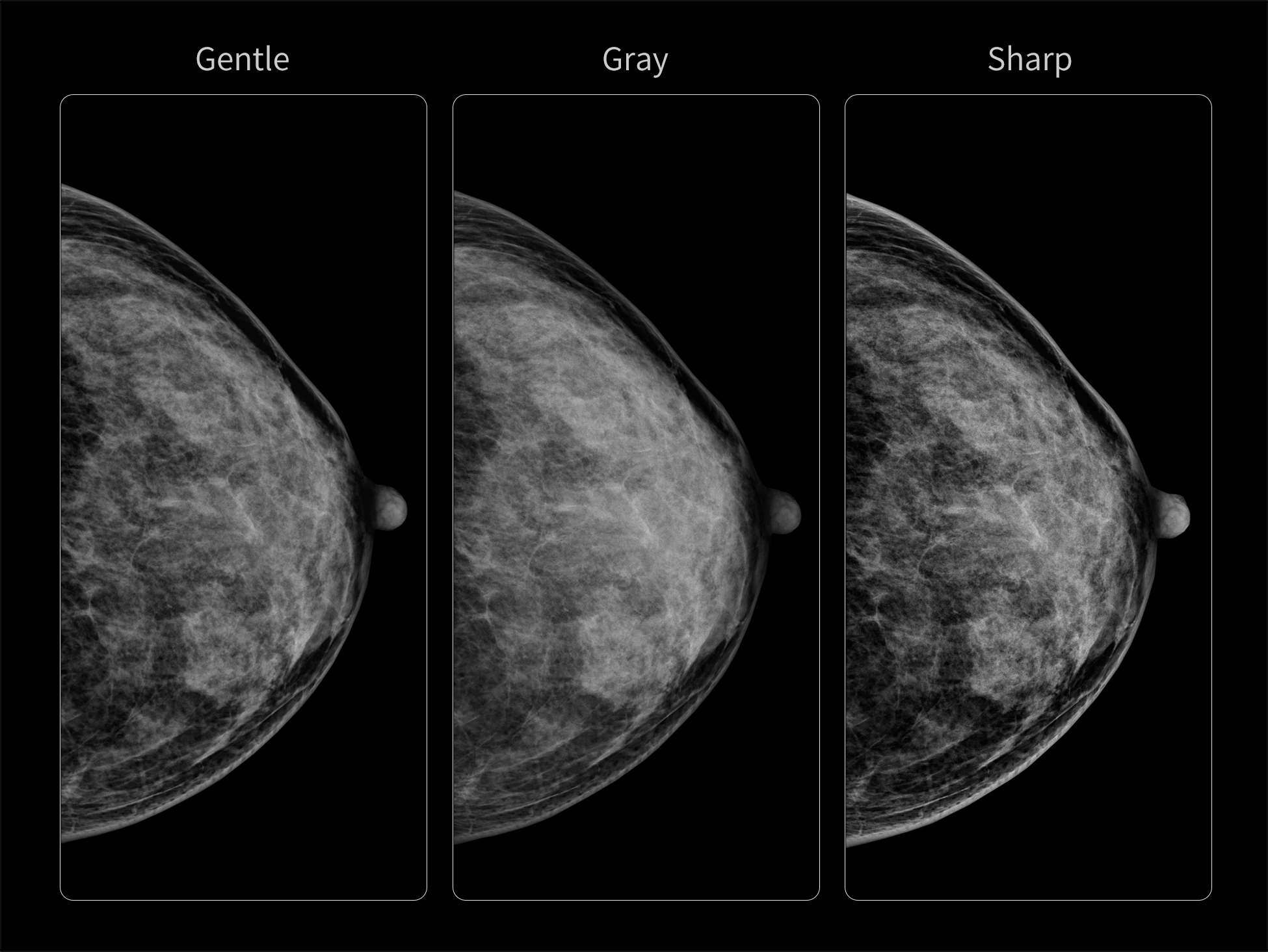

- Optimized System with An Outstanding Image Chain
- Just the Right Amount of Compression

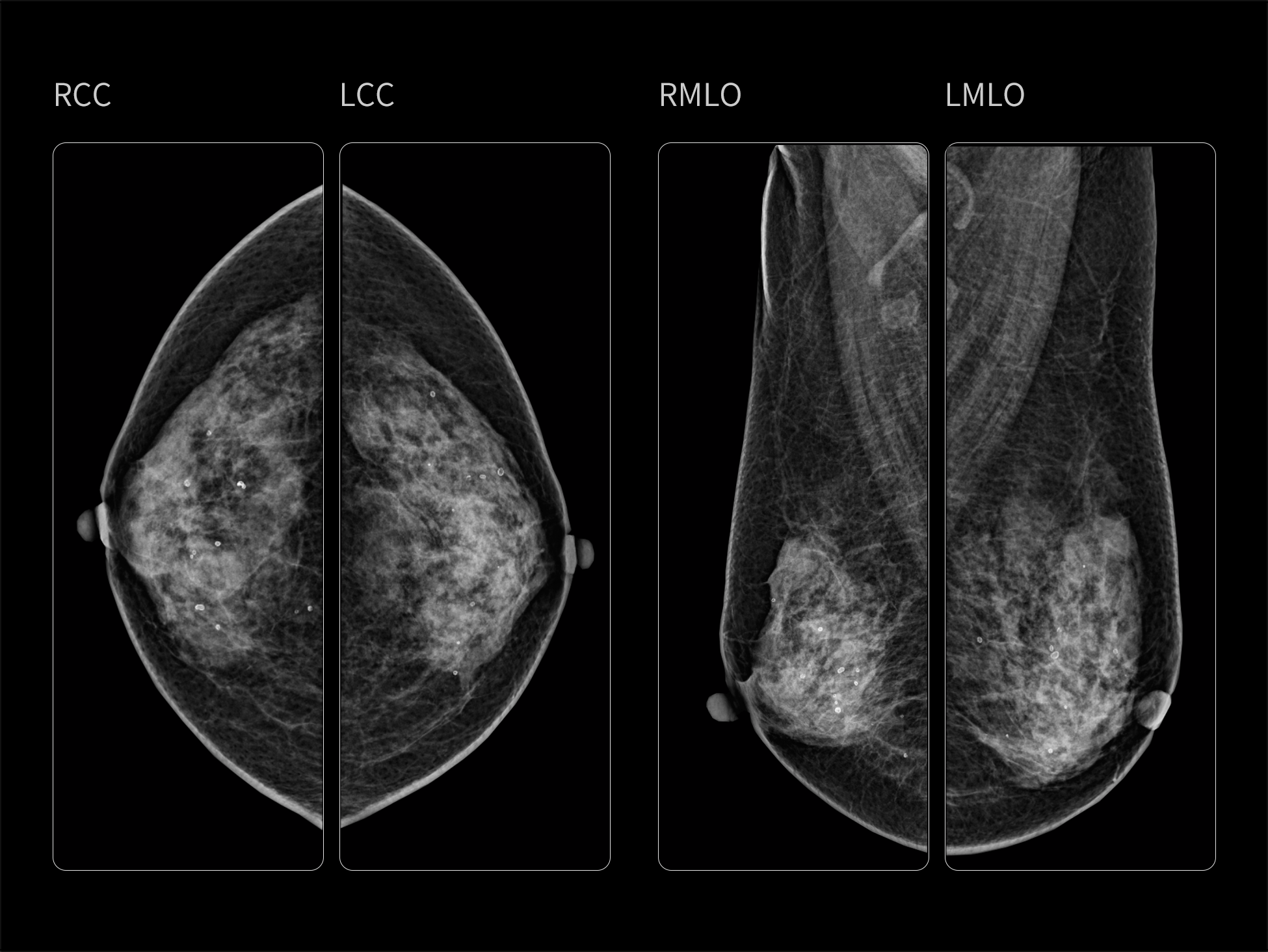

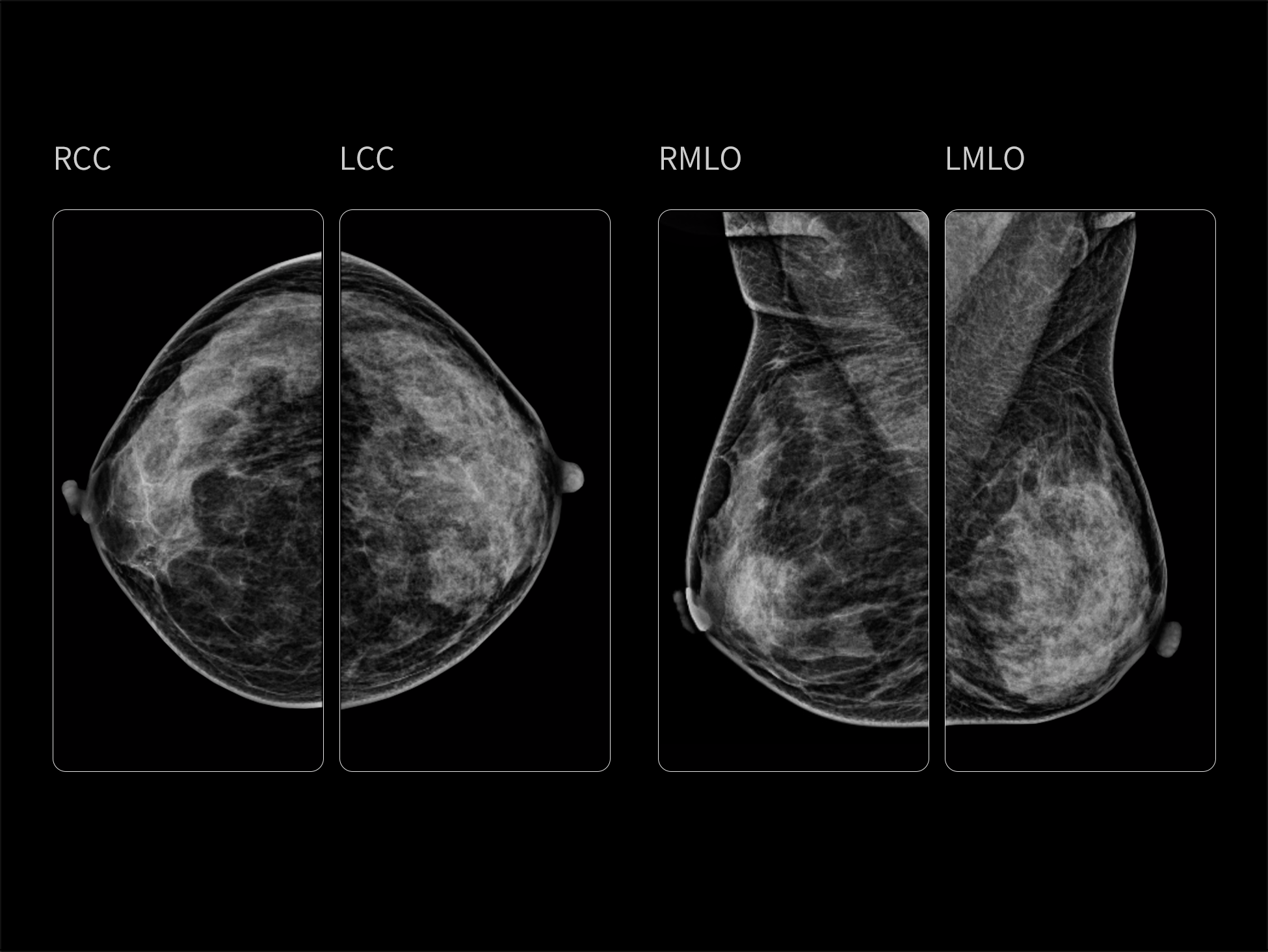

- Consistent Clarity
* Technical Specifications :-
* Gantry :-
Swivel movement range:+190°/-150°
Swivel movement mode:Motorized - Support isocentric rotation - Support one-click movement to preset angle
Source to image receptor distance:70 cm

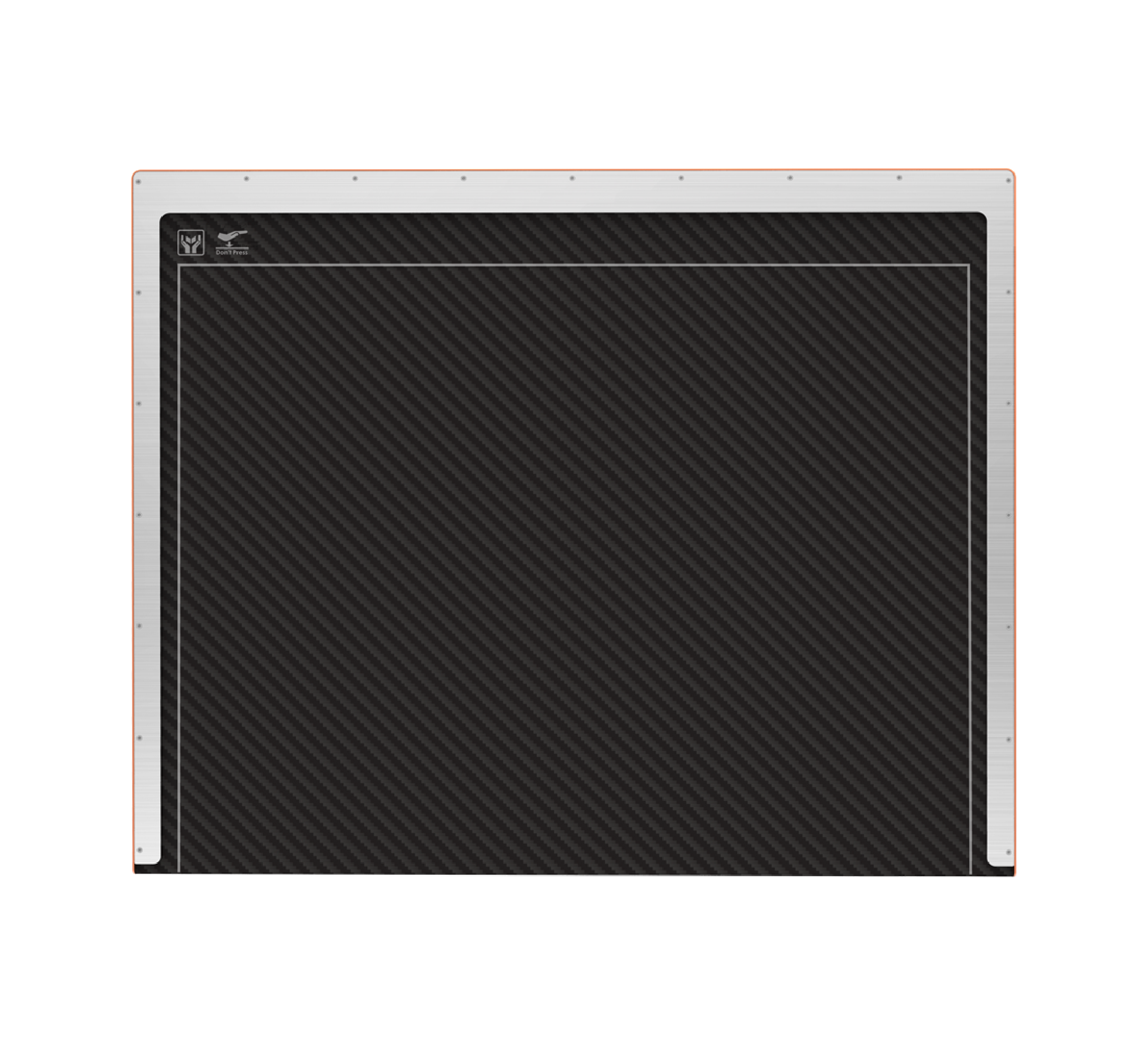

Detector technology:a-Si Cesium iodide (CsI)
Pixel size:76 μm (590i: 85 μm)
X-ray tube anode material:W
Tube dissipation technology:Fan-cooled
Digital compatibility:Compatible to PACS, RIS
Environmental requirement:Temperature (10~30°) - Humidity (30~75%)
