High image quality from low dose
As a world-leading imaging and information company, Fujifilm is dedicated both to improving image quality and advancing dose lowering technologies and safe healthcare standards for patients. FDR ES is a perfect example. It features engineering innovations which achieve dose efficiency improvements by as much as 30% compared to Fujifilm CR and as much as 20% over comparable DR detector designs, all while delivering exceptional images.

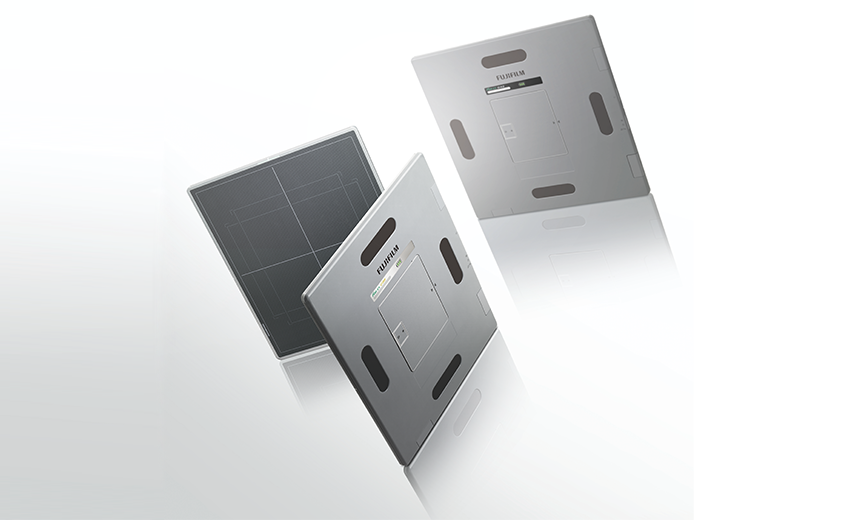

Features

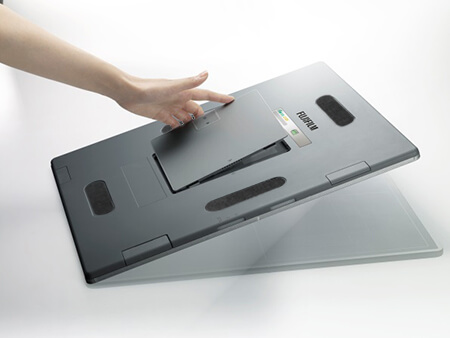

-Rounded edges make FDR ES easy to pick up off flat surfaces.
-Carbon fiber casings make FDR ES detectors durable and lightweight, with 14×17” weighing only 6.4 lbs.
-Sleep mode extends battery life for less frequent battery changes.
-Built to protect against incidental sprayed liquid (IPX-3 rating).
-Fujifilm detector innovations improve image quality and dose efficiency through advanced processing combined with patented ISS technology and improved circuitry performance.
These lightweight, small format 24x30cm detectors ideal for extremity imaging positioned outside of the bucky.
Model FDR ES C24
Size 24x30cm
External (inches) 13 x 10.6 x 0.6
Connection Tethered / Wireless

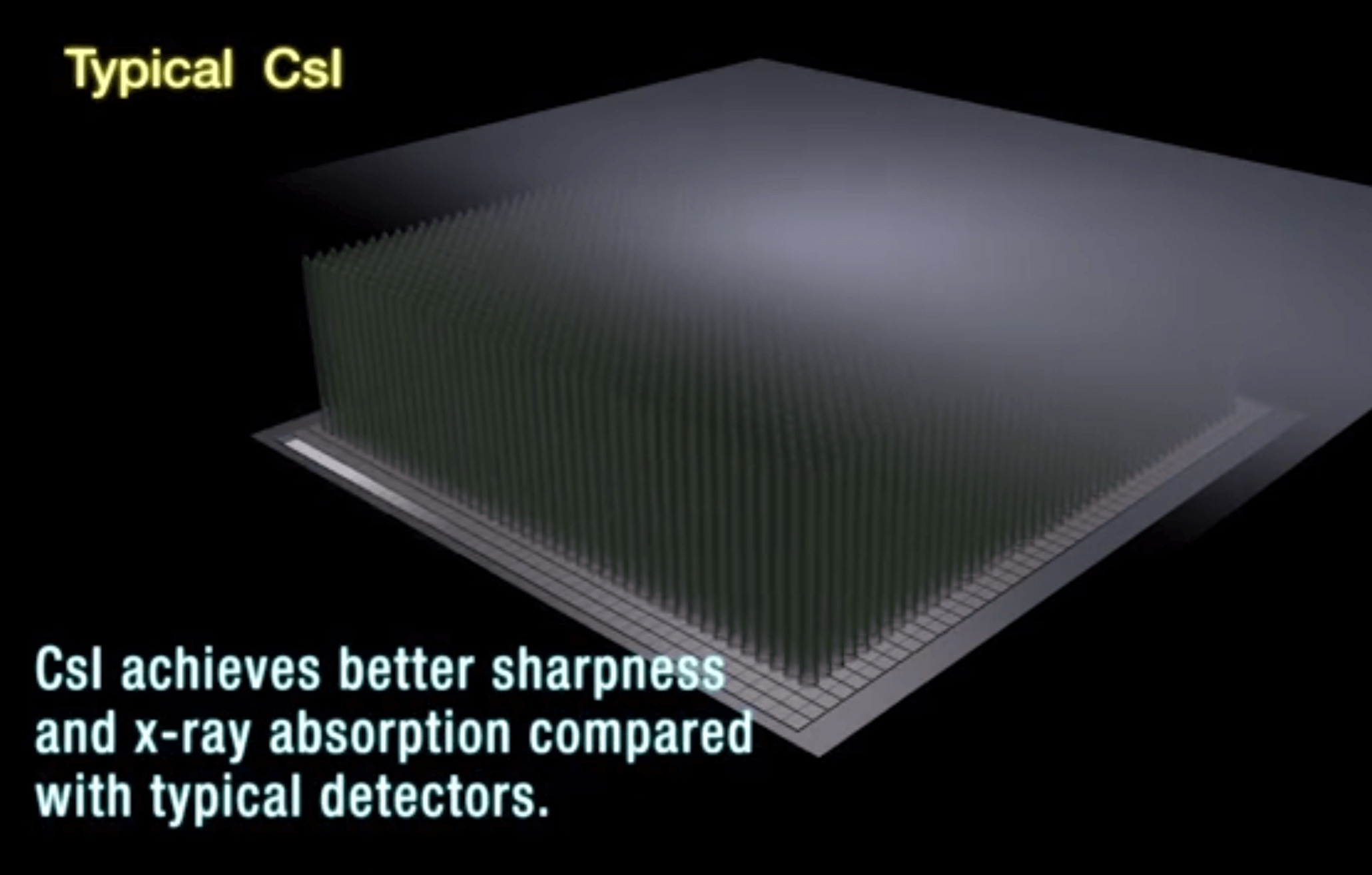

Scintillator Csl
Weight (lbs.) 3.5
Pixel Matrix 1536 x 1920
Pixel Pitch 150µ
Cycle Time (sec.) Less than 9
Image Display (sec.) 1-2

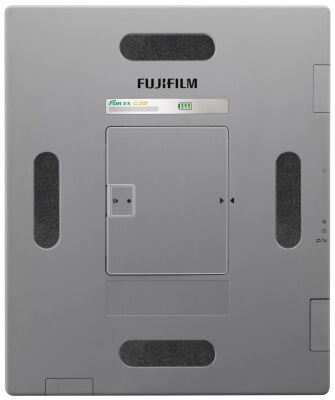

These lightweight, cassette-sized 14×17 detectors are available with a detachable cord and the option of going wireless for added positioning versatility.
Model FDR ES C35
Size 14×17
External (inches) 15 x 18 x 0.59
Connection Tethered / Wireless
Scintillator Csl
Weight (lbs.) 6.4
Pixel Matrix 2836 x 2836
Pixel Pitch 150µ
Cycle Time (sec.) Less than 10.5
Image Display (sec.) 1-2

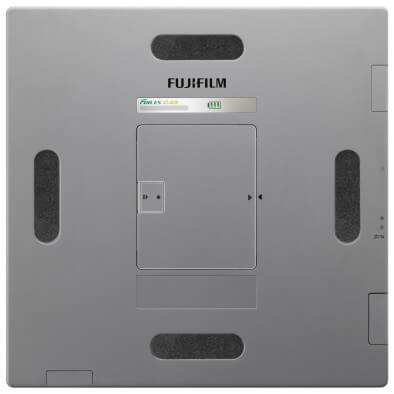

These full sized 17×17 detectors are available with a detachable cord and an option to go wireless, making them ideal for dedicated use in an upright bucky or in-table solution.
Model FDR ES C43
Size 17×17
External (inches) 18 x 18 x 0.59
Connection Tethered / Wireless
Scintillator Csl
Weight (lbs.) 8.2
Pixel Matrix 2836 x 2832
Pixel Pitch 150µ
Cycle Time (sec.) Less than 13
Image Display (sec.) 1-2
These lightweight, cassette-sized 14×17 detectors are available with a detachable cord and the option of going wireless for added positioning versatility.
Model FDR ES G35
Size 14×17
External (inches) 15 x 18 x 0.59
Connection Tethered / Wireless
Scintillator GOS
Weight (lbs.) 6.4
Pixel Matrix 2836 x 2336
Pixel Pitch 150µ
Cycle Time (sec.) Less than 10.5
Image Display (sec.) 1-2
These full sized 17×17 detectors are available with a detachable cord and an option to go wireless, making them ideal for dedicated use in an upright bucky or in-table solution.
Model FDR ES G43
Size 17×17
External (inches) 18 x 18 x 0.59
Connection Tethered / Wireless
Scintillator GOS
Weight (lbs.) 8.2
Pixel Matrix 2836 x 2832
Pixel Pitch 150µ
Cycle Time (sec.) Less than 13
Image Display (sec.) 1-2
Accessories
-Additional Flat Panel Detectors
-Workstations
-Spare Batteries
-Battery Charger (2-slot)
-Grid Caps
-Advanced Processing Software
