Characteristics :
- Type : patient
Description :

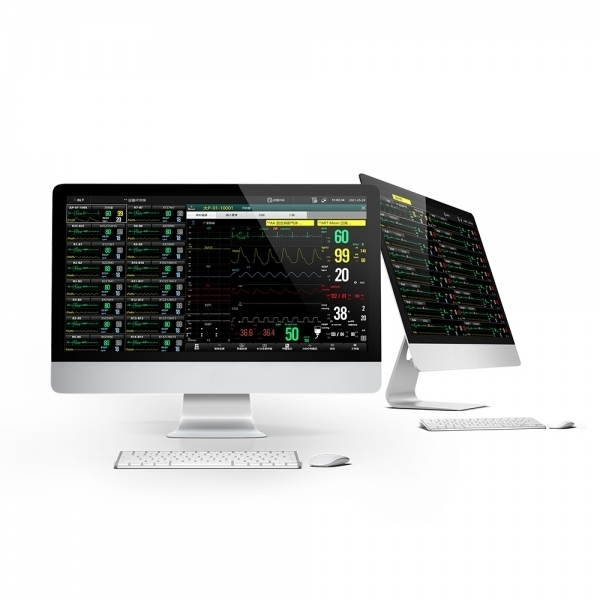

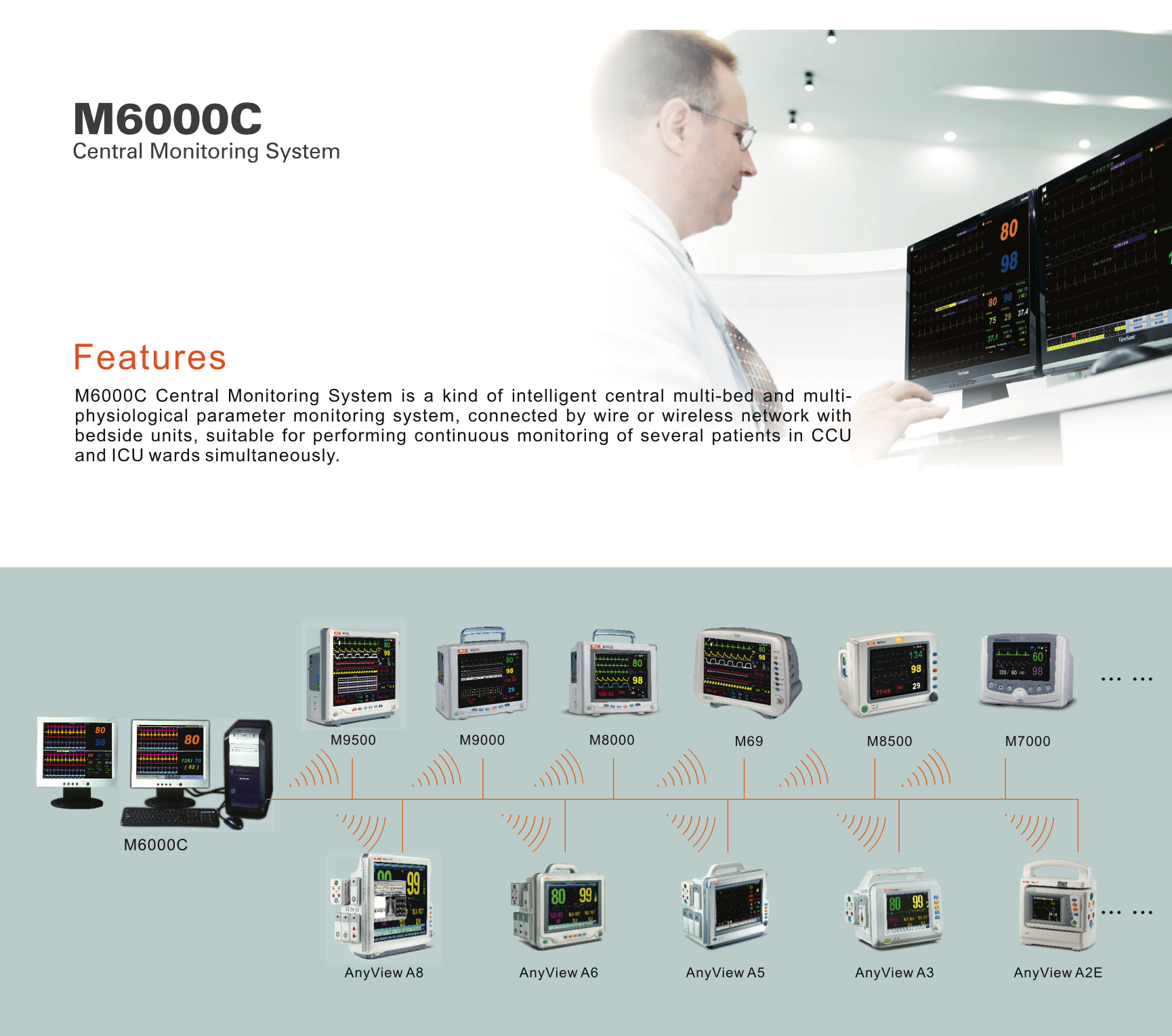

- M6000C Central Monitoring System is a kind of intelligent central multi-bed and multi-physiological parameter monitoring System, connected by wire or wireless network with bedside units, suitable for performing continuous monitoring of several patients in CCU and ICU wards simultaneously.

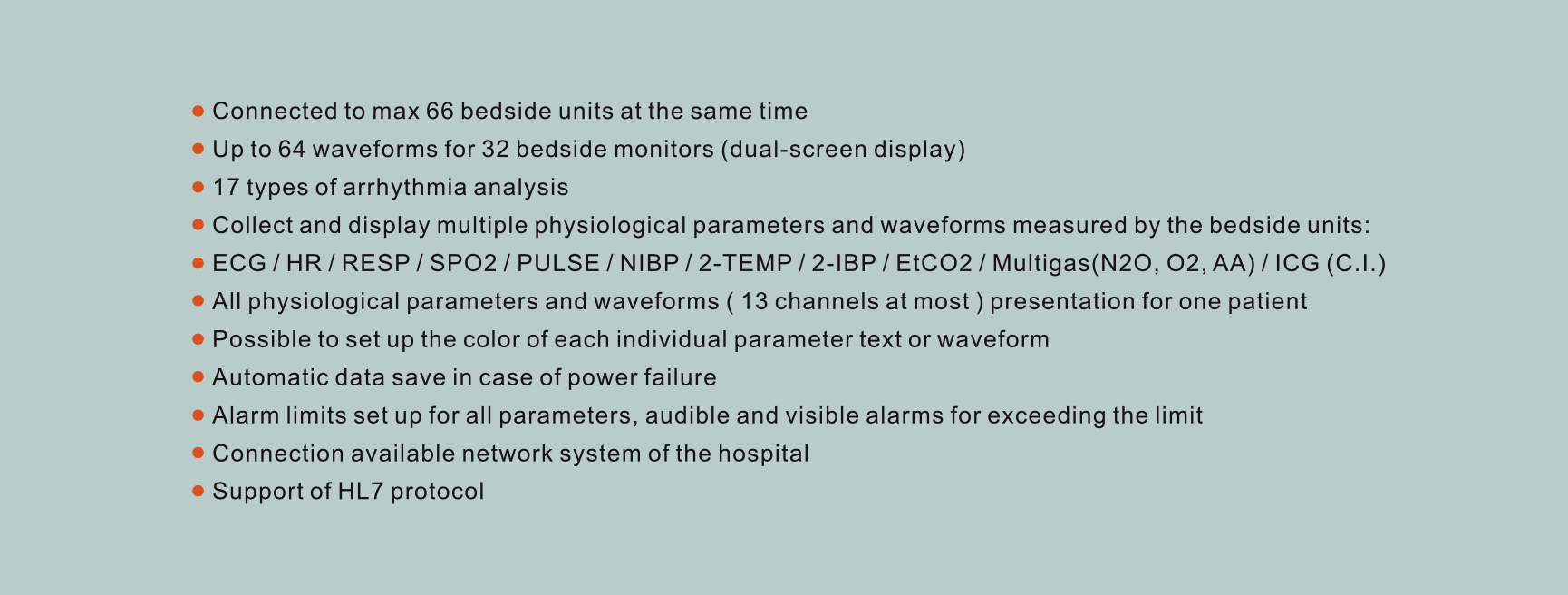

- Connected to max 66 bedside units at the same time.
- Up to 64 waveforms for 32 bedside monitors (dual-screen display).
- 17 types of arrhythmia analysis.
Collect and display multiple physiological parameters and waveforms measured by the bedside units:
- ECG / HR/RESP/SP02/PULSE/NIBP / 2-TEMP / 2-IBP / EtC02 / Multigas(N20, 02, AA) IICG (C.l.)
- Ail physiological parameters and waveforms ( 13 channels at most ) présentation for one patient
- Possible to set up the color of each individual parameter text or waveform
- Automatic data save in case of power failure
- Alarm limits set up for ail parameters, audible and visible alarms for exceeding the limit
- Connection available network System of the hospital
- Support of HL7 protocol

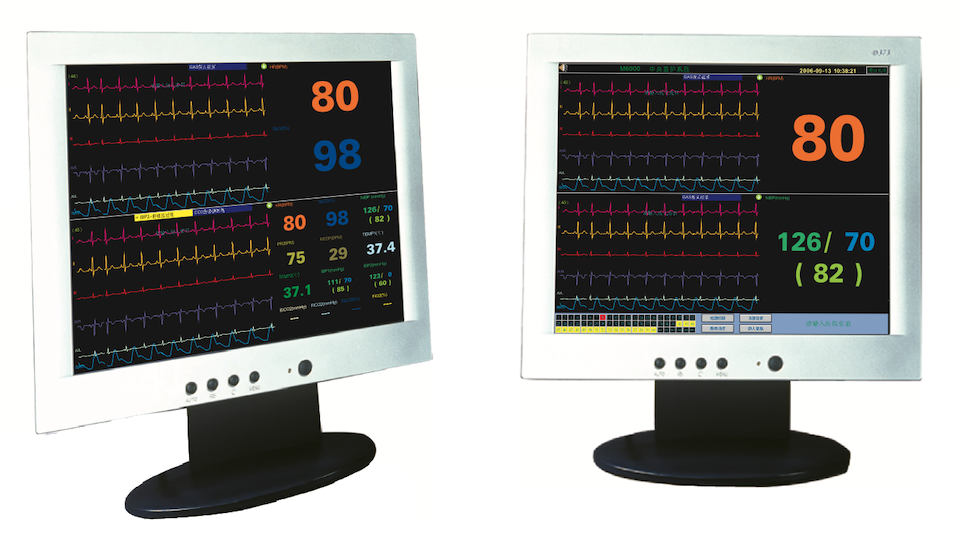

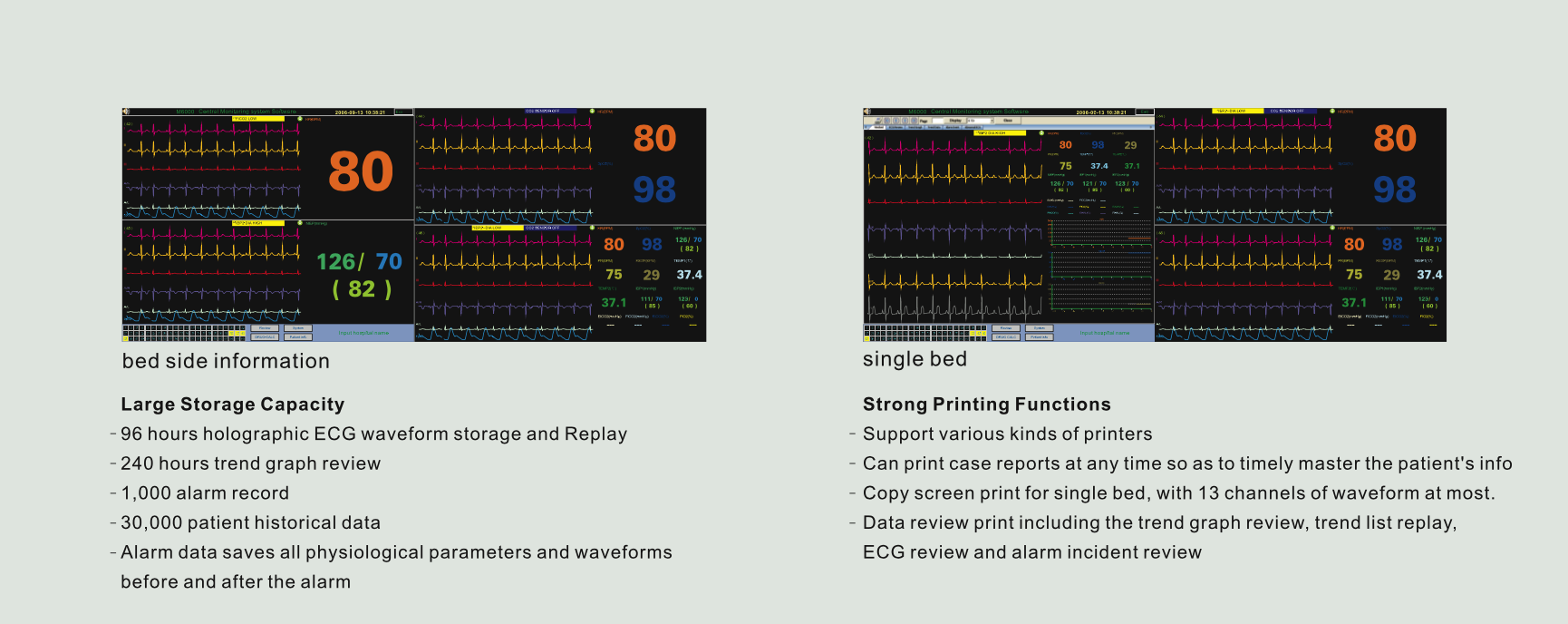

- bed side information
- Large Storage Capacity
- 96 hours holographie ECG waveform storage and Replay
- 240 hours trend graph review
- 1.000 alarm record
- 30.000 patient historical data
- Alarm data saves ail physiological parameters and waveforms
- before and after the alarm
- Strong Printing Functions
- Support various kinds of printers
- Can print case reports at any time so as to timely master the patient's info Copy screen print for single bed, with 13 channels of waveform at most.
- Data review print including the trend graph review, trend list replay, ECG review and alarm incident review.

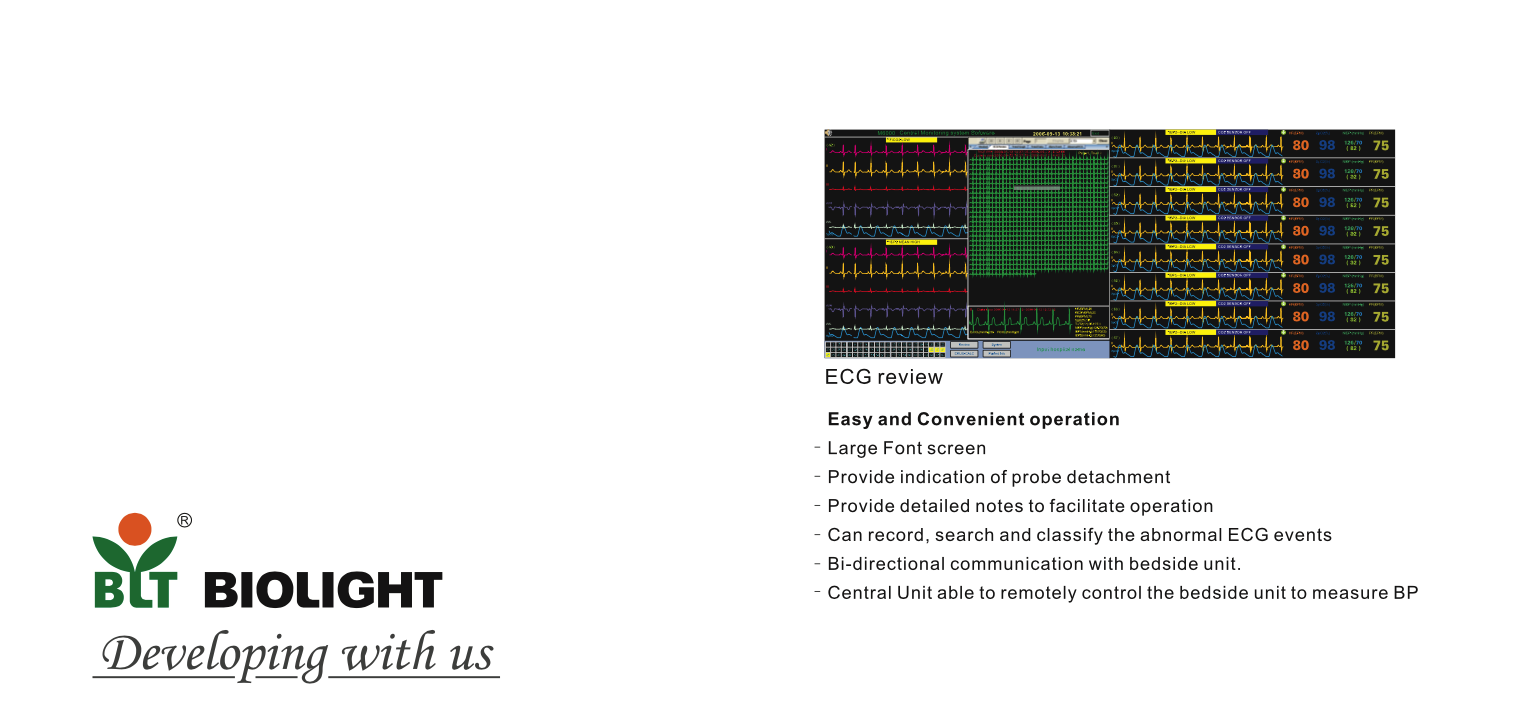

- ECG review
- Easy and Convenient operation
- Large Font screen
