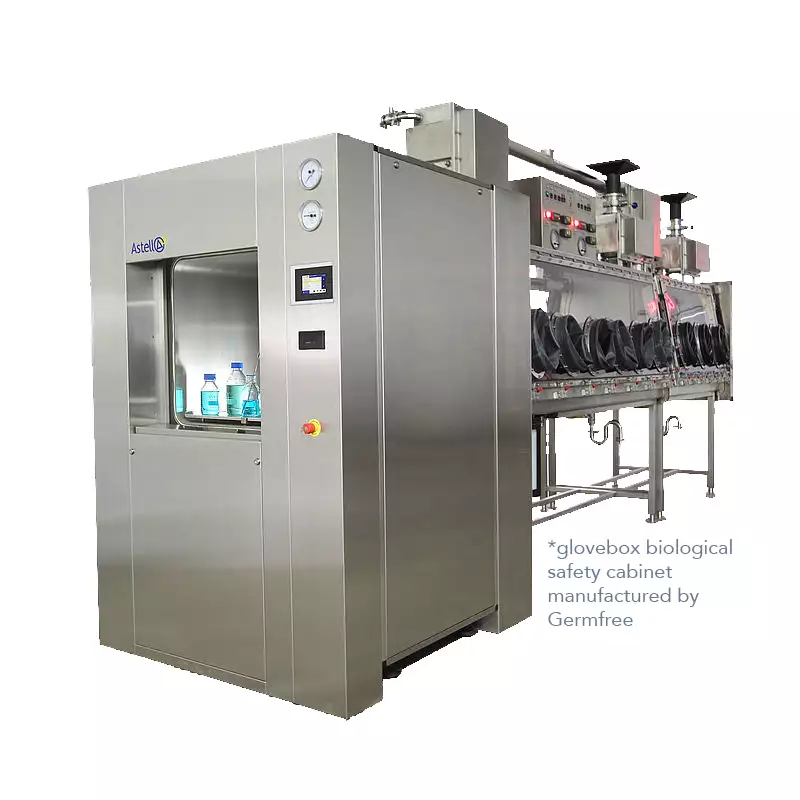

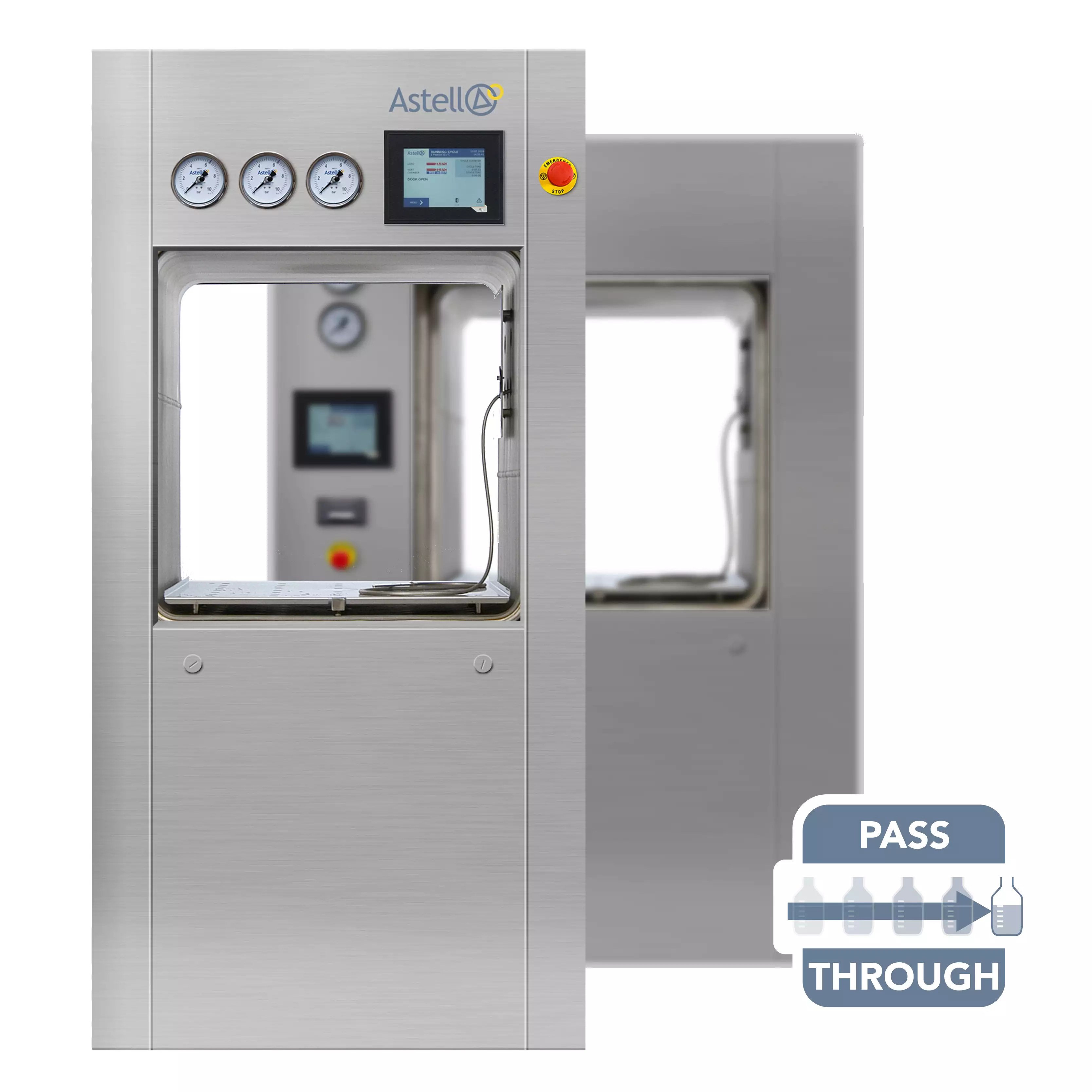

The 250 - 1,200 litre Double Door pass-through SQUARE Autoclave Range is ideal for high-containment type (CL-3 / BSL-3) facilities or where a specific area or 'clean room' are in operation, as the sterilized load can 'pass through' the autoclave to be removed in to this environment.

The Double Door SQUARE range is highly customisable and capable of sterilizing almost anything (additional options may be required) with a range of different chamber sizes available.

Astell Scientific offer a comprehensive standard range of square section autoclave chamber sizes, each one designed and manufactured with precision and care. During and after manufacturer all pressure vessels are stage inspected, hydraulically tested and stamped by a notified body. Astell pressure vessels are manufactured to PED, ASME U standards and carry numerous approvals for many other countries.

400x400mm

500x500mm

600x600mm

700x700mm

with depths from 500mm to 2000mm

Astell also have the ability to manufacture pressure vessels to meet customer requirements – a great advantage over many other autoclave manufacturers. Contact us for details.

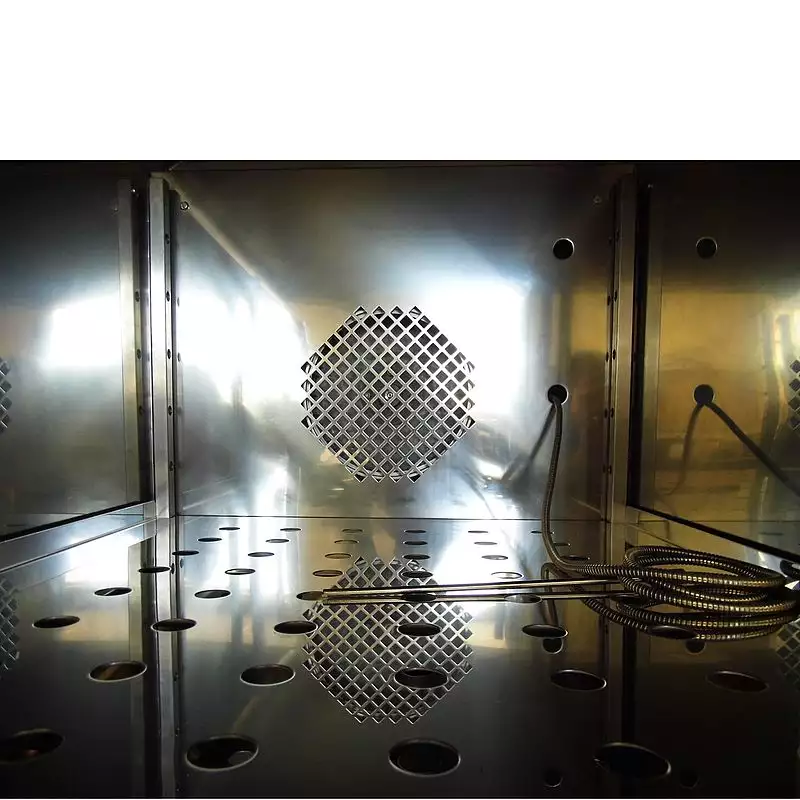

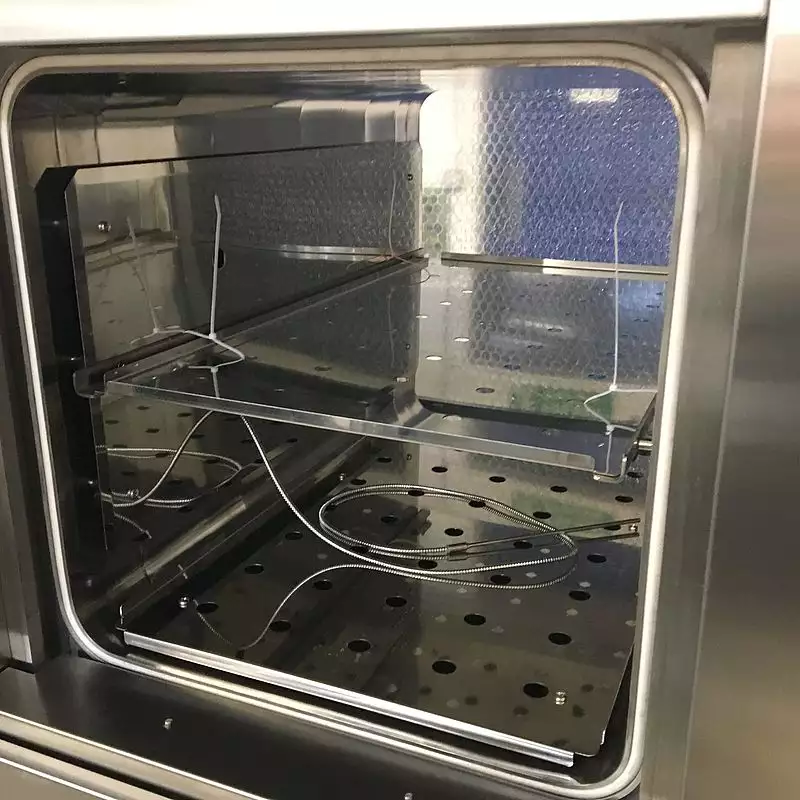

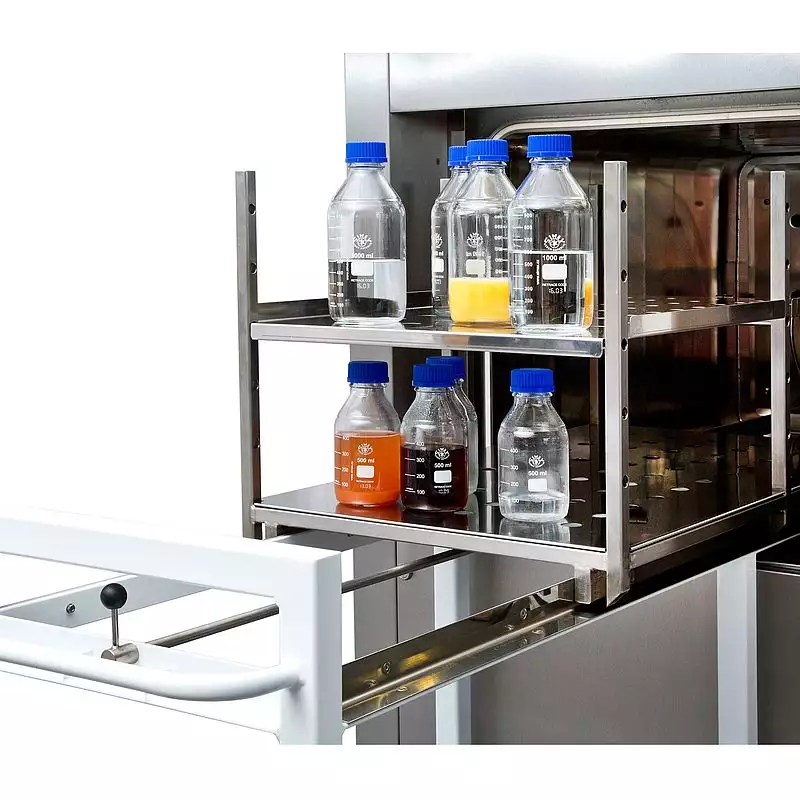

Autoclave pressure vessels are available in polished, electro-polished or bead blast chamber finishes, with each designed to ensure the base of the chamber creates a positive path to the drain for condensate. All components in contact with steam are manufactured from 316 stainless steel (other materials can be used on request), and as standard all connections are screwed, but pressure vessels with welded Tri-clover fittings to accept sanitary fittings can be accommodated should the customer require this. Finally, all Astell pressure vessels are fitted with bosses to accept rails for loading equipment and/or a standard base shelf.

Where a jacketed chamber is necessary, for the provision of superior drying for example (i.e. sterilizing wrapped instruments or fabrics), Astell pressure vessels are fully jacketed (not sectional as with some manufacturers) providing the best heat distribution and maximum surface area for quick and efficient cooling. Jacketed pressure vessels are designed to ensure full drainage after a cooling cycle to reduce water hammer.

Depending on load and sterilization requirements the addition of a

Typical loads where a jacket would be required for drying include wrapped instruments or porous fabrics. Heated jackets are available on all Astell autoclaves over 95 litres with integral steam generators or with a direct steam supply. They add a secondary external layer to the autoclave allowing steam to circulate outside the sterilization chamber whilst insulating the main vessel. When a jacket is fitted, its effect is two-fold.

Firstly, when sterilizing fabrics and porous loads, the jacket is kept constantly heated which means that the chamber maintains a residual temperature between cycles, avoiding excessive condensate forming inside the chamber and wetting the load when steam enters the vessel. Secondly, after preventing condensation forming at the beginning of a cycle, at the end of a cycle the jacket stays running during a final vacuum, which then evaporates any remaining liquid, allowing porous loads to be touch dry when they are removed at the end of the cycle.

Suitable for all units with an integral steam generator (or external steam supply), the AVC001 vacuum option is Astell’s most advanced method of air removal. It’s ideal for sterilizing porous materials and other loads where air pockets could easily form. An AVC001 vacuum cycle starts with a pre vacuum which is followed by negative and positive pulsing. By introducing steam between vacuum pulses, air is forced out of the autoclave chamber under pressure; the best method for removing air from porous loads and discard waste. Following the sterilization stage, a post vacuum removes the steam from the chamber. In combination with the jacket option, a drying stage then begins to ensure loads are touch dry upon removal.

The AVC002 option is Astell’s basic vacuum system and is only suitable for standard autoclaves with the heaters in the chamber, or direct steam models (see Direct steam models). The cycle begins with a pre vacuum, reducing the chamber pressure and removing the majority of air. A free steaming/ air purge stage then begins. After the sterilizing stage is complete, water in the bottom of the chamber is expelled and then a post vacuum takes place, removing any remaining steam from the chamber and cooling the load. Please note: the AVC002 is a simple vacuum and as such does not have the drying capability of the AVC001 & Jacket option.or Cooling system may be required or recommended.

The Double Door SQUARE Range is available in capacities from 250 to 1,200 litres, is capable of sterilizing various load types as standard and is upgradable to sterilize almost anything. Models are available in 250, 360, 490, 875 and 1200 litres. A steam generator is fitted as standard, however direct steam models are also available at no extra cost.

The standard unit is capable of sterilizing a wide variety of items or with additional options can be upgraded to offer wider versatility.
