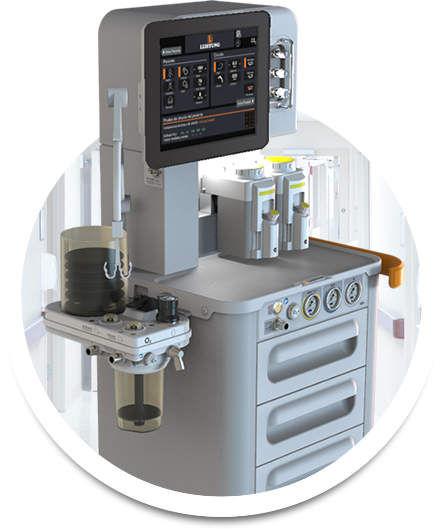

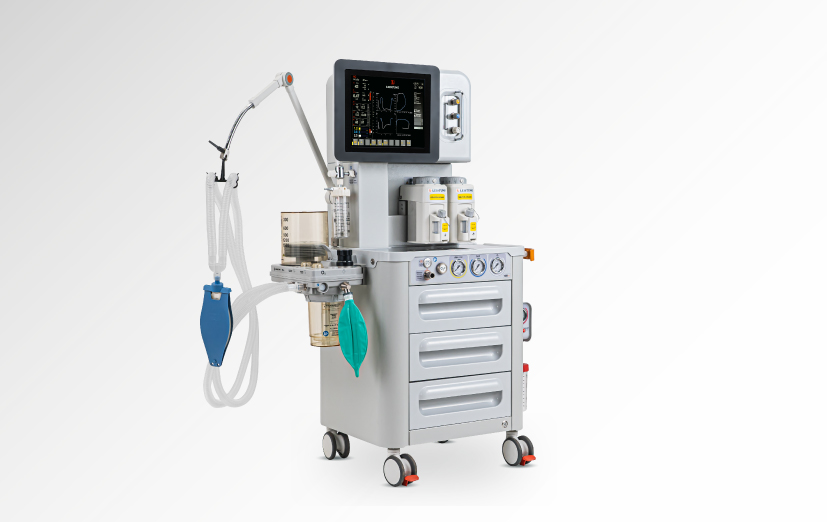

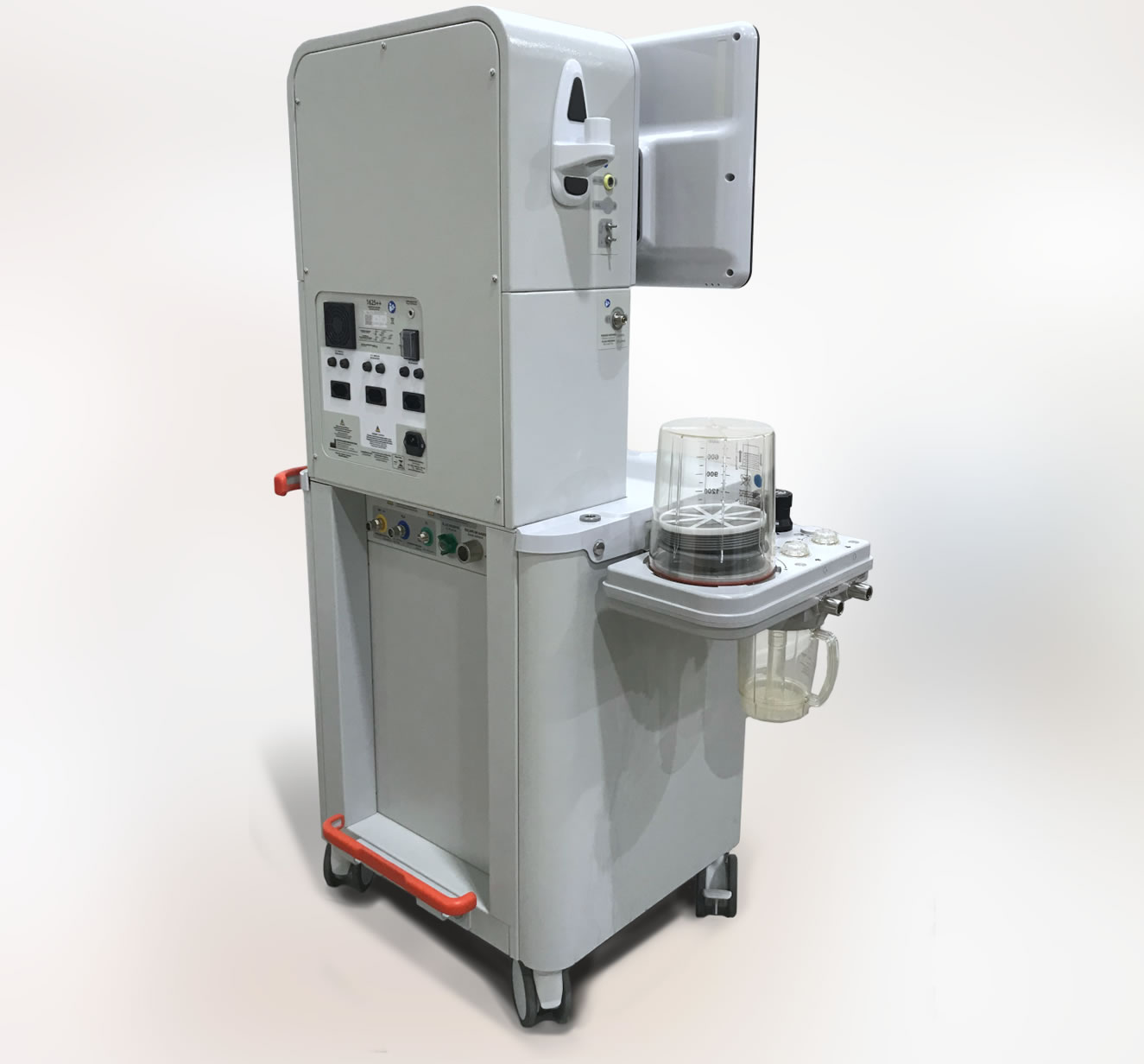

ANESTHESIA DEVICE 1625++ For ADULT , PEDIATRIC and NEONATAL patients .
Ventilatory Modes
-Controlled Volume (VC);
-Controlled Pressure (CP);
-Pressure Regulated Volume Control (PRVC);
-Pressure Support (PS);
-SIMV (VC) + PS;
-SIMV (PC) + PS;
-Manual Controlled by Professional.
Configurable Parameters
-Inspiratory Time: 0.10 to 10s;
-Ventilatory Frequency: 1 to 150 c/min;
-I:E ratio: 4.8:1 to 1:5.0;
-Tidal Volume: 0.01 to 1.6 L;
-Sens. Insp: by Pressure, -0.5 cmH2O to -10 cmH₂O;
-Sens. Insp: by Flow, 0.5 L/min to 10 L/min;
-Expiratory Sens.: 5% to 80%;
-PEEP: No, 3 to 50 cmH₂O;
-Controlled Pressure (P Con): 2 to 58 cmH₂O;
-Pressure Support (P Sup): 2 to 58 cmH₂O;
-Maximum Control Pressure (PC Max): 2 to 58 cmH₂O;
-Waveform: Descending 100%, Descending 50% and Square;
-Rise Time: 6 Levels;
-Max TI: 0.30 to 3s;
-Apnea: (Backup Ventilation) 5 to 60s;
-Inspiratory Pause: 0 to 2.0 seconds.
Monitorable Parameters
-Peak Pressure;
-Tidal Volume;
-Respiratory Rate;
-Minute Volume;
-FiO₂;
-Base Pressure (PEEP);
-Average Pressure;
-Plateau Pressure;
-Peak Inspiratory Flow;
-Maximum Expiratory Flow;
-Dynamic Compliance;
-Inspiratory Time;
-Expiration Time.
-Inspired Tidal Volume;
-I:E ratio;
-Ti/Ttot ratio;
-Exhaled CO₂ (optional);
-Inspired CO₂ (optional);
-MAC (optional);
-Expired Primary Anesthetic Agent (optional);
-Expired Secondary Anesthetic Agent (optional);
-Primary Inspired Anesthetic Agent (optional);
-Secondary Inspired Anesthetic Agent (optional);
SAFETY AND VERSATILITY
-Ventilatory Mechanics
-TotalPEEP;
-AutoPEEP;
-Dynamic Compliance;
-Static Compliance;
-Inspiratory Resistance.
Trend Curve
-TotalPEEP;
-Peak Pressure;
-Base Pressure;
-Insp Flow;
-Tidal Volume;
-Minute Volume;
-Frequency;
-Complacency;
-FiO₂;
-etCO₂;
-From the last 2, 4, 8, 16 or 32 hours.
Alarms
-Low O₂ pressure;
-Low air pressure;
-Low battery;
-Maximum inspiratory pressure;
-Patient disconnection;
-Minimum inspiratory pressure;
-FiO₂ less than 19%;
-Negative inspiratory pressure;
-Minimum FiO₂;
-Maximum FiO₂;
-AA * maximum primary inspired;
-AA * maximum secondary inspired;
-Maximum inspired CO₂;
-Maximum expired CO₂;
-Minimum expired CO₂;
-Minimum tidal volume;
-Max. N₂O inspired;
-MAC greater than or equal to 3;
-Maximum inspiratory rate;
-Insufficient control pressure;
-Gas sensor technical failure;
-Wrong gas measurement;
-MAC less than 3;
-N₂O inspired minimum;
-Maximum tidal volume;
-PEEP alarm;
-Minimum minute volume;
-Maximum minute volume;
-Disconnection from the power supply network.
Complementary Features
-Recirculation module supports autoclave sterilization;

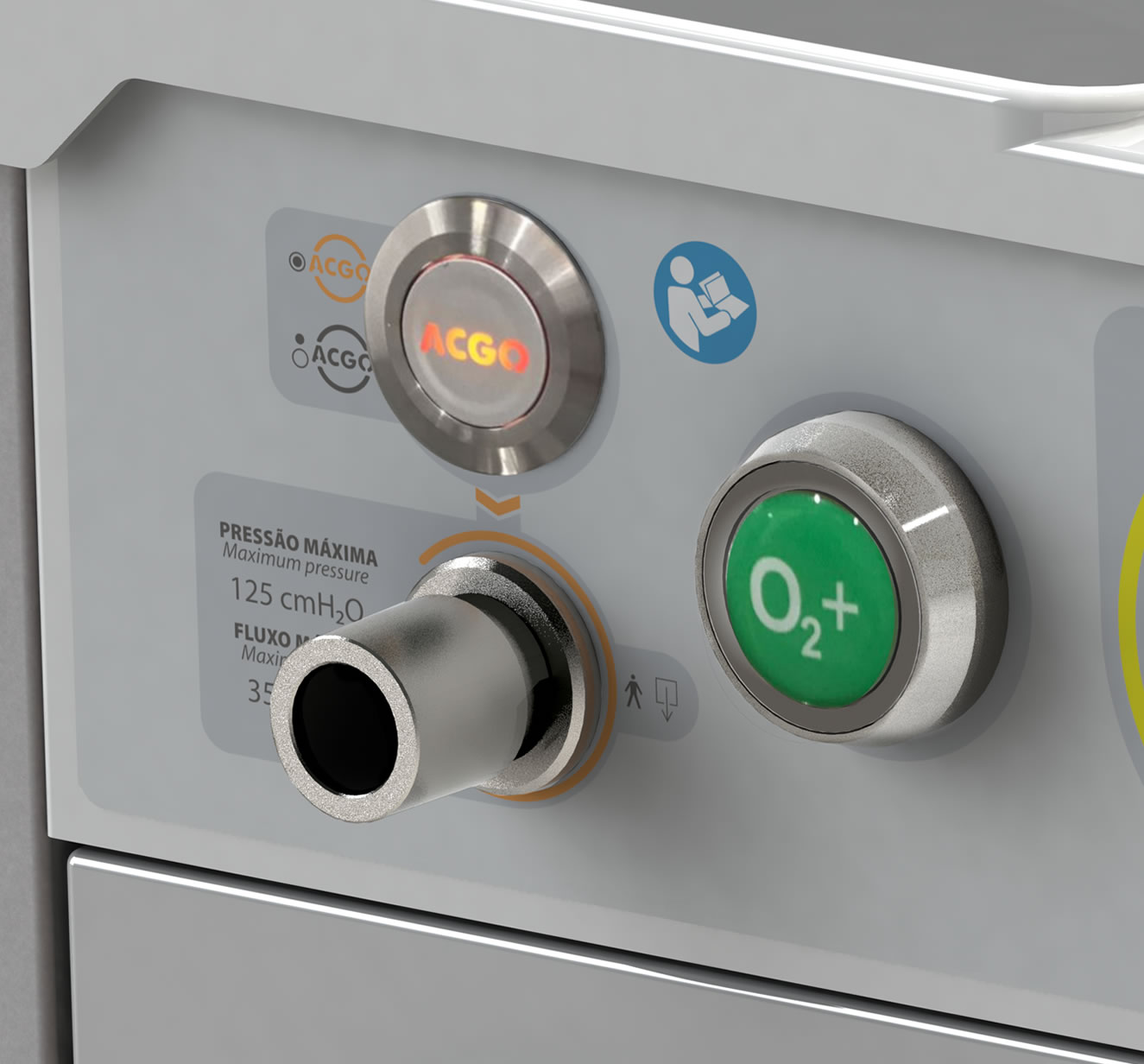

-Oxygen flush button;
-Pneumatic working pressure 2.8 to 7.0 Bar;
-Connection for reserve cylinder and automatic switching;

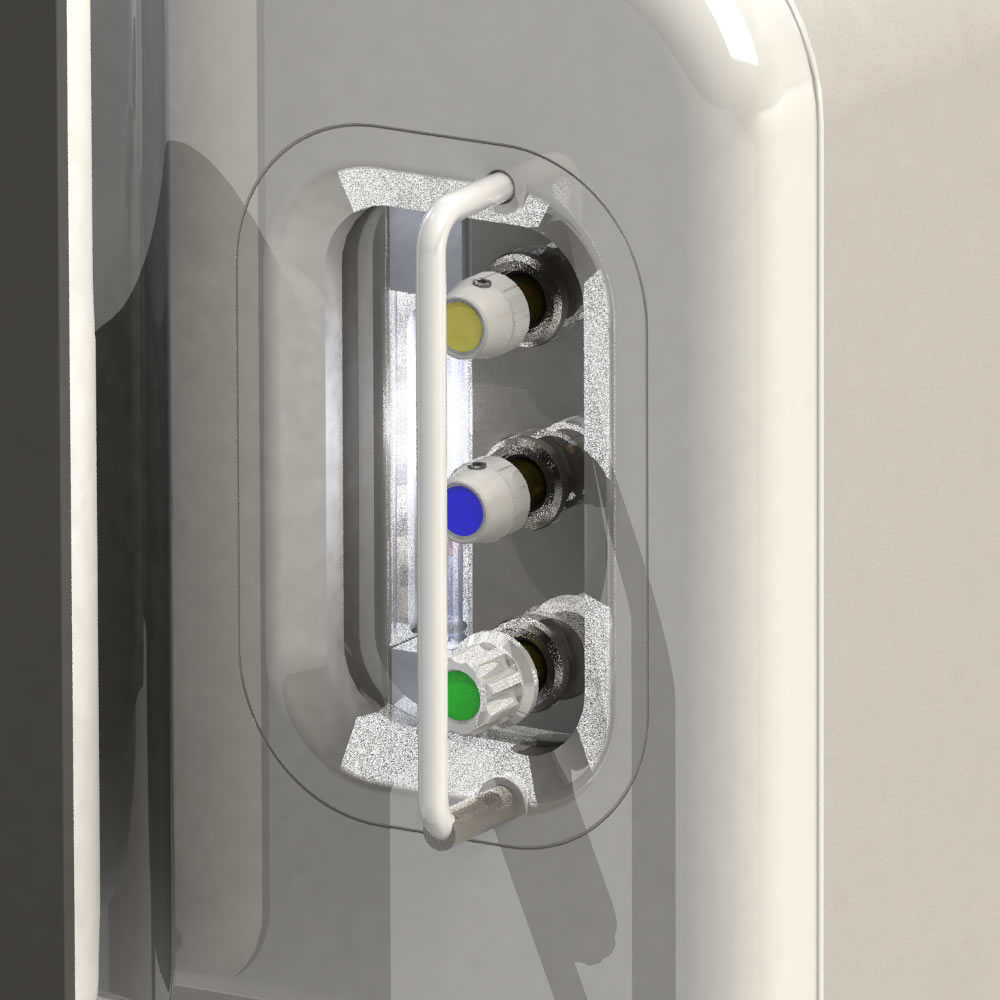

-Rotameter and bench lighting;
-3 drawers with dividers and key;

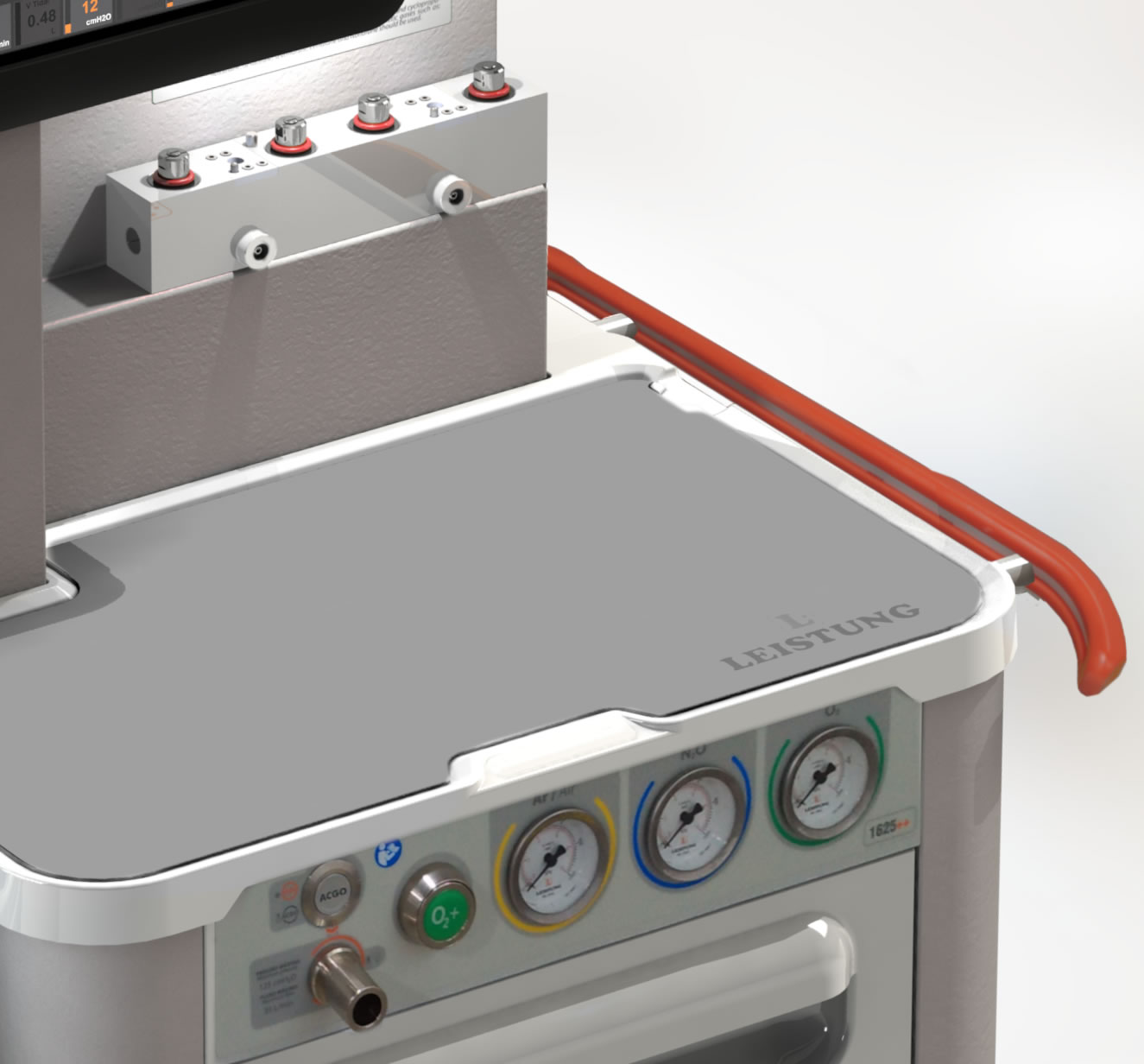

-Inlet pressure gauges for AR, O₂ and N₂O;

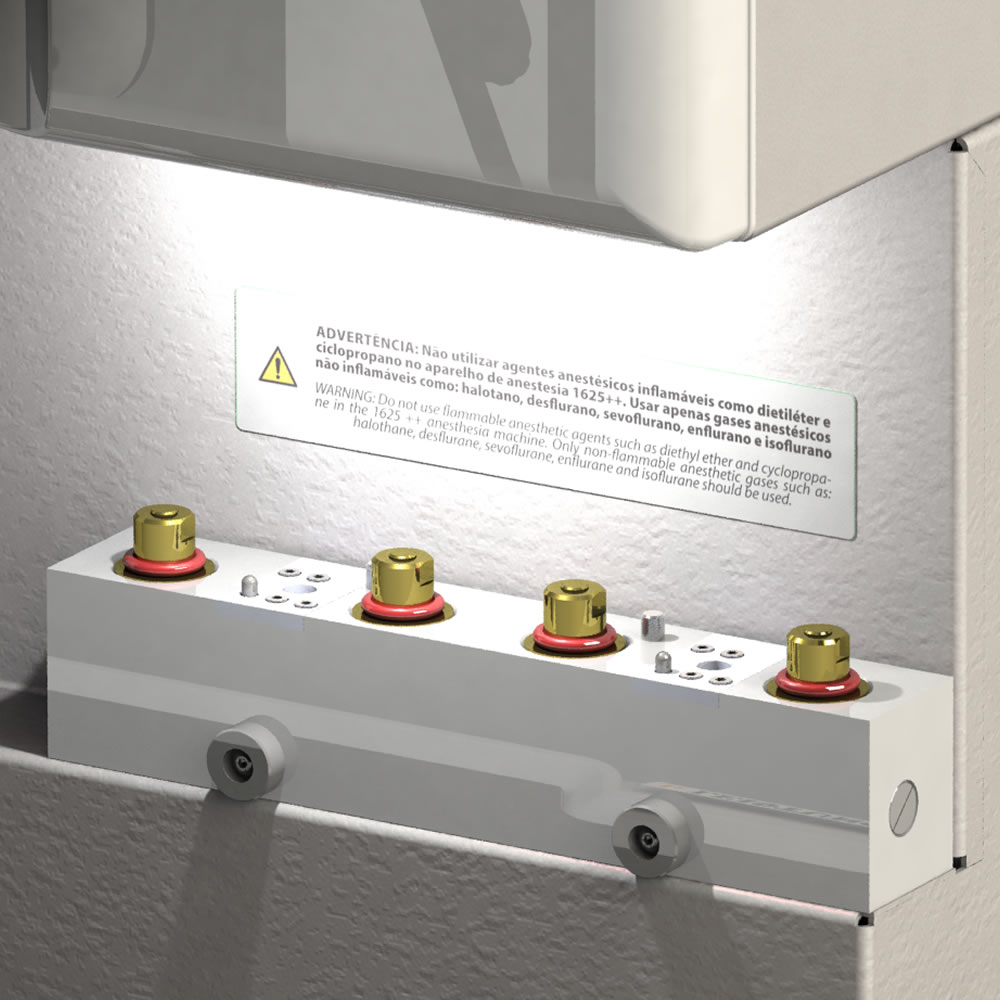

-ACGO outlet, auxiliary gases;
-Soda lime canister with bypass valve;
-Alarm and event history of the last 1024 records;

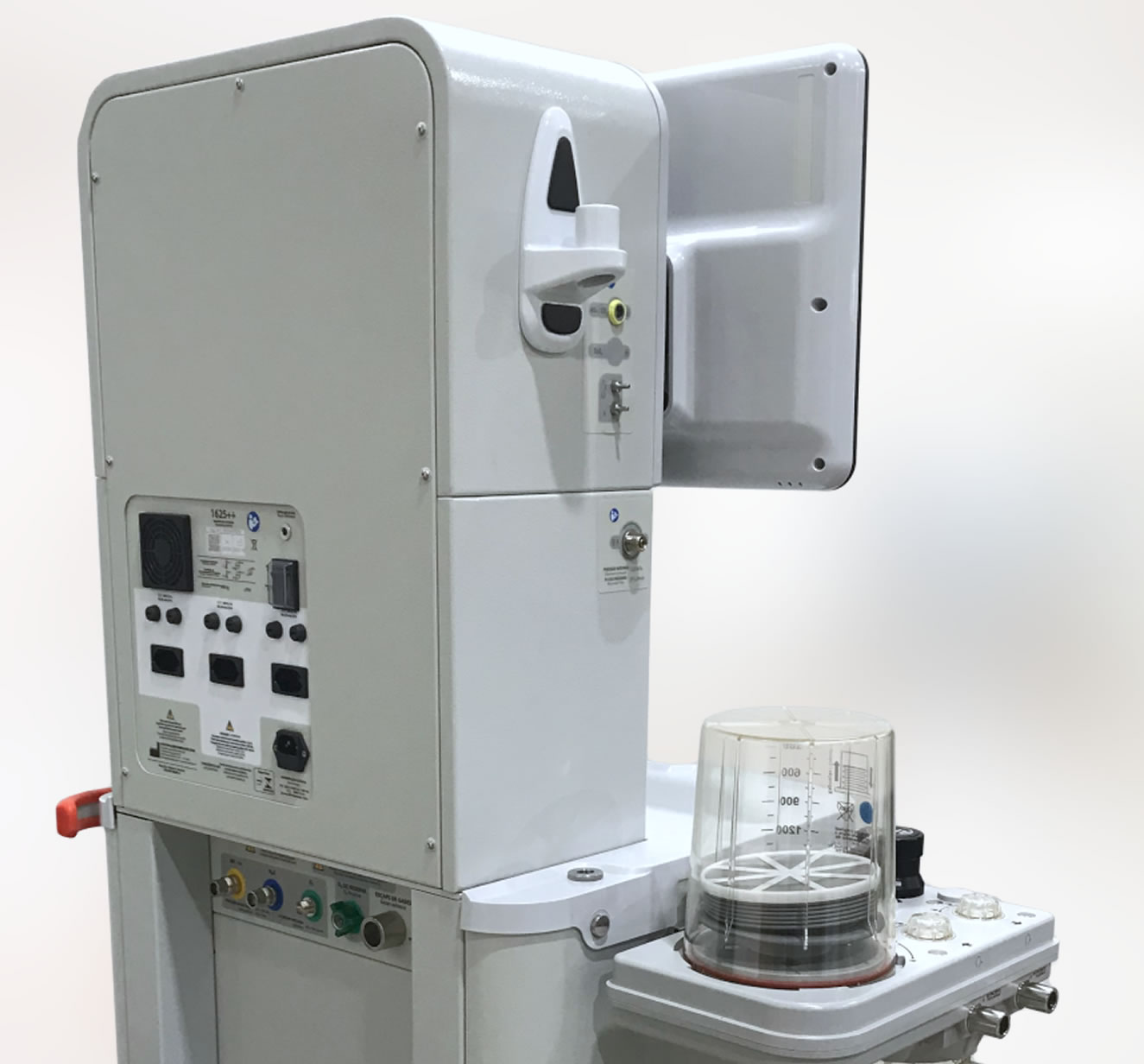

-3 Outputs for auxiliary sockets protected by fuse;
-Built-in stopwatch.
Initial Circuit Test
-Patient circuit verification;
-Proximal flow sensor detection;
-Proximal flow sensor calibration;
-Calibration of flow sensors;
-Measurement of circuit leaks;
-Measurement of static compliance of the circuit;
-Air proportional valve test;
-Proportional valve test for PEEP control;
-Search, initialization of respiratory gas sensors and Capnography.
Internal Battery
-Li+ CC technology;
-Autonomy 6 hours;
-Lifespan 400 to 500 cycles.

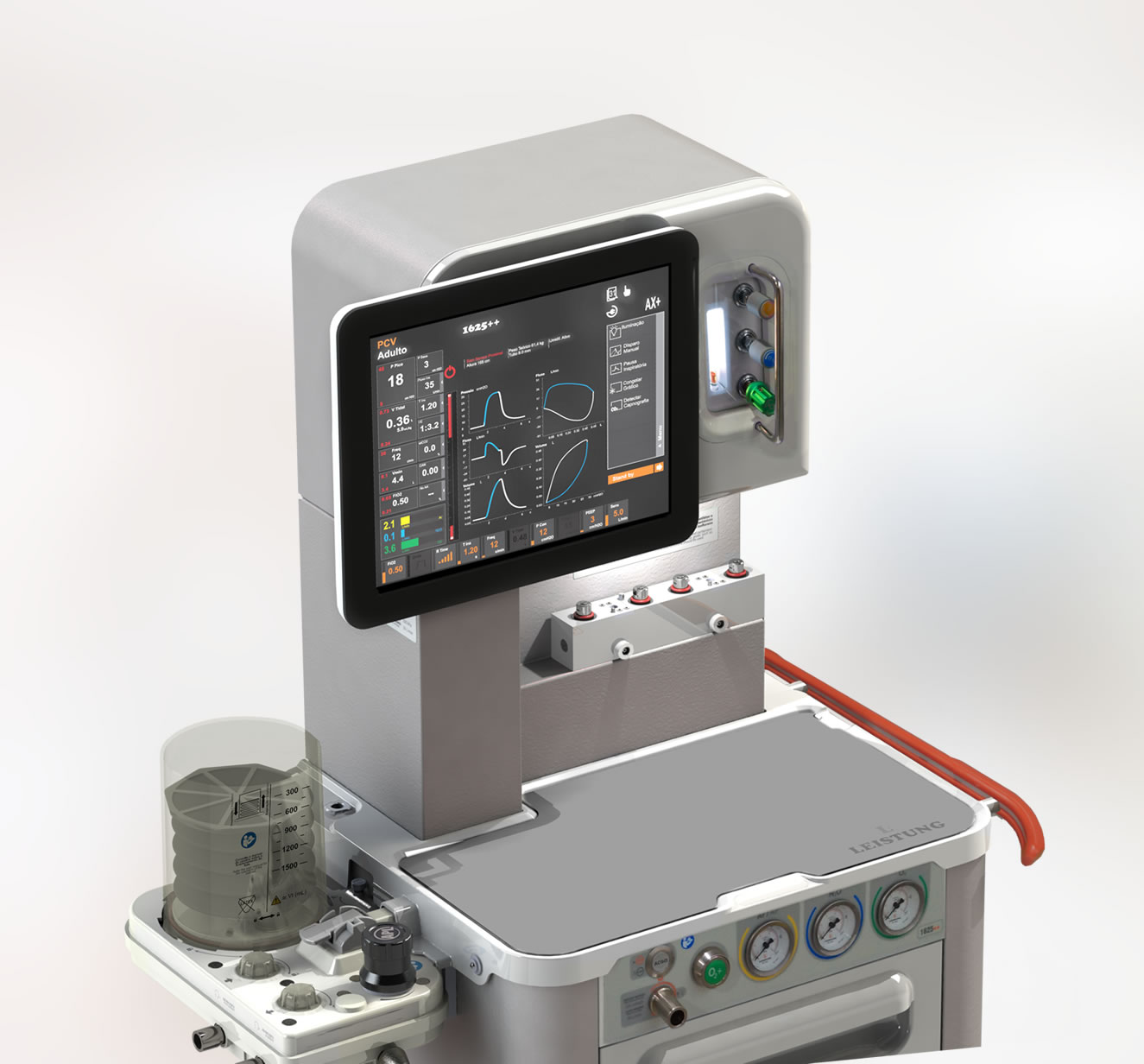

Graphs and Curves
-Up to 5 simultaneous curves;
-Pressure - Time;
-Flow - Time;
-Volume - Time;
-Flow - Volume (loop);
-Volume - Pressure (loop);
-Pressure - Flow (loop);
-CO₂ - Time;
-CO₂ - Volume (loop);
-N₂O - Time;
-Aa1 - Time;
-Aa2 - Time.
Options
-Anesthetic agent analyzer;
-Capnography analyzer;
-Sevoflurane Vaporizer;
-Isoflurane Vaporizer;
-Flowmeter with humidifier;
-Bactericidal electrostatic filter.
Accessories

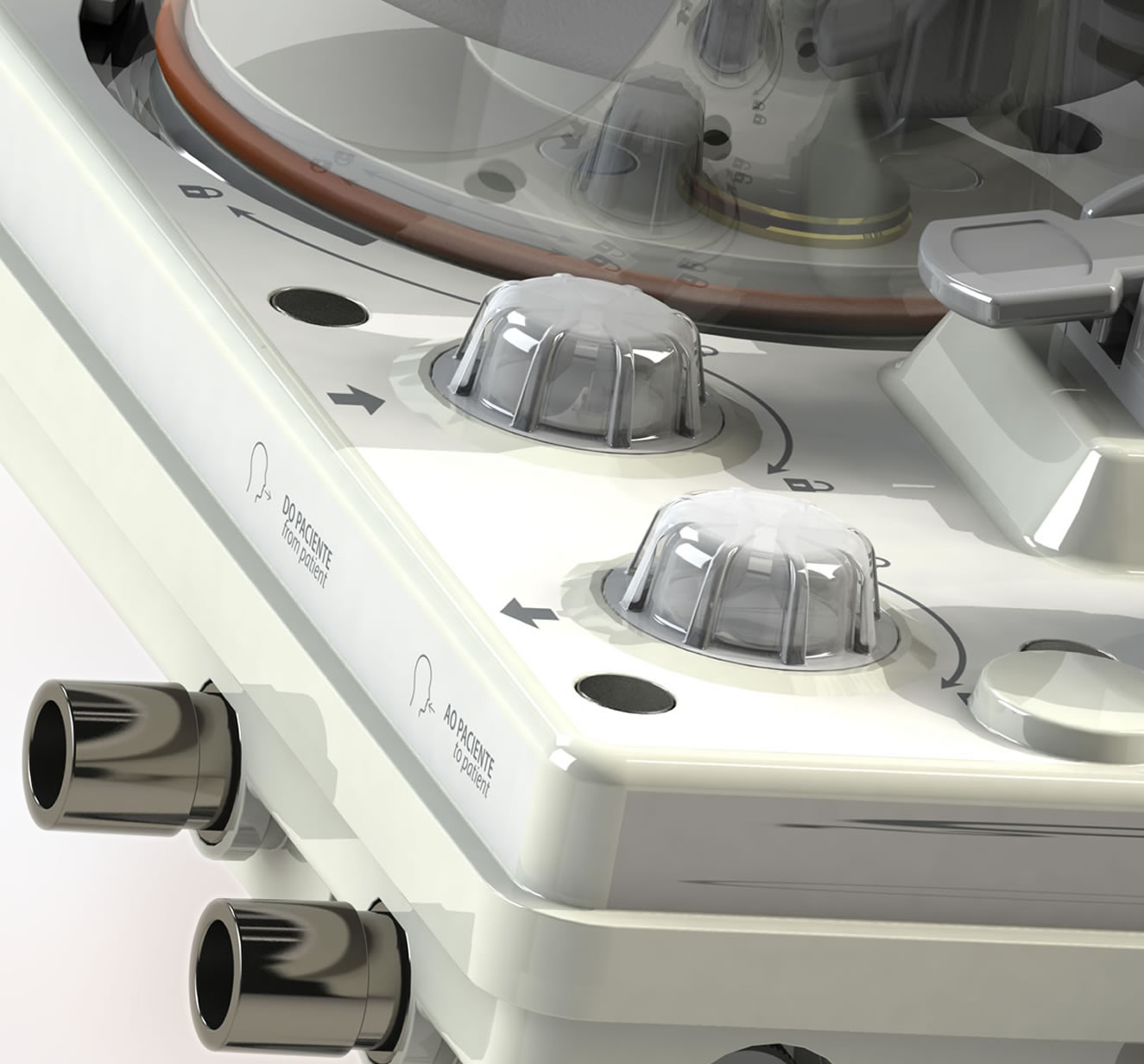

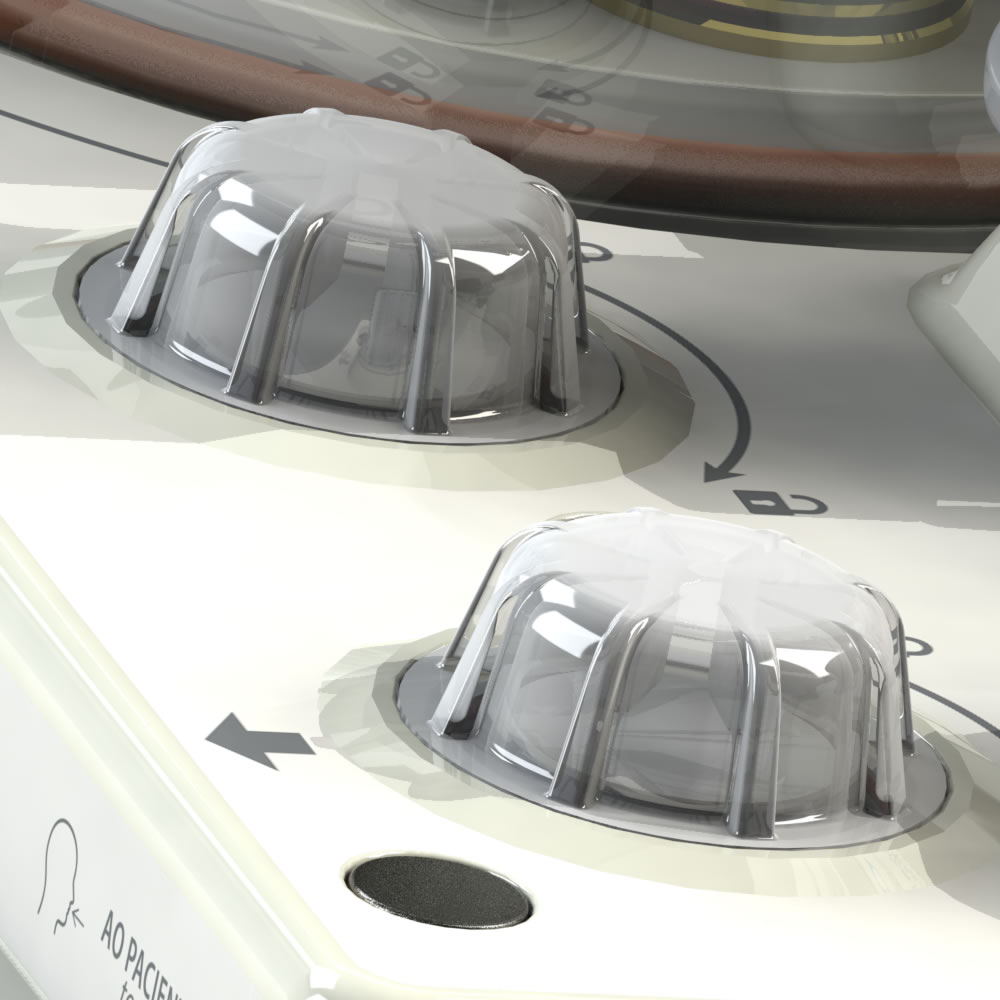

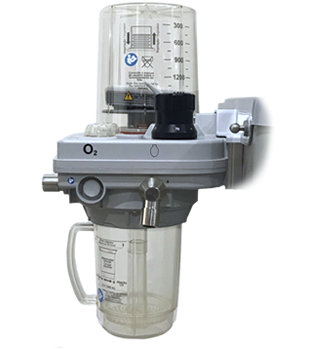

-Recirculation module;
-Silicone adult patient circuit;
-Adult proximal flow sensor;
-Neonatal proximal flow sensor;
-Nitrous oxide hose;
-Oxygen hose;
-Compressed Air Hose;
-Compressed Air Coalescing Filter;
-Resistance test balloon;
-Galvanic Cell;
-Power supply cable;
-Galvanic cell housing cap;
-Reservoir balloon;
-Articulated arm;
-Drawer key;
-User manual;
-Galvanic cell protective cover;
-Adapter for ACGO Mapleson;
-Articulated arm for multiparameter monitor.
