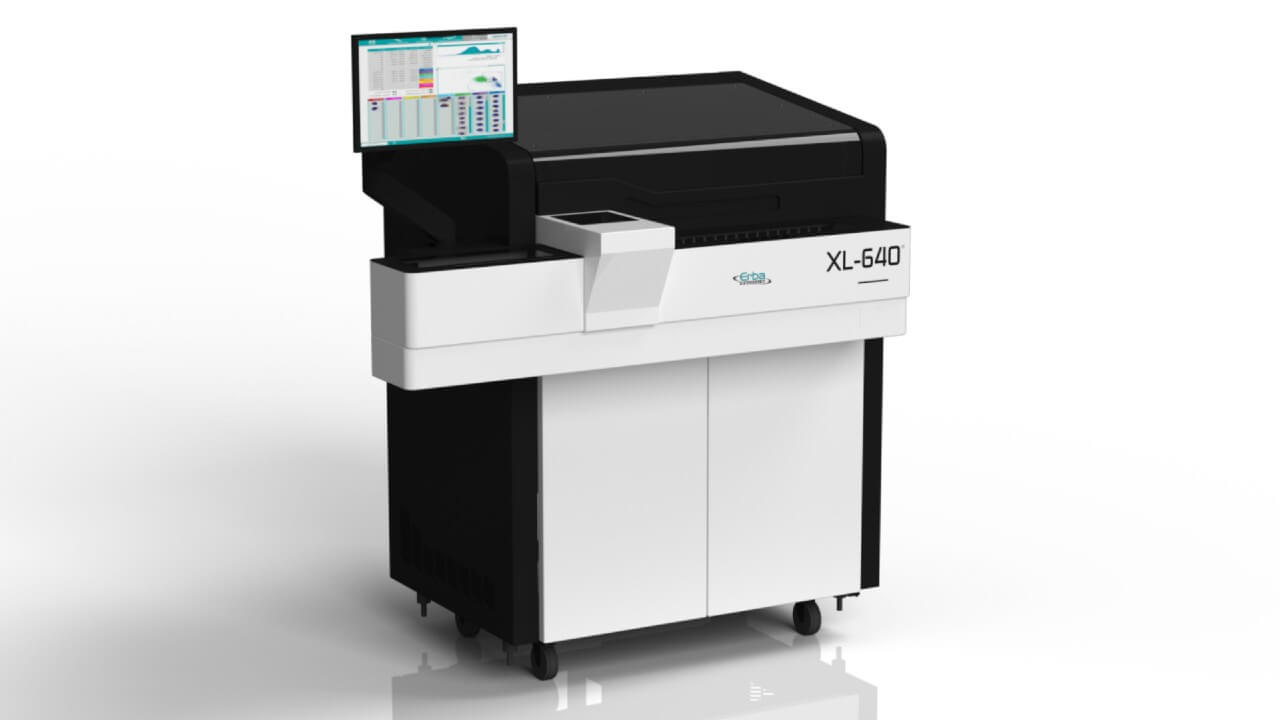

Biochemical analyzer XL 640
Fully automated Clinical Chemistry analyzer with throughput of 640 tests/hr with I.S.E (Na/K/Cl/Li) and diffraction grating for high resolution measurement. On board are 50 samples and 56 refrigerated reagent positions with STAT facility. XL 640 features extensive quality control, user friendly and low consumption service.
-DISPENSING OF SAMPLES AND REAGENTS :
Sample volume:2-70µl (0.2 µl step)
Reagent volume:R1 50-300 ul (1 µl step), R2 10-300 ul (1 µl step)
3 dispensing probes (sample, R1, R2) equipped with liquid -level sensor and crash detector
Auto-dilution of samples and calibrators
Clot detection
-ECONOMY :
Minimum reaction volume:180 µl
Reusable reaction cuvettes
-MIXING SYSTEM
2 independent stirrers
3 user selectable mixing speeds
-QUALITY CONTROL
4 levels of control material can be used
Levey-Jennigs graphs
Twin Plot diagrams for monitoring of systematic and random error
-REACTION UNIT WITH WASH STATION
72 reusable hard glass cuvettes
Possibility of replacement of individual cuvette
Wash station – cuvette rinsing and drying in eight-step procedure
Automatic cuvette blank measurement before analysis-SAMPLE TRAY
80 positions for samples, blanks, standards, calibrators, controls and ISE solutions
Primary tubes 5, 7 and 10 ml, vacuum system tubes and cups
STAT sample with priority in any position
Additional tray for 80 samples included
-REAGENT TRAY
56 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor
Reagent compartment with Peltier/air cooler (8-12°C)
Option to use one reagent for several test simultaneously
-SOFTWARE :
Convenient user interface
Connection to LIS
Programmable auto-start from sleep mode including automatic daily maintenance
Statistical methods of processing results
Data export in selected format
-MEASUREMENT MONITORING :
Colour indication of sample analysis
Possibility of monitoring the reaction in real time
Reagent volume monitoring
Informative reports on ongoing analyzer status
