IntelliVue MX100
Patient monitor
Continuous monitoring

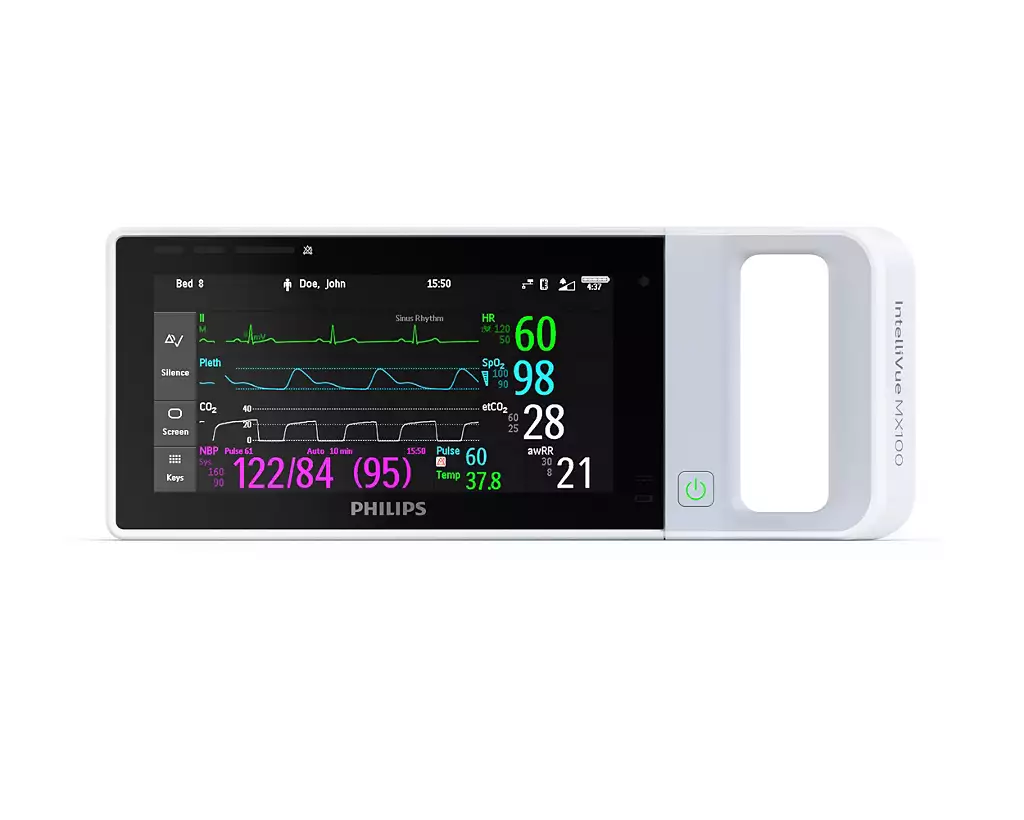

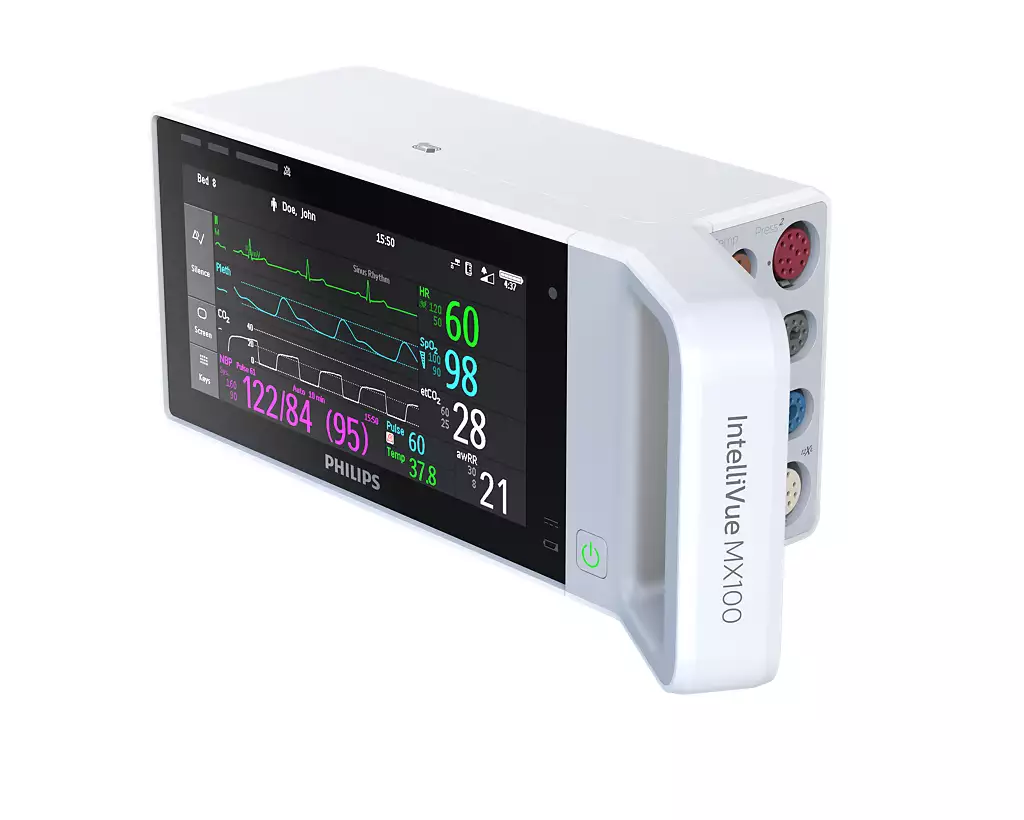

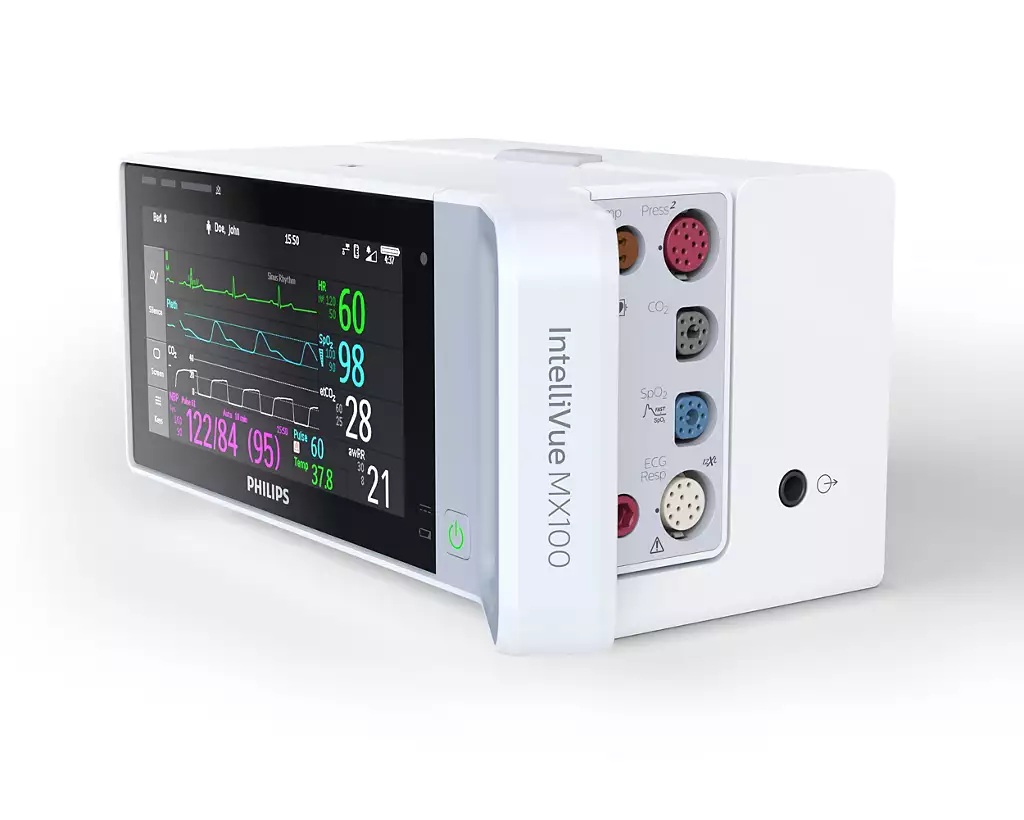

The IntelliVue MX100 is a flexible, reliable way to monitor patients on the move - and at the bedside - with a single, portable, stand-alone monitor, It is small and light, yet offers a broad, scalable set of clinical measurements. This rugged, battery-powered device features a built-in 15.5cm (6.1") touchscreen and familiar smartphone-like operation for ease of use.
Easy to use
An intuitive 15.5cm (6.1") touchscreen with a familiar smartphone-style operation makes the IntelliVue MX100 fast to learn and easy to use. Simply swipe your fingers through a broad selection of screens tailored to various clinical situations. You can also customize each screen to display exactly what you want to see.
Rugged and ready
The MX100 is built with a sturdy structural design, robust housing, and its medical-grade display features Antimicrobial Corning® Gorilla® Glass². A solid, ergonomic handle makes the MX100 easy to carry, while protecting both the display and measurement connectors. It is all designed to help ease the burden of equipment downtime and associated repair costs.
Support for infection control cleaning protocols
Any equipment that comes into contact with your patients must meet your organization’s highest standards for infection control. That is why every MX100 surface is made from innovative, chemical-resistant materials – including the Antimicrobial Corning® Gorilla® Glass display. You can use aggressive disinfectants³ without damaging your monitors.
*Specifications :
- Description : Active matrix color LCD display with capacitive multi-touch screen
- Size : 15.5cm (6.1in)
- Resolution : 1024 x 480
- Number of measurement waves : up to 5

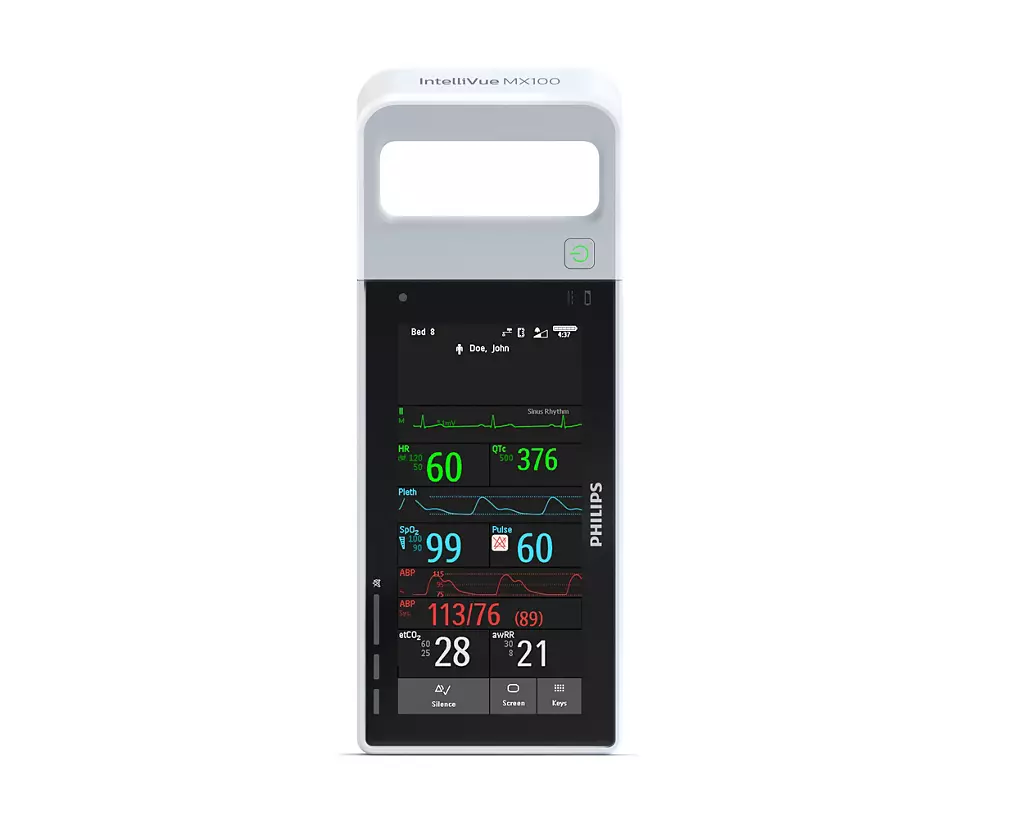

- Supported screen orientations : 0° / 90° / 180°
- Screen : Antimicrobial Corning® Gorilla® Glass
Measurements :
- Basic : ECG / SpO₂ (choice of Philips FAST-SpO₂, Nellcor OxiMax SpO₂, Masimo rainbow SET SpO₂); / Respiration
- Weight : 1.4 kg (3.1 lb) incl. options, battery pack and handle
- Optional: 2 invasive pressures, CO₂
- Size (with handle) : 249 x 97 x 111 mm (9.8. x 3.8 x 4.4 in)
- With IntelliVue measurement extensions : Up to 4 Invasive Pressures and 2 temperatures/ Covidien Microstream CO₂ / Repironics Mainstream CO₂ or LoFlo sidestream CO₂
Battery:
- Capacity : 5 hours (basic configuration⁵)
Ruggedness :
- Disinfection : Highly disinfectant-resistant surface materials
- Mechanical ruggedness : 7M3
