PRODUCT CHARACTERISTICS
• Suitable for adult, pediatric and neonatal patients.
• Compact design for transport.
• Simplicity and speed in ignition and start-up.
• Battery with autonomy greater than 5 hours.
• Minimum maintenance cost.

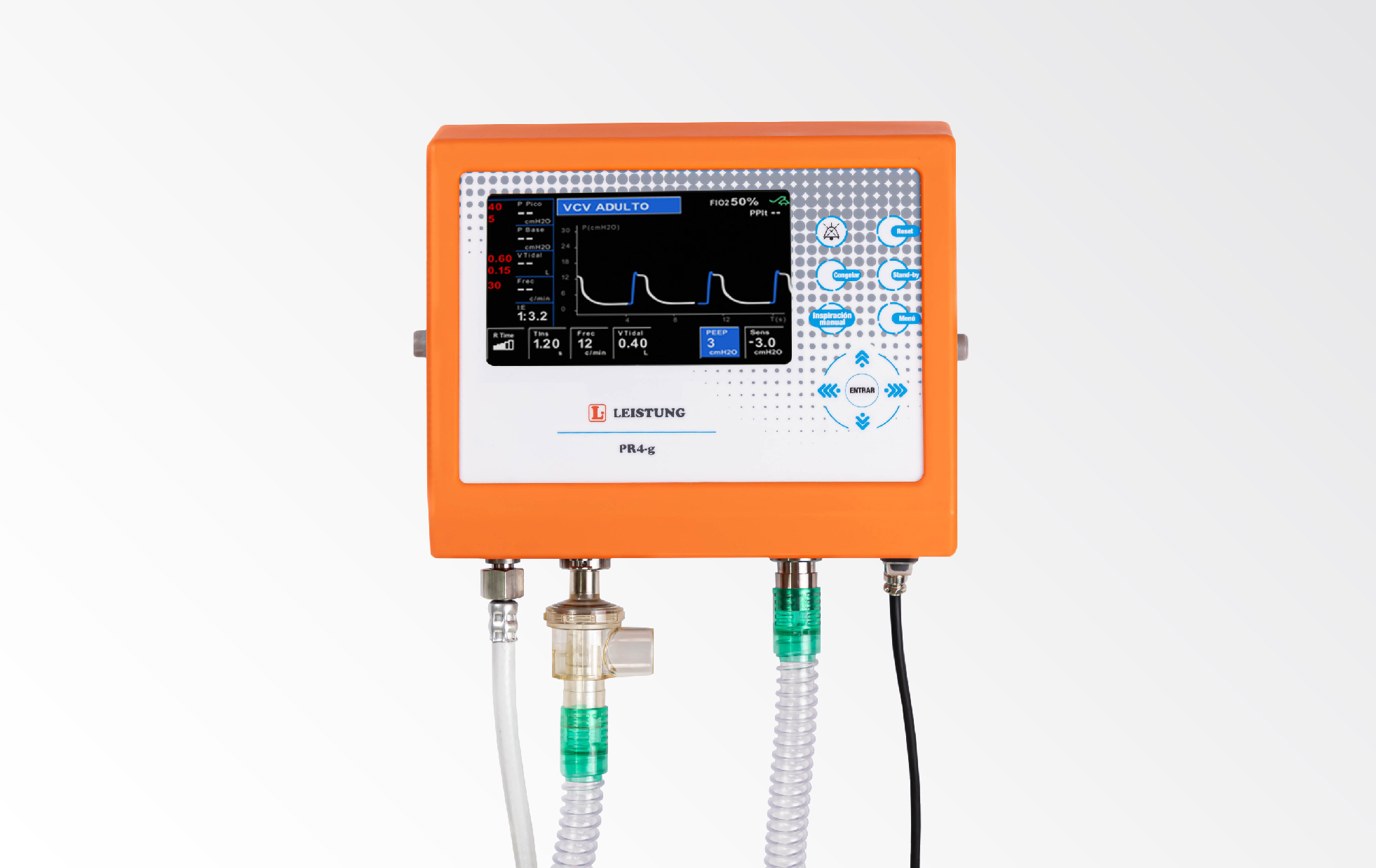

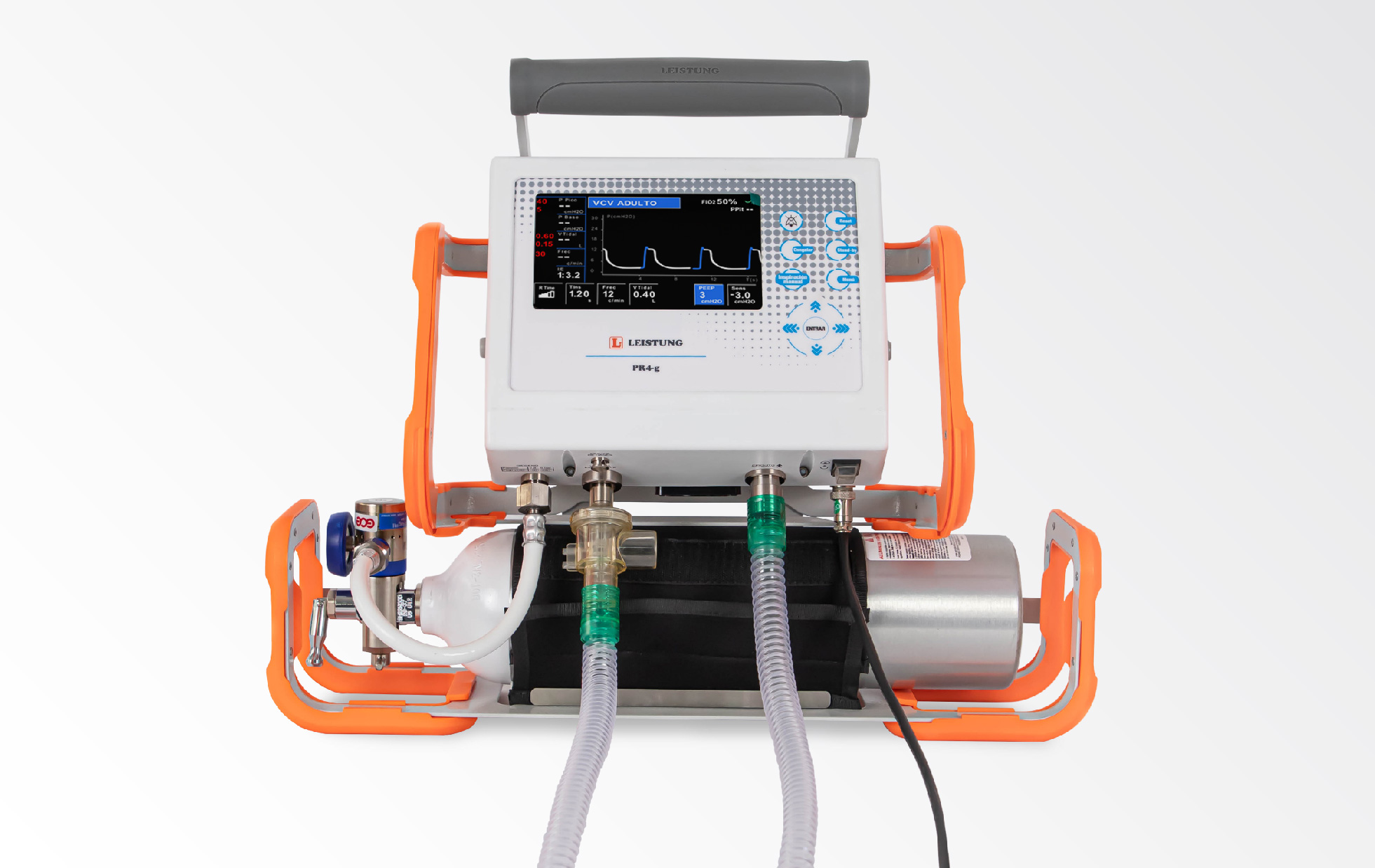

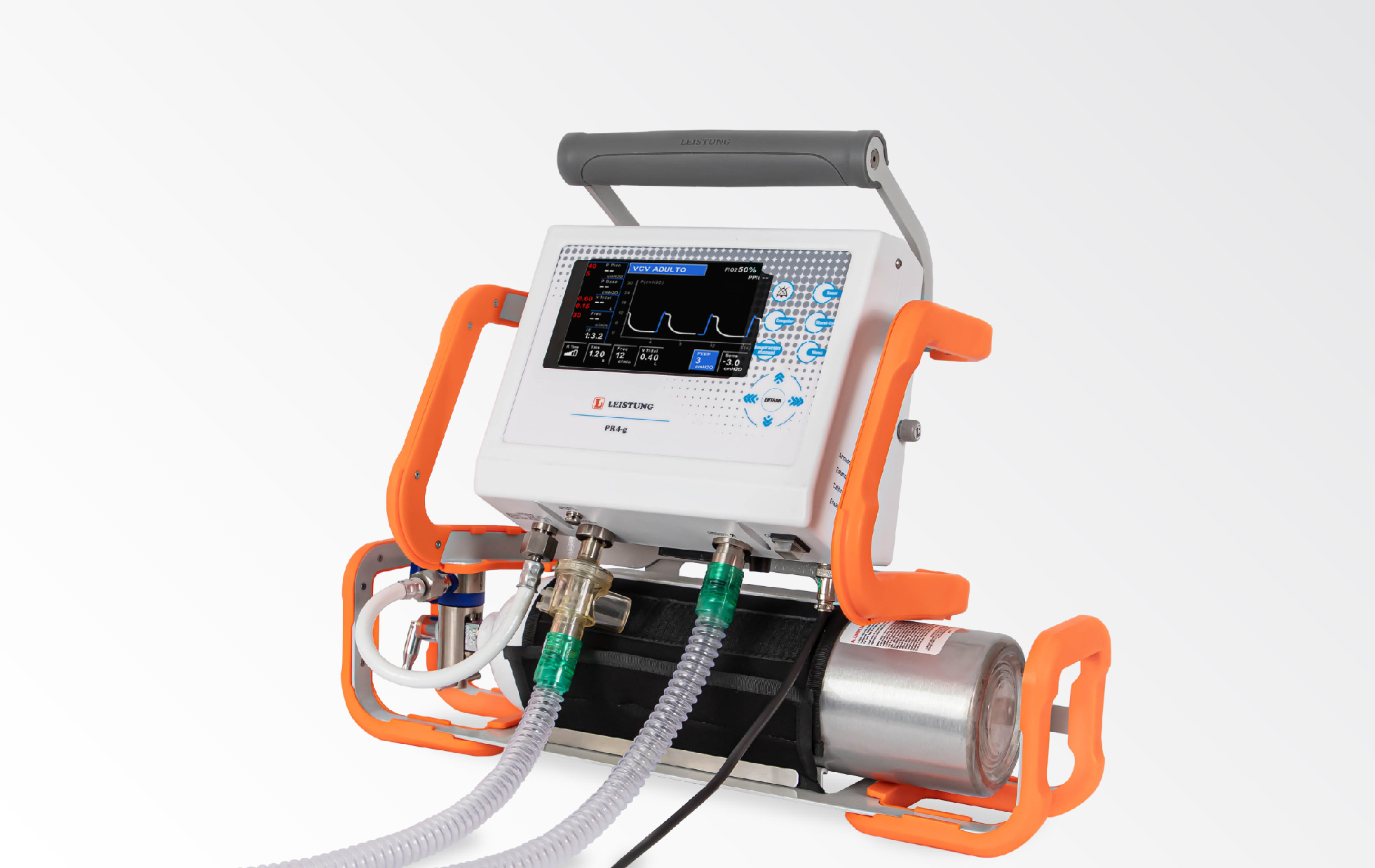

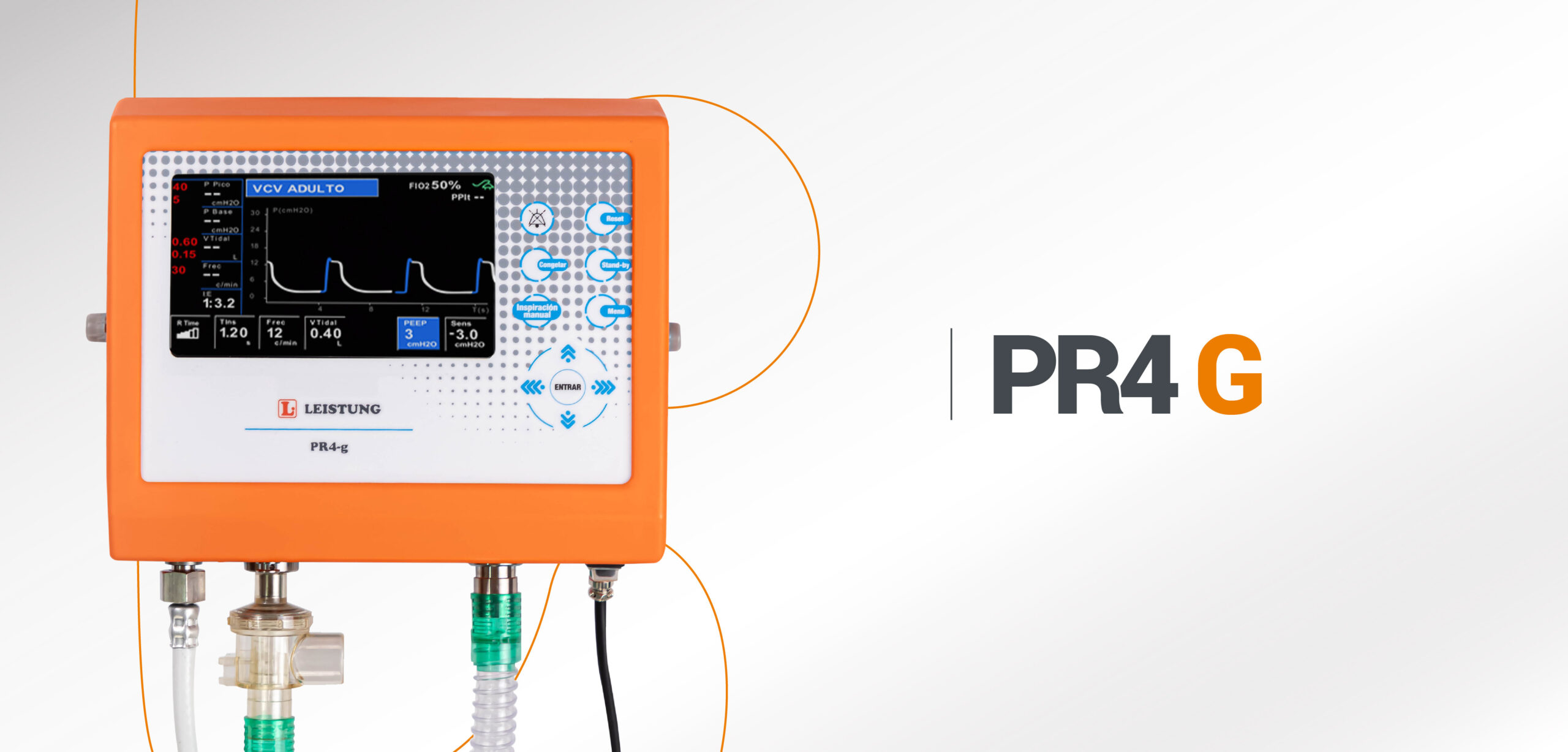

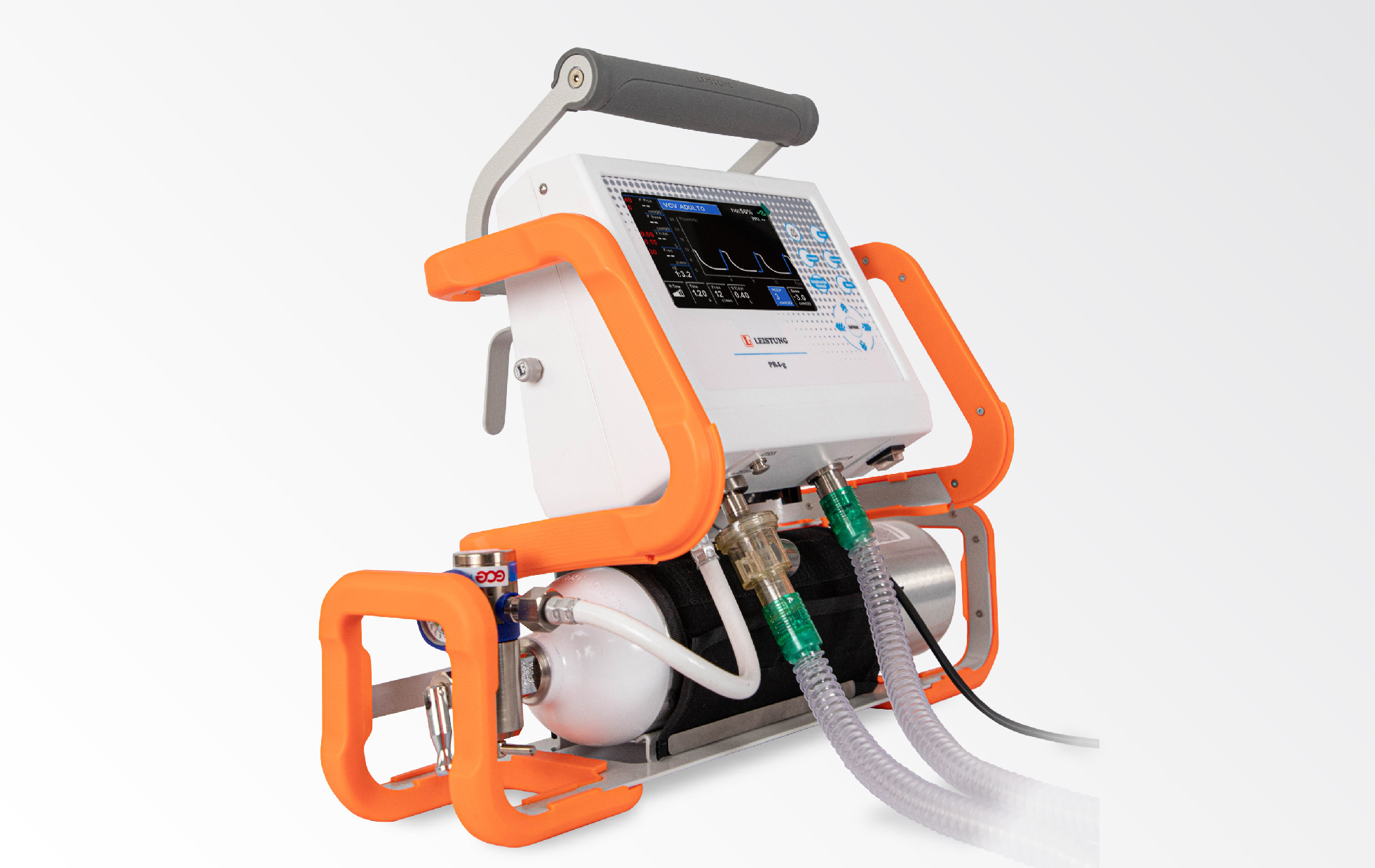

Electronic Medical Portable Ventilator Leistung PR4-g was developed to be used in medical transport inside and outside hospital, air medic rescue and emergency rooms.
Electronic Medical Portable Ventilator Leistung PR4-g was developed to be used in medical transport inside and outside hospital, air medic rescue and emergency rooms.
Ventilation modes
ADULT / PEDIATRIC
Assist-controlled VCV
Assist-controlled PCV
PSV / CPAP
SIMV (VCV) + PSV
SIMV (PCV) + PSV
MMV + PSV
PSV + Assured tidal volume
BIPHASIC PRESSURE (APRV)
NIV
NEONATAL
Assist-controlled VCV
Assist-controlled PCV
PSV / CPAP
SIMV (PCV) + PSV
Continuous flow assisted/controlled
Nasal CPAP
*Bachup ventilation available in all ventilatory modes
Programmable Alarms
Maximum pressure
Minimum pressure
Maximum tidal volume
Minimum tidal volume
Apnea alarm time
Maximum frequency
Non-programmable alarms
I:E ratio inversion
PEEP
O2 supply fail
Interrupted cycle
Controls / Programmable parameters
FIO2:50-100%
Rise time:6 levels
Inhalation time:0.1 – 30 sec
Frequency:1 – 180 cpm
Tidal volume:5 – 2500 ml
Inspiratory pressure:-10 – 120 H2O cm
Support pressure:0 – 80 H2O cm
PEEP:0 – 50 H2O cm
Altitude compensation:0 – 6000 msnm
Inspiratory pause 0.10 - 2 seg
Monitoring / output parameters
Peak airway pressure:0 – 120 H20 cm
Mean airway pressure:0 – 100 H2O cm
Inspiratory tidal volume:0 – 2500 ml
Frequency:250 bpm
I:E: 49:1 – 1:99
Graphic monitors
Pressure-time waveform
Waveform hold
Auto scale
