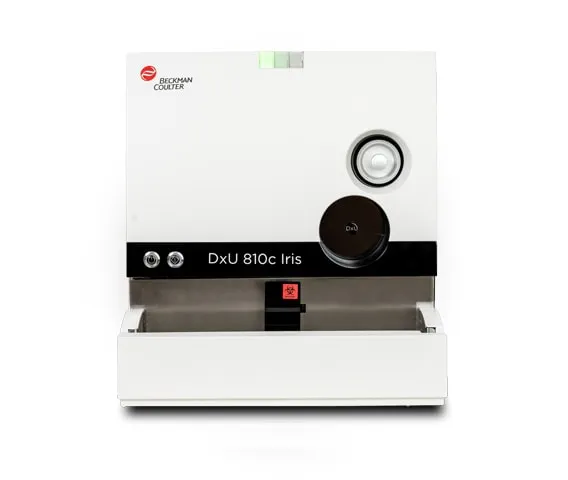

Clinical DxU 810c Iris Urine Chemistry Analyzer
Reliable urine chemistry results without interruptions
The DxU 810c Iris fully automated urinalysis chemistry analyzer delivers reliable results to your laboratory. It features continuous strip loading capability and high throughput with fast turnaround time, bringing a high-capacity urine chemistry analyzer to your laboratory.
*Chemistry Specifications :
-Menu/Test parameters : Test Strip Parameters: Bilirubin, Urobilinogen, Ketones, Ascorbic acid, Glucose, Protein, Blood, pH, Nitrite, Leukocytes / System Parameters: Specific Gravity, Color, Clarity
-Measurement technology
Specific Gravity: refractive index / Clarity: measured directly from scattered light / Color: measured by transmitted light in the sample using proprietary algorithms
-Measurement wavelengths : 472 nm, 520 nm, 630 nm

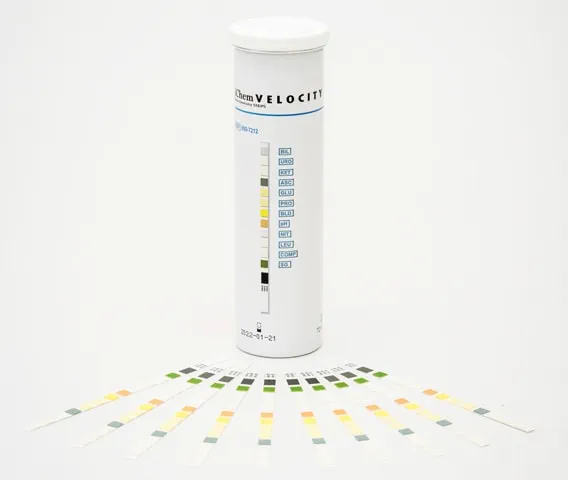

-Test strip : DxU 810c Iris Urine Chemistry Strip, 100-test vial; / Storage 36-86°F (2-30°C)
-Test strip capacity : 1-300 test strips
-Sample throughput : Up to 210 samples per hour
-Sample identification and capacity : Auto-ID barcode or keyboard entry of ID / 10-tube rack system / 60-specimen walk-away capability with continuous feed for each system as standalone or as DxU Iris Workcell; up to 200; L/U holds 140 samples and with 60 onboard this is 200
-Specimen volume : Minimum: 2 mL
-Aspiration volume : Approximately ~1mL
-Data storage : Onboard storage of up to 10,000 patient results
-Communication interface : Bidirectional with host query
-Operating environment : Temperature: 64-82°F (18-28°C) / Humidity: 20-80%, non-condensing
-Electrical power requirement : 100-240 VAC, 50-60 Hz, 3.5A
-Dimensions and Weight : Width: 20.9" / Height: 23" / Depth: 25.4" /Weight: 100 lbs
-Options : Connection to DxU 850m/840m Iris, load/unload station, PROService,
Command Central, Remisol Advance
