General-purpose Radiography System:
- Faster & Easy Examination
- Reliable Performance with Consistent Iamge
- Small Footprint for Exceptional Space Effciency
Exceptional Space Efficiency at Incredible Value:

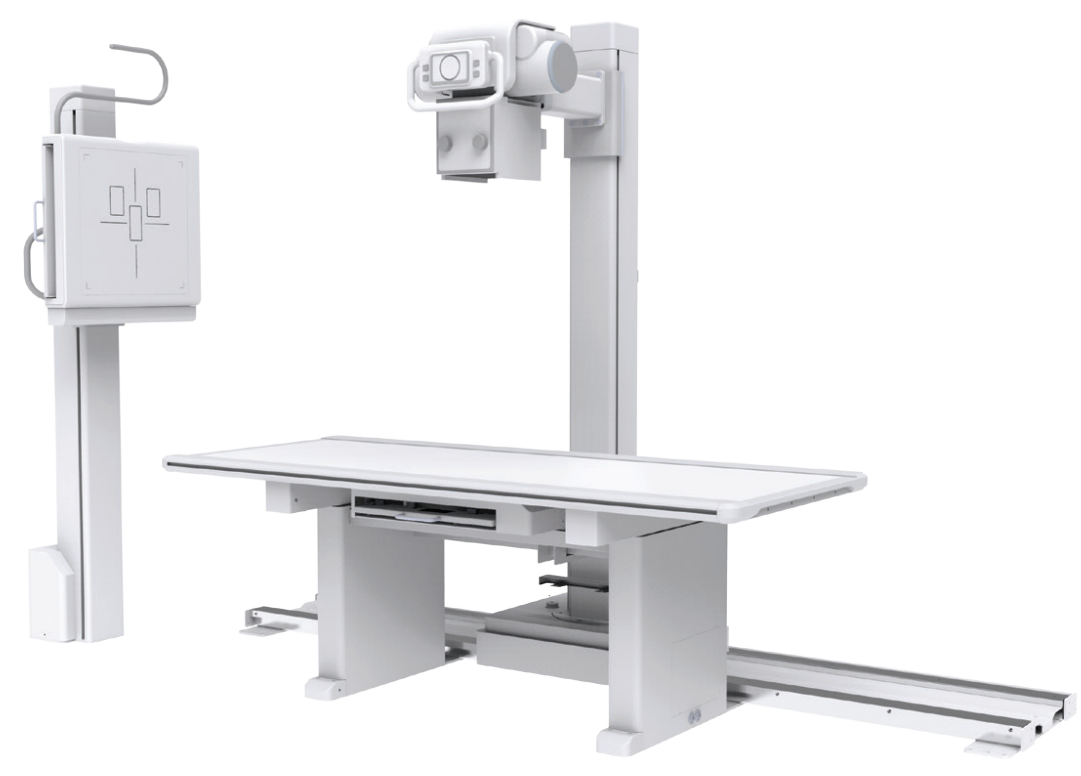

- EXSYS MAX Floor-mounted type provides high durability and productivity, providing excellent space efficiency with a small footprint at an incredible value.
- High-quality Images that Determine the Power of Diagnosis.
- Powerful Performance at Low-Dose Exposure.
High Performance for Maximum Satisfaction:
- It offers various component options for optimized workflow and higher image quality, offering the best customer satisfaction and fast patient throughput.
High Resolution IGZO TFT:
- IGZO Technology has 10 times faster electron mobility combined with lower leakage current compared to less-advanced TFTs. As a result, the IGZO TFT Technology has improved resolution by Ultra Noise reduction.
FOCUS Scintillator Technology:
- FOCUS (Fluorescent Optical CsI Upgraded Structure) has more focused optical signal compared to conventional CsI. As a result, ultra low noise is achieved by FOCUS technology.
Specifications:
- Model
Standard:EXSYS MAX(DIGIRAD) Floor Mounted Type
- Power Supply
Standard:Capacitor Powered
Option:Line Powered
- Capacity
Standard:3KW
Option:40KW
- Max mA / KV
Standard:500mA / 125KV
Option:500mA / 125KV
- Line Nominal Phase
Standard:220VAC, 50/60Hz, Single phase
Option:220VAC, 50/60Hz, Single phase
mAs Range:
Standard:0.4~500mAs
Option:0.4~500mAs
