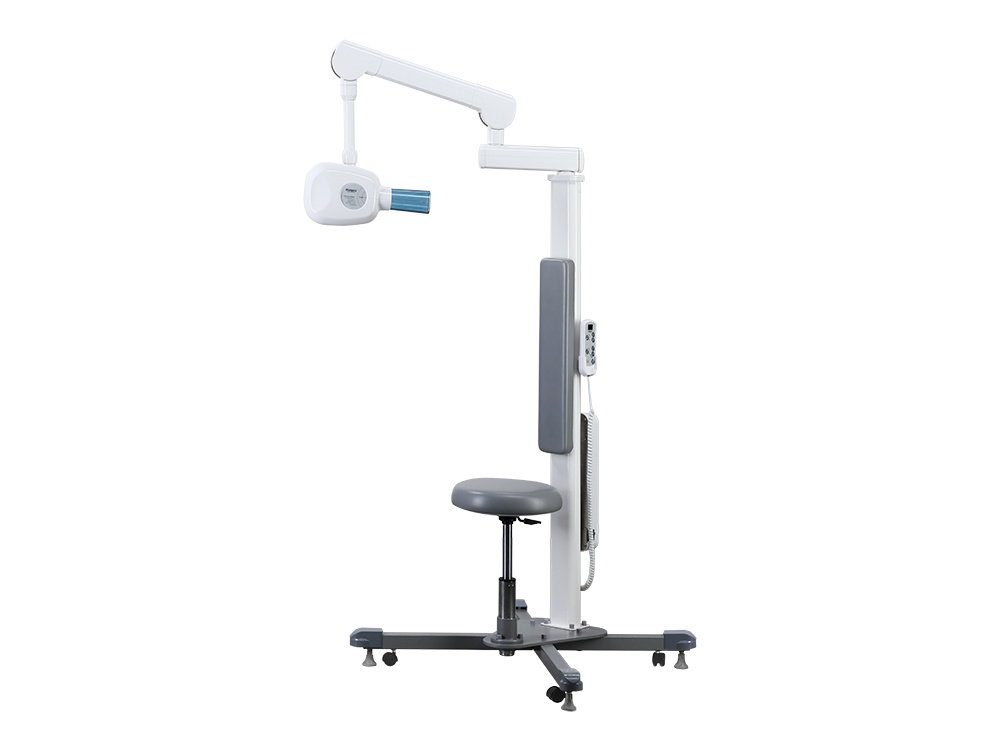

DC X-Ray Mobile Type
-HIGH-FREQUENCY X-RAY UNIT ELIMINATE SOFT RADIATION
Allowing doctors and patients to suffer less radiation than conventional equipment.

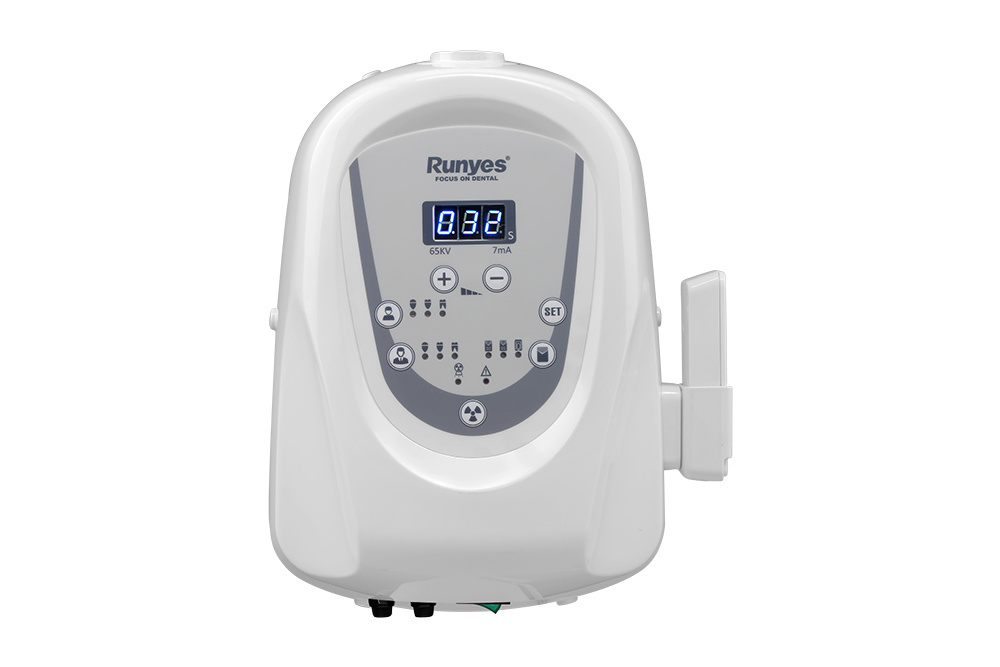

-ERROR CODE DISPLAY FUNCTION
Pre-set digital imaging modes with adjustable parameters provide the opportunity to use digital image systems, and it is compatible with digital imaging sensors from any brands.
-EXCELLENT STABILITY
Stable operation, fast and accurate positioning, indepen-dent of fixed voltage, no need for voltage regulator.
-REDUCED EXPOSURE TIME
Higher radiation safety standards, and longer tube life.
-PRECISE TIMING CONTROL
The unit incorporates microprocessor technologies to reach the exposure time precision of 1/100 seconds. Numerical displays indicate timely and correctly for any warmings or alarms.
Almost no soft rays and stray radiation, high imaging quality.
Product Parameters
-Power Voltage:AC 110V-240V
-Bulb Tube: Canon (Toshiba)
-Duty Cycle:1/30
-Frequency:50/60Hz
-Ray Focal Spot:0.4mm
-Half Value Layer:65Kv
-Maximum Power:1100VA
-Bulb Tube Voltage:65Kv±10%
-Inherent Filtration:≥2.1mm Al
-Electricity:5A
-Anode Current:7mA±20%
-Leakage Radiation:1meter≤ 0.14mGy/h
-Fuse:10A
-Anode Angle:12.5°
-Time Of Exposure:0.04—2.0s
