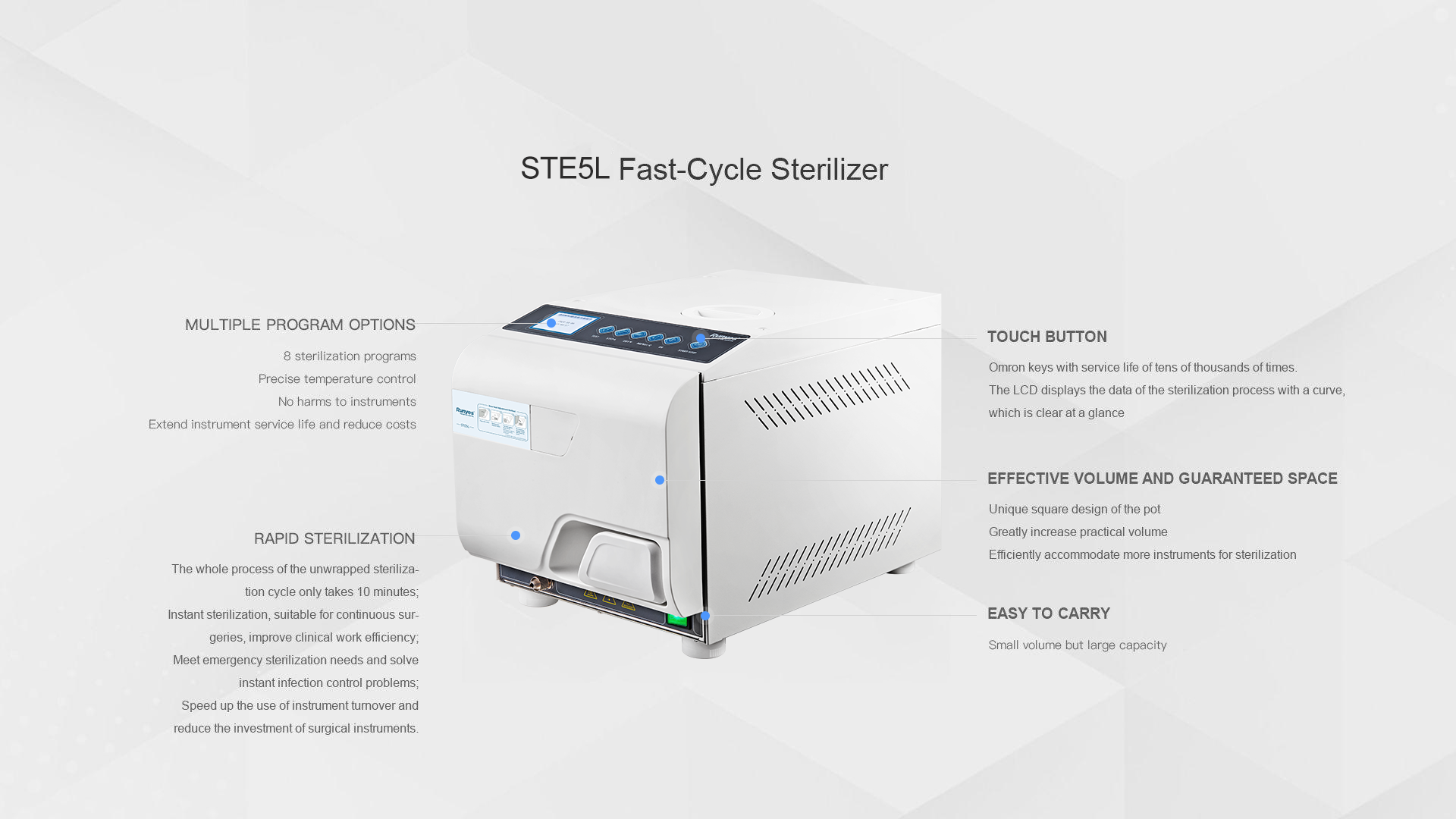

STE5L Fast-Cycle Sterilizer
MULTIPLE PROGRAM OPTIONS
8 sterilization programs
Precise temperature control
No harms to instruments
Extend instrument service life and reduce costs
RAPID STERILIZATION
The whole process of the unwrapped steriliza-tion cycle only takes 10 minutes;
Instant sterilization, suitable for continuous sur-geries, improve clinical work efficiency;
Meet emergency sterilization needs and solve
instant infection control problems;
Speed up the use of instrument turnover and reduce the investment of surgical instruments.
TOUCH BUTTON
Omron keys with service life of tens of thousands of times.
The LCD displays the data of the sterilization process with a curve, which is clear at a glance
EFFECTIVE VOLUME AND GUARANTEED SPACE
Unique square design of the pot
Greatly increase practical volume
Efficiently accommodate more instruments for sterilization
EASY TO CARRY
Small volume but large capacity
Product Parameters
Model STE 5L
-Size(mm) : 500*310*320
-Chamber size(mm) : 192*96*300
-Chamber volume(L) : 5L
-Chamber type : B
-Rated voltage : 110V-230V
-Input power(VA) : 1800VA
-Initial default pressure : -0.1/0.3Mpa
-Initial default temperature : 140℃
-Water tank volume(L) : 1L
-Water consumption for one
-sterilization(mL) : 200mL
-Minimum water supply : 250mL
-Ambient temperature(℃) : +5℃-40℃
-Relative humidity range : ≤85%
-NW : 26 Kg
-GW : 30 Kg
-Residual humidity after drying of the device≤0.2%,
-residual humidity after drying of the dressing≤1%
-The highest vacuum≤-0.92Kpa
