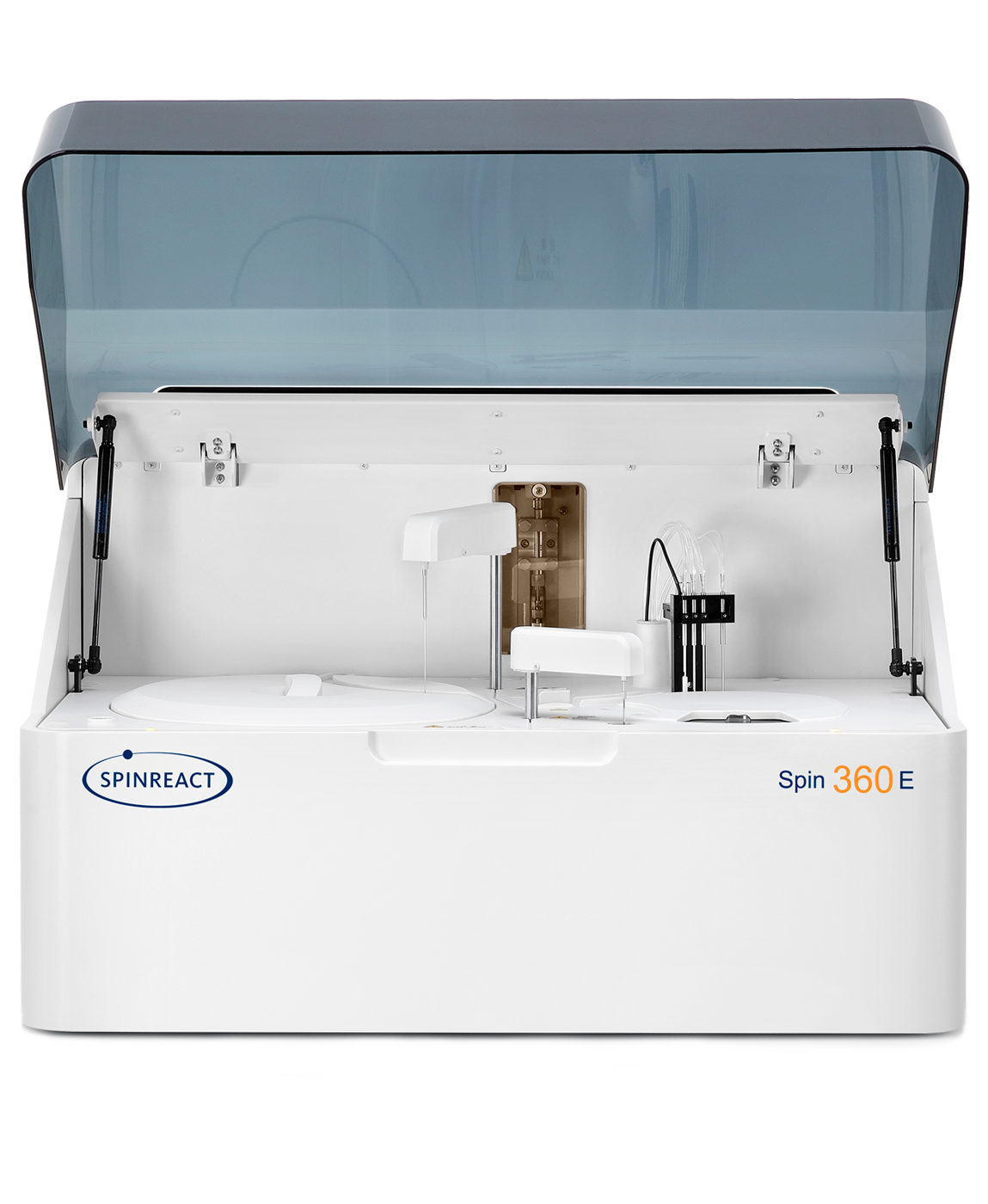

Spin 360E CLINICAL CHEMISTRY Automatic Analyzer
Throughput up to 360 t/h
Compact yet Robust
Up to 100 sample positions
Up to 100 reagent positions
*Reagent system :
Up to 100 positions refrigerated tray
R1 volume:100~200μL, step by 0.5μL
R2 volume:10~200μL, step by 0.5μL
*Sample system :
50 to 100 positions for samples
Sample volume:2~35μL, step by 0.1μL
Pre-dilution and post-dilution
Carry over < 0.05%
*Reaction system :
80 reusable cuvettes
Reaction volume:100~360μL
Reaction temperature at 37 ºC ±0,1 ºC by air bath
*Optical system :
Halogen-tungsten lamp
12 wavelengths, 340nm, 380nm, 412nm, 450nm,
505nm, 546nm, 570nm, 605nm, 660nm, 700nm, 740nm, 800nm
*Calibration :
Calibrator auto-dilution
*Methods:
K factor, Linear (two points and multipoints),
Logit-Log 4P, Logit-Log 5P, Spline, Exponential,
Polynomial, Parabola, Logit-Log3P, Broken line
*Control Methods :
Westgard multi-rule, Levey-Jennings, Cumulative
sum check, Twin plot
*Operating system :
Windows
Ethernet connection
PC not included
