Our intelligent ICU ventilator. The next generation
- With all advanced ventilation modes and therapies
- For adult, pediatric, and neonatal patient groups
- Featuring a wide range of diagnostic tools
- Peak flow of 260 l/min

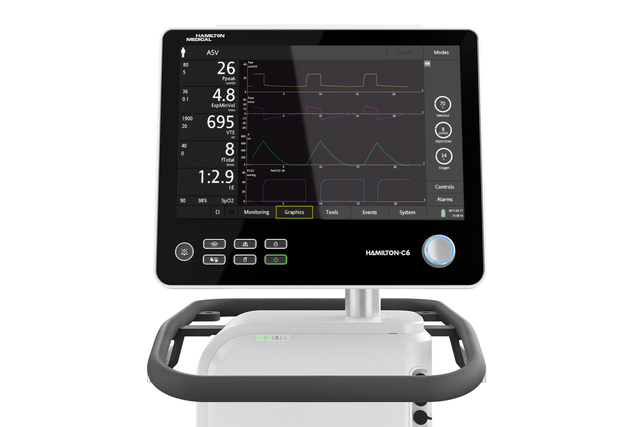

On the big screen. Important ICU ventilation data at a glance
- 17‑inch detachable touch screen
- Configurable screen setups
- Over 50 monitoring parameters
- 72‑hour trends

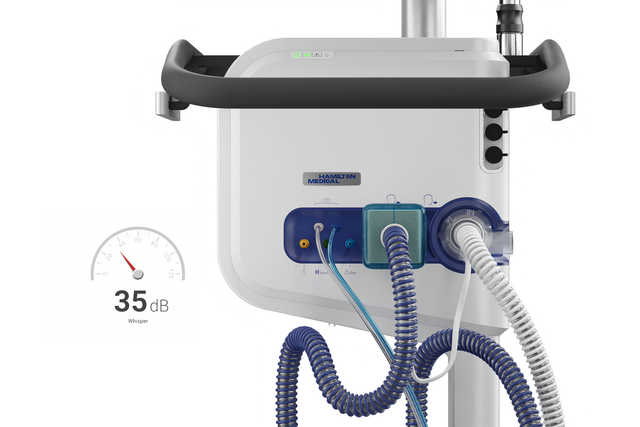

- With an average of 35 dB, it is our most silent one.

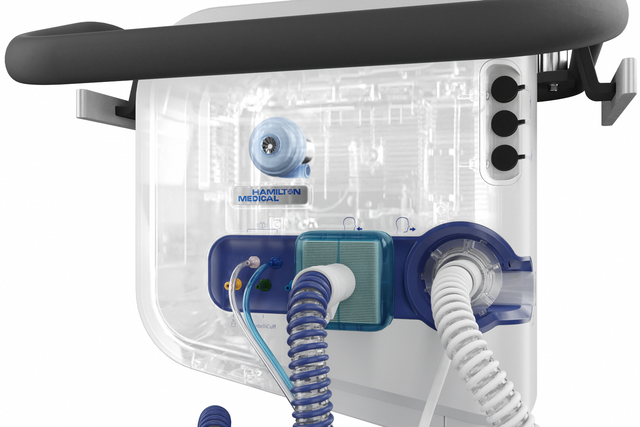

-Guaranteed to last. Our high‑performance turbine
With its powerful turbine, this ICU ventilator is completely independent from a high‑pressure air outlet and external compressors. This gives you maximum mobility so you are free to move around the hospital. We also offer a warranty on the turbine for the expected lifetime of the HAMILTON‑C6 ventilator.

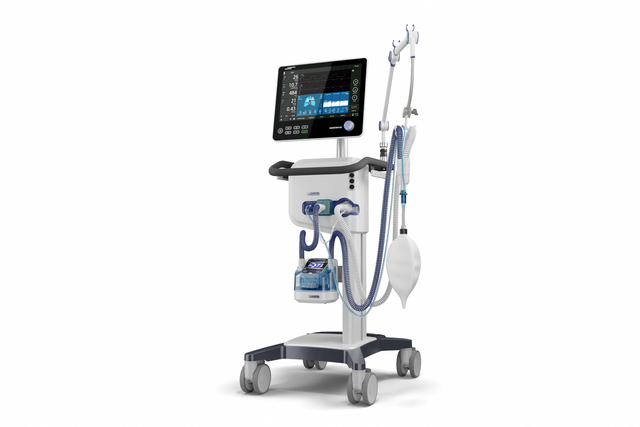

- Humidifier controls and status. On the ventilator display
Operate the HAMILTON‑H900 humidifier comfortably directly from the ventilator display. The HAMILTON‑H900 synchronizes with the ventilator and selects the humidification mode automatically based on the ventilation mode.
- Fiercely independent. No compressed air and battery powered
-High‑performance turbine
- Typically 1.5 hours of battery time with one battery, 3 hours with two batteries

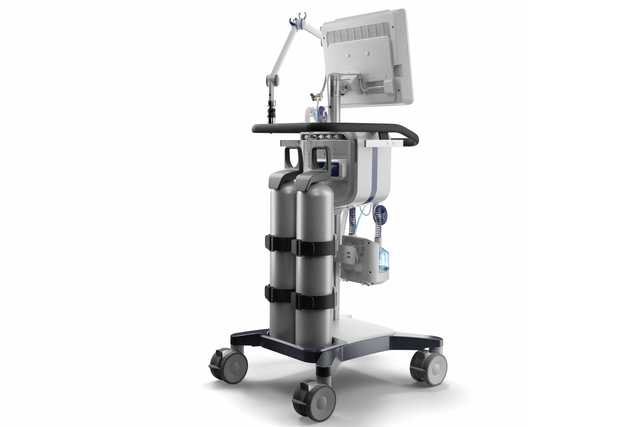

- Two oxygen cylinder holders

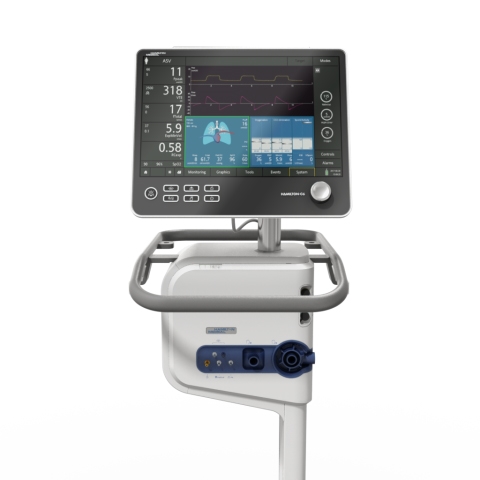

- Designed to be different. Select the setup that fits your needs
This one is as flexible as they come! You can put it on a trolley, attach it to a pendant, take off its head or position it on a shelf.
- Data for the big picture. Comprehensive connectivity solutions for PDMS, monitoring, and EMS

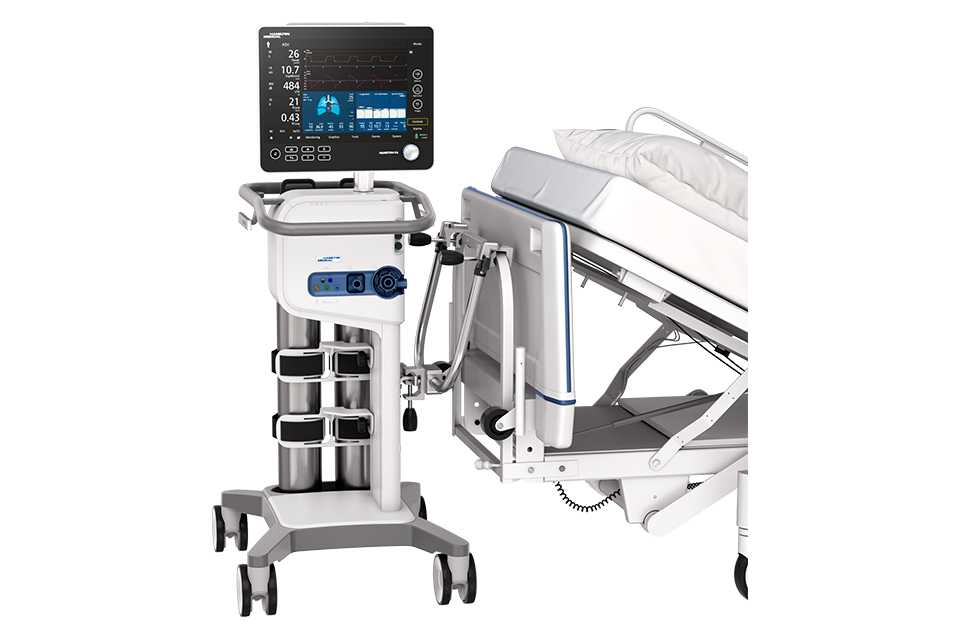

- The sooner the better. Early mobilization
With its high‑performance turbine, battery, compact size, and state‑of‑the‑art ventilation modes, the HAMILTON‑C6 is also at your patient's side for their first steps out of bed.
* Technical data :-
Patient groups ::Adult/Ped, Neonatal
Dimensions (W x D x H) ::423 x 250 x 415 mm (monitor)
360 x 250 x 394 mm (ventilation unit)
640 x 560 x 1400 mm (incl. trolley)
Weight ::Monitor (interaction panel) without shelf mount: 7.8 kg (17.2 lb)
Monitor with shelf mount: 10 kg (22 lb)
Ventilation unit with shelf mount: 10.5 kg (23.2 lb)
Ventilation unit, monitor, and trolley: 46 kg (101 lb)
Monitor size and resolution : 17 in (431.8 mm) diagonal
1920 x 1200 pixels
Battery operating time ::1.5 h with one battery 3 h with two batteries
Air supply ::Integrated turbine with warranty for the expected lifetime of the HAMILTON C6 ventilator
O2 connector ::DISS (CGA 1240) or NIST
Connectivity:Three COM ports, two USB ports, DVI, Nurse call
Loudness ::37 dB in normal operation
