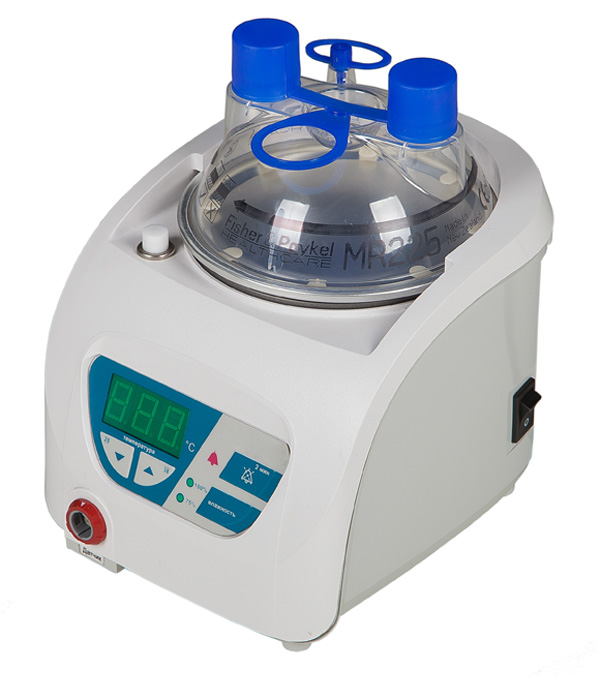

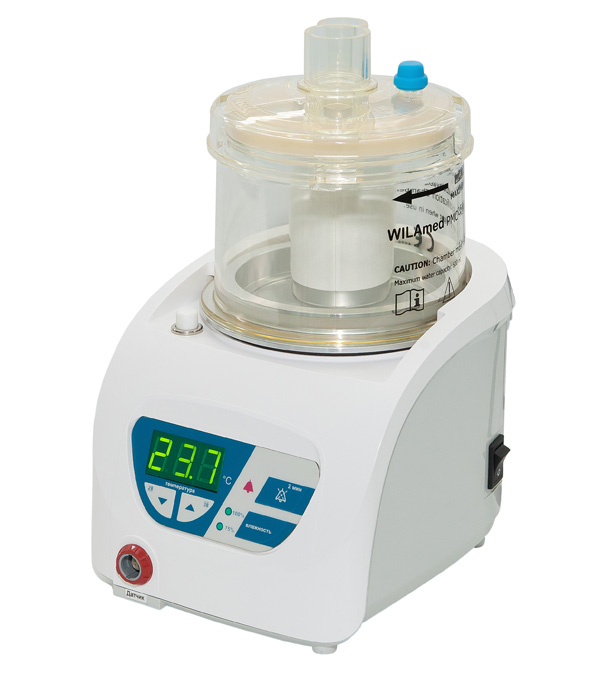

- Humidifier TEVLAR is intended for heating and increase of the water content of breathing mixture coming to the patient from the artificial lung ventilation device (ventilator), inhalational anesthesia device or the oxygen inhaler.
Advantages :
- Simple maintenance, use safety and compactness allow to efficiently apply this modelin combination with any ALV devices, IA and oxygen inhalers.
- Availability of 3 modes of humidity at the supply hose output.
- Automatic maintenance of the selected by a doctor parameters of temperature and breath mixture humidity.
- Indication of preset and measured temperature at the supply hose output on the numeric display.
- Possibility to equip humidifier with breathing circuits for patients of any age.
- Different capacity reservoirs usage in the humidifier (up to 500 ml).
- Signalization about breathing mixture overheat and disturbances during operation.
Technical characteristics :
- Maximum volume of poured reservoir water (per set) :
250 ml
- Temperature range at the feeding hose outlet :
from 28oC to 38oC
- Relative humidity at the feeding hose outlet (3 modes) :
~50 %
75±12 %
85 - 100 %
- Range of breathing mixture flows :
from 2 to 50 l/min
- Ambient temperature range from :
15oC to 35oC
