AnyCheck

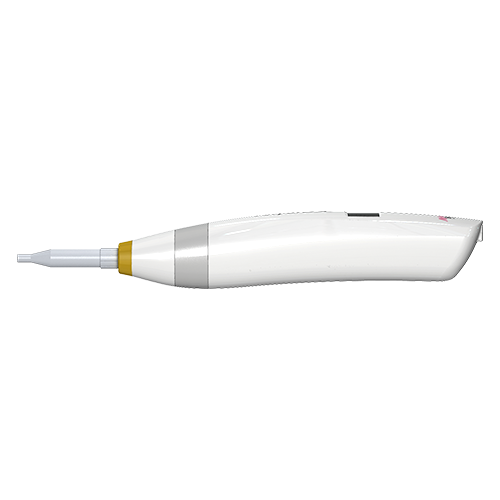

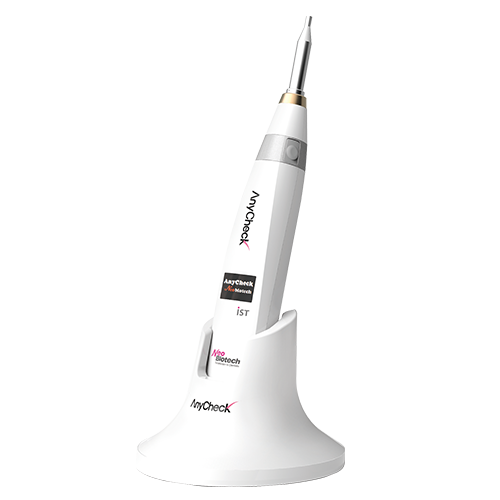

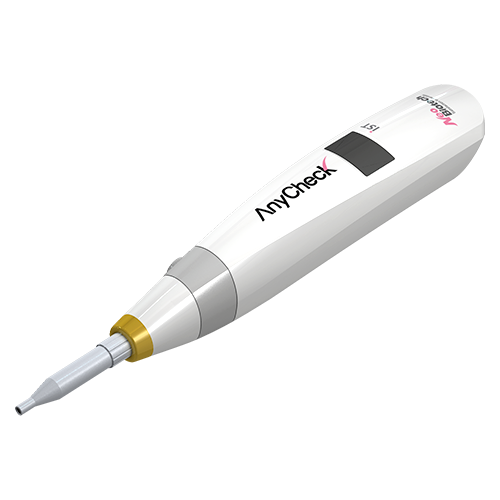

Dental implant stability meter (tapping-motion) for measuring stability of an implant without disconnecting the healing abutment.
Features

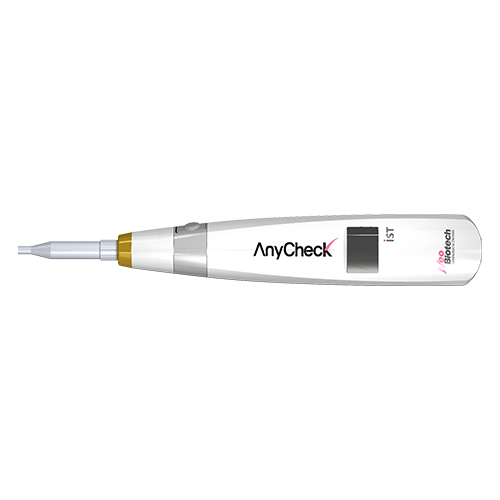

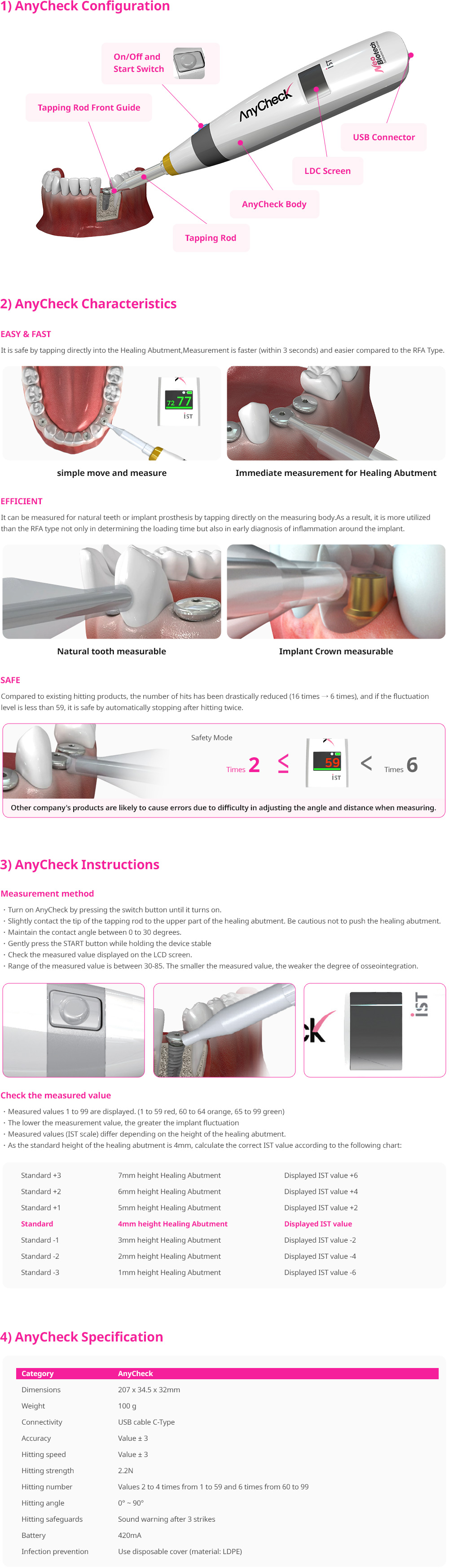

1) AnyCheck Configuration
-On/Off and Start Switch
-Tapping Rod Front Guide
-USB Connector
-LDC Screen
-AnyCheck Body
-Tapping Rod
2) AnyCheck Characteristics
EASY & FAST
It is safe by tapping directly into the Healing Abutment, Measurement is faster (within 3 seconds) and easier compared to the RFA Type.
-simple move and measure
-Immediate measurement for Healing Abutment
EFFICIENT
It can be measured for natural teeth or implant prosthesis by tapping directly on the measuring body. As a result, it is more utilized than the RFA type not only in determining the loading time but also in early diagnosis of inflammation around the implant.
-Natural tooth measurable
-Implant Crown measurable
SAFE
Compared to existing hitting products, the number of hits has been drastically reduced (16 times 6 times), and if the fluctuation level is less than 59, it is safe by automatically stopping after hitting twice.
-Safety Mode
3) AnyCheck Instructions
Measurement method
-Turn on AnyCheck by pressing the switch button until it turns on.
-Slightly contact the tip of the tapping rod to the upper part of the healing abutment. Be cautious not to push the healing abutment.
-Maintain the contact angle between 0 to 30 degrees.
-Gently press the START button while holding the device stable Check the measured value displayed on the LCD screen.
-Range of the measured value is between 30-85. The smaller the measured value, the weaker the degree of osseointegration.
Check the measured value
-Measured values 1 to 99 are displayed. (1 to 59 red, 60 to 64 orange, 65 to 99 green)
-The lower the measurement value, the greater the implant fluctuation
- Measured values (IST scale) differ depending on the height of the healing abutment.
-As the standard height of the healing abutment is 4mm, calculate the correct IST value according to the following chart:
Standard +3 7mm height Healing Abutment Displayed IST value +6
Standard +2 6mm height Healing Abutment Displayed IST value +4
Standard +1 5mm height Healing Abutment Displayed IST value +2
Standard 4mm height Healing Abutment Displayed IST value
Standard-1 3mm height Healing Abutment Displayed IST value-2
Standard-2 2mm height Healing Abutment Displayed IST value
Standard -3 1mm height Healing Abutment Displayed IST value -6
4) AnyCheck Specification
Category AnyCheck
Dimensions:207 x 34.5 x 32mm
Weight:100 g
Connectivity:USB cable C-Type
Accuracy:Value ± 3
Hitting speed:Value ± 3
Hitting strength:2.2N
Hitting number:Values 2 to 4 times from 1 to 59 and 6 times from 60 to 99
Hitting angle:0°-90°
Hitting safeguards:Sound warning after 3 strikes
Battery:420mA
Infection prevention:Use disposable cover (material: LDPE)
