State-of-the-art light-proof enclosure design

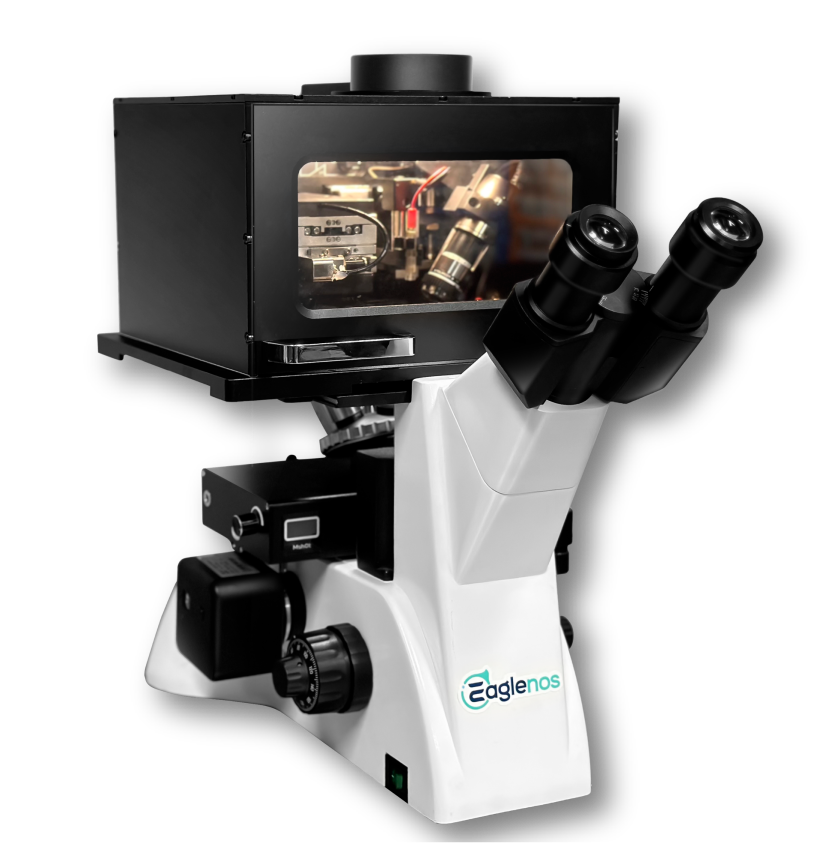

Electrochemical Luminescence Microscope
The electrochemical luminescence microscope enables microscopic imaging signal acquisition of electrochemical luminescence signals for the analysis of single cells, single particles, tissue slices, and biochips. The microscope offers diverse information, encompassing details about biomolecules within cells and tissues, as well as the electroanalytic performance of nanomaterials and more.
Key features:
• Integrated Design: Integrates electrochemical and microscopic imaging modules to reduce the interference of external light on signal acquisition.
• High Sensitivity: Single-photon collection; sub-electron level readout noise and up to 90% quantum efficiency.
• High Adaptability: Flexible application of various voltage modes (sinusoidal wave, etc.) to enhance electrochemical luminescence efficiency.
• Light-proof Enclosure: No need for external darkroom construction, facilitating portable experimental operations.
* Electrochemical Parameters :
- Compliance voltage : ± 5 V
- Current range : 1 nA ~ 250 mA
- Input impedance : 10 MΩ
* Optical Parameters :
- Effective pixels : 800(H) x 600(V)
- Pixel size : 16 μm x 16 μm
- Effective area : 12.8 mm x 9.6 mm
- Full-Well Capacity : 73 ke- (typical)
- Readout speed : 60 fps @HDR mode, 25 fps @Low noise mode
- Readout noise : 1.6 e- @HDR mode, 0.8 e- @Low noise mode
