General Radiography:
- Minimum Dose · Maximum Diagnostic Accuracy by QX-Platform
- Extraordinary Patient Throughput and Fast Workflow
- High DQE / MTF Value
- DEPAI™ AI Imaging Processing
- TRUVIEW®ART Advanced Reverse Filtering Technology
- User Friendly & Ergonomic Design
EXPEED by QX-Platform:
- EXPEED P series applied by QX Platform provides premium imaging experience in dose reduction and diagnostic accuracy.
High Resolution IGZO TFT:
- DRTECH’s next-generation IGZO TFT, developed with proprietary expertise and in-house technology, features 10 times faster electron mobility and significantly lower leakage current. Compared to a-Si, it enables 10 times noise reduction, delivering high-resolution diagnostic images with minimal noise even at low radiation doses.
FOCUS Scintillator:
- FOCUS (Fluorescent Optical CsI Upgraded Structure) is a technology that deposits a uniformly structured CsI layer onto the TFT. By significantly reducing noise caused by light scattering compared to conventional CsI, it enables the production of clear, high-contrast images even at low radiation doses.
TRUVIEW®ART:
- DRTECH’s proprietary image processing technology, TRUVIEW ART, reduces light scattering that occurs in the indirect method where X-rays are converted into light, delivering clearer and sharper images. With over 30% improved spatial resolution compared to conventional systems, it offers outstanding diagnostic performance in detecting subtle lesions in the lungs, chest, and heart.
DEPAI™:
- DEPAI is an advanced image processing technology that applies AI deep learning algorithms to maintain image clarity while reducing noise, even at low radiation doses. By applying AI-based processing and noise reduction algorithms to each anatomical region—such as bones, muscles, and soft tissues—it delivers more than 2.5 times improved detectability.

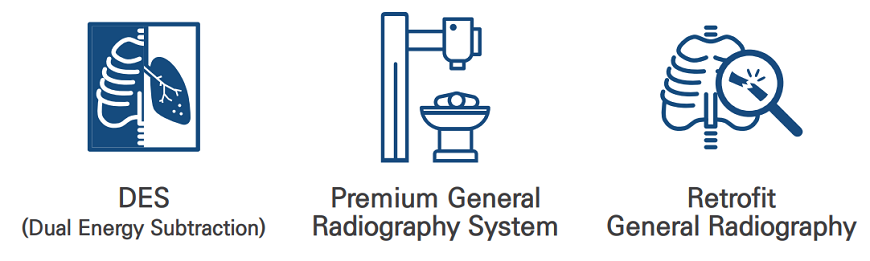

Powerful Performance for Multiple Modalities:
- EXPD P series supports various modalities. It can be integrated into various X-ray systems from DES, premium X-ray systems to retrofit.

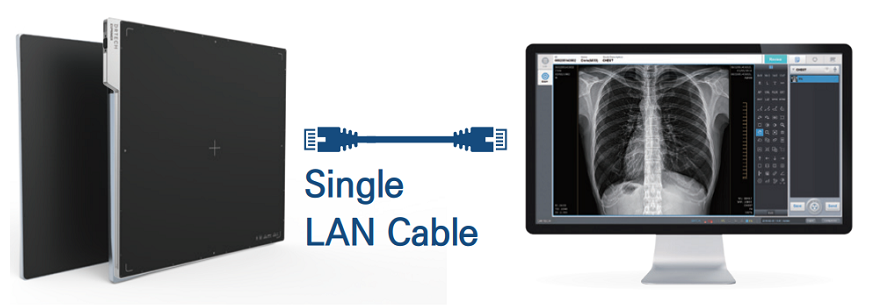

Single LAN cable:
- With a single Lan cable, installation and maintenance of detectors become more simplified. The elimination of interface box allows easier and faster installation.
Fast & Efficient Workflow:
- Fast image preview and intuitive operating scheme of EXPD P series allows fast workflow leading to increased productivity.
Specifications:

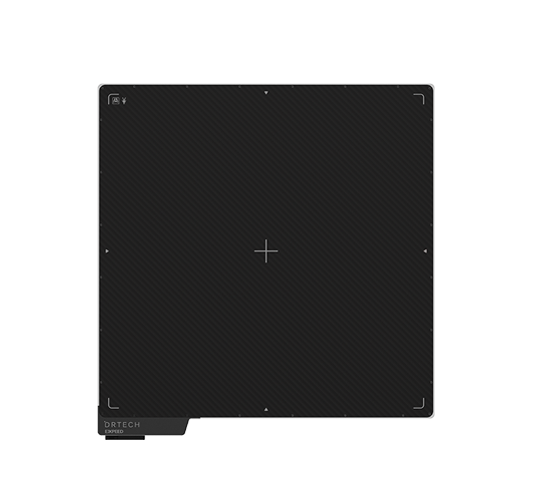

- Model: EXPD 4343P (Wired)
- Scintillator FOCUS: Csl:TI
- Panel Technology: IGZO TFT designed by DRTECH
- Pixel size: 140㎛
- Pixel matrix: 3,072 X 3,072
- Dimensions: 460(H) x 460(V) x 15.5(D) mm
- Weight: 4.3kg
